Description

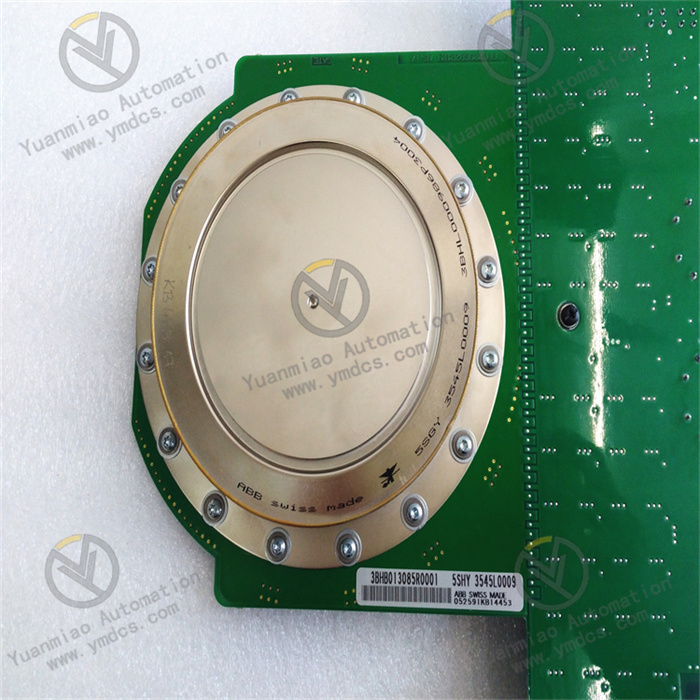

ABB 5SHY3545L0009 3BHB013085R0001

Functional Features

High Voltage and High Current Capability

Suitable for scenarios such as High-Voltage Direct Current (HVDC) transmission, Flexible Alternating Current Transmission Systems (FACTS), industrial frequency converters, and motor drives. It can withstand thousands of volts and hundreds of amperes of current (specific parameters should refer to the technical manual).
Adopts advanced thyristor chip technology to ensure stability and reliability under high-power conditions.

Efficient Heat Dissipation Design

The module typically integrates a ceramic substrate and metal radiator, supporting forced air cooling or water cooling to ensure heat dissipation efficiency during high-power operation and prevent overheating damage.

High Reliability and Long Service Life

Subject to strict electrical and mechanical tests, it has anti-vibration and anti-impact capabilities, making it suitable for harsh industrial environments.
Designed for long service life, it meets the needs of long-term continuous operation and reduces maintenance frequency.

Modular Design

Standardized packaging facilitates installation and replacement, supporting rapid integration into existing power electronics systems.
Can be used in parallel or series with other thyristor modules to flexibly expand the system's power rating.

Protection Features

Built-in overvoltage and overcurrent protection mechanisms (in some models), or achieves rapid fault shutdown through external circuit coordination to ensure system safety.

Technical Parameters

Parameter	Typical Value	Description
Rated Voltage (VDRM/VRRM)	4500 V	Peak repetitive off-state voltage / Peak repetitive reverse voltage
Rated Current (IT(AV))	350 A	Average on-state current
Surge Current (ITSM)	8000 A (8.3 ms)	Non-repetitive peak surge current
On-State Voltage Drop (VTM)	≤1.5 V (typical)	Peak on-state voltage
Junction Temperature Range (Tj)	-40°C ~ +125°C	Operating junction temperature range
Packaging Type	Press-fit ceramic package	Ensures high reliability and heat dissipation
Cooling Method	Forced air cooling / water cooling	Requires external cooling system
Dimensions (L×W×H)	Approximately 150mm×100mm×50mm	Actual dimensions subject to physical product
Weight	Approximately 2.5 kg

Application Scenarios

Power Systems

HVDC transmission converter stations, substation reactive power compensation devices (SVC/SVG), circuit breaker control.

Industrial Drives

Soft starters for large motors, frequency converters (e.g., rolling mill drives, hoists, fan and pump control).

Renewable Energy

Power electronics conversion links in photovoltaic inverters and battery energy storage systems (BESS).

Special Power Supplies

High-frequency heating power supplies, welding power supplies, pulse power supplies, and other scenarios requiring high-power control.

Operation and Maintenance Recommendations

Installation Notes

Electrical Connections: Ensure firm wiring and correct polarity to avoid parasitic inductance in high-current loops.
Heat Dissipation Installation: Apply thermal grease between the module and radiator to ensure good contact; ensure sufficient air volume in air-cooling systems and prevent water leakage in water-cooling systems.
Insulation Protection: Implement adequate insulation measures in high-voltage environments, using suitable insulating materials and spacing.

Parameter Configuration

Set trigger pulse parameters (such as trigger delay angle and pulse width) through the supporting drive circuit to ensure reliable thyristor conduction.
Integrate with control systems (such as PLCs, DSPs) to achieve real-time monitoring and protection logic.

Maintenance and Fault Diagnosis

Regularly inspect the module's appearance for cracks, burns, or overheating marks.
Measure the resistance between pins (with power off) and compare with normal parameters to determine if the chip is damaged.
In case of faults (such as overcurrent tripping), troubleshoot external circuits (e.g., load short circuits, abnormal drive signals) and check if the module needs replacement.
