Description

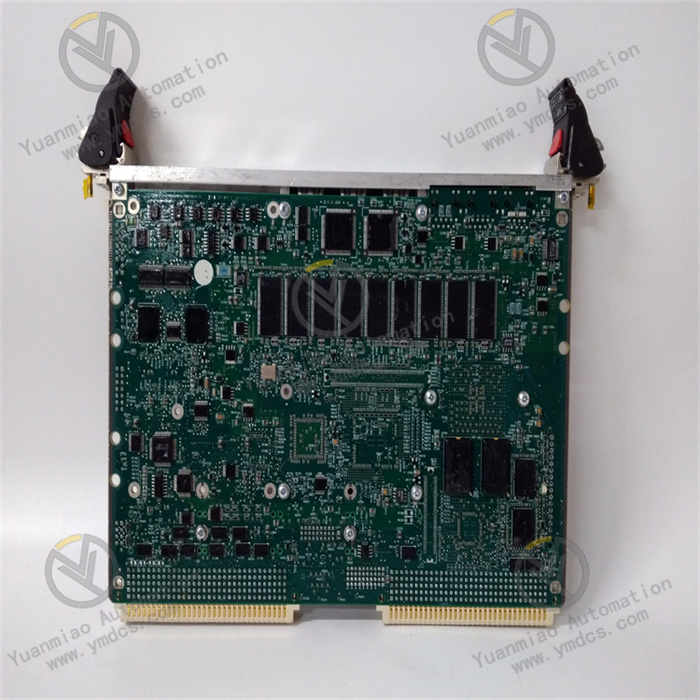

EMERSON 01-W3878F-02D
1. Product Overview
EMERSON 01-W3878F-02D is an industrial‑grade high‑precision control module. It is designed as a solution for signal processing, logic control, and actuator regulation in industrial automation processes, optimized for harsh operating environments in industries such as petrochemical, power, metallurgy, and water treatment.
Adopting an advanced embedded processor architecture and modular design, the module integrates core functions including signal acquisition, logic operation, and command output. It plays a critical role in converting, transmitting various field signals, and controlling equipment, serving as an important component for Emerson DCS/PLC control systems.
It features high‑precision signal processing, flexible communication compatibility, comprehensive protection mechanisms, and convenient operation and maintenance. It enables accurate monitoring and closed‑loop control of industrial process parameters, and is seamlessly compatible with Emerson and other mainstream control systems. It is widely used in various industrial production scenarios and also acts as a key spare part for upgrading, retrofitting, and fault repair of legacy control modules.
2. Specifications
| Parameter Category | Details |
|---|---|
| Model | 01-W3878F-02D |
| Manufacturer | EMERSON (Emerson, USA) |
| Product Type | Industrial‑grade control module (process control signal processing unit with logic control function) |
| Core Purpose | Signal acquisition, logic operation, and actuator regulation in industrial automation; compatible with Emerson and mainstream DCS/PLC systems; used as core process control unit and spare part for legacy equipment maintenance |
| Electrical Parameters | Operating voltage: 24 VDC standard industrial power supply (compatible with ±10% fluctuation); Input signal: 4–20 mA analog input (compatible with 0–10 V); Output signal: 4–20 mA analog output / digital output (optional); Power consumption: ≤ 10 W |
| Control Performance | Signal acquisition accuracy: ±0.1% FS; Response time: ≤ 10 ms; Supports PID closed‑loop control and logic interlock control; with auto‑tuning function; supports multi‑channel synchronous signal processing |
| I/O | Analog input: 4–8 channels (configurable); Analog output: 2–4 channels (configurable); Digital input/output: 4–8 channels each; Compatible with temperature, pressure, flow, and other industrial sensor signals |
| Dimensions | Standard industrial compact design; housing material: metal shielding; suitable for standard 35 mm DIN rail mounting; dimensions approx. 120×80×60 mm; wire size: 10–16 AWG; no extra modification required |
| Communication Interface | Standard: Modbus RTU (RS485); Optional: HART 7, Profibus DP; Baud rate: 9600–19200 bps adjustable; supports data upload and remote parameter configuration |
| Protection Degree | IP20 (panel / DIN rail mounting); metal housing provides good dustproof and anti‑EMI performance; complies with IEC 60529; suitable for control rooms and industrial field environments |
| Environmental Rating | Operating temperature: -20 °C ~ +60 °C; Storage temperature: -40 °C ~ +85 °C; Relative humidity: 5% ~ 95% (non‑condensing); EMI compliance: IEC 61000-6-2/6-4; resistant to strong industrial electromagnetic interference |
| Weight | Approx. 0.25 kg; compact design for easy installation, removal, maintenance and replacement |
3. Functions & Features
(1) High‑Precision Signal Processing & Accurate Control
Equipped with high‑precision signal acquisition and processing chips, the module achieves acquisition accuracy of ±0.1% FS and response time ≤ 10 ms. It accurately captures analog signals including temperature, pressure, and flow in industrial fields, effectively suppresses interference, and ensures data accuracy.
It supports PID closed‑loop control, logic interlock control, and parameter auto‑tuning, enabling precise regulation of actuators to meet complex process control requirements and improve production stability and consistency.
(2) Flexible Communication & Seamless System Integration
Standard with Modbus RTU (RS485), and optional HART 7, Profibus DP protocols with adjustable baud rate, allowing flexible adaptation to different industrial control systems.
It seamlessly connects with Emerson DeltaV DCS, PLC systems, and other mainstream control systems for high‑speed data exchange, remote configuration, and monitoring without extra protocol converters, improving integration flexibility and management efficiency.
(3) Comprehensive Protection & High Reliability
Metal shielding housing provides excellent anti‑electromagnetic interference performance, effectively resisting interference from inverters and high‑voltage equipment on site to ensure stable operation.Built‑in hardware‑level protection includes overcurrent, overvoltage, undervoltage, overheating, and signal abnormality protection. Output is automatically disabled and alarms triggered upon fault to prevent equipment damage and accidents.
Comprehensive self‑diagnosis monitors status in real time and records fault logs for fast troubleshooting. MTBF is more than 100,000 hours.
(4) Flexible Configuration & Convenient O&M
Supports parameter configuration, channel calibration, and logic programming via Emerson dedicated configuration software with a user‑friendly graphical interface.Modular design and standard DIN rail mounting enable easy installation and removal. It can directly replace faulty modules without system reconstruction, greatly reducing downtime and maintenance costs.Supports parameter backup and restoration for batch configuration and efficient maintenance.
4. Applications
With its high precision, high reliability, and flexible compatibility, EMERSON 01-W3878F-02D is widely applied in various industrial automation scenarios:
- Petrochemical Industry: Temperature / pressure control of reactors, flow regulation of crude oil transmission, chemical material ratio control, suitable for high‑temperature, corrosive, and high‑interference environments.
- Power Industry: Monitoring and regulation of power plant auxiliary equipment (fans, pumps), status monitoring of substation equipment, ensuring stable operation of power systems.
- Metallurgy Industry: Temperature control of rolling production lines, parameter regulation of smelting furnaces, suitable for high‑temperature and dusty environments.
- Water Treatment & Environmental Protection: Influent / effluent parameter monitoring and dosing regulation in wastewater plants, pressure / flow control in municipal water supply.
- General Industry: Signal acquisition and logic control for various industrial processes, upgrade and repair of old control modules, integrated application with Emerson and mainstream DCS/PLC systems.
5. FAQs & Solutions
1. How does the module adapt to existing Emerson and other brand control systems?
As a standard Emerson industrial control module, it has fully compatible terminal definitions with Emerson DeltaV DCS and PLC systems and can be directly connected without rewiring or architecture changes.
When connecting to other systems, communication can be configured via the standard Modbus RTU protocol. The RS485 interface supports long‑distance transmission without extra converters. After configuration, data exchange and remote control are available with strong compatibility.
2. How to troubleshoot abnormal signal acquisition or unstable output during operation?
First, check that the 24 VDC power supply is stable and wiring is secure, and eliminate power noise interference.Next, verify correct and tight sensor wiring and normal sensor operation (measure output with a multimeter).Then, use configuration software to check parameters (range, PID settings, etc.) and calibrate channels.
Finally, use self‑diagnosis to read fault logs. If the module is defective, replace it with a spare and contact Emerson after‑sales for repair and calibration.
3. How to ensure long‑term stable operation and extend service life?
Install in a dry, ventilated area away from high temperature, humidity, dust, and strong electromagnetic sources; properly ground the metal housing for better anti‑interference performance.Regularly inspect terminals, clean dust and oxidation to ensure reliable connections.Back up parameters and update firmware via configuration software to fix potential software issues.Do not operate beyond rated voltage and current to avoid overload damage.Periodically check operation status, review fault logs, handle anomalies in time, and maintain operation records.
