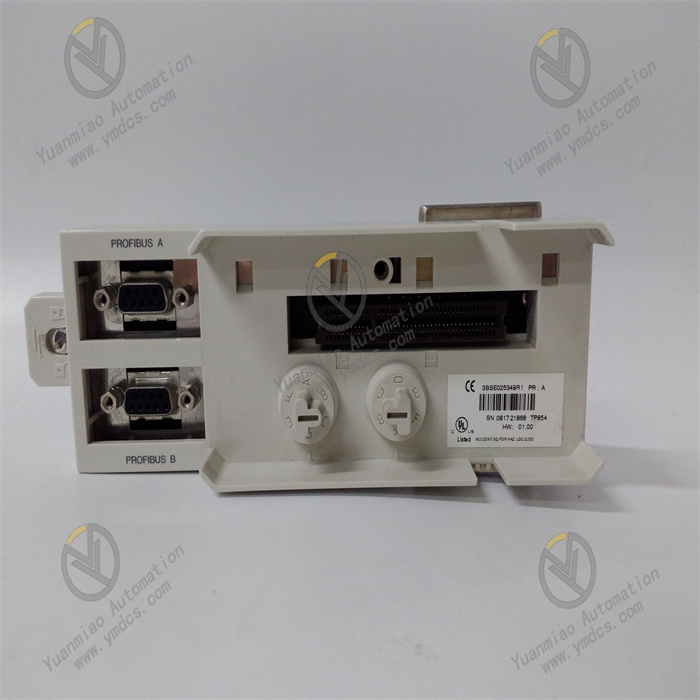

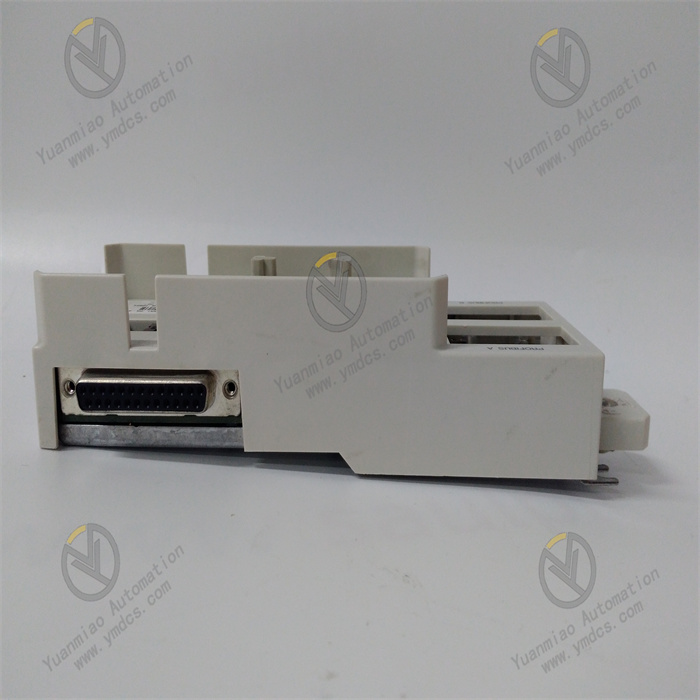

ABB TP854 3BSE025349R1 | Baseplate

Description

Technical Specifications Operating Voltage: Usually 24V DC. Communication Protocols: Supports Ethernet, Modbus, Profibus, etc. (depending on the configuration). Temperature Range: The operating temperature ranges from -20°C to +60°C. Installation Method: Supports DIN rail installation. Product Certifications: Has relevant industrial standard certifications such as CE and UL.

Features and Advantages Powerful Functionality: Supports a variety of control functions, such as logical control, timing control, switch control, etc., and can meet the needs of various industrial automation and control tasks. Multi-channel Design: It can handle multiple control tasks simultaneously, improving the versatility of the system. Real-time Monitoring: Equipped with a real-time monitoring function, allowing operators to access the status and data of the system at any time, which is convenient for fault diagnosis and maintenance. Easy Integration: With standard interfaces and communication protocols, it is simple and convenient to integrate with other devices and systems, and it is also convenient for system maintenance and upgrading. High Safety: It may have safety features such as fault detection, automatic switching, and redundant control to ensure the safe operation of the equipment and the system. Application Areas This module is widely used in the field of industrial automation. It has important applications in the automated production lines of the manufacturing industry, various technological processes in process control, and industrial scenarios that require precise control and monitoring. For example, in robot control, it can unify PLC, motion control, and robot technology on a multi-task hardware and software platform, providing support for related automation.

Common Faults and Solutions Communication Fault Possible Causes: Poor connection of the communication cable, incorrect setting of the communication protocol, damage to the communication interface of the module, electromagnetic interference in the surroundings, etc. Solutions: Check the cable connection to ensure it is firm and there is no damage; Confirm that the communication protocol settings are consistent with those of other devices; Inspect and repair the communication interface, and consider replacing it if it is damaged; Take anti-interference measures, such as using shielded cables, ensuring good grounding, and staying away from interference sources, etc. Power Supply Fault Possible Causes: Abnormal power input voltage, power line faults, damage to the internal power circuit of the module, etc. Solutions: Use a multimeter to measure the power supply voltage to ensure it is within the specified range; Check the power line to see if there are any open circuits, short circuits, or poor connections; If there is a suspected problem with the internal power circuit of the module, contact professional maintenance personnel for inspection or replacement of the module. I/O Fault Possible Causes: Problems with the input/output cable connection, faults in related devices, damage to the I/O channels of the module, incorrect setting of the input/output parameters, etc. Solutions: Check the cable connection to ensure it is correct and firm; Test the input/output devices to see if they are working properly, and replace the devices if there are any faults; If there is a suspected damage to the I/O channels of the module, try replacing the channels or contact professionals for maintenance; Check the input/output parameter settings to ensure they meet the actual application requirements.
