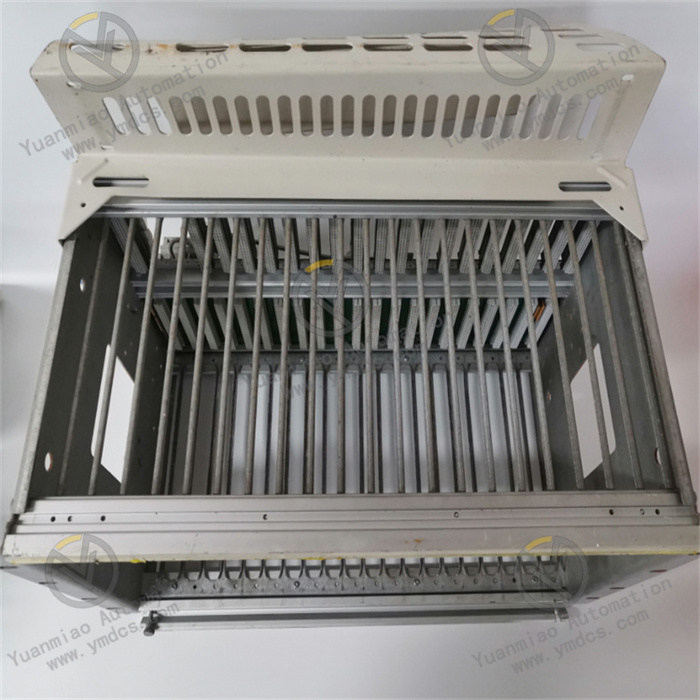

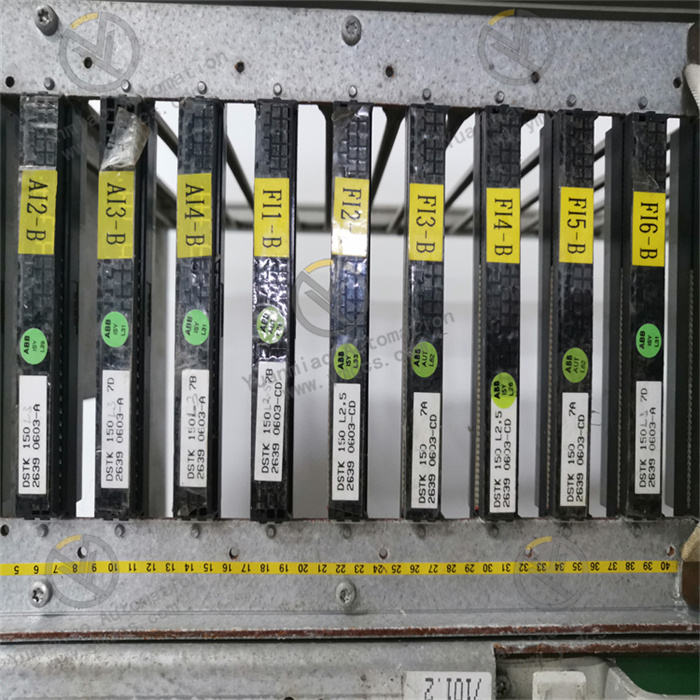

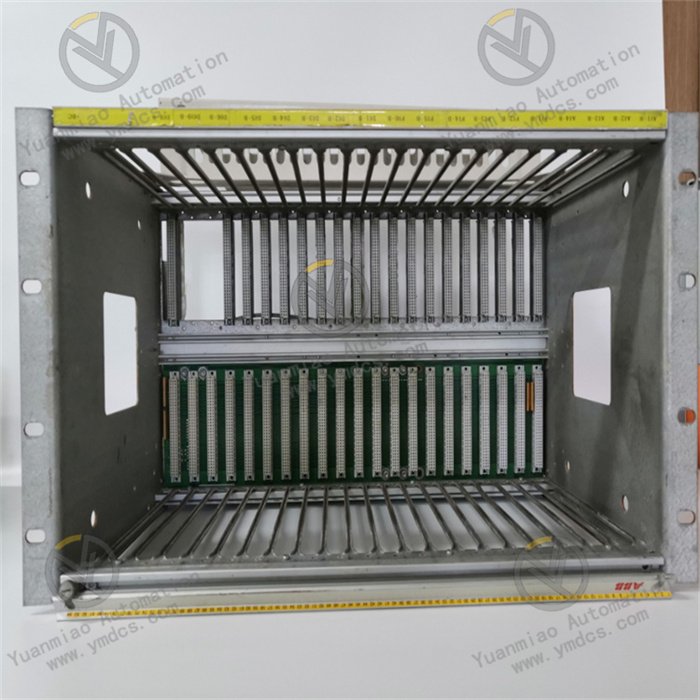

ABB DSRF182AK02 3BSE014078R1 Expand the Input and Output Racks

Description

Function: It is designed to expand the input/output capabilities of the automation system, providing additional input/output slots that can be used to connect various devices and modules, thus enhancing the functionality and flexibility of the system. Performance Features: High-quality materials and manufacturing processes are adopted to ensure the stability and reliability of the rack. It supports multiple communication protocols and interfaces, facilitating connection and communication with other devices, and can adapt to different industrial automation scenarios. Application Fields: It is widely applied in various industrial automation fields, such as robotics, PLC (Programmable Logic Controller), intelligent manufacturing, power systems, etc., and can meet the needs of different industries for the expansion of input and output of automation systems.

Installation Precautions: Inspection of the Installation Environment Temperature and Humidity: Ensure that the temperature and humidity of the installation environment are within the specified range of the device. The suitable operating temperature for most industrial devices is generally around 0°C to 50°C, and the humidity is between 5% and 95% without condensation. Excessively high or low temperatures and excessive humidity will affect the performance and service life of the device. Cleanliness: Select a clean environment without excessive dust and corrosive gases. Dust may accumulate inside the device, affecting heat dissipation and electrical performance; corrosive gases may damage the electronic components and metal parts of the device. Electromagnetic Interference: Keep away from strong electromagnetic interference sources, such as large motors, transformers, etc. Strong electromagnetic interference may lead to problems such as unstable operation of the device and data transmission errors.

Determination of the Installation Location Space Requirements: Reserve sufficient space for the device to facilitate installation, maintenance, and heat dissipation. There should be at least a certain gap around the device (for example, more than 10 centimeters on each side: front, back, left, and right) to ensure the free circulation of air and prevent the device from overheating. Installation Method: According to the design of the device and actual needs, select an appropriate installation method, such as rack-mounted installation, wall-mounted installation, etc. Ensure that the installation is firm to avoid shaking or vibration of the device during operation.

Precautions for Electrical Connections Power Connection: Confirm that the power supply voltage is consistent with the requirements of the device, use a power cord of the appropriate specification, and ensure that the power connection is firm and reliable. Before connecting the power supply, be sure to turn off the power switch to avoid electric shock and damage to the device. Grounding: Properly ground the grounding terminal of the device, and the grounding resistance should meet the requirements of the device. Good grounding can effectively prevent damage to the device caused by electrical failures and lightning strikes, and improve the safety and stability of the device. Signal Connection: When connecting the input/output signal cables, operate according to the wiring diagram of the device to ensure that the cables are connected correctly and firmly. Pay attention to distinguishing different types of signal cables (such as analog signals, digital signals, etc.) to avoid confusion.

Device Inspection and Testing Appearance Inspection: Before installation, carefully check whether the appearance of the device is damaged, deformed, or has other abnormal conditions. If there are any problems, contact the supplier or manufacturer in a timely manner for handling. Function Testing: After the installation is completed, before powering on, check again whether all connections are correct. Then, perform a power-on test according to the operation manual of the device to check whether the device can be started and operated normally, and whether the input/output functions are normal.
