Description

ABB 086318-002

ABB 086318-002 is a high-performance industrial-grade analog control module that can be seamlessly integrated into the Ability™ System 800xA® distributed control system, serving as a core component for analog signal processing and logic control in industrial automation scenarios. This module integrates analog acquisition, high-speed data processing and multi-protocol communication capabilities, supports custom control logic programming, features an IP67 high protection rating and wide temperature adaptability, and can operate stably in harsh industrial environments. It is widely used in various fields such as process control, robot control and energy management, providing reliable support for precise regulation of production processes and data interaction.

1. Product Attributes

As a multi-functional integrated control module, it is differentiated from single-function I/O modules, focusing on the requirements of composite signal processing and high-reliability control in industrial scenarios, while balancing expandability and operation & maintenance convenience. The specific basic information is as follows:

Product Model: 086318-002
Product Type: Industrial-grade analog control module; integrates analog signal acquisition, logic control and communication functions, and supports redundant hot standby design
Core Purpose: Achieve accurate acquisition, processing and feedback control of analog signals (voltage, current) in industrial sites; execute preset control logic, process I/O data and communicate with other devices; it can connect with sensors, actuators and other equipment to complete signal conversion and control command output, meeting the requirements of safety-critical scenarios

2. Technical Specifications

2.1 Electrical and Communication Performance Parameters

The electrical design of the module balances signal processing accuracy and multi-scenario adaptability, with core indicators meeting the requirements of harsh industrial working conditions, as detailed below:

Power Supply Specifications: Compatible with 24V DC±20% wide voltage input to meet the needs of industrial power grid fluctuations; supports dual specifications of maximum input current (5mA for signal circuits / 0.5A for power circuits), featuring low power consumption and high power supply stability
Signal Processing Capability: Equipped with 8-channel parallel analog channels, supporting single-ended and differential input modes, with A/D resolution up to 14 bits for high acquisition accuracy; it has fast processing speed, with single-instruction processing speed as low as 550μs, enabling rapid response to on-site signal fluctuations
Control and Expansion: Based on a multi-core processor (with a main frequency up to 2.4GHz), it supports programming to implement custom control logic; it can be expanded to 512 I/O points and is compatible with analog and digital expansion modules, flexibly adapting to control requirements of different scales
Communication Interfaces: Supports multi-protocol communication, including Ethernet, Ethernet/IP, PROFINET, RS-232/RS-485 serial interfaces; it can seamlessly connect with control systems, HMIs and third-party intelligent devices to realize real-time data interaction and remote control
Safety and Redundancy: Complies with SIL3 safety level and can be used in safety-critical applications; supports redundant design and hot standby function to ensure uninterrupted system operation in case of single-point faults and improve control reliability

2.2 Physical and Protection Specifications

Adopting an industrial-grade reinforced package design, it balances compact structure and high protection performance, and is suitable for various installation scenarios. The specific parameters are as follows:

Dimensions and Weight: Approximately 20cm (length) × 10cm (width) × 5cm (height), with a net weight of 1.2kg. The compact size facilitates deployment in space-constrained scenarios; for some application scenarios, the rack-mount dimensions are marked as 192×64×35mm, suitable for standard control cabinet rack layouts
Protection Rating: IP67 protection rating, with dustproof and waterproof capabilities. It can be directly installed in harsh on-site environments without additional protective measures, effectively resisting dust, water vapor and slight corrosion
Installation Method: Supports rack mounting and on-site fixed mounting. The modular design enables quick disassembly and assembly without complex wiring, greatly shortening installation and maintenance time

2.3 Environmental Adaptability

Compliant with the stringent environmental adaptation standards for industrial-grade control modules, it can cope with temperature and humidity fluctuations as well as electromagnetic interference. The core indicators are as follows:

Temperature Range: Operating temperature ranges from -20℃ to 70℃, suitable for high and low temperature industrial sites and control room environments; storage temperature ranges from -40℃ to 85℃, facilitating long-term spare parts storage without performance degradation
Humidity and Anti-interference: Relative humidity 5%–95% (non-condensing), avoiding circuit failures caused by humid environments; it has excellent electromagnetic interference suppression capability, which can resist strong electromagnetic radiation in industrial sites and ensure signal acquisition and control accuracy

3. Compatible Systems and Hardware Combinations

The module has strong compatibility and can be seamlessly integrated into mainstream ABB control systems while supporting connection with third-party equipment. The specific compatible combinations are as follows:

Compatible Control Systems: Core compatibility with ABB Ability™ System 800xA® distributed control system; parameter configuration, logic programming and fault diagnosis can be realized through system engineering software; it is also compatible with other ABB industrial automation systems and third-party PLC control systems
Supporting Equipment and Components: Can connect with various sensors (temperature, pressure, flow sensors, etc.), relay actuators, industrial Ethernet switches and HMI human-machine interfaces; supports linkage with robots, CNC machine tools, conveyors and other equipment, adapting to composite control scenarios
Expansion Components: Can be matched with analog/digital expansion modules, safety protection modules and redundant power modules to expand functional boundaries and adapt to more complex industrial control requirements

4. Product Features

4.1 Multi-functional Integration for Composite Scenarios

Integrating analog signal acquisition, high-speed data processing, logic control and multi-protocol communication in one, it eliminates the need for stacking multiple single-function modules, greatly simplifying the system architecture and reducing deployment costs. It supports custom programming and I/O expansion, and can flexibly adapt to diverse scenarios such as process control, discrete control and motion control, featuring strong versatility.

4.2 High-reliability Protection for Harsh Working Conditions

The combination of IP67 high protection rating, wide temperature range and anti-interference design allows it to be directly deployed in harsh industrial on-site environments without control cabinet protection, reducing installation space and costs. The redundant hot standby and SIL3 safety level design ensure uninterrupted operation in critical scenarios, avoiding production interruptions caused by equipment failures.

4.3 Convenient Operation & Maintenance with Excellent Integration

The modular plug-and-play design and remote diagnosis function facilitate on-site maintenance and fault troubleshooting, greatly shortening downtime; it supports multiple industrial communication protocols, enabling direct connection with multi-brand equipment without additional protocol conversion modules to achieve rapid system integration. The programming interface is user-friendly, and logic configuration can be completed through mainstream engineering software, reducing debugging difficulty.

5. Application Scenarios and Safe Operation Precautions

5.1 Application Scenarios

With its multi-functional integration and high reliability, it is widely used in various industrial fields: In the petrochemical and food & beverage industries, it is used for process control of equipment such as reactors and distillation towers, accurately collecting temperature and pressure signals and performing feedback regulation; In the robot and intelligent manufacturing field, it connects with robots and CNC machine tools to realize coordinated control of motion trajectories and actions; In the energy and power industry, it is used for signal acquisition and load regulation of energy management systems; it is also suitable for automation control needs in scenarios such as metallurgy, mining and transportation.

5.2 Safe Operation and Maintenance Specifications

Installation, wiring and maintenance work must be performed by qualified electrical professionals. Before operation, disconnect all power supplies, confirm that the supply voltage is consistent with the rated specifications of the module to avoid module burnout caused by overvoltage; check terminal definitions during wiring to ensure correct connection between signal circuits and power circuits and prevent short circuits.
Although the module has an IP67 protection rating, avoid long-term immersion in water or exposure to strong corrosive gas environments. The installation location should be kept away from severe vibration sources and high-temperature heat sources to extend service life; ensure firm fixation during rack mounting to avoid displacement during operation affecting signal transmission.
Programming and parameter configuration must be operated through officially certified software. Set parameters in strict accordance with control logic requirements to avoid equipment misoperation caused by configuration errors; regularly back up programs and configuration files to facilitate rapid system recovery after faults.
Regularly check the connection status of module interfaces and the integrity of cables, and promptly handle any looseness or damage; if the module is put into use after long-term idle, first test the power supply and communication functions, and put it into official operation only after confirming that there are no faults.

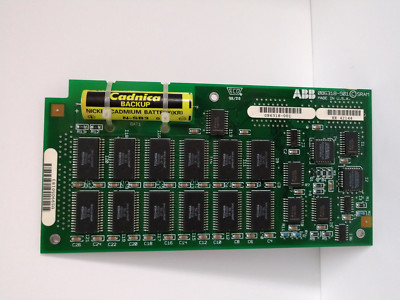

ABB 086318-002 PWA Circuit Board
