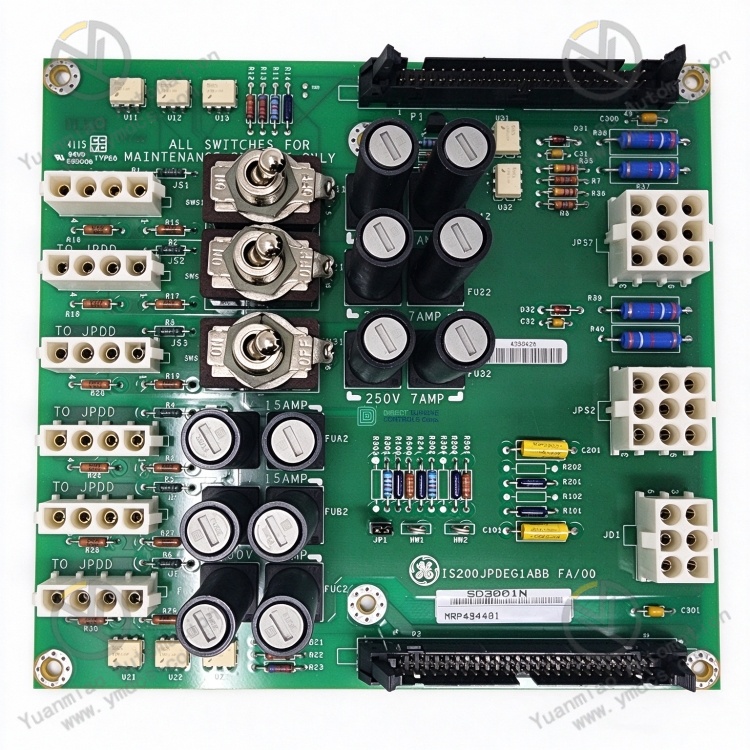

IS200JPDEG1ABB Pulse / Speed Detection Terminal Block

Description

1. Product Overview

IS200JPDEG1ABB is the Pulse & Speed Detection Terminal Board (JPD) of the IS200 series for GE Vernova (formerly GE) Speedtronic Mark VI turbine control system. It serves as the front‑end signal‑acquisition hardware for gas / steam turbine TCS turbine control systems.

Designed for Mark VI VME control cabinets, this board is widely deployed in control systems for gas turbines, steam turbines, hydro‑generator sets and centrifugal compressor units. It receives frequency pulse signals output by magnetic‑resistance speed probes and Hall‑effect sensors, and completes connection access, surge protection, signal isolation and waveform conditioning for speed pulse signals. It converts high‑speed pulse signals such as rotor speed and gear pulses into standard‑level signals and sends them to the main‑control CPU board. It is the critical terminal‑interface hardware for turbine unit speed measurement, overspeed protection and rotor tooth‑pulse acquisition loops.

As a standard VME backplane plug‑in board, it has passed reliability tests including high‑temperature aging, vibration‑shock and EMC electromagnetic compatibility. It supports 7×24‑hour continuous stable operation in heavy‑EMI control cabinets of power plants and petrochemical facilities. It is widely used for spare‑part replacement, on‑site maintenance, system verification and technical‑retrofit projects of speed‑detection loops for gas‑steam turbine units.

2. Functional Features

2.1 Multi‑Channel Pulse / Speed Signal Acquisition

Multiple independent pulse acquisition channels are integrated to receive pulse signals from magnetoelectric speed sensors and capture rotor tooth pulses for real‑time turbine‑rotor speed measurement, zero‑speed monitoring and overspeed‑protection signal acquisition.

2.2 Signal Surge Protection and Galvanic Isolation

Built‑in lightning‑protection and surge‑suppression circuits together with optoelectronic isolation units isolate field speed‑probe loops from the VME main‑control backplane. They suppress common‑mode interference and high‑voltage spike pulses introduced by long‑distance field cables, protecting the main‑control CPU and backplane hardware.

2.3 Pulse Signal Shaping and Conditioning

Irregular sinusoidal pulse signals from probes are amplified and shaped into standard square‑wave digital pulses to guarantee acquisition accuracy of speed signals under complex electromagnetic‑interference conditions.

2.4 Hardware Self‑Test and Fault Diagnosis

On‑board self‑diagnosis circuits continuously monitor board power supply, probe‑loop wire breakage, pulse‑signal loss and hardware‑channel faults. Upon anomaly detection, fault alarms are triggered and pop‑up alerts are generated on the upper‑level HMI.

2.5 High‑Speed Communication over VME Bus

Bidirectional high‑speed communication with the Mark VI main‑control CPU via the VME backplane bus. It uploads pulse counts, speed‑measurement values and channel‑diagnostic status, and receives channel‑threshold configuration parameters issued by the main controller.

2.6 Standard VME‑Slot Mounting

Directly inserts into VME backplane slots of Mark VI cabinets with locking‑latch structure for easy installation and removal. Uniform cabinet architecture for IS200‑series boards simplifies spare‑part replacement.

2.7 Harsh‑Industrial‑Environment Adaptability

Wide‑temperature operation, anti‑vibration, anti‑shock and high electromagnetic‑interference immunity. It adapts to power‑plant cabinet conditions including high temperature, dust and electromagnetic interference generated by high‑power excitation equipment.

3. Technical Specifications

3.1 Core Compatibility Parameters

3.2 Electrical Performance Parameters

3.3 Environmental and Physical Parameters

4. Hardware Configuration & Structural Advantages

4.1 Core Hardware Configuration

IS200JPDEG1ABB consists of VME‑bus interface circuit, pulse‑signal conditioning unit, surge‑suppression protection loop, optoelectronic isolation module, pulse‑shaping & counting unit, on‑board power‑conversion unit, self‑diagnosis monitoring circuit, front‑panel LED status indicators, VME gold‑finger interface and metal‑reinforced front panel.

The Mark VI main controller issues configuration parameters such as pulse threshold and gear‑tooth quantity over the VME bus. Signals from field magnetic‑resistance speed probes enter board terminals, go through surge protection, isolation amplification and waveform shaping to generate standard square‑wave pulses. After pulse counting, the board transmits speed data to the main‑control CPU via the VME backplane. Self‑diagnosis circuits continuously monitor anomalies including board power‑supply faults, probe‑loop wire breakage and pulse loss, and activate front‑panel alarm LEDs upon faults. VME gold‑fingers realize backplane communication and power intake. The metal front panel improves anti‑shock performance.

4.2 Structural & Engineering Advantages

Standard VME plug‑in backplane mounting. Spare‑part replacement requires no extensive modification of external probe wiring and shortens maintenance downtime. Front‑end integrated surge and isolation protection suppress high‑voltage spikes from long‑distance field transmission and prevent interference from coupling backward into the VME main‑control system to protect backplane and CPU.

Multiple pulse‑acquisition channels are integrated onto one single board for high integration and reduced cabinet‑space occupation. Hardware‑level pulse shaping ensures stable measurement under both high‑speed and low‑speed operating conditions. Hardware‑level self‑diagnosis enables real‑time channel‑status monitoring and rapid localization of speed‑loop faults to shorten on‑site troubleshooting time. Fully compatible with the IS200‑series board ecosystem of Mark VI systems, it benefits from a mature spare‑part supply chain and is widely adopted for maintenance, overspeed‑protection‑loop verification and upgrade‑retrofit projects of existing gas‑steam turbine power plants.

5. Working Principle

Working sequence of IS200JPDEG1ABB: Field speed‑probe pulse signal → terminal access → surge protection + signal isolation → pulse amplification & shaping → pulse counting → VME bus → Mark VI main‑control unit; board diagnostic‑status signals → VME bus → main controller; hardware self‑diagnosis runs in parallel.

During unit operation, rotor gears cut magnetic‑resistance probes and generate alternating pulse signals fed into the board. Signals are converted into standard digital pulses after surge protection, isolation and shaping. The board counts pulses and calculates real‑time rotor speed combined with gear‑tooth quantity, then uploads speed data to the main controller for closed‑loop speed regulation, zero‑speed judgment and overspeed‑protection logic computation.

On‑board self‑diagnosis circuits uninterruptedly monitor board power‑supply status, probe‑loop wire‑break conditions and pulse‑signal loss. When faults are detected, front‑panel LEDs activate alarms and fault information is uploaded to HMI to notify maintenance staff, preventing false tripping or failure‑to‑trip of overspeed protection caused by abnormal speed signals.

6. Common Faults and Troubleshooting

6.1 Fault LED illuminated after power‑on; system reports board fault

6.2 Board communication interruption; main controller cannot read speed data or download parameters

6.3 Large fluctuation or zero reading of speed value on main controller with physically intact probe

6.4 Persistent probe‑loop wire‑break fault alarm reported by system with intact external wiring
