1. Product Overview

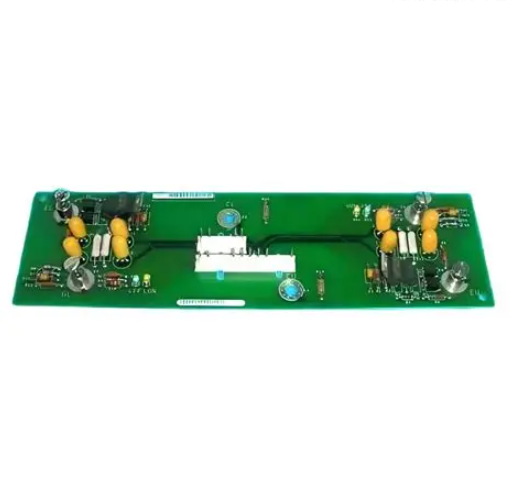

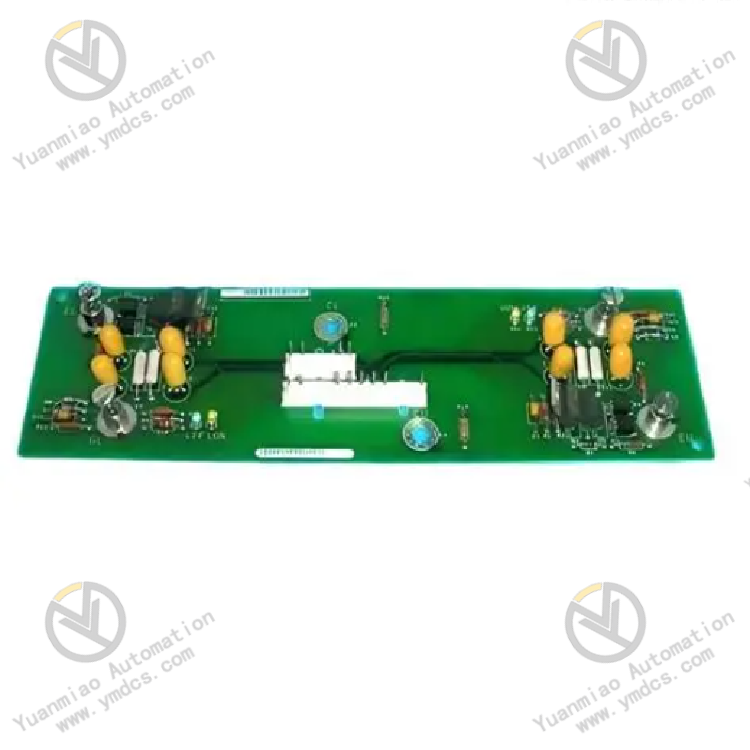

Full Part Number: IS200DAMBG1ACB
Applicable System: GE Speedtronic Mark VI / Mark VIe turbine control system and EX2100 generator excitation control system, original US-manufactured EOL discontinued core spare part for excitation power drive loops.
Product Definition: DAMB (Drive Amplifier Module Board) is the core power drive interface board for EX2100 excitation systems. It shapes, isolates and amplifies low-level phase-shift pulses from the DSPX main control board to drive IGBT/MOSFET power semiconductor devices. It implements precise excitation power regulation, real-time power loop condition monitoring and hardware over-current/over-temperature short-circuit protection, ensuring stable excitation output and safe operation of generator units. It is widely used in power plant excitation system maintenance, fault replacement and technical renovation projects.
2. Hardware Structure & Functional Units
2.1 Pulse Shaping & Power Amplification Unit
Dedicated pulse conditioning and high-power drive circuits repair distorted waveforms, calibrate timing sequences and amplify weak logic pulses into standard drive signals. It ensures synchronous and stable switching of power devices, eliminates excitation current fluctuation and guarantees steady generator terminal voltage output.
2.2 Full Isolation Drive Unit
High-grade optoelectrical isolation completely separates low-voltage control circuits and high-voltage power circuits, blocking high-frequency harmonics, surge voltage and ground potential difference interference. It prevents reverse high-voltage damage to upstream main control and signal acquisition boards, establishing reliable electrical safety isolation.
2.3 Power Device Condition Monitoring & Feedback Unit
Multi-channel high-speed sampling circuits real-time monitor the operating current, temperature and switching status of rear-end power semiconductors. It accurately captures overload, over-temperature, pulse loss and short-circuit faults, and uploads status data and fault information to the main controller for closed-loop regulation and fault protection judgment.
2.4 Hardware Multi-Level Fault Lockout Unit
Pure hardware ultra-fast protection logic requires no software intervention. It instantly locks pulse output and latches fault status once abnormal conditions occur, cutting off faulty power drive to prevent power device breakdown and excitation out-of-control accidents, providing bottom-layer safety protection for the excitation power loop.
2.5 Backplane Bus & Self-Diagnosis Unit
Gold-plated rear connector connects to Mark VIe rack backplane bus for high-speed data communication and stable power supply. Onboard LED indicators intuitively display power status, pulse output and fault latch conditions. Power-on self-test rapidly locates faults in drive circuits, sampling loops and communication links.
2.6 Industrial Reinforced & Three-Proof Structure Unit
Multi-layer gold-plated flame-retardant PCB with full conformal coating for moisture, corrosion and dust resistance. Reinforced component soldering and fanless maintenance-free design adapt to long-term high temperature, vibration and strong EMI interference in excitation cabinets, supporting 24/7 uninterrupted unit operation.
3. Technical Specifications
3.1 Core Functional Parameters
Part Number: IS200DAMBG1ACB
Board Type: Excitation Power Drive Amplifier Board (DAMB)
Compatible System: GE Mark VI/VIe, EX2100 Excitation Control System
Driving Device: Excitation cabinet IGBT/MOSFET power semiconductors
Core Functions: Pulse shaping & amplification, electrical isolation, condition monitoring, hardware fault lockout
Protection Logic: Hardware over-current, short-circuit and over-temperature protection
Fault Reset Mode: Power cycle reset to clear latched faults
3.2 Electrical Parameters
Rated Power Supply: 24VDC rack backplane (18~36VDC tolerance)
Built-in Protection: Reverse polarity, over-current, ESD and surge suppression
Bus Protocol: Mark VIe dedicated backplane parallel bus
Hot Swap: Hot plugging is strictly prohibited
Typical Power Consumption: ≤10W
3.3 Environmental Parameters
Operating Temperature: -40℃ ~ +85℃
Storage Temperature: -40℃ ~ +85℃
Humidity: 5%~95%RH non-condensing, no corrosive gas and salt fog
Ingress Protection: IP20 (cabinet internal installation only)
Max Operating Altitude: ≤2500m
3.4 Mechanical Parameters
Mounting Method: Standard Mark VI/VIe rack embedded slot installation
Base Material: V0 flame-retardant high-temperature PCB, gold-plated anti-oxidation contacts
Structural Feature: Single-slot modular tool-free installation, maintenance-free fanless design
4. Core Product Advantages
1. High-precision pulse drive ensures smooth excitation current regulation and stable grid-connected power quality.
2. Complete strong/weak electrical isolation avoids high-voltage reverse breakdown of core control hardware.
3. Microsecond-level hardware protection prevents power device burnout and major excitation system faults.
4. Full-condition real-time monitoring enables accurate fault location and reduces maintenance downtime.
5. Plug-and-play modular replacement requires no wiring or program modification for efficient on-site maintenance.
6. Wide-temperature three-proof industrial design adapts to harsh power plant working conditions with long service life.
5. Application Scenarios
Core power drive and protection for EX2100 excitation systems of thermal power gas/steam turbine units; equipment renovation and fault replacement for cogeneration and self-owned power station excitation systems; continuous power supply guarantee for petrochemical turbo generator units; preventive spare part stocking and legacy system upgrade for GE Mark VIe excitation control equipment.
