Description
Product Overview

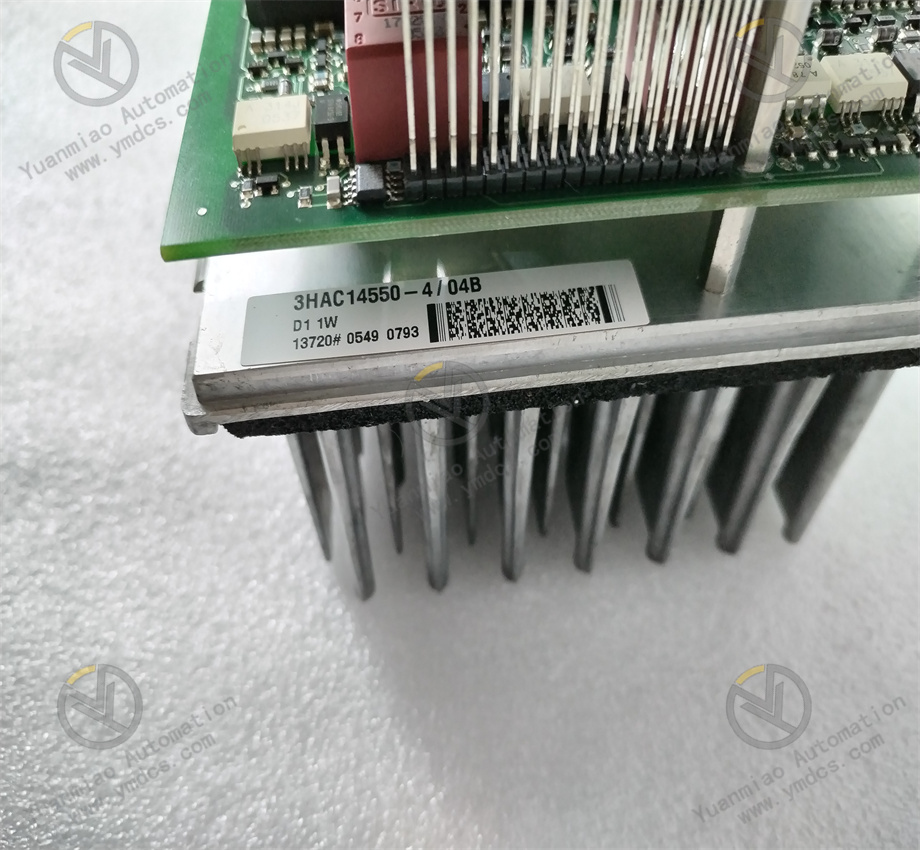

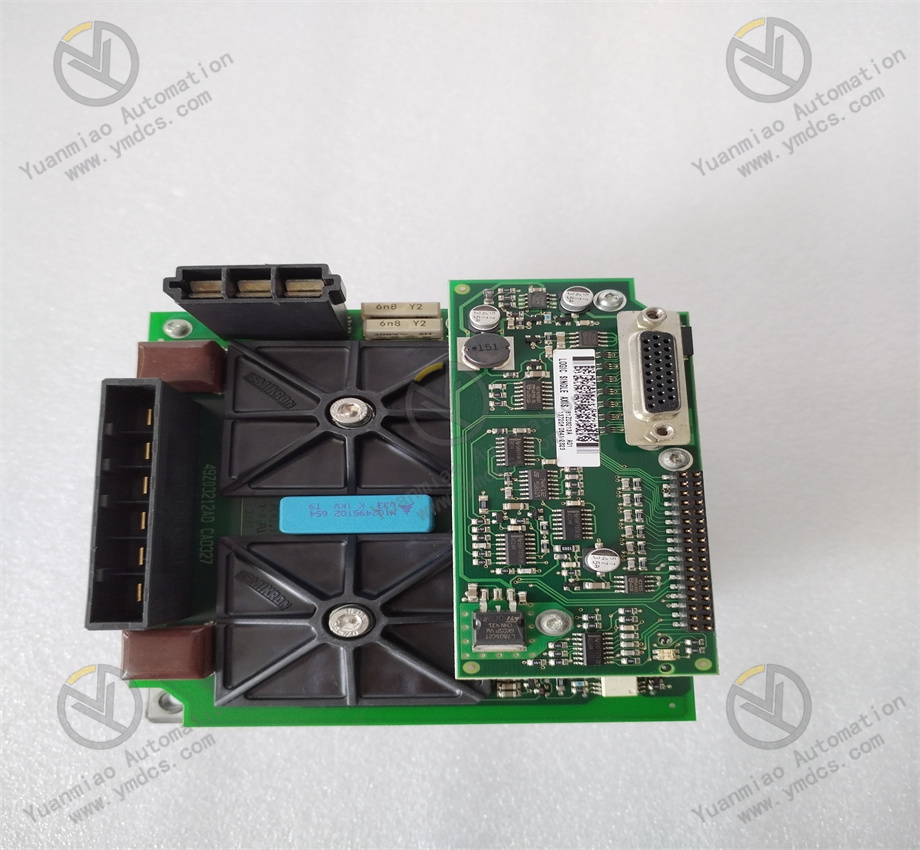

ABB 3HAC14550-4 04B is a servo drive unit for the ABB IRC5 robot control system. First of all, this drive module receives trajectory instructions from the robot main control board. It outputs adjustable power and processes encoder feedback signals for robot joint motors. Moreover, it implements current, speed and position closed-loop regulation for each axis. It supports precise synchronous movement of robot joints and guarantees stable running of the robotic arm during continuous production cycles.
Core Features
- Model: 3HAC14550-4, Version: 04B, Brand: ABB
- Compatible system: ABB IRC5 industrial robot controller
- Main function: axis power supply and servo closed-loop control
- Triple-loop control: current loop, speed loop and position loop
- Encoder signal reception and real-time feedback comparison
- Built-in overcurrent, overvoltage, overload and overtemperature protection
- LED status indicators for running status and fault diagnosis
- Plug-in structure, installed inside IRC5 cabinet as replacement spare
Application
Maintenance engineers replace the 3HAC14550-4 04B drive unit when IRC5 robot servo faults occur. Besides, it works for welding, handling, palletizing and assembly robots in auto manufacturing, machinery processing and packaging industries. It maintains high repeat positioning accuracy and smooth motion of robot arms.
