Description
Product Overview

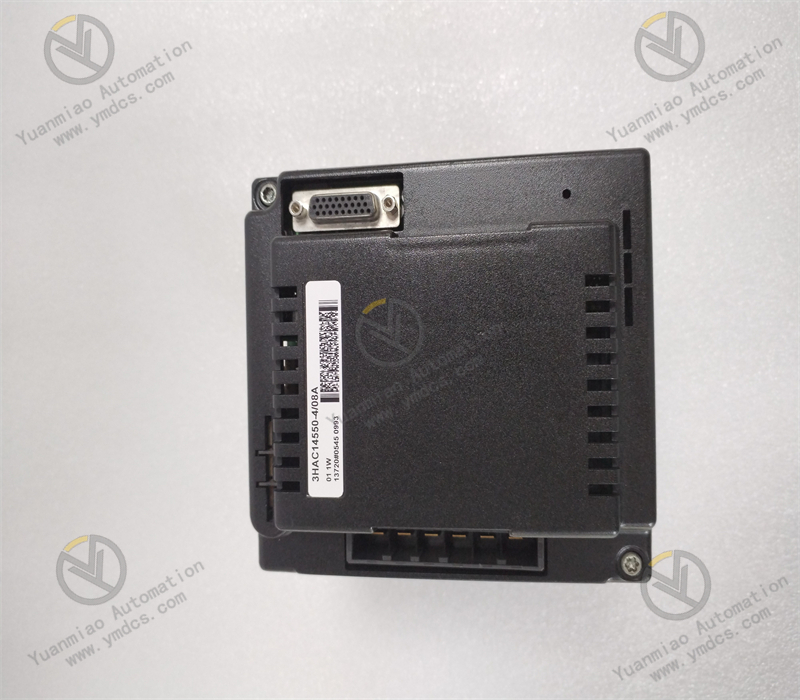

ABB 3HAC14550-408A is a servo drive unit for the ABB IRC5 robot control system. First of all, this drive receives motion trajectory commands sent from the robot main control unit. It outputs regulated power and processes encoder feedback signals for robot joint servo motors. Moreover, it completes current, speed and position triple closed-loop control for robot axes. It enables coordinated and precise movement of robotic joints and supports long-cycle stable operation for automated production tasks.
Core Features
- Model: 3HAC14550-408A, Brand: ABB
- Compatible system: ABB IRC5 industrial robot controller
- Main function: axis power output and servo closed-loop motion control
- Triple-loop control: current loop, speed loop and position loop
- Collects encoder signals for real-time position feedback comparison
- Built-in overcurrent, overvoltage, overload and overtemperature protection
- LED indicator lights for operational status and fault diagnosis
- Plug-in installation inside IRC5 cabinet, used as robot replacement spare part
Application
Robot maintenance technicians use the 3HAC14550-408A drive unit to replace faulty servo modules on IRC5 robots. Besides, it suits welding, handling, palletizing and assembly robots in automotive, machinery and packaging industries. It ensures smooth joint movement and maintains high repeat positioning accuracy of the robot arm.
