Description
Product Overview

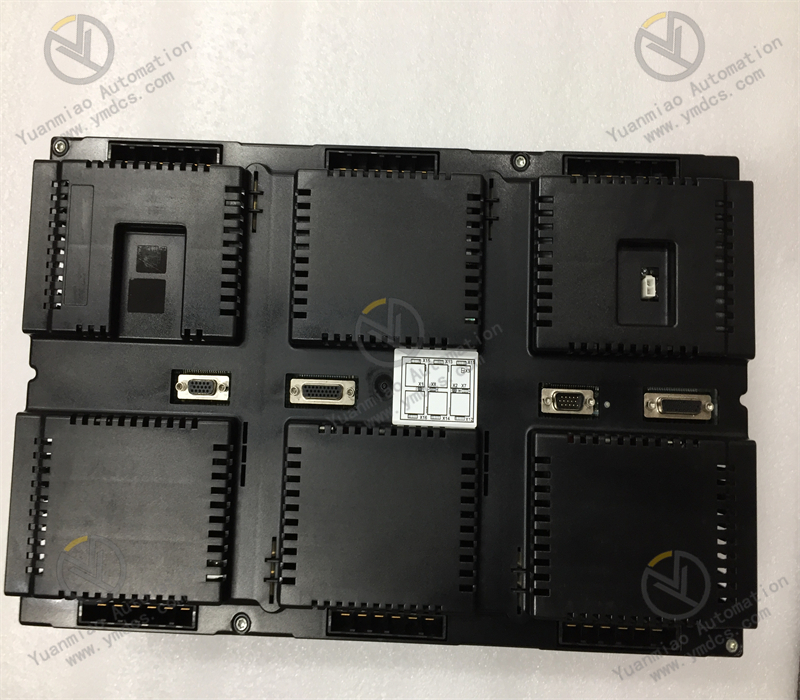

ABB 3HAC025338-006 is a servo drive unit built for the ABB IRC5 robot control cabinet. First of all, this module receives trajectory instructions from the robot main board. It outputs adjustable power to the joint servo motors and processes encoder feedback signals at the same time. Moreover, it implements current, speed and position triple closed-loop control for each robot axis. It delivers stable and coordinated joint movement, and it acts as a critical power control spare for IRC5 robotic systems.
Core Features
- Model: 3HAC025338-006, Brand: ABB
- Applicable equipment: ABB IRC5 series industrial robot controller
- Function: Robot axis power driving and servo closed-loop regulation
- Triple-loop control: current loop, speed loop and position loop
- Supports encoder signal acquisition and real-time position feedback
- Integrated protection: overcurrent, overvoltage, overload and overtemperature
- Onboard LED indicators for operation status and fault diagnosis
- Plug-in installation inside IRC5 cabinet, convenient for maintenance replacement
Application
Robot service technicians adopt the 3HAC025338-006 drive unit to replace defective servo modules. Besides, it fits welding, handling, palletizing and assembly robots in automotive, machinery and packaging workshops. It guarantees smooth motion and high repeat positioning accuracy of robotic arms in continuous production.
