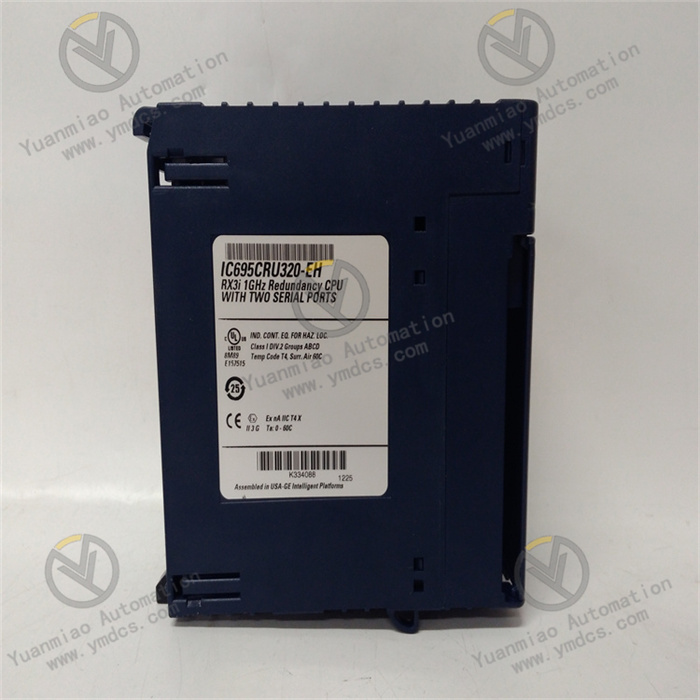

GE IC695CRU320

I. Overview

II. Technical Parameters

• Processor Performance: Equipped with a 1 GHz Intel Celeron-M microprocessor, it has strong computing power and can quickly process complex control logic and a large amount of real-time data. This high-performance processor ensures that the IC695CRU320 can complete data processing and instruction execution with excellent speed and accuracy when facing diverse control tasks in industrial automation systems, such as high-speed motion control and complex process control, achieving precise control of the production process and greatly improving the response speed and operating efficiency of the system.
• Memory Configuration: It has 64 MB of battery-backed Random Access Memory (RAM), which can reliably save key data and the running program state when the system is accidentally powered off, avoiding data loss and ensuring that the system can continue to work seamlessly after power is restored. It is also equipped with 64 MB of non-volatile flash memory for storing user programs and important configuration information. Its durability is up to 100,000 write/erase cycles, effectively ensuring the stability and reliability of data storage during long-term use and reducing the risk of storage failures caused by frequent reading and writing.
• Communication Interfaces: Equipped with two independent serial ports, supporting RS-232 and RS-485 communication standards, it can be easily connected to various devices with serial communication interfaces, such as sensors, actuators, intelligent instruments, etc., to realize rapid data interaction and collaborative work between devices. In addition, if Ethernet communication function is required, an Ethernet module such as IC695ETM001 can be connected externally to easily access the industrial Ethernet, enabling efficient communication with other upper computers, servers, and intelligent devices supporting Ethernet communication. This meets the needs of modern industrial automation systems for high-speed and large-volume data transmission and facilitates the construction of large-scale and distributed automation control networks.
• Power Requirements: It requires a 3.3 VDC power supply with a rated current of 1 A during operation; at the same time, it needs a 5 VDC power supply with a rated current of 1.2 A. This dual power input design provides stable power support for the module, ensuring reliable operation in complex industrial power environments and avoiding equipment failures caused by power fluctuations or abnormalities.
• Environmental Adaptability: The operating temperature range is 0°C to 60°C, which can adapt to temperature changes in most industrial production environments. It can work stably in high-temperature steel smelting workshops or relatively low-temperature cold storage automation control scenarios without being affected by large temperature fluctuations. However, this module is suitable for non-sealed environments. If there is a risk of pollution such as dust and water vapor in the on-site environment, an external protective shell is required to prevent the intrusion of external pollutants, ensure the normal operation of the precision circuits inside the module, and guarantee reliability and durability in harsh industrial environments.
• Expansion Capability: It supports PCI 2.2 bus expansion and can flexibly connect various function expansion cards, such as additional communication interface cards and high-speed data acquisition cards. According to the special needs of different industrial application scenarios, the system functions can be customized and expanded to improve the comprehensive performance of the system. At the same time, it is compatible with 90-30 series I/O modules, facilitating users to upgrade and transform on the basis of existing industrial automation systems by using existing I/O equipment resources, reducing system upgrade costs and improving resource utilization.

III. Functional Characteristics

• High-Reliability Redundant Design: Adopting advanced Hot Standby (HSB) redundancy technology, when two IC695CRU320 modules are used in combination with a redundant memory exchange module, redundant operation of the system can be realized. When the main processor fails, the standby processor can seamlessly take over the work within an extremely short time, that is, one logic scan cycle or a minimum of 3.133 milliseconds, ensuring the continuity of critical applications or production processes, minimizing downtime caused by processor failures, and providing a reliable guarantee for the stable operation of industrial production. This redundant design is of vital significance in industries with extremely high requirements for system reliability, such as energy and power, transportation hub control systems, etc., effectively avoiding production accidents and economic losses caused by equipment failures.
• Powerful Data Processing and Control Capability: With a 1 GHz high-performance processor, IC695CRU320 can efficiently execute real-time logic control tasks, quickly process real-time data fed back by various sensors, and accurately send control instructions to actuators according to preset control strategies. Whether it is simple equipment start-stop control or complex multi-variable, multi-task collaborative control, such as the precise control of temperature, pressure, flow and other parameters in chemical production processes, and the collaborative operation control of multiple equipment in automated production lines, this module can handle it with ease, ensuring the efficiency, stability and precision of industrial production processes.
• Flexible Programming and Configuration Options: It supports a variety of industrial standard programming languages, such as ladder diagram, structured text, function block diagram and C language, to meet the needs of engineers with different programming habits and technical levels. Through these intuitive and convenient programming languages, users can easily write complex control programs according to actual production process requirements, realizing personalized customization of industrial automation systems. At the same time, the data and program memory of the module can be flexibly configured, and can be reasonably allocated according to the needs of different application scenarios for memory capacity and usage methods, improving the utilization efficiency of memory resources. In addition, it also supports automatically located symbolic variables, which can flexibly use any number of user memory according to user needs, further enhancing the flexibility and convenience of programming.
• Rich Communication Protocol Support: In addition to various communication interfaces provided at the hardware level, IC695CRU320 supports multiple serial communication protocols at the software level, such as Modbus RTU slave, SNP slave, and serial I/O, facilitating communication connection with various devices following corresponding protocols to realize data interconnection and intercommunication. After realizing Ethernet communication through an external Ethernet module, it can exchange data with other devices following industrial Ethernet communication protocols, such as seamless integration with PLC, DCS control systems and various intelligent devices, easily building large-scale and intelligent industrial automation networks, and realizing comprehensive monitoring and remote management of production processes.

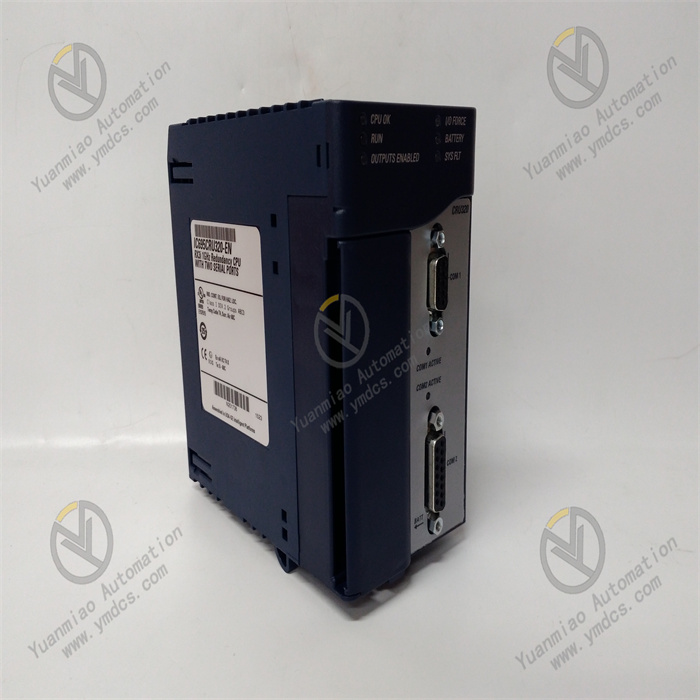

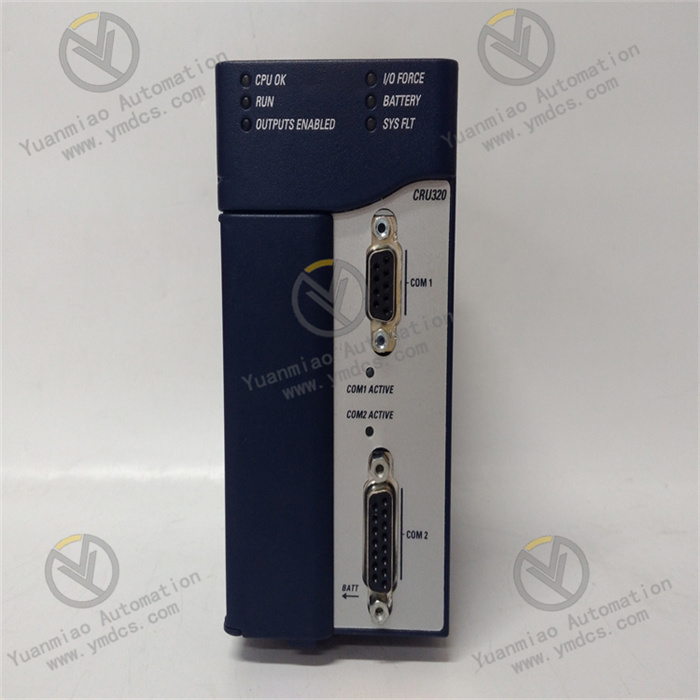

• Convenient Fault Diagnosis and Maintenance Functions: The compact chassis of the module is equipped with eight indicator lights, each corresponding to different functions, for intuitively feeding back the working status of the module. Among them, the "CPU OK" indicator is used to show whether the processor is working normally; the "Run" indicator indicates whether the system is currently in the running state; the "Outputs Enabled" indicator shows whether the output channels are enabled; the "I/O Force" indicator can display whether the I/O points are in the forced state; the "Battery" indicator is used to prompt the battery power status; the "Sys Flt" (system fault) indicator lights up when the system detects a fault, facilitating technicians to quickly locate system faults. In addition, the "Com 1" and "Com 2" indicators correspond to the working status of the two serial ports respectively. The design of these indicator lights enables technicians to quickly and intuitively understand the operation of the module during daily inspections and fault Investigation，greatly simplifying the maintenance workflow, reducing maintenance costs, and improving the maintainability of the equipment.

IV. Application Scenarios

• Energy and Power Industry: In the automation control system of power plants, IC695CRU320 can be used for real-time monitoring and precise control of power generation equipment, transmission lines and substation equipment. Through redundant design, it ensures that the operating data of the power system can be accurately collected and processed under any circumstances, and control instructions can be reliably issued, ensuring the stable supply of electric power production and avoiding large-scale power outages caused by equipment failures. In wind farms, it can monitor and control the operating status of wind turbines in real-time, automatically adjust the blade angle and rotation speed of the wind turbines according to environmental parameters such as wind speed and direction to achieve efficient power generation, and ensure the continuity of monitoring and control through redundant switching when the wind turbines fail, and timely perform fault diagnosis and repair.
• Industrial Automation Production Lines: In automated production lines of industries such as automobile manufacturing and electronic equipment processing, IC695CRU320 plays a core control role. It can connect various equipment in the production line, such as robots, automated assembly equipment, sensors and actuators, to realize efficient data exchange and collaborative work between equipment. By precisely controlling the actions of equipment at each workstation, it ensures the smooth operation of the production process and improves production efficiency and product quality. In the automobile assembly line, it can precisely control the grabbing and assembling actions of robots, as well as the start-stop and speed of conveying equipment according to production plans and parts supply conditions, realizing automated assembly of automobiles, and quickly restoring production through redundant switching when equipment fails, reducing economic losses caused by downtime.
• Process Control Field: In process industries such as chemical industry, food and beverage, and pharmaceutical industry, this module is used for real-time monitoring and precise control of key parameters such as temperature, pressure, flow, and liquid level in the production process. By connecting with a large number of on-site sensors and actuators, the collected data is transmitted to the control system, and closed-loop control is performed according to preset process parameters to ensure the stability and consistency of product quality. In the chemical production process, it can automatically adjust parameters such as feed amount and cooling water amount according to changes in temperature and pressure in the reaction kettle to ensure the smooth progress of chemical reactions, and in case of abnormal situations, timely take safety measures to ensure the uninterrupted operation of the control system through redundant design, preventing production accidents.
• Transportation Hub Control Systems: In the automation control systems of transportation hubs such as airports and railway stations, IC695CRU320 is responsible for centralized control and management of baggage sorting systems, passenger guidance systems, access control systems, etc. By processing data fed back by various sensors and equipment in real-time, it realizes efficient scheduling and management of people flow and logistics in transportation hubs, ensuring smooth travel of passengers and accurate sorting of baggage. In the airport baggage sorting system, it can precisely control the actions of sorting equipment according to flight information and baggage label information, accurately distributing baggage to the corresponding flight conveyors, and ensuring the normal operation of the system through redundant switching when equipment fails, avoiding flight delays and passenger inconvenience caused by incorrect baggage sorting or equipment failures.
