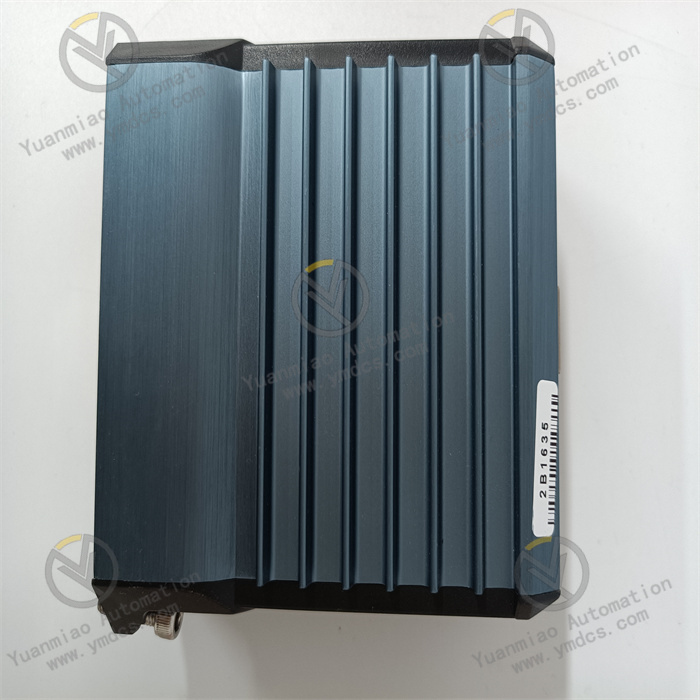

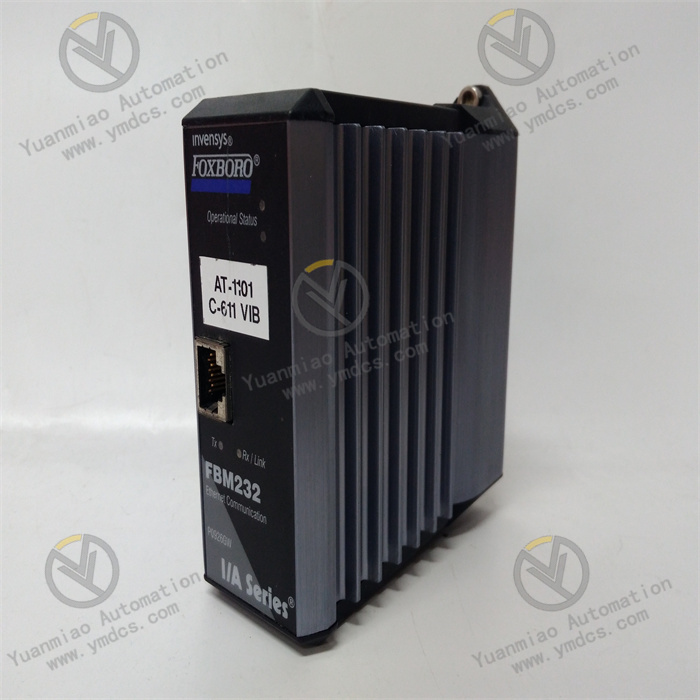

P0926GW | Foxboro | FBM232 Ethernet Communication Module

Description

Functional Features High-speed Data Transmission: It supports a transmission rate of 10Mbps or 100Mbps, which can quickly process a large amount of data, improving the system's response speed and real-time performance. Multiple Communication Interfaces: It not only has an Ethernet communication interface but also an RS-485 communication interface, enabling seamless integration by connecting to various devices and sensors. Support for Multiple Communication Protocols: It supports multiple industrial Ethernet protocols such as EtherNet/IP and Modbus TCP, making it easy to integrate with different devices or systems. High Stability and Reliability: Designed according to industrial-grade standards, it can operate stably for a long time in harsh industrial environments. Easy to Configure and Use: It provides user-friendly configuration software and a user interface, facilitating users to configure and control the system. It also supports remote monitoring and maintenance functions, reducing maintenance costs and time. High Degree of Integration: With a compact design, it can save space and simplify system cabling. Powerful Connectivity: It can be connected to a single copper Ethernet network. Through an Ethernet switch or hub, it can communicate with up to 64 field devices at most, and supports the connection of up to 2000 DCI blocks, enabling the integration of field device data into the Foxboro DCS control database.

Application Areas Industrial Automation: It is used for monitoring and controlling industrial processes, such as the measurement and control of parameters like temperature, pressure, and flow rate. Control Systems: In various control systems, it receives feedback signals from sensors to achieve real-time monitoring and adjustment of the system. Energy Sector: It can be used in power stations or energy production facilities to monitor the status of generators, transformers, and other key equipment. Manufacturing Industry: In production lines and manufacturing processes, it monitors the operation status of equipment to ensure the reliability and efficiency of the production process. Process Control: In industries such as chemical, petroleum, and natural gas, it monitors and controls complex production processes. Environmental Monitoring: It is used in environmental monitoring systems to measure atmospheric conditions, water quality, or other environmental parameters. Building Automation: It monitors and regulates systems such as the temperature, humidity, and lighting inside buildings.

Common Faults and Solutions 1. Communication Fault Fault Phenomenon: The module cannot communicate normally with other devices. Possible Causes: Poor connection of the communication cable, incorrect network configuration, damage to the communication interface of the module, power failure, etc. Solutions: Check whether the communication cable is firmly connected and whether there is any damage; Confirm whether network configuration parameters such as the IP address, subnet mask, and gateway are correct; Check whether there is physical damage to the communication interface of the module. If there is damage, the module needs to be replaced; Check whether the power supply is normal and ensure that the module operates within the rated voltage range.

2. Device Connection Problem Fault Phenomenon: Unable to establish a connection with field devices or the connection is unstable. Possible Causes: Device address setting conflicts, incompatible or uninstalled device drivers, network topology errors, etc. Solutions: Check the address settings of field devices to ensure they are consistent with the module's configuration and there are no conflicts; Confirm whether the correct device drivers are installed and update them to the latest version; Check the network topology structure to ensure the connection is normal and there are no loops or other errors.

3. Data Transmission Error Fault Phenomenon: Errors or data loss occur during data transmission. Possible Causes: Network interference, communication protocol mismatch, module memory failure, etc. Solutions: Check the network environment to avoid strong electromagnetic interference; Confirm whether the communication protocols used by the module and the device are consistent. If there is a mismatch, adjustments are needed; Try to reset or restart the module. If the problem persists, it may be a module memory failure, and professional maintenance personnel should be contacted for repair.

4. Module Overheating Fault Phenomenon: The temperature of the module is too high, which may lead to a decline in performance or a fault. Possible Causes: Poor heat dissipation, too high ambient temperature, excessive module load, etc. Solutions: Check the installation location of the module to ensure there is sufficient heat dissipation space; Improve the ventilation conditions of the installation environment to reduce the ambient temperature; Check the load situation of the module and avoid overloading operation.
