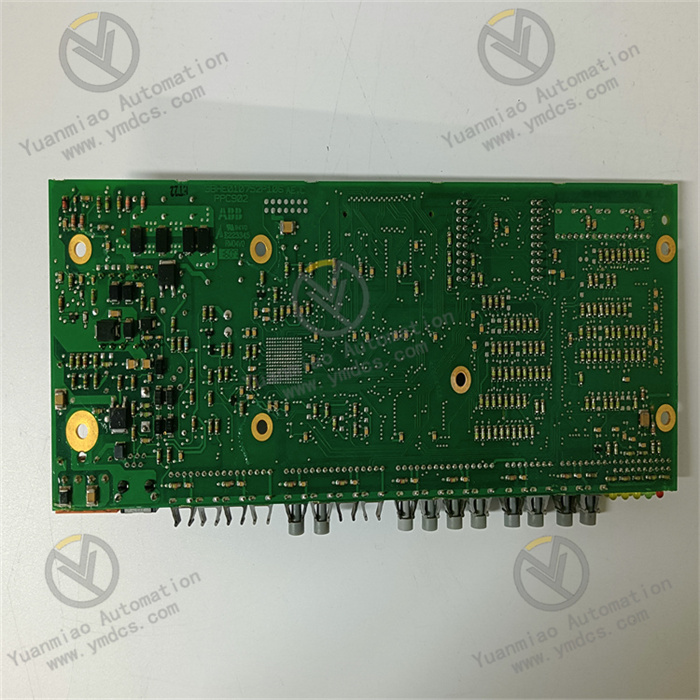

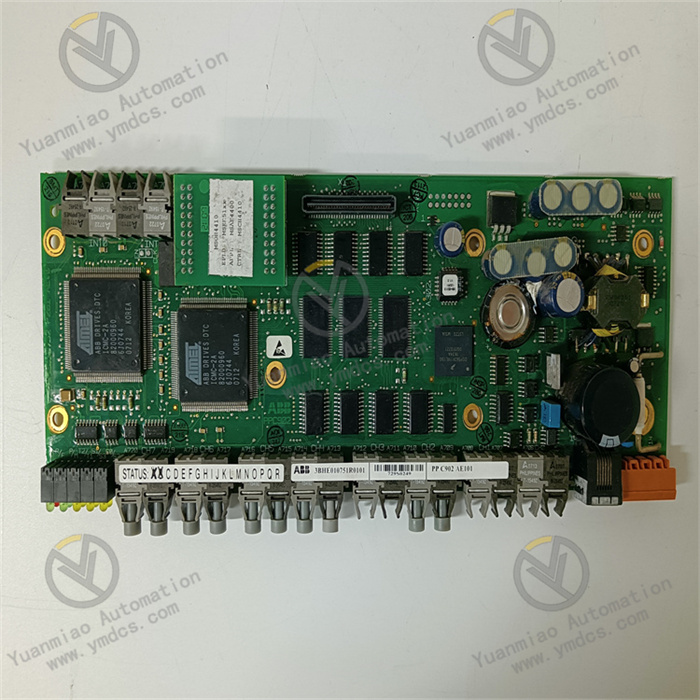

ABB PPC902AE101

1 Basic Parameters

1.1 Core Processor and Control Performance

• Product Type: Industrial‑grade analog control board / programmable control module with a hard PLC core, supporting multi‑task parallel processing and closed‑loop PID regulation.

  Specially designed for analog‑intensive process control scenarios, it integrates high‑precision A/D and D/A conversion channels, combining three functions: signal acquisition, calculation and regulation, and drive output.
•

• Processor and Performance: Equipped with a dual‑core Power Architecture processor (1.2 GHz); program/data memory: 1 GB DDR3, 2 GB Flash.

  Minimum control cycle up to 1 ms; supports floating‑point operations and complex PID + feedforward control algorithms.

  Programming complies with IEC 61131‑3 standards (LD/FBD/SFC/ST) and is compatible with ABB Control Builder M programming software for seamless integration with the 800xA system.
• Analog Accuracy: 16‑bit A/D conversion with 0.001% resolution.

  Input supports 4–20 mA, 0–10 V, thermocouples (K/J/T), RTDs (PT100/PT1000).

  Output supports standard analog signals 4–20 mA / 0–10 V, with output accuracy ±0.1% and temperature drift < 50 ppm/℃, meeting high‑precision closed‑loop regulation requirements for temperature, pressure, and flow.
•


1.2 Electrical and Power Supply Parameters

1.3 Communication Interface Parameters

• Industrial Ethernet: 2×RJ45 Gigabit Ethernet ports, supporting PROFINET, Modbus TCP/IP, EtherNet/IP, OPC UA for interconnection with host computers, HMIs, remote I/O, and SCADA systems.
• Fieldbus: 1×RS‑485 (Modbus RTU), 1×PROFIBUS‑DP; baud rate 9.6 kbps–12 Mbps, max. 126 slaves.
• Debug Interface: 1×USB 2.0 for program download, online monitoring, and fault data export; optional optical fiber interface to improve anti‑interference performance in strong electromagnetic environments.

1.4 Environmental and Mechanical Parameters

• Environmental Adaptability:

  Operating temperature: -40℃ to +70℃;

  Storage temperature: -40℃ to +85℃;

  Relative humidity: 5%–95% (non‑condensing);

  Vibration resistance: 5–150 Hz, 0.1 mm;

  Shock resistance: 50 g / 11 ms;

  compliant with IEC 60068‑2 series standards.
•

• Mechanical Installation:

  Standard 35 mm DIN‑rail mounting, compact industrial package, protection class IP20 (for cabinet installation).

  Housing is high‑temperature and arc resistant; circuit board coated with three‑proof lacquer; terminals with anti‑loosening clips.
• Reliability:

  Mean Time Between Failures (MTBF) > 60,000 hours;

  Design service life ≥ 10 years;

  Passed high‑temperature aging and voltage surge tests per IEC 61800‑5‑1.

2 Structural and Functional Features

2.1 Structural Design

• Modular Architecture: Core control board + expandable I/O sub‑module design, allowing flexible addition or removal of analog/digital channels.

  Compatible with 800xA system I/O modules and supports distributed I/O expansion to meet I/O requirements of large‑scale process systems.
•

• Industrial Protection:

  Housing made of corrosion‑resistant industrial‑grade material; circuit board with three‑proof lacquer; anti‑loosening terminals to prevent loosening under vibration.

  Equipped with multi‑status LED indicators (power/run/fault/communication) for fast on‑site diagnosis.
• Fanless Cooling:

  Optimized thermal design with high‑thermal‑conductivity baseplate for natural cooling, avoiding system downtime caused by fan failure, suitable for long‑term unattended industrial applications.
•


2.2 Core Functions

• High‑Precision Analog Acquisition and Closed‑Loop Regulation:

  16‑bit high resolution + low drift design for accurate acquisition of temperature, pressure, flow, and other key parameters.

  Built‑in PID + feedforward + adaptive control algorithms.

  Temperature/pressure control accuracy for reactors can reach ±0.2℃/±0.01 MPa; temperature fluctuation of metallurgical continuous casting molds can be controlled within ±2℃.
•

• Comprehensive Fault Protection and Self‑Diagnosis:

  Real‑time monitoring of power supply, module temperature, analog channel disconnection / over‑limit.

  Provides overvoltage, undervoltage, over‑temperature, channel fault, communication loss protection, etc.

  Fault response time < 1 ms, with dual alarms via LEDs and host computer.
• Strong Compatibility and System Integration:

  Seamlessly compatible with ABB 800xA DCS and ACS800 series inverters, usable as an advanced control unit for inverters or a distributed node for 800xA.

  Supports interconnection with third‑party PLC/SCADA via Modbus/OPC UA.
•

• Redundancy and Enhanced Reliability:

  Dual power redundancy and communication link redundancy (Ethernet / optical fiber) to eliminate single points of failure in critical control sections.

  Analog channels with short‑circuit protection to prevent module damage from external wiring errors.
• Remote Operation and Data Storage:

  Supports remote program download, firmware upgrade, and fault diagnosis via Ethernet.

  Local expandable SD card for historical data storage (≥ 1 year), facilitating process traceability and fault analysis.

3 Application Areas

• Metallurgy Industry: Mold temperature control for continuous casters, hydraulic roll gap control for rolling mills, medium‑frequency induction heating power supplies.
• Chemical and Building Materials: Closed‑loop control of reactor temperature / pressure / level, temperature regulation for cement kiln inlet / outlet, pH/ORP control in water treatment.
• Power and New Energy: Excitation control for thermal / hydro generator sets, grid‑side power factor regulation for wind converters, DC voltage control for PV inverters.
• High‑Voltage Drives: Advanced control unit for ABB ACS800 series inverters, tension / speed closed‑loop control for mine hoists / belt conveyors.
