Description

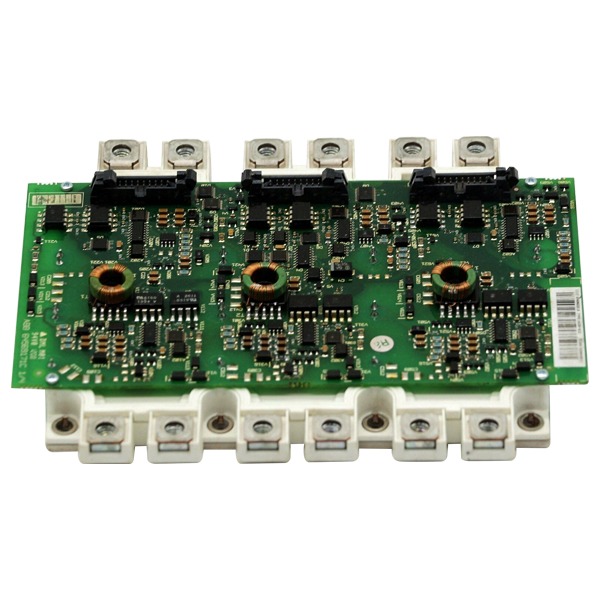

ABB FS450R12KE3/AGDR-61C

I. Basic Information

Product Type: Integrated kit consisting of an IGBT power module and a dedicated gate drive board (not a single device). The FS450R12KE3 is the IGBT power chip module, and the AGDR‑61C is the matched gate drive board (AGDR denotes the ABB drive board series, 61C is the version/config code, and 64606221D is the full part number). Together they form the power drive core of medium‑high power drive systems.
Core Functions: The complete assembly performs three core functions: high‑voltage high‑current switching and power conversion, precision drive control, and fault protection. The FS450R12KE3 executes power conversion, including bidirectional AC‑DC conversion and variable frequency speed regulation. The AGDR‑61C converts optical/electrical control signals from the controller into precise gate drive pulses, supplying the gate voltage and current required to turn the FS450R12KE3 on and off. It also includes built‑in multi‑level protection, microsecond‑level drive blocking and alarm feedback upon fault detection, and supports status monitoring data upload to ensure stable operation of the entire assembly.
Application Positioning: Suitable for low‑voltage / medium‑voltage high‑power drive systems, mainly used in industrial inverters (especially ABB ACS800 series), wind power converters, photovoltaic inverters, UPS systems, SVG / STATCOM power quality equipment, induction heating power supplies, etc. Typical industries include metallurgy, power, rail transit, papermaking, cement, and petrochemical. It is designed for variable frequency speed regulation and power conversion in heavy‑duty equipment such as fans, pumps, compressors, rolling mills, and hoists, especially for continuous‑duty applications requiring high reliability and efficiency.
Product Features: Original factory‑matched with precisely calibrated parameters, plug‑and‑play with no manual drive tuning required; modular design with standardized dimensions for easy installation, replacement, and system integration; dual anti‑interference design (optical isolation + electrical isolation) with excellent EMC performance for harsh industrial electromagnetic environments; industrial‑grade wide‑temperature operation with good protection; comprehensive fault protection and condition monitoring for easy maintenance; reliable imported quality with one‑year warranty and stable supply chain.

II. Component Parameters (FS450R12KE3 + AGDR‑61C)

(1) FS450R12KE3 IGBT Power Module Parameters

Rated Voltage: 1200 V DC (or AC peak voltage), with stable high‑voltage blocking capability, suitable for low‑voltage / medium‑voltage power conversion. It can be directly connected to the corresponding voltage‑level grid without additional step‑down devices, simplifying system design.
Rated On‑state Current (I_TAVM): 450 A (continuous on‑current), surge current up to 1200 A (10 ms). It stably carries high‑current demands of heavy‑duty equipment, supports 3‑phase 50/60 Hz operation, and enables long‑term continuous running for loads such as rolling mills and hoists.
Switching Frequency: Rated for PWM switching frequency 0–16 kHz, typical operating range 2–8 kHz. Fast switching speed and low switching loss, with optimized chip design that reduces energy consumption and supports variable‑load and high‑frequency operation.
On‑state Characteristics: Low on‑state voltage drop (typical ≤1.5 V), high current conduction efficiency, further reducing operating losses. When paired with the AGDR‑61C drive board, system conversion efficiency exceeds 98%, optimizing energy performance.
Package: Standard industrial module package (IGBT4 series), high integration, compact size, with built‑in IGBT chip and freewheeling diode. Excellent insulation allows direct and precise connection to the AGDR‑61C drive board, simplifying layout.
Protection Features: Basic built‑in overcurrent and overtemperature protection, which cooperates with the multi‑level protection of the AGDR‑61C drive board to achieve comprehensive fault protection and prevent module damage under abnormal conditions.

(2) AGDR‑61C 64606221D Gate Drive Board Parameters

Drive Voltage: Standard dual power supply: +15 V / ‑10 V. Peak gate drive current is precisely matched to the FS450R12KE3 (1200 V / 450 A). Low power consumption for long‑term continuous operation, with undervoltage / overvoltage detection and protection.
Matching Characteristics: Factory‑preconfigured parameters, specifically designed for 1200 V / 450 A class IGBT modules such as FS450R12KE3. Gate resistance is factory‑fixed to avoid IGBT damage from over‑drive or insufficient turn‑off, enabling cooperation without additional commissioning.
Switching Frequency Compatibility: Fully matched with FS450R12KE3, rated for PWM 0–16 kHz, supporting high‑frequency short pulses and heavy‑load low‑frequency operation with optimized switching loss to meet variable‑load requirements.
Protection Response: Built‑in overcurrent, short‑circuit, overtemperature, undervoltage, and desaturation protection. Short‑circuit response time < 2 μs, desaturation protection < 3 μs. Rapid drive blocking and fault alarm upon abnormality, providing dual protection with the FS450R12KE3 to prevent burnout.
Isolation Performance: Electrical isolation voltage between control and power sides ≥ 2500 V AC. Control signals transmitted via fiber‑optic isolation for extremely high EMI immunity; fiber transmission distance up to 10 m, suitable for noisy industrial sites. Insulation resistance > 100 MΩ for safe operation.
Operating Power Supply: Auxiliary supply typically 24 V DC (some versions support 12 V DC), power consumption approx. 10–20 W (load‑dependent). Stable power supply avoids drive abnormalities caused by voltage fluctuations.

III. Structure & Mechanical Characteristics

Package & Dimensions:

FS450R12KE3: Standard IGBT module package, typical dimensions approx. 140 mm × 110 mm × 40 mm, net weight approx. 0.8 kg, suitable for standard heatsink mounting.
AGDR‑61C: Standard PCB drive board kit, dimensions 130 mm × 19 mm × 191 mm, net weight approx. 0.2 kg. Board‑mount design, directly connects to gate / emitter interfaces of the FS450R12KE3 module, compatible with standard inverter cabinet mounting holes.

Housing & Material:

FS450R12KE3: High‑strength, high‑temperature resistant, corrosion‑resistant industrial‑grade metal housing with good insulation and thermal performance, protecting against dust and moisture and extending service life.
AGDR‑61C: PCB made of high‑strength FR‑4 material with anti‑corrosion surface coating. Key components (driver ICs, optocouplers / digital isolators, transformers) use industrial‑grade packaging with high temperature and humidity resistance. Metal mounting bracket with reliable grounding ensures stable operation.

Installation Method: Both support standard industrial installation. FS450R12KE3 is screw‑mounted onto a heatsink; AGDR‑61C is PCB‑mounted or installed in an integrated position with the FS450R12KE3, with optional 35 mm DIN rail mounting. Wiring uses dedicated connectors to prevent miswiring. AGDR‑61C fiber interfaces are standard ST / SC type for easy plugging and rapid assembly.
Environmental Adaptability:

Operating temperature: -40°C ～ +85°C (recommended long‑term range +5°C ～ +70°C). Industrial wide‑temperature design for stable performance in extreme environments.
Storage temperature: -40°C ～ +85°C, humidity 5%–95% RH (non‑condensing).
Protection degree: FS450R12KE3 IP20 or higher; AGDR‑61C IP20 (board level). Both must be installed in enclosed cabinets with dustproof, moisture‑proof, and ventilated conditions.
Vibration / shock resistance: Complies with IEC 60068 industrial standards, suitable for mild industrial vibration and ensuring long‑term stable operation.

IV. Functions & Advantages

1. Factory‑Matched, Highly Cooperative, Low Loss

The FS450R12KE3 and AGDR‑61C are an original ABB matched design with precisely optimized gate voltage and current waveforms, significantly reducing IGBT switching losses. Combined with the low on‑state voltage drop of the FS450R12KE3, overall system conversion efficiency exceeds 98%, greatly reducing cooling and energy costs for long‑term high‑power operation. Supports soft‑switching strategies to reduce EMI and meet industrial EMC requirements.

2. Multi‑Level Protection, Fast Response, High Reliability

The AGDR‑61C provides overcurrent, short‑circuit, overtemperature, undervoltage, and desaturation protection with microsecond‑level response and turn‑off. Combined with the FS450R12KE3’s internal protection, it forms a full‑coverage safety system that prevents damage from voltage surges, overcurrent, and overheating. Dual isolation (optical + electrical) blocks high‑voltage spikes and electromagnetic interference. Industrial‑grade components deliver high MTBF and minimize downtime.

3. Plug‑and‑Play, Easy Integration, Strong Compatibility

Modular, standardized construction allows direct connection between FS450R12KE3 and AGDR‑61C without program changes or manual parameter tuning, enabling true plug‑and‑play and drastically reducing commissioning time. Compatible with mainstream industrial inverters including ABB ACS800, supports communication with ABB DCS and third‑party PLC / DCS systems, and integrates seamlessly into existing automation infrastructure for versatile power conversion applications.

4. Easy Maintenance, Controllable Cost, Stable Supply

Modular structure allows individual removal and replacement of FS450R12KE3 and AGDR‑61C with minimal downtime. The AGDR‑61C includes diagnostic LEDs for fast fault localization, supported by condition monitoring for predictive maintenance. The assembly is a fully imported original product with guaranteed quality, one‑year warranty, in‑stock availability in selected channels, easy spare parts procurement, and a stable supply chain, reducing long‑term maintenance costs and production losses.

V. Application Scenarios

Industrial Drives: As the core power drive component in ABB ACS800 series inverters, used for variable frequency speed control of heavy‑duty equipment including rolling mills, hoists, fans, pumps, and compressors. Enables heavy‑load starting and four‑quadrant operation with precise speed and torque control, improving productivity and stability.
Renewable Energy Generation: Used in grid‑side and machine‑side power drives of wind converters and inverter bridge drives of photovoltaic inverters. Achieves efficient conversion and grid‑connection control of renewable energy, increasing utilization rate and grid stability.
Power Quality Management: Drives power modules in SVG (Static Var Generator), STATCOM, and APF (Active Power Filter) systems, dynamically compensating reactive power and harmonics, stabilizing grid voltage, and improving power quality in high‑power applications such as metallurgy and chemical processing.
