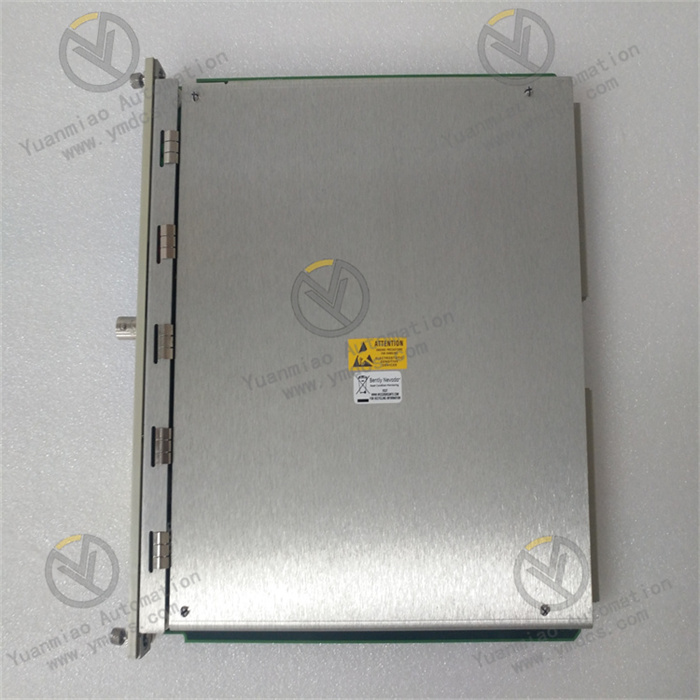

Bently Nevada 3500/53 133388-01
Bently Nevada 3500/53 133388-01 is a high-reliability, fast-response electronic overspeed detection module, specifically designed as a core component of the Bently Nevada 3500 series machinery protection system. Developed to provide precise overspeed protection for rotating machinery, this module is engineered to monitor the rotational speed of equipment in real time, trigger alarms or interlock shutdowns when the speed exceeds preset thresholds, and prevent equipment damage caused by overspeed operation. Compliant with American Petroleum Institute (API) Standards 670 and 612 for overspeed protection, it can be configured into 2-out-of-2 or 2-out-of-3 (recommended) voting systems, ensuring high reliability and fault tolerance for safety-critical applications in industries such as power generation, oil and gas, petrochemicals, and metallurgy.
I. Product Positioning and System Compatibility
Core Positioning: High-Speed Overspeed Protection Hub
As a dedicated overspeed detection module for the 3500 series machinery protection system, the 3500/53 133388-01 undertakes the core task of real-time speed monitoring and overspeed protection for rotating machinery such as turbines, compressors, and generators. It adopts a redundant design, supports 1 to 255 events per revolution, and can accurately capture subtle speed changes, providing reliable protection for high-speed rotating equipment. The module integrates signal conditioning, speed measurement, alarm output, and self-diagnostic functions, and can be combined with other 3500 series modules to form a complete machinery protection system, ensuring the safe and stable operation of key equipment.
Equipped with advanced signal processing technology, the module can effectively suppress electromagnetic interference, filter out invalid signals, and maintain high measurement accuracy even in harsh industrial environments. It also features front-panel LED indicators for intuitive status monitoring, allowing operation and maintenance personnel to quickly identify the module's working state and fault conditions.
System Compatibility and Configuration
The 3500/53 133388-01 is fully compatible with the Bently Nevada 3500 series machinery protection system, requiring installation in a 3500 instrument rack with redundant power supplies to ensure continuous operation without single-point power failures. It integrates seamlessly with 3500 series components such as the 3500/05 instrument rack, 3500/15 power supply, 3500/22M transient data interface (TDI) module, and 3500/32M relay module, forming a complete overspeed protection and monitoring system.
The module supports configuration, parameter setting, and diagnostic data retrieval through Bently Nevada System 1 software and 3500 series configuration software. All alarm setpoints (including overspeed danger setpoints) can be flexibly configured via software, typically adjustable within 0~100% of the full-scale range. It is also compatible with Bently Nevada proximity transducers (such as 3300 series 8mm, 16mm HTPS) and magnetic pickups, adapting to different on-site sensing requirements.
Environmental Adaptability
Adopting an industrial-grade reinforced design, the module features a rugged enclosure and high-reliability electronic components, passing relevant certifications such as CSA/NRTL/C, ATEX, and CE, ensuring stable operation in harsh industrial environments. It has excellent anti-vibration, anti-shock, and anti-electromagnetic interference performance, effectively suppressing common-mode noise and surges from high-power equipment.
The operating temperature range is -30°C to +65°C (-22°F to +149°F), and the storage temperature range is -40°C to +85°C (-40°F to +185°F), with a relative humidity of 5%–95% (non-condensing). It can withstand harsh conditions such as high temperature, high humidity, dust, and salt spray in industrial sites. The module adopts a compact design, suitable for installation in standard industrial control cabinets, and its front-panel connectors are equipped with short-circuit and ESD protection to enhance operational reliability.
II. Core Functions and Technical Advantages
Core Functions
Overspeed Detection and Protection: Real-time monitoring of rotating machinery speed, supporting a maximum full-scale range of 99,999 rpm and a maximum input frequency of 20 kHz. It can set low-speed and high-speed alarm setpoints, as well as overspeed danger setpoints; when the speed exceeds the preset threshold, it triggers relay actions to issue alarms or interlock shutdowns, preventing equipment damage.
Redundant Voting System: Can be combined with other 3500/53 modules to form a 2-out-of-2 or 2-out-of-3 (recommended) voting system, ensuring that the system can continue to operate normally even if a single module fails, improving the reliability of the overspeed protection system.
Comprehensive Signal Processing: Accepts signals from proximity probes or magnetic pickups, with an input signal range of +10.0 V to -24.0 V (internally limited for signals exceeding this range) and an input impedance of 20 kΩ. It integrates signal filtering and conditioning functions, supporting cold-junction compensation and signal amplification to ensure accurate speed measurement.
Multiple Output Interfaces: Equipped with buffered transducer outputs (front-panel coaxial connectors with short-circuit and ESD protection, output impedance 550 Ω), recorder outputs (+4 to +20 mA, proportional to full-scale rpm, unaffected by short circuits), and SPDT epoxy-sealed relays for alarm and interlock output.
Real-Time Self-Diagnostics and Status Indication: Front-panel LED indicators (OK, TX/RX, Bypass, Test Mode, Alarm) provide intuitive status visualization. The OK LED indicates normal operation; TX/RX indicates communication with other modules in the rack; Bypass indicates the module is in bypass mode; Test Mode indicates the module is in test mode; Alarm indicates an alarm condition has occurred. The module also has built-in self-diagnostic functions to monitor internal circuit faults and signal abnormalities, and reports faults to the upper system in a timely manner.
Technical Advantages
High Measurement Accuracy: The recorder output has a resolution of 0.3662 μA per bit, an error of ±0.25% at room temperature, and an error of ±0.7% over the entire temperature range, with a data refresh rate of approximately 100 ms. For speed measurement, the accuracy is ±0.1 rpm when the speed is less than 100 rpm, and ±1 rpm when the speed is 100 to 10,000 rpm, ensuring precise monitoring of speed changes.
Fast Response Speed: The frequency response time is less than 30 ms when the frequency is higher than 300 Hz, enabling rapid detection of overspeed conditions and timely triggering of protection actions, which is crucial for high-speed rotating equipment that requires quick response.
High Reliability: The module uses epoxy-sealed SPDT relays with a contact life of 100,000 operations at 5 A, 24 Vdc or 120 Vac, and a maximum switching power of 120 W (dc) and 600 VA (ac). The power interface has overcurrent and overvoltage protection, supporting stable operation under voltage fluctuations.
Flexible Configuration: The number of events per revolution (1 to 255) and alarm setpoints can be flexibly configured via software, adapting to different types of rotating machinery and application requirements. It supports both proximity transducers (minimum input frequency 0.0167 Hz) and magnetic pickups (minimum input frequency 3.3 Hz), with strong adaptability.
III. Typical Application Scenarios
Power Generation Industry
Widely used in thermal power, hydropower, and nuclear power plants to monitor the speed of steam turbines, gas turbines, and generators. It provides overspeed protection for key rotating equipment, triggers emergency shutdowns when the speed exceeds the safe range, and prevents major equipment damage and production accidents. In nuclear power plants, it is applied to the secondary loop cooling system and fuel handling system, complying with strict nuclear-grade reliability standards.
Oil and Gas & Petrochemical Industries
In offshore platforms, oil and gas pipelines, and gas processing plants, the module monitors the speed of compressors, pumps, and other rotating equipment. It triggers alarm and interlock actions when overspeed occurs, ensuring the safety of flammable and explosive environments. In petrochemical plants, it is used in hydrocracking, FCC units, and reactor systems to protect rotating equipment in the production process, ensuring the stability and safety of the production line.
Metallurgy and Other Industries
In metallurgical plants, it monitors the speed of rolling mills, blowers, and other equipment, providing overspeed protection to avoid equipment damage and production interruptions. It is also widely used in papermaking, automobile manufacturing, and other industries to protect key rotating machinery, improve equipment reliability, and reduce maintenance costs.
IV. Technical Specifications
Parameter Name | Parameter Details |
Model | Bently Nevada 3500/53, Part Number: 133388-01 |
Product Type | Electronic overspeed detection module, compatible with 3500 series machinery protection system |
Speed Measurement Range | Maximum full-scale: 99,999 rpm; Maximum input frequency: 20 kHz |
Input Signal | Proximity probe or magnetic pickup signal; Input range: +10.0 V to -24.0 V; Input impedance: 20 kΩ |
Accuracy & Resolution | Recorder output: ±0.25% (room temp), ±0.7% (full temp range); Resolution: 0.3662 μA/bit; Speed accuracy: ±0.1 rpm (<100 rpm), ±1 rpm (100-10,000 rpm) |
Response Time | < 30 ms (frequency > 300 Hz); Data refresh rate: ~100 ms |
Output Interfaces | Buffered transducer output (550 Ω, short-circuit/ESD protected); Recorder output (+4~+20 mA); SPDT epoxy-sealed relays |
Relay Specifications | Max switching power: 120 W (dc), 600 VA (ac); Max current: 5 A; Min current: 100 mA @5 Vdc; Contact life: 100,000 operations |
Power Requirements | Typical power consumption: 8.0 W; Transducer power: -24 Vdc, max 40 mA; Requires 3500 rack with redundant power supplies |
Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
Relative Humidity | 5%–95% (non-condensing) |
Physical Specifications | Dimensions (H×W×D): 241.3 mm × 24.4 mm × 241.8 mm; Weight: ~0.45 kg |
Supporting Software | Bently Nevada System 1 software, 3500 series configuration software |
Compatible Components | 3500/05 rack, 3500/15 power supply, 3500/22M TDI module, 3300 series proximity transducers, magnetic pickups |
Special Features | Redundant voting system, fast response, real-time self-diagnostics, LED status indication, short-circuit/ESD protection |
