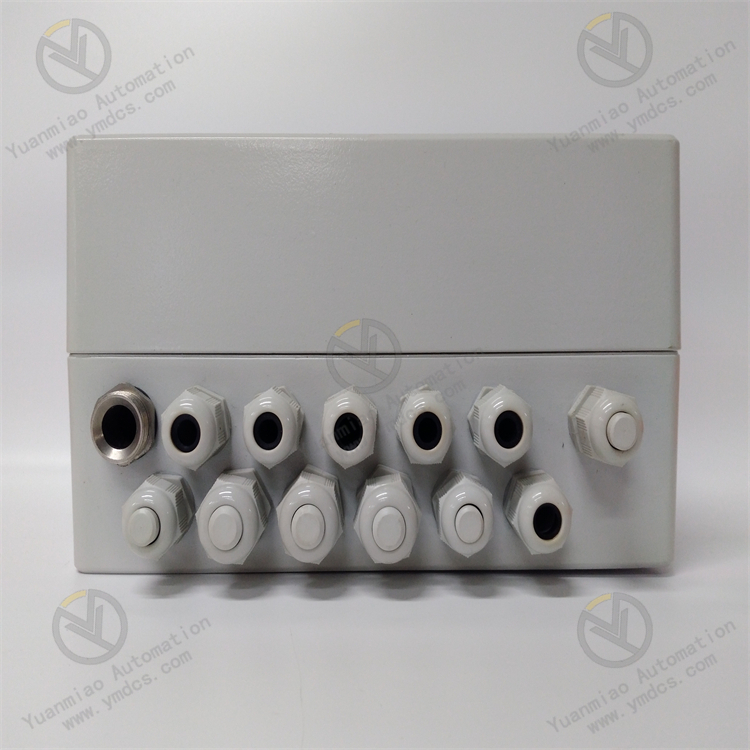

ABB PFEA113-65 3BSE028144R0065
I. Positioning
As the core unit of the web tension control system, based on ABB Pressductor® magnetostrictive sensing technology, it enables real-time monitoring and precise tension control of continuous materials such as paper, film, metal foil, cables, etc. It ensures constant material tension during production, improving product quality and production efficiency.
II. Technical Data
| Item | Specification |
|---|---|
| Type | PFEA113-65 |
| Order No. | 3BSE028144R0065 |
| Measuring accuracy | ±0.1% FS (Full Scale) |
| Response time | < 10 ms |
| Measuring range | 0–200% Full Scale |
| Sensor interface | Direct connection to 4 load / tension sensors (e.g. PFTL, PFCL series) |
| Expansion capability | Up to 3 units in series, supporting cooperative control of 12 sensors |
| Analog outputs | 6 configurable analog outputs (0/4–20 mA or 0–10 V) |
| Digital I/O | 4 programmable digital outputs (for alarm / status indication), 1 digital input |
| Communication interfaces | PROFIBUS‑DP (slave, 12 Mbps), RS‑485, Modbus TCP |
| Power supply | 24 VDC (range: 18–36 VDC), power consumption approx. 7.5 W |
| Protection class | IP65 (sealed version, dust & splash proof) / IP20 (DIN rail version) |
| Operating temperature | 0°C to +55°C |
| Display | 2×16 character multi‑language LCD display |
III. Core Functions
High‑precision Tension Measurement
Adopts magnetostrictive sensing technology with strong anti‑interference capability and stable, reliable measurement.Supports real‑time display and switching of multiple tension units (N, kg, lbs, etc.).
Intelligent Closed‑loop Control
Built‑in advanced control algorithms, supporting multiple modes such as constant tension control, speed‑dependent tension control, taper control, etc.Dynamically compensates for tension fluctuations, especially suitable for high‑speed, variable‑diameter winding / unwinding applications.
Flexible Expansion & Integration
Up to 4 sensors per unit; multi‑unit cascading expands to 12 sensors, adapting to complex multi‑section tension control.Seamless integration into PLC / DCS systems (e.g. AC 800M, 800xA) via PROFIBUS‑DP / Modbus TCP for remote monitoring and parameter adjustment.
Diagnosis & Maintenance
Comprehensive self‑diagnosis function for real‑time monitoring of sensors, communication, power supply, etc.Fault code display and logging, supporting predictive maintenance and reducing downtime.Front‑panel keypad operation; calibration and parameter setting can be completed without a PC.
IV. Applications
- Printing & Packaging: Rotogravure presses, flexographic presses, laminators, slitting machines
- Paper & Film: Paper machines, film stretching lines, rewinding machines
- Cable Manufacturing: Extrusion and winding equipment for wires, cables, optical fibers
- Textile Dyeing & Finishing: Unwinding, dyeing, coating lines for yarns and fabrics
V. Product Advantages
- High precision & high dynamics: ±0.1% accuracy and <10 ms response to meet high‑speed precision processing requirements.
- High reliability: IP65 protection, wide operating temperature range, suitable for harsh industrial environments.
- Easy integration: Rich communication interfaces, compatible with mainstream industrial buses, quick access to automation systems.
- Easy operation & maintenance: Local display and keypad, complete diagnosis functions, reducing operation and maintenance costs.
