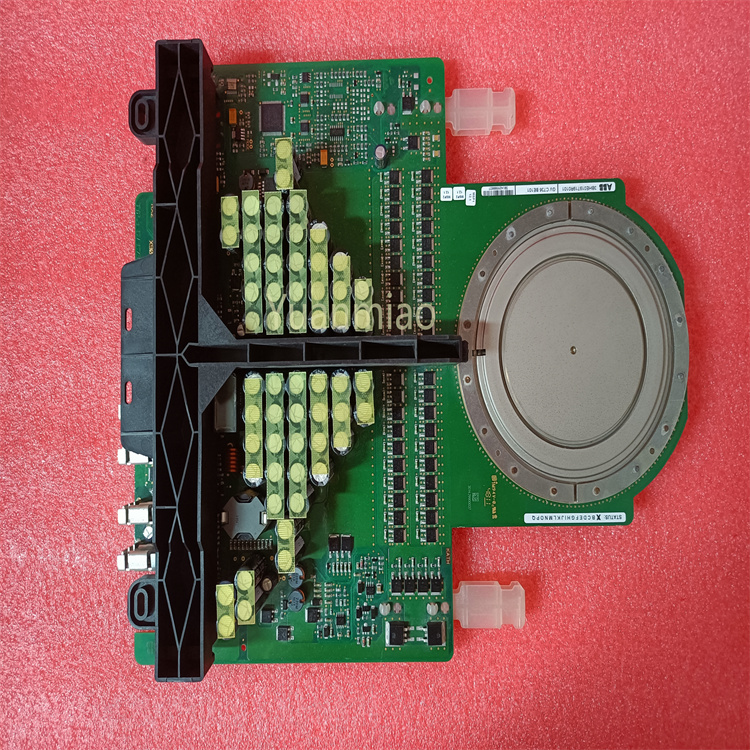

ABB 3BHB021400R0002 (Order No.) 5SHY4045L0004 (Series Model) is a core power electronic component combination under ABB, belonging to the 5SHY series high-voltage and high-power device product line. Among them, 3BHB021400R0002 is a dedicated integrated gate control module, and 5SHY4045L0004 is an asymmetric IGCT (Integrated Gate Commutated Thyristor) power module. These two modules are used together, with the core positioning of "energy conversion and precise control center" for medium-voltage and high-power converter systems. This combination is specifically designed for high-power equipment such as high-voltage inverters, industrial rectifiers, and traction converters. It can be adapted to medium and high-power converters without series or parallel connection, and can meet higher power requirements through series and parallel expansion. It is widely used in harsh industrial scenarios such as High-Voltage Direct Current (HVDC) transmission, new energy power generation, metallurgical steel rolling, mine hoists, and rail transit. Relying on the low on-state voltage drop, high blocking voltage characteristics of the IGCT device and the precise drive capability of the control module, it realizes efficient and stable power conversion and power regulation, suitable for heavy industrial sites with high dust, strong vibration and strong electromagnetic interference, and is a core component to ensure the safe and continuous operation of high-power equipment.

1. Working Principle and Structural Features

The core working principle of this product combination revolves around the energy conversion of the IGCT power module and the precise drive and safety protection of the control module. The two work together to form a complete power control unit: the 5SHY4045L0004 IGCT module, as the core of energy conversion, combines the high blocking capability, low on-state voltage drop of thyristors and the stable switching performance of transistors. It undertakes the on-off control and energy conversion tasks of high voltage and large current, and can work stably without a snubber circuit. Its uniform switching characteristics make its safe operating area reach the dynamic avalanche limit, and its optimized loss characteristics allow medium switching frequency applications, which can effectively reduce system energy loss; the 3BHB021400R0002 integrated gate control module, as the "command center", is responsible for converting the control signal of the upper computer or main control board into a precise gate drive signal to control the on and off of the IGCT module. At the same time, it real-time monitors the operating status of the IGCT module, integrates signal processing, communication and multiple safety protection functions. Once an abnormal working condition such as overcurrent, overvoltage or overheating is detected, it can quickly block the drive signal to avoid damage to the IGCT module, and feed back the fault status to the main control system to ensure the safe and stable operation of the entire converter system.

2. Core Technical Specifications

（1）Core Parameters of 5SHY4045L0004 IGCT Power Module

• Core Model: 5SHY4045L0004 (Series Model), Product Type: Asymmetric IGCT (Integrated Gate Commutated Thyristor) Power Module, High-Voltage and High-Power Semiconductor Device;
• Core Electrical Parameters: Rated Voltage 4000V (Peak Off-State/Reverse Repetitive Voltage VDRM/VRRM), Rated Current 4500A (RMS On-State Current IT (RMS)), Rated Turn-Off Current 4000A, Surge Current ≥60kA (Single Cycle ITSM,1 cycle), Typical On-State Voltage Drop ≤3.5V, Low On-State Loss;
• Switching and Trigger Parameters: Optimized Switching Frequency ＜1kHz, Gate Trigger Voltage 1.5-3.0V (VGT), Gate Trigger Current 200-500mA (IGT), Turn-Off Time ≤100μs (tq), No Snubber Circuit Required, Reliable Turn-Off Process;
• Thermal and Insulation Parameters: Thermal Resistance from Junction to Substrate 0.003℃/W, IGCT Junction Temperature Operating Range -40℃~+125℃, Insulation Voltage 5000V AC (withstand 1-minute voltage test), Excellent Electrical Isolation Performance;
• Protection Function: Built-in gate trigger unit, which can real-time monitor voltage and current rise rate, avoid false triggering or avalanche breakdown; when encountering abnormalities such as overcurrent, overvoltage and overheating, it will quickly block the trigger signal, and realize all-round safety protection with 3BHB021400R0002 control module;
• Physical Characteristics: Size about 450mm×250mm×300mm (slightly different for sub-models), Weight about 15kg, Adopt Bolt Press-Fit Installation, Heat Sink Serves as Power Terminal Electrical Contact;
• Operating Environment: Operating Temperature Range -40℃~+70℃, Ambient Humidity 0-95% (no condensation), Protection Rating IP20, Anti-Electromagnetic Radiation (EMI Immunity ≥100V/m), Suitable for Heavy Industrial Scenarios with High Dust, Strong Vibration and High Voltage Fluctuation;
• Compatibility and Certification: Seamlessly Compatible with 3BHB021400R0002 Integrated Gate Control Module; multiple modules can be combined into three-phase rectifier bridges or inverter bridges, and form a complete power unit with gate drive unit; compliant with IEC 60747-6 standard, certified by CE and UL;
• Other Features: Adopt imported square chips and DCB ceramic copper-clad plates, with excellent thermal conductivity, and the number of thermal cycle load times is far higher than the national standard; the trigger control circuit, main circuit and thermal conductive base plate are isolated from each other, and the thermal conductive base plate is not charged to ensure personal safety; suitable for resistive and inductive loads, the three-phase AC module has good output symmetry and small DC component.

（2）Core Parameters of 3BHB021400R0002 Integrated Gate Control Module

• Core Model: 3BHB021400R0002 (Order No.), Product Type: IGCT Dedicated Integrated Gate Control Module, High-Voltage Controller, belonging to the supporting control product line of ABB 5SHY series;
• Core Function Parameters: Responsible for the gate drive and status monitoring of IGCT modules such as 5SHY4045L0004, supporting signal amplification, logic control and fault feedback, and can convert upper computer instructions into switching drive signals for IGCT modules to realize precise control of power conversion;
• Electrical Parameters: Input Voltage adapted to industrial standards, Output Drive Voltage adapted to the gate requirements of 5SHY4045L0004 module, with low on-state loss and low switching loss characteristics; some specifications have a rated power of up to 22kW, and input and output voltages can be adapted to 380V industrial power supply;
• Communication and Protection Parameters: Support ModbusRTU/ASCII, EtherNet/IP and other communication protocols, and can be seamlessly connected with third-party equipment (such as HMI, SCADA systems); built-in trigger mechanisms for overcurrent, overvoltage, undervoltage and overheating protection, fast fault response, with fault diagnosis and positioning functions, which can quickly block drive signals and feed back fault status;
• Physical Characteristics: Size about 350mm×250mm×200mm (slightly different for sub-models), Weight about 10kg, Adopt Bolt-Fixed Installation, Support Field Replaceable Unit (FRU);
• Operating Environment: Operating Temperature Range -40℃~+70℃, Ambient Humidity 5%~95% (no condensation), some specifications have a protection rating of up to IP67, strong anti-electromagnetic interference ability, complying with industrial electromagnetic compatibility standards, suitable for high-voltage and high-dust industrial scenarios;

• Other Features: Industrial-grade imported quality, manufactured with advanced semiconductor technology, high efficiency and high reliability, excellent Mean Time Between Failures (MTBF), supporting 24/7 continuous operation, no complex on-site commissioning required, plug-and-play; signal connection and high-voltage test must be completed after installation before putting into use; can be applied to high-voltage power applications such as HVDC transmission and renewable energy power generation to realize bidirectional conversion between AC and DC power。

3. Core Product Advantages

• Excellent Collaborative Performance: The two are seamlessly compatible. The 5SHY4045L0004 IGCT module has high blocking voltage, large current carrying capacity, low on-state voltage drop and stable switching performance. The 3BHB021400R0002 module provides precise gate drive and comprehensive status monitoring, and can work stably without a snubber circuit, effectively reducing dynamic loss and system energy consumption, and improving the power conversion efficiency of the entire converter system;
• Strong Power Adaptability: The 5SHY4045L0004 module can be individually adapted to medium and high-power converters, and multiple combinations can form three-phase rectifier bridges or inverter bridges. Combined with the regulation capability of the 3BHB021400R0002 control module, it can flexibly adapt to the equipment requirements of different power levels, meeting the diversified application scenarios from industrial drives to HVDC transmission;
• Comprehensive Safety Protection: The 5SHY4045L0004 module has built-in voltage and current rise rate monitoring units, and the 3BHB021400R0002 module integrates multiple protection mechanisms. Combined with the self-protection characteristics of the IGCT module, it can realize all-round protection such as overcurrent, overvoltage, overheating and false triggering, with fast fault response, maximizing the protection of core components and reducing equipment maintenance costs;
• High Reliability and Stability: Adopting high-quality semiconductor materials, DCB ceramic copper-clad plates and advanced manufacturing processes, it has strong thermal cycle load capacity and excellent thermal conductivity; the 3BHB021400R0002 module has strong anti-interference and anti-harsh environment capabilities, and some specifications have a protection rating of IP67. Both support long-term continuous operation, have a long mean time between failures, and are suitable for harsh industrial working conditions;
• Convenient and Efficient Operation and Maintenance: Both adopt modular design. The 3BHB021400R0002 module supports Field Replaceable Unit (FRU) design, which is easy to install and disassemble. Fault signals are fed back to the main control system in real time, which can quickly locate abnormalities and reduce downtime for maintenance; the modular design of the 5SHY4045L0004 module facilitates installation, maintenance and expansion, and only needs to ensure uniform contact pressure and standard insulation distance during installation;
• Wide Adaptability: Compatible with ABB 800xA system and various inverters, high-voltage motors, traction converters, can be used with 3BHE series I/O modules to form a complete automatic control system, widely used in new energy, power transmission, rail transit, metallurgy, mining and other heavy industrial fields;
• Energy Saving, Environmental Protection and Compliance: Comply with RoHS environmental protection standards, free of harmful substances such as lead and mercury, responding to green production requirements; efficient circuit design, combined with the low on-state loss of the IGCT module and the low energy consumption characteristics of the control module, further reducing the overall energy consumption of the system, which can significantly save operating costs in long-term operation;
• Reasonable and Durable Structure: The 5SHY4045L0004 module adopts bolt press-fit packaging, with small contact resistance and high thermal conductivity; the 3BHB021400R0002 module has a compact structure, reasonable installation space occupation, and industrial-grade high-strength materials ensure service life, adapting to long-term high-load operation conditions。

4. Application Scenarios

• Power Transmission Field: High-Voltage Direct Current (HVDC) systems, Flexible Alternating Current Transmission Systems (FACTS), power electronic transformers, realizing long-distance and large-capacity power transmission, power grid power factor adjustment and high-frequency voltage transformation, improving power grid operation efficiency and stability, adapting to the needs of high-power converter equipment;
• New Energy Power Generation Field: Power conversion units of wind power generation and solar photovoltaic power generation equipment, as core energy conversion and drive control components, help renewable energy grid connection efficiently, improve power grid power factor and enhance power grid stability, adapting to the needs of high-power converters in large wind farms and photovoltaic power stations;
• Industrial Drive Field: Drive systems of large equipment such as electric arc furnaces, steel rolling mill main drives in the metallurgical industry, crushers, conveyors, mine hoists in the mining industry, high-power pumps, fans and compressors in the petrochemical industry, realizing precise power control and speed regulation, ensuring the continuity of industrial production;
• Rail Transit Field: Power traction systems such as electric locomotives and subways, undertaking high-power power conversion and drive control tasks, adapting to working conditions of strong vibration and high voltage fluctuation, ensuring stable operation of the traction system and improving the safety and reliability of rail transit operation;
• Other Medium-Voltage and High-Power Scenarios: Large-scale energy storage converters (PCS), high-voltage inverters, industrial high-power soft starters, as well as power substation automation control, petrochemical plant safety interlock systems, etc., adapting to various industrial systems and meeting different application needs; at the same time, it can be applied to electric vehicle charging stations, industrial motor control systems and other scenarios
