Description

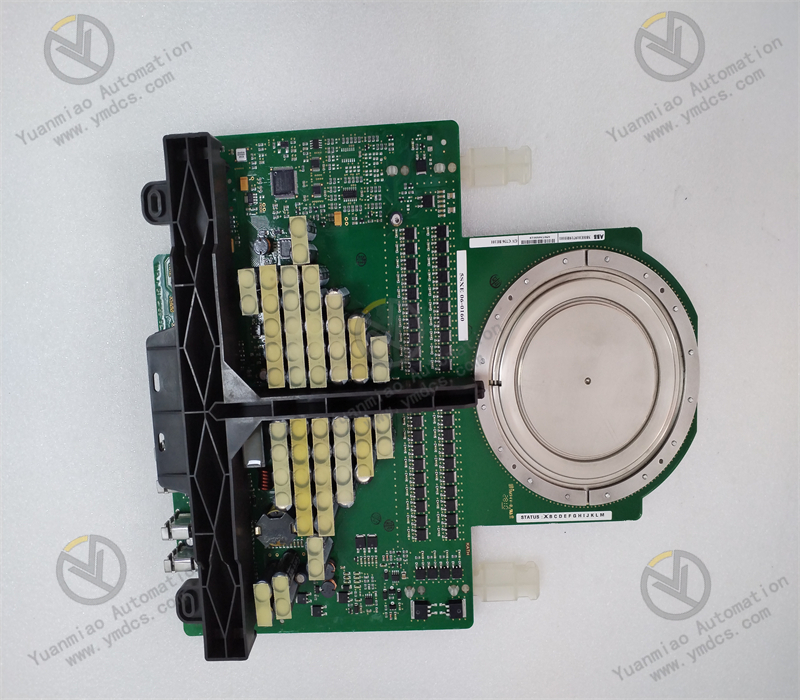

ABB 5SHY5045L0020

I. Basic Information

• Product Type: Integrated Gate-Commutated Thyristor (IGCT) power chip.
• Core Function: Performs high-voltage, high-current switching and power conversion as the power core of medium- and high-voltage power conversion systems. It features high voltage withstand capability and high current-carrying capacity, exhibiting low loss characteristics of a thyristor during conduction and stable turn‑off performance of a transistor during turn‑off. Trigger signals are typically transmitted via optical fibers; control requires only one power supply and two optical fibers. It operates stably without snubber circuits, enabling plug‑and‑play, simplifying system design and reducing failure points. It also realizes bidirectional AC‑DC energy conversion and supports four‑quadrant motor operation (motoring, braking, generating, plugging).
•

• Application Positioning: Suitable for medium‑high voltage (3 kV–10 kV) and medium voltage (690 V–3.3 kV) high‑power power conversion. Mainly used in high‑voltage inverters and high‑power converters (e.g., phase modules in ABB ACS6000 series active rectifier units), matching power grid equipment and medium‑power industrial drives. Used with large synchronous generators, Static Var Compensators (SVC), STATCOM flexible AC transmission equipment, and HVDC converter valves. Typical applications include power, metallurgy, petrochemical, rail transit, and new energy industries, meeting variable frequency speed regulation requirements for fans, pumps, compressors, rolling mills, hoists, and other industrial equipment.
•

• Product Features: Compact size, high integration, powerful performance, excellent current conduction and voltage withstand capability; high electromagnetic immunity suitable for harsh industrial electromagnetic environments and complex working conditions. Modular design enables easy installation, maintenance, and system integration with seamless compatibility with dedicated ABB gate drive units without additional tuning. Imported original product with reliable quality, available domestically and overseas, with stock in some channels. Outstanding advantages include low conduction loss, high switching speed, and snubberless operation, high operational reliability, increased system power density, and ability to drive bidirectional loads.

II. Electrical Parameters

• Rated Voltage: Designed for medium‑high voltage applications, rated at 4500 V DC (or AC peak voltage), corresponding to medium‑voltage 690 V–3.3 kV systems. Stable high‑voltage blocking capability meets high‑voltage demands in power systems and medium‑high voltage drives. Integrated high‑voltage insulation allows direct connection to medium‑high voltage grids without external step‑down transformers, simplifying system design.
•

• Rated On‑state Current (I_TAVM): Excellent current‑carrying capacity, with a typical continuous on‑state current of 2000 A and peak current exceeding 4000 A. Stably supports high‑power loads, matching requirements for medium‑high voltage high‑power converters and power grid equipment, suitable for 3‑phase 50/60 Hz operation and long‑term stable running.
• Switching Frequency: Designed for medium‑high frequency operation, typical switching frequency 1–3 kHz (standard for IGCT), up to 5 kHz. Fast switching with stable performance without snubber circuits greatly reduces switching losses, satisfying precise medium‑high voltage power conversion and meeting frequency requirements in industrial drives and power systems, with optimal performance in the 500 Hz–2 kHz range.
•

• Switching Characteristics: Microsecond‑level turn‑on and turn‑off times. A hard gate drive can switch the thyristor from a pnpn latched state to pnp mode within 1 µs; turn‑off occurs entirely in transistor mode, eliminating latching. It withstands extremely high di/dt and du/dt, achieving ≥5–6 kA/µs at 20 V gate voltage. Snubberless design further reduces losses, improves overall system efficiency, ensures stable and reliable switching, and suits high‑frequency high‑power conditions.
• Protection Functions: Built‑in overcurrent, short‑circuit, over‑temperature, and overvoltage protection effectively prevents chip damage under abnormal conditions, resists external interference and faults, stops fault propagation, and ensures safe and stable operation. Comprehensive status monitoring provides real‑time feedback, fast fault location, and reduced downtime, meeting high‑reliability industrial system requirements.
•

• On‑state Characteristics: Low on‑state voltage drop (1.5–2.5 V), inheriting the low loss advantage of thyristors, high conduction efficiency, low operating loss, and optimized energy consumption. System conversion efficiency exceeds 98%. Input/output characteristics match industrial control requirements, enabling flexible and precise control with gate drive units in various scenarios.
• Control Characteristics: Supports optical fiber trigger signal transmission for strong anti‑interference performance in harsh industrial electromagnetic environments. Extremely low gate inductance, connected via coaxial gate feedthrough and multilayer PCB gate drive, avoids gate over‑drive and optimizes drive energy consumption. Good programmability allows parameter adjustment for different power conversion scenarios, providing strong control and data acquisition support for industrial automation and power systems.

III. Structure & Mechanical Characteristics

• Package: Standard industrial module package, high integration, compact size, built‑in GTO chip and control structure, no external snubber required. Excellent insulation performance for high‑voltage applications, precise mating with dedicated gate drive units, simplified layout and installation, reduced failure points, suitable for phase modules in ABB ACS6000 series converters.
• Dimensions: Standard high‑voltage power module size, compatible with industrial control cabinet installation space, flexible mounting, saves space, and supports coordinated layout with other equipment for medium‑high voltage converters and power system devices.
• Weight: Net weight approx. 500 g. Compact and lightweight design simplifies installation, removal, and maintenance, reducing on‑site operation difficulty and supporting frequent servicing or replacement in industrial environments.
• Housing Material: High‑strength, high‑temperature resistant, corrosion‑resistant industrial‑grade material with good insulation. Protects against dust and moisture in harsh industrial environments and extends service life. Standard industrial housing suits various installation scenarios, balancing protection and practicality.
• Installation: Supports standard industrial mounting, including 35 mm DIN rail mounting with screw terminals for secure connection and good thermal contact to avoid local overheating. Standard power module interface enables easy installation in ABB compatible equipment (e.g., ACS6000 series) and general industrial applications, allowing fast integration into existing automation infrastructure. Low‑inductance connection to gate drives improves operational stability.

•


• Environmental Adaptability
• Operating Temperature: -40 ℃ ～ +100 ℃ (typical). Industrial‑grade wide‑temperature design ensures stable operation in extreme hot and cold environments, matching geographic and industrial site requirements for power systems and industrial drives.
• Storage Temperature: -40 ℃ ～ +85 ℃, humidity 5%–95% RH (non‑condensing). Protection degree IP20 or higher, dust and splash proof, prevents short circuits and extends service life. Standard IP20 suits regular control cabinets; higher protection versions are available for special environments.
• Mechanical Life: Excellent mechanical life of auxiliary contacts (if equipped) supports long‑term frequent start‑stop operation in production lines, generator sets, and power systems, reducing downtime and improving system availability.

IV. Functions & Advantages

1. High Power Performance & High Efficiency

2. High Reliability & Strong Environmental Adaptability

3. Easy Integration & Wide Compatibility

4. Precise Control & Easy Maintenance

V. Typical Applications

• Power System Sector: Used in HVDC converter valves and power modules for flexible AC transmission (STATCOM, SVC) to achieve high‑voltage power conversion and control, improve grid stability and reliability, and support efficient power grid operation as a core power device.
• High‑voltage Excitation Control Systems: Excitation control for large synchronous generators in hydropower, thermal power, and nuclear power plants, optimizing efficiency and stability to ensure safe and efficient power generation and reliable power supply.
• Industrial Automation: Applied in medium‑high voltage high‑power converters for variable frequency speed control of fans, pumps, compressors, rolling mills, hoists, and other industrial equipment. Especially suitable for phase modules in ABB ACS6000 series active rectifier units, improving drive reliability and efficiency widely used in metallurgy, petrochemical, cement, paper, and other industries.
• Power Electronics: Used in frequency converters, SVC, power converters for high‑efficiency AC/DC conversion and power quality improvement, enhancing power system stability. Also applied in high‑voltage inverters for high‑voltage power supply conversion.
• New Energy: Fits high‑voltage power units in wind power converters and photovoltaic inverters for power conversion and grid integration, improving utilization and stability of renewable energy and supporting industry development.
• Transportation: Used in traction systems of electric locomotives for high‑efficiency traction motor control, improving stability and energy efficiency of rail transit. Also applied in generator control systems of large vessels to control main and auxiliary engine speed and ensure reliable offshore operation.
• General Industrial Control & Other Fields: Used in medium‑high voltage applications requiring controlled rectification, inversion, frequency conversion, voltage regulation, and contactless switching, satisfying precision control requirements and supporting efficient and stable industrial production.
