Description

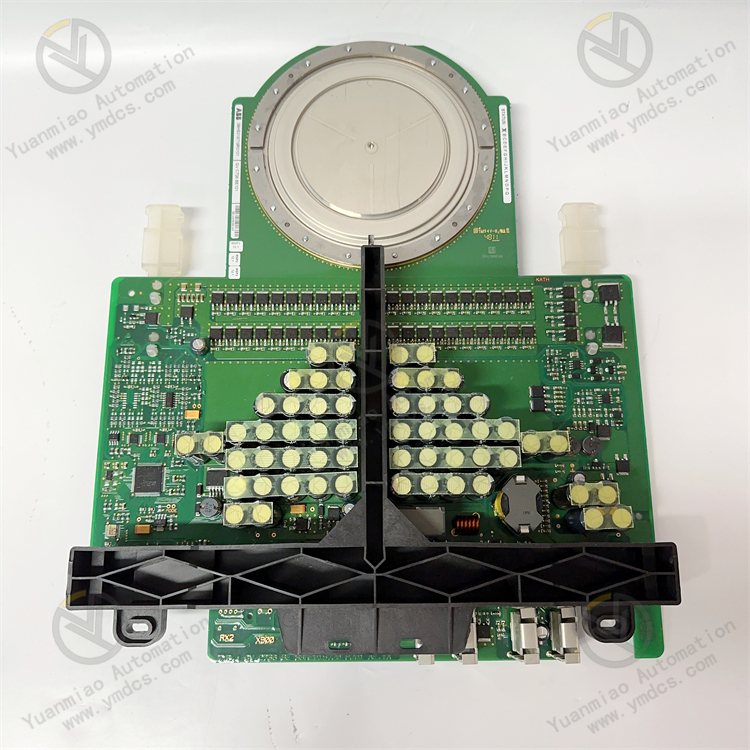

ABB 5SHY5045L0020
ABB 5SHY5045L0020 is a high-voltage IGCT (Integrated Gate-Commutated Thyristor) power semiconductor module, positioned as a core power conversion unit for medium- and high-voltage industrial power electronic systems. It features high-power handling, high-efficiency power conversion, bidirectional load drive, and low-loss operation, focusing on solving pain points in industrial medium- and high-voltage applications such as low power density, high switching losses, insufficient load adaptability, and poor operational stability.
Integrating ABB’s core technological expertise in power semiconductors, this product adopts advanced IGCT hard-drive technology, press-pack packaging, and optimized buffer layer design, in strict compliance with international industrial standards. It is a key core component for medium- and high-voltage inverters, motor drive systems, and industrial high-power control equipment. Having undergone rigorous electrical performance testing, thermal stability verification, and electromagnetic compatibility testing, the module offers high voltage withstand, high current capability, low losses, and high power density. It can be directly connected to medium- and high-voltage power grids without external step-down transformers, simplifying system design. It is widely used in metallurgy, mining, wind power, machinery manufacturing, and other fields, suitable for long-term continuous operation under various medium- and high-voltage, high-power, bidirectional load industrial conditions.
1. Product Parameters
Basic General Parameters
- Brand: ABB
- Model: 5SHY5045L0020
- Product Type: High-voltage IGCT power semiconductor module
- Core Device: Integrated Gate-Commutated Thyristor (IGCT), featuring bidirectional load drive
- Core Applications: Power conversion, high-power control, and variable frequency speed regulation for medium- and high-voltage systems, suitable for high-voltage (3kV–10kV) and medium-voltage (690V–3.3kV) high-power inverters, motor drive equipment, wind power-related systems, etc.
- Manufacturing Standards: Strictly complies with international industrial standards for power semiconductor modules, meeting industrial-grade quality specifications; 1-year product warranty
- Operating Environment: Adapted to harsh industrial conditions including high dust, strong electromagnetic interference, and voltage fluctuations; stable operation in outdoor and enclosed control cabinets
- Storage Temperature: Complies with general industrial standards, suitable for storage in different regions
Condition: Brand-new original product, conforming to ABB industrial quality standards, fully factory-tested, suitable for long-term continuous industrial operation
Electrical Performance Parameters
- Rated Voltage: 4500V DC rated blocking voltage, corresponding to AC peak voltage; suitable for medium-voltage 690V–3.3kV systems, direct connection to medium- and high-voltage grids
- Rated Current: 2000A continuous rated current, peak current over 4000A; efficiently handles high-power bidirectional loads to meet high-voltage power transmission requirements
- Switching Performance: Typical switching frequency 1–3kHz, maximum up to 5kHz; fast switching capability, short turn-off time, turn-off rate ≥5–6kA/µs at 20V gate voltage; supports stable motor operation during rapid start/stop, speed regulation, and load
mutation
- Loss Characteristics: Optimized buffer layer and IGCT hard-drive technology; turn-off energy <10mJ, low conduction loss, switching loss comparable to IGBTs; snubberless operation further reduces system loss and improves energy efficiency
- On-State Voltage Drop: Typical 1.5–2.5V (varies with current and temperature)
- Electrical Protection: Integrated overvoltage, overcurrent, over-temperature, and short-circuit intelligent protection; real-time monitoring of module status to prevent component damage and fault propagation
Insulation & Anti-Interference: Insulation class up to Class H (180℃) or Class N (200℃) (depending on packaging material); excellent electrical isolation and EMC performance; improved GTO turn-off SOA (Safe Operating Area) for more stable high-power (3kA/4.5kV) operation; coaxial gate and multi-layer PCB gate drive connection reduce gate inductance and electromagnetic interference
Physical Specification Parameters
- Packaging Technology: Press-pack or bolt-fixed package, ideal for high-voltage high-current applications; no wire bonding for improved reliability
- Dimensions: Approx. 300mm × 200mm × 100mm (slight variations by design); fits standard industrial control cabinets and high-voltage equipment installation
- Weight: Approx. 10–20kg (varies with package type); conforms to standard high-voltage power module weight
- Thermal Design: Water cooling (forced circulation, flow rate ≥5L/min) or liquid cooling + air cooling; effectively reduces operating temperature and prevents overheating damage for long-term stable operation
Protection Level: Suitable for harsh industrial environments; good dustproof and moisture-proof performance; adapted for outdoor and dusty industrial sites (derived from reference to same-series products and applications)
Compatibility & Expansion Parameters
- Compatibility: Standard package with industrial standard mounting interfaces; horizontal or vertical installation (considering cooling direction); flexible series/parallel combination with same-series IGCT modules for different power requirements; compatible with various ABB medium- and high-voltage control systems; seamless connection to medium- and high-voltage inverters, motor drives, wind turbine pitch control systems, etc.; no external step-down transformer required, simplifying system design
- Expandability: Modular design; multiple modules can be flexibly combined for power scaling and function upgrade without major equipment modification, reducing upgrade costs
- Serviceability: Supports on-site parameter detection and fault troubleshooting; real-time status feedback for quick fault location and module replacement, reducing downtime and maintenance costs; sufficient in-stock supply for timely delivery (derived from supplier information)
2. Functions & Features
mutation
3. Application Fields
- Motor Drive Sector: Used in medium- and high-voltage high-power inverters for variable frequency speed control of fans, pumps, compressors, rolling mills, hoists, and other industrial equipment. Wide speed regulation range, fast response, and bidirectional drive enable smooth speed control and rapid start/stop to meet various process requirements, while reducing startup inrush current, extending motor life, and improving energy efficiency and productivity.
- Metallurgy & Mining: Applied in drive systems for electric arc furnaces, rolling mills, and other metallurgical equipment, as well as high-power mining equipment control. High voltage and current ratings deliver stable driving and precise control to meet heavy-duty, continuous, and variable-load conditions, enhancing productivity and stability in harsh environments.
- New Energy & Wind Power: Suitable for wind turbine pitch control systems and grid-connected equipment. As the core power conversion unit, it stably processes fluctuating wind power for efficient conversion and transmission, meeting high-reliability harsh-environment requirements and improving wind energy utilization. Also compatible with high-power PV control systems to expand new energy applications.
- Other Industrial Fields: Used in power control for industrial robots, conveyors, and other machinery manufacturing equipment, supporting bidirectional drive for improved stability and precision. Applied in industrial high-power control equipment and power system auxiliary devices as a core power semiconductor component. Also serves as a key upgrade part for existing medium- and high-voltage power electronic systems, improving power density, stability, and energy efficiency without major equipment replacement, supporting multi-scenario extended applications.
