1. Overview

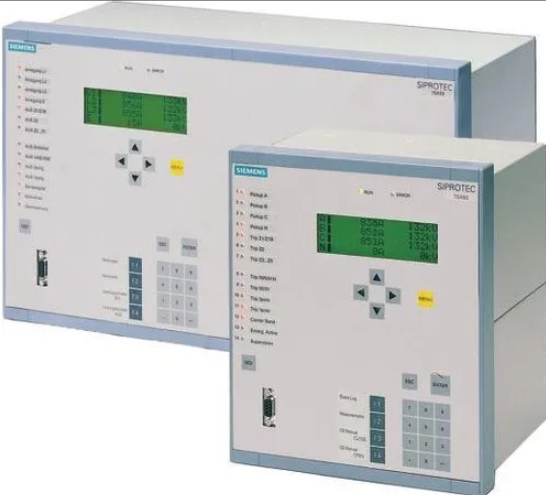

The Siemens 7UT6331-4EB92-2BC3 is a high-performance multifunctional numerical differential protection relay of the SIPROTEC 4 series. It is designed for primary protection of power system equipment including high/medium voltage transformers, synchronous generators, large motors, busbars and short feeder lines. Integrated with main differential protection and backup protection functions, it realizes all-in-one protection configuration for power equipment in power substations, thermal power plants, new energy stations and industrial self-owned power plants.
Adopting adaptive ratio restraint differential algorithm and advanced inrush current identification logic, the device effectively distinguishes internal faults from external through faults and transformer magnetizing inrush, preventing unwanted tripping and protection failure. With high sampling accuracy, strong harmonic suppression capability and flexible programmable logic, it adapts to 50Hz/60Hz power systems and mainstream monitoring platforms, serving as the standard core protection device for new construction and renovation of industrial power systems.
2. Technical Features
2.1 High-Precision Differential Protection with Anti-Inrush Function
Equipped with self-adaptive ratio restraint differential algorithm and dedicated magnetizing inrush identification logic, it accurately identifies transformer switching inrush and system recovery inrush. It suppresses 3rd and 5th harmonic interference effectively and achieves millisecond-level tripping for internal short-circuit faults, ensuring fast and reliable fault isolation.
2.2 Integrated Multi-Protection Functions
It integrates complete protection functions including ratio restraint differential protection, high-speed differential trip, phase overcurrent backup protection, zero-sequence protection, negative sequence protection (ANSI 46), circuit breaker failure protection (ANSI 50BF) and trip circuit supervision (ANSI 74TC). One single device covers full main and backup protection requirements of transformers, generators and motors, simplifying secondary wiring and reducing investment costs.
2.3 High-Accuracy Digital Sampling & High Stability
Powered by dedicated SIPROTEC 4 high-speed processing chip, it realizes synchronous high-precision AD sampling of current and voltage signals. It captures weak fault current and system unbalance conditions accurately, with strong EMC anti-interference performance to adapt to harsh electromagnetic environments in high-voltage switchgear rooms.
2.4 Flexible Programmable Configuration
Support customizable protection enable/disable, multi-stage time limit grading and logic interlock configuration. It can be flexibly set according to parameters of transformers, generators, motors and busbar wiring modes, widely applicable to various power equipment protection scenarios.
2.5 Complete Fault Recording & Event Logging
Built-in high-capacity memory records protection actions, alarm events, switch state changes and fault waveform data in real time. It supports fault traceability, fixed value verification and accident analysis, providing complete data support for power system operation and maintenance optimization.
2.6 Standard Communication for Intelligent Substation
Compatible with mainstream power communication protocols, it seamlessly connects with substation integrated monitoring systems and SCADA platforms, realizing remote parameter viewing, modification, real-time data uploading and remote control, meeting the operation requirements of intelligent and unattended power stations.
2.7 Industrial Rugged Cabinet Design
Adopts standard 1/3 19-inch panel mounting structure, dust-proof, moisture-proof and vibration-resistant for long-term stable operation in switchgears. Equipped with backlit LCD display and programmable LED indicators, it facilitates on-site commissioning, parameter checking and daily inspection.
3. Detailed Specifications
3.1 Basic Hardware Parameters
- Model: 7UT6331-4EB92-2BC3
- Manufacturer: Siemens
- Series: SIPROTEC 4 Numerical Protection Relay
- Type: Multifunctional Differential Protection Relay
- Mounting: Standard 19-inch embedded cabinet mounting (1/3 size)
- Human Interface: Backlit LCD, function keys, programmable LED indicators
- Core Processor: High-speed dedicated protection operational chip
3.2 Electrical Parameters
- Rated Frequency: 50Hz / 60Hz adaptive
- Rated Input Current: 1A / 5A switchable (match CT)
- Sampling Accuracy: High-precision synchronous sampling compliant with power protection standards
- Binary Inputs: Multi-channel programmable remote signal inputs
- Binary Outputs: Multi-channel programmable trip and alarm contacts
- Supervision Function: Full trip circuit monitoring for disconnection and poor contact detection
3.3 Protection Functions (ANSI Standard)
- Differential Protection: Ratio restraint differential, high-speed differential trip (main protection)
- Current Protection: Multi-stage phase overcurrent, zero-sequence overcurrent
- Unbalance Protection: Negative sequence current protection ANSI 46
- Switch Protection: Circuit breaker failure protection ANSI 50BF
- Circuit Monitoring: Trip circuit supervision ANSI 74TC
- Voltage Protection: Overvoltage / undervoltage monitoring and alarm
3.4 Environmental Parameters
- Operating Temperature: -25℃ ～ +70℃
- Storage Temperature: -40℃ ～ +85℃
- Operating Humidity: 5%～95%RH (Non-condensing)
- Vibration Resistance: Compliant with power industrial anti-vibration standards
- EMC Performance: High immunity to electric field, RF interference and surge impact
4. Operating Principle
The 7UT6331-4EB92-2BC3 operates based on current differential protection principle. It synchronously collects three-phase current data from current transformers on all sides of protected equipment, and calculates differential current and restraint current in real time. Under normal operation and external fault conditions, the current vectors on both sides are balanced with minimal differential current, ensuring reliable non-operation.
In case of internal faults such as short circuit and inter-turn fault, the current vectors become unbalanced and the differential current increases sharply to trigger differential protection tripping. The built-in inrush current identification algorithm distinguishes magnetizing inrush from internal faults through harmonic and waveform feature recognition to prevent mal-operation.
Backup overcurrent, zero-sequence and negative sequence protection act as auxiliary criteria for graded time-limit tripping, forming dual redundant protection. The device monitors trip circuit status, system voltage and operating current in real time, records fault data, and uploads information to the monitoring system to realize comprehensive safety protection for power equipment.
5. Application Scenarios
1. Main and backup protection for 10kV~110kV two-winding/three-winding power transformers.
2. Differential protection for synchronous generators in thermal power plants and distributed energy stations.
3. Protection for large high-voltage industrial motors to prevent internal short-circuit damage.
4. Fast differential protection for busbars and short feeder lines in medium and small substations.
5. Renovation and replacement of old numerical protection devices for upgrading traditional power secondary systems.
