Description

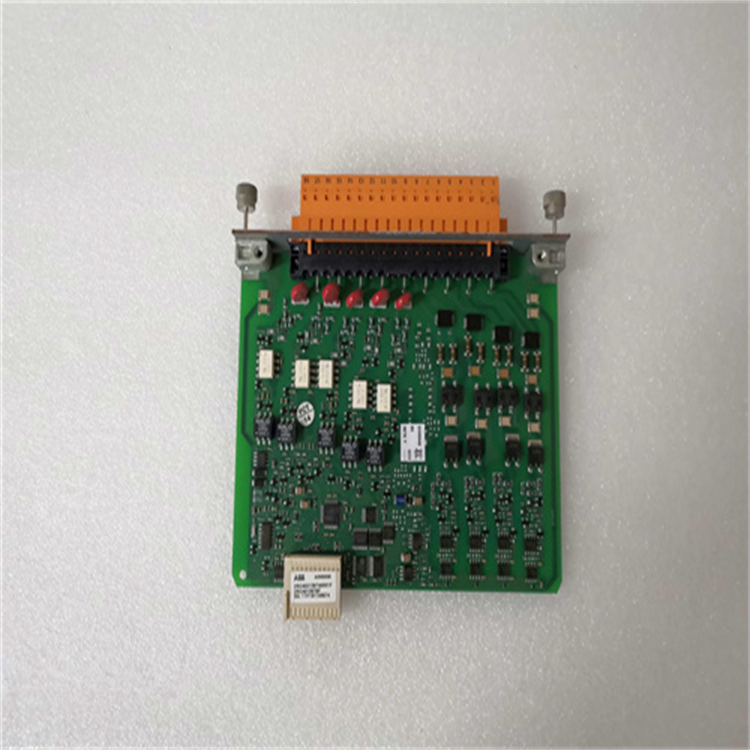

ABB AIM0006 2RCA021397A0001F
Overview
This module is a high-performance industrial control module suitable for industries with high automation requirements, such as manufacturing, energy, and infrastructure. Adopting high-quality materials and precision engineering design, it ensures stable operation in complex industrial environments. With a high degree of customizability, it provides tailored solutions for specific application needs, seamlessly integrates with existing systems, and enables convenient operation and maintenance.
Functional Features
High-Performance Processing
Equipped with a high-speed microprocessor, it rapidly processes complex control algorithms and data to achieve efficient and precise control and monitoring.
Diverse Interfaces
Features multiple interfaces including analog input/output, digital input/output, and serial communication, enabling connection to various sensors and actuators for flexible control and monitoring functions.
Powerful Data Processing Capability
Supports data collection, processing, storage, and transmission, enabling real-time monitoring and control to enhance production efficiency.
User-Friendly Operation
Provides easy-to-use programming software and interfaces, allowing users to configure and adjust parameters conveniently for rapid development and deployment.
High Reliability
Manufactured with high-quality materials and advanced processes, it ensures long-term stable operation in harsh industrial environments.
Technical Parameters
Detailed official technical parameters are not publicly available. Based on its functional characteristics, it is speculated to include:
- Power supply voltage (complying with industrial standards, such as 24V DC);
- Number of I/O points (varying by configuration due to compatibility with multiple I/O devices);
- Communication interface types (supporting serial communication, etc.);
- Operating temperature range (suitable for industrial environments, approximately -20°C to +60°C).
Specific values should be referred to in the product manual or consulted with ABB official.
Working Principle
Typically, such modules first collect signals from sensors and other devices through input interfaces, convert them into digital signals, and process them via a microprocessor based on preset control algorithms and programs. The processed results are sent to actuators through output interfaces to control equipment. Meanwhile, the module may store relevant data or transmit it to other devices/systems via communication interfaces for monitoring and further analysis.
Common Faults and Solutions
Communication Failure
- Possible causes: Loose communication cable connection or incorrect communication parameter settings.
- Solutions: Check and secure the communication cable connection; verify communication parameters (e.g., baud rate, data bits, stop bits) for correctness.
Abnormal I/O Function
- If input signals are unresponsive: Possible sensor failure or damaged input interface. Replace the sensor or inspect the interface.
- If output cannot control the actuator: Possible output interface failure or actuator power issue. Check the output interface and ensure the actuator power is normal.
Module Overheating
- Possible causes: High ambient temperature or poor module heat dissipation.
- Solutions: Improve ventilation in the installation environment (e.g., add cooling fans); check and clean dust accumulation on the module's heat sink.
Abnormal Program Operation
- Possible causes: Program logic errors or module memory failure.
- Solutions: Use programming software to check and correct program logic; if memory failure is suspected, restart the module or contact the manufacturer for maintenance.
