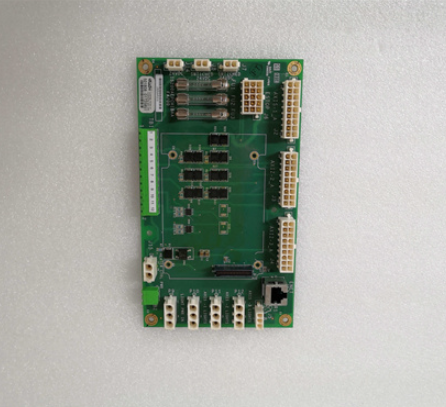

GE IS200AEPCH1ABC Analogue Expansion Board

Description

I. Product Overview

GE IS200AEPCH1ABC is an analog expansion processing board (AEPC) matched with GE Speedtronic Mark VI turbine control system. As the centralized signal conditioning, acquisition and data forwarding hardware for multi-channel field process analog signals, it is mainly responsible for filtering isolation, range conversion and pre-processing of temperature, pressure, flow, valve position feedback, vibration and other analog signals. It uploads standardized collected data to the main control processor through the VME backplane bus, converts analog adjustment instructions issued by the main controller into field drive signals, and builds a stable and reliable signal transmission link between local sensors and the upper control system. It is widely used in process monitoring and closed-loop control loops of gas/steam turbine generator units and gas-driven compressor units in the oil and gas industry.

Adopting high-density multi-layer flame-retardant industrial PCB technology and modular auxiliary sub-board design, the board is equipped with high-precision signal conditioning circuits and independent optoelectronic isolation & surge suppression protection for all channels. It supports four mainstream industrial analog signal types including 4～20mA DC, 0～10V DC, RTD and thermocouple, with flexible channel parameter configuration via DIP switches. Compatible with simplex, dual hot-standby and TMR triple modular redundant architectures, it integrates comprehensive on-board self-diagnosis, line break detection and over-range alarm functions. Certified by CE, UL and Class I Div2 hazardous area standards, it can operate continuously 24/7 under harsh industrial conditions of high temperature, dust, strong electromagnetic interference and long-term vibration, serving as a critical spare part for power plant overhaul, I/O channel expansion and faulty module replacement.

II. Hardware Structure and Composition

1. High-precision Analog Signal Conditioning Processing Unit

Equipped with multi-channel dedicated signal conditioning chips and high-precision AD conversion circuits, the board realizes noise reduction, impedance matching, electrical isolation and engineering value conversion of field analog signals, converts analog physical quantities into standardized digital data for backplane uploading, and restores digital control instructions to analog drive signals for field actuators, ensuring high precision of key closed-loop control loops and effectively restraining signal drift and sampling distortion. The onboard auxiliary sub-board integrates FPGA logic units to improve the parallel computing efficiency of multi-channel signal acquisition.

2. Full-channel Isolated Signal Acquisition Circuit

Each analog input and output channel is equipped with independent optoelectronic isolation and surge suppression components to prevent hardware damage caused by lightning induction, electromagnetic interference and wrong wiring. Single-channel faults are locally isolated without affecting the whole board or rack communication. Channel signal types and ranges can be flexibly configured via DIP switches to adapt to various field measurement points without additional signal conversion terminals.

3. VME Backplane Bus Interface

High-density gold-plated VME connectors realize high-speed bidirectional data interaction with CPU, BPPC boards and other I/O modules in the same rack, completing centralized collection of real-time channel data, fault codes and alarm information as well as distribution of upper control instructions. The gold-plated connector features excellent anti-oxidation and anti-vibration performance to avoid intermittent communication faults caused by long-term equipment vibration.

4. Isolated Power Conversion and Multi-level Protection Circuit

Supplied with standard 24VDC cabinet power, the built-in isolated DC-DC circuit provides stable working voltage for core functional units, with five-level hardware protection against overvoltage, undervoltage, overcurrent, reverse connection and surge, effectively adapting to unstable DC power supply and wrong wiring in power plant scenarios.

5. On-board Diagnosis and Configuration Components

The board reserves multiple status detection points to monitor power supply, bus communication, hardware faults and redundancy synchronization cooperated with upper software. Four-corner conductive mounting holes and DIP switches support station address setting, channel parameter configuration and redundancy mode selection to match various safety control architectures.

III. Technical Specifications

(1) Electrical Parameters

Rated Input Voltage: 24VDC, allowable fluctuation range: 20～28VDC

Sampling Resolution: 16-bit, full-scale accuracy ±0.1%

Supported Signal Types: 4～20mA DC, 0～10V DC, RTD, Thermocouple

Typical Power Consumption: ≤10W

Processing Cycle: Millisecond-level multi-channel parallel AD conversion

Protection: Full-channel optoelectronic isolation, overvoltage, overcurrent, reverse connection and surge multi-level protection

Operation Modes: Simplex, Dual Hot-standby, TMR Triple Modular Redundancy

Hardware Structure: Main board with modular auxiliary sub-board

(2) Environmental Parameters

Operating Temperature: -20℃～+70℃, derating required above 1000m altitude

Storage & Transportation Temperature: -40℃～+85℃

Relative Humidity: 5%～95%RH, non-condensing, free of corrosive gas and conductive dust

Ingress Protection: IP20, only for indoor ventilated control cabinets

(3) Mechanical Parameters

Mounting: Standard VME rack vertical screw fixing

Structure: Panel-less rectangular PCB with four-corner conductive grounding mounting holes

Net Weight: Approx. 1.0kg

Fixing Method: Four-corner locking screws with independent star protective grounding circuit

IV. Product Functions and Features

Multi-signal Compatibility with Wide Field Adaptability
It can be directly connected to various field transmitters and sensors, realizing flexible channel parameter configuration via DIP switches without external conversion equipment, reducing on-site wiring and maintenance costs for process monitoring projects in power, chemical, metallurgical and oil & gas industries.
Full-channel Electrical Isolation Delivers Strong Anti-interference Performance
Independent isolation between each channel blocks electromagnetic crosstalk and realizes fault isolation, avoiding system-wide control disorder caused by single-point line faults and greatly improving equipment operation stability in strong interference industrial environments.
Full-channel Self-diagnosis Enables Traceable Fault Location
The board continuously monitors the integrity of each acquisition channel, latches fault information locally and uploads alarms to the upper monitoring system. Maintenance personnel can query historical fault logs to quickly locate faulty measurement points and shorten unit maintenance downtime.
Full Compatibility with Mark VI Control System Ensures Convenient Spare Part Replacement
Standardized hardware size, backplane protocol and communication specification support direct replacement of legacy faulty boards, with functions including channel calibration, parameter downloading and online firmware upgrade, perfectly matching equipment overhaul, I/O expansion and safety architecture upgrading projects.
Industrial Wide-temperature Component Design Ensures Long-term Operational Reliability
Wide-temperature industrial components and shielded PCB layout enable stable long-term operation under high-temperature, dusty and vibrating cabinet environments, featuring long mean time between failures and low routine maintenance frequency.

V. Application Scenarios

Analog signal acquisition and closed-loop regulation hardware deployment for gas/steam turbine units adopting Mark VI control system in thermal and combined-cycle power plants.
Spare part replacement and system redundancy expansion for process monitoring and analog control loops of gas-driven compressor units in petroleum and chemical industries.
Hardware supporting deployment for safety monitoring and process parameter collection of waste heat power generation and large industrial drag turbines.
Same-model renewal and replacement of aging analog I/O boards with precision drift, channel damage and communication faults during annual overhauls of legacy GE turbine control systems.
Automatic hardware renovation projects for adding process monitoring points and optimizing TMR safety redundant architectures in power plants.
