1. Product Overview

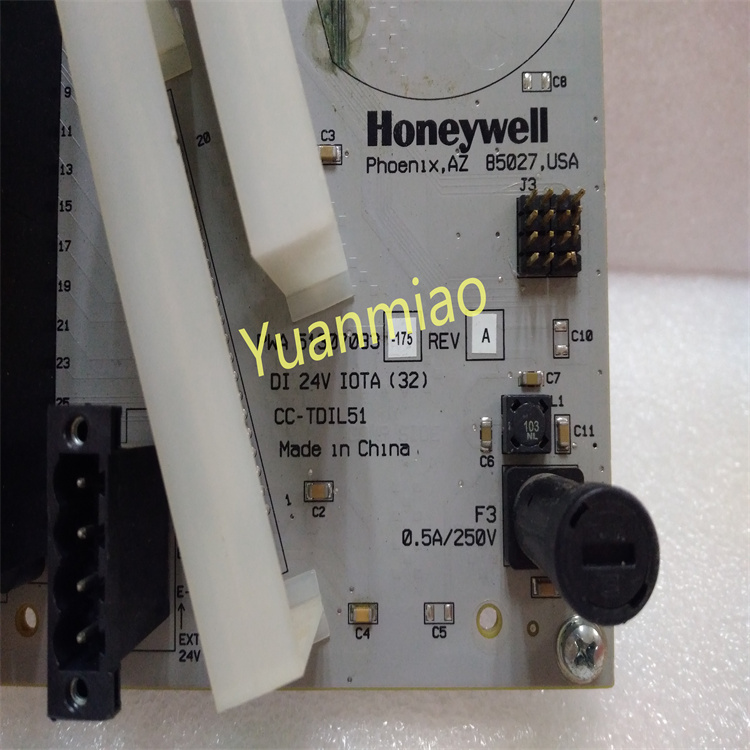

Honeywell CC‑TDIL51 is a non‑redundant 32‑Channel High‑Density Digital Input IOTA Module belonging to Honeywell ControlEdge Series‑C I/O family, part number 51307083‑175. It serves as a standard core I/O unit for Experion PKS, C300 and Experion LX DCS control systems. Designed for discrete‑signal acquisition, equipment status feedback and safety interlock monitoring in process industries, it reliably collects 24 VDC industrial dry‑contact signals, active switch signals, valve position feedback, equipment start‑stop status and interlock contact signals. It is widely deployed in automation control systems for continuous‑production industries including petrochemical, power generation, oil & gas, water treatment and fine chemicals.
CC‑TDIL51 adopts a 9‑inch standard non‑redundant IOTA form factor with high‑density integrated hardware design. One module accommodates 32 independent acquisition channels equipped with comprehensive electrical isolation and signal‑protection circuits, balancing acquisition accuracy, operational stability and space efficiency. Natively compatible with Honeywell CIOM‑A I/O bus architecture, it supports high‑speed backplane communication and hot‑swap online maintenance, allowing removal and replacement without system shutdown. Fully compliant with industrial EMC and explosion‑proof design specifications, it is qualified for 24‑hour non‑stop harsh plant conditions and acts as a general‑purpose core module for large‑scale discrete‑signal acquisition in process‑industry DCS systems.
2. Functional Features
High‑density Centralized Acquisition of 32‑Channel Digital Signals
Integrated with 32 independent digital‑input channels for centralized acquisition of large‑volume field discrete signals. It effectively reduces the quantity of cabinet‑mounted modules, simplifies wiring and cuts hardware and maintenance costs. Optimized for industrial standard 24 VDC signals, it accurately reads limit switches, proximity sensors, push‑button contacts, relay status, valve open/closed feedback and safety interlock switches, fully meeting monitoring requirements for massive I/O points in large‑scale process units.
High‑grade Electrical Isolation & Multi‑layer Safety Protection
It delivers robust electrical isolation of 1500 VDC between each channel and the backplane, mitigating electrical hazards such as field ground‑potential difference, high‑voltage intrusion and electromagnetic crosstalk, and preventing signal distortion, module burnout and false sampling. Every channel incorporates independent over‑voltage, over‑current, reverse‑polarity protection and signal de‑bounce circuits to withstand field voltage fluctuation, transient surges, mis‑wiring and electrostatic interference, providing comprehensive protection for the module, I/O bus and main control system.
High‑speed Signal Response & Accurate Status Discrimination
Millisecond‑level fast response with maximum signal response time ≤ 8 ms enables reliable capture of short‑duration field pulses, high‑frequency equipment start‑stop and instantaneous interlock actions without signal delay or missed status detection. Built‑in standardized 24 VDC high/low‑level threshold logic together with software de‑bounce filtering suppresses weak electromagnetic interference from field environment, eliminates false triggering and false sampling, and guarantees accuracy and consistency of discrete‑signal acquisition.
Comprehensive Self‑diagnosis & Convenient Online Maintenance
Full‑range power‑on self‑test plus real‑time runtime diagnosis precisely detects channel wire break, signal abnormality, circuit failure, bus communication interruption and module faults. Fault codes are generated and uploaded to the host supervisory system for rapid traceability and accurate fault localization. Hot‑swap capability under DCS allows module insertion, removal, replacement and commissioning without disturbing overall system operation or data acquisition of healthy channels; no plant shutdown is required, greatly lowering production‑related maintenance risks and repair costs. Configuration parameters are automatically retained upon power loss without repeated configuration.
Industrial‑grade Wide Compatibility & Strong Anti‑interference Performance
Fully compliant with industrial EMC standards, it resists plant grid harmonics, high‑frequency electromagnetic radiation, voltage fluctuation, lightning‑induced surge and electrostatic interference. Industrial‑grade reinforced hardware features dust‑proof, moisture‑proof, ageing‑resistant and damp‑heat‑tolerant properties. With broad temperature‑humidity operating range, it runs stably for long‑term service in harsh sites such as chemical plants, petrochemical facilities, offshore platforms and power stations under 24‑hour non‑continuous operation.
3. Technical Specifications
3.1 Core Acquisition Parameters
Model: CC‑TDIL51 (Series‑C I/O Non‑redundant Digital Input Module) Part Number: 51307083‑175 Channel Count: 32 independent digital input channels Compatible Systems: Honeywell Experion PKS, C300, Experion LX DCS Input Signal: Industrial standard 24 VDC discrete signal Typical Channel Current: 4 mA @ 24 VDC Signal Response Time: ≤ 8 ms Isolation Rating: 1500 VDC isolation between channel and backplane Form Factor: 9‑inch non‑redundant IOTA module
3.2 Electrical Operating Parameters
Operating Supply: 24 VDC ±20 % industrial DC power Maximum Module Power Consumption: ≤ 3.8 W On‑board Auxiliary Output: 24 VDC auxiliary power output, max. 100 mA Signal Processing: Hardware filtering + software de‑bounce, precise threshold discrimination Communication Bus: CIOM‑A high‑speed backplane I/O bus Operating Mode: Real‑time cyclic acquisition, synchronous data upload
3.3 Physical Specifications
Dimensions: 63.5 mm × 124.46 mm × 307.34 mm Weight: Approx. 0.5 kg Mounting: Standard DIN‑rail mounting, cabinet back‑slot mounting Form Factor: Compact industrial modular board, 9‑inch IOTA standard
3.4 Environmental & Protection Specifications
Operating Temperature: 0 ℃ ~ +65.5 ℃ Storage Temperature: −40 ℃ ~ +85 ℃ Operating Humidity: 5 %‑95 % RH (non‑condensing) Ingress Protection: IP20 (for installation inside standard cabinets) EMC Performance: Compliant with industrial EMC standards for high‑EMI process‑plant environments
4. Hardware Configuration & Structural Advantages
4.1 Core Hardware Configuration
The module adopts Honeywell Series‑C industrial‑grade standardized I/O architecture. A dedicated high‑speed signal‑processing chip works with 32 fully independent signal‑conditioning, filtering and isolation circuits. Each channel performs dedicated voltage stabilization, de‑bounce and galvanic isolation to eliminate channel‑to‑channel crosstalk and signal distortion. On‑board high‑precision sampling unit, hardware fault‑detection circuit, bus communication processor and non‑volatile memory securely store module configuration, channel status and fault logs with power‑fail retention, supporting fault traceability and on‑site commissioning & calibration. All components are industrial‑grade temperature‑resistant and ageing‑resistant for long‑term heavy‑duty continuous‑operation conditions.
4.2 Structural‑design Advantages
The 9‑inch compact high‑density modular design integrates 32 channels within small footprint, saving cabinet space and suiting wiring and networking of large‑scale systems with dense I/O points. Well‑partitioned circuit layout physically separates acquisition zone, isolation zone, communication zone and power‑supply zone, minimizing electrical interference and improving anti‑interference capability and operational stability.
5. Working Principle
The Honeywell CC‑TDIL51 digital input module implements closed‑loop workflow: multi‑channel independent acquisition → isolation & conditioning → logical discrimination → bus upload → real‑time self‑test, achieving high‑precision, high‑reliability and real‑time acquisition and transmission of field discrete signals.
Upon power‑on, the module completes hardware initialization, bus calibration, channel detection and parameter loading automatically. After passing full‑range self‑test, it enters normal cyclic acquisition mode. Field 24 VDC discrete signals and dry‑contact status are fed into corresponding channels via terminal blocks, then go through galvanic isolation, hardware filtering, voltage stabilization, de‑bounce and signal conditioning before being delivered to the core signal‑processing unit.
Based on pre‑configured 24 VDC high/low‑level thresholds, the processor accurately judges ON/OFF status of every channel, updates acquired channel data in real‑time, and transmits data synchronously over CIOM‑A high‑speed backplane bus to C300 main controller and host supervisory system. It provides accurate and reliable data for equipment logic control, safety interlock, status monitoring, fault alarming and process coordination.
During runtime, the module continuously monitors channel‑signal status, hardware circuit condition and bus communication health. Once channel wire‑break, signal over‑range, circuit fault or communication anomaly is detected, it latches fault status, records fault codes and triggers system alarms, while keeping unaffected channels functional. This maximizes DCS fault tolerance and stability and ensures safe and continuous operation of the whole automation plant.
6. Application Scenarios
Petrochemical & Fine‑chemical Plants
Widely used in chemical reactors, distillation units, conveying systems and interlock protection systems. It collects equipment start‑stop status, valve feedback, safety‑interlock contacts and pressure/level‑switch signals to ensure correct execution of process interlocks, mitigate risks of process deviation and false equipment action, and support safe continuous chemical production.
Thermal‑power & Cogeneration Power Plants
Applied in DCS systems for coal‑fired power plants, heat‑and‑power plants and captive power stations. It acquires auxiliary‑equipment status, baffle / valve position feedback and protection‑device interlock status to stabilize balance‑of‑plant operation and satisfy high‑reliability non‑stop operation requirements of power utilities.
Oil‑gas Production, Gathering & Transmission Projects
Deployed in automation systems for oil‑gas gathering stations, long‑distance pipelines and oil/gas storage facilities. It collects pipeline shut‑off‑valve status, booster‑equipment feedback, explosion‑proof interlock switches and field safety signals for harsh oil‑gas‑sector conditions requiring explosion‑protection, high EMI immunity and high safety integrity, securing stable operation of oil‑gas storage‑transport systems.
Municipal Water‑supply & Waste‑water Treatment, Environmental‑protection Projects
Suitable for waterworks, sewage‑treatment plants, water‑reclamation facilities, flue‑gas desulfurization and denitrification systems. It collects discrete status and interlock feedback of pumps, fans, bar screens and motor‑operated valves for automatic monitoring and coordinated process control, ensuring stable performance of municipal environmental‑protection facilities.
Process Industries: Metallurgy, Pharmaceutical & Light Industry
As a standard DCS I/O acquisition unit, it is extensively used in continuous production lines of metallurgy, building‑materials, pharmaceutical, food and light industry. It realizes centralized discrete‑signal acquisition, status monitoring and interlock coordination for plant‑wide equipment, supports continuous automated manufacturing and improves plant intelligent and refined management capability.
