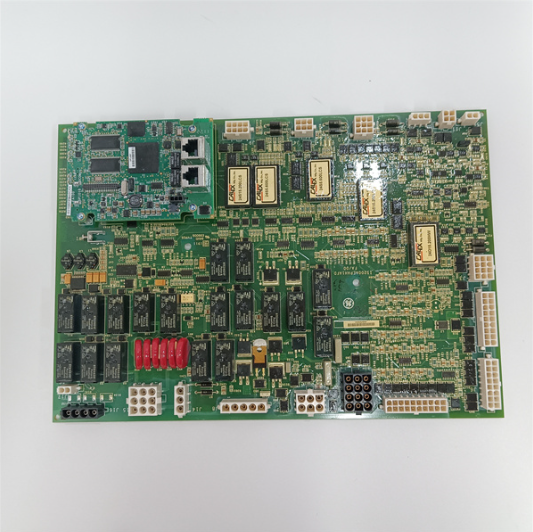

GE IS200AEPAH1AFD Analogue I/O Signal Processing Board

Description

I. Product Overview

GE IS200AEPAH1AFD is a high-precision mixed analog I/O signal processing board for GE Speedtronic Mark VIe control system. It is responsible for isolated signal acquisition, 16-bit AD conversion, signal conditioning, engineering value conversion and data packaging of process parameters such as temperature, pressure, flow, vibration and valve feedback from field sensors. Meanwhile, it receives analog regulation commands from the main controller and outputs standard industrial analog signals to drive field actuators, building a stable data interaction link between field terminals and upper-level controllers.

Adopting multi-layer flame-retardant high-density industrial PCB design, each channel is equipped with independent optoelectronic isolation and surge suppression circuits. It supports four mainstream analog signal types including 4-20mA, 0-10V, thermocouple and RTD, with flexible channel parameter configuration via DIP switches. Compatible with simplex, dual hot-standby and TMR triple modular redundant architectures, the board integrates comprehensive self-diagnosis, line break detection and over-range alarm functions. Certified by CE, UL and Class I Div2 hazardous area standards, it can operate continuously 24/7 under harsh industrial conditions of high temperature, dust, strong electromagnetic interference and long-term vibration, serving as a critical spare part for power plant overhaul, I/O channel expansion and faulty module replacement.

II. Hardware Structure and Composition

1. High-precision AD/DA Signal Processing Unit

Equipped with 16-bit high-resolution conversion chips with full-scale accuracy of ±0.1%, the board completes signal filtering, isolation calibration and range conversion in millisecond cycles, realizing bidirectional data conversion between field analog signals and system digital instructions, ensuring high control precision of closed-loop regulation loops for unit speed, load and temperature.

2. Full-channel Isolated Signal Acquisition Circuit

Each analog input and output channel adopts independent optoelectronic isolation design to resist lightning induction and electromagnetic interference. Single-channel faults are electrically isolated without affecting the whole board or rack communication. Channel signal types and measuring ranges can be configured locally through DIP switches to adapt to various field measurement points.

3. VME Backplane Bus Interface

High-density gold-plated VME connectors realize high-speed data communication with BPPC processor boards and other I/O modules in the rack, realizing centralized collection of real-time channel data, fault codes and alarm information, as well as distribution of upper control instructions. The gold-plated connector features excellent anti-oxidation and anti-vibration performance to avoid intermittent signal faults.

4. Isolated Power Conversion and Multi-level Protection Circuit

Supplied with standard 24VDC cabinet power, the built-in isolated DC-DC module provides stable working voltage for core chips, with five-level hardware protection against overvoltage, undervoltage, overcurrent, reverse connection and surge, effectively preventing hardware damage caused by unstable power supply and wrong wiring.

5. On-board Diagnosis and Configuration Components

Multiple LED indicators intuitively display operating status including power supply, firmware operation, bus communication, hardware fault, channel abnormality and redundancy synchronization for rapid on-site troubleshooting. Reserved DIP switches support station address setting, signal type selection and redundancy mode configuration to match various safety control architectures.

III. Technical Specifications

(1) Electrical Parameters

Rated Input Voltage: 24VDC, allowable fluctuation range: 20～28VDC

Sampling Resolution: 16-bit, full-scale accuracy ±0.1%

Supported Signal Types: 4～20mA DC, 0～10V DC, Thermocouple, RTD

Typical Power Consumption: ≤10W

Signal Processing Cycle: Millisecond-level real-time AD/DA conversion

Protection: Full-channel optoelectronic isolation, overvoltage, overcurrent, reverse connection and surge multi-level protection

Operation Modes: Simplex, Dual Hot-standby, TMR Triple Modular Redundancy

(2) Environmental Parameters

Operating Temperature: 0℃～+60℃, derating required above 1000m altitude

Storage & Transportation Temperature: -40℃～+70℃

Relative Humidity: 5%～95%RH, non-condensing, free of corrosive gas and conductive dust

Vibration Standard: IEC 60068-2-6 heavy-duty industrial anti-vibration specification

Ingress Protection: IP20, only for indoor ventilated control cabinets

(3) Mechanical Parameters

Mounting: Standard VME rack vertical slot installation

Net Weight: Approx. 1.51kg

Overall Dimensions: 178mm×102mm×254mm

Fixing Method: Panel locking screws with independent star protective grounding terminal

IV. Product Functions and Features

Multi-signal Compatibility with Wide Field Adaptability
It can be directly connected to various field transmitters and sensors without additional signal conversion modules, reducing on-site wiring and renovation costs, and widely applied in process monitoring scenarios of thermal power, chemical, metallurgical and oil & gas industries.
Full-channel Electrical Isolation with Strong Anti-interference Performance
Independent isolation between each channel effectively blocks electromagnetic crosstalk and realizes fault isolation, avoiding system-wide control disorder caused by single-point line faults and greatly improving the operational stability of control systems in strong interference industrial environments.
Full-channel Self-diagnosis for Traceable Fault Location
The board continuously monitors the integrity of each channel, latches fault information locally and uploads alarms to the upper monitoring system. Maintenance personnel can query historical fault logs to quickly locate faulty measurement points and shorten unit maintenance downtime.
Full Compatibility with Mark VIe Control System
Standardized hardware size, backplane protocol and communication specification support direct replacement of legacy faulty boards. It supports channel calibration, parameter downloading and online firmware upgrade, perfectly matching equipment overhaul, I/O expansion and safety architecture upgrading projects.
Industrial Wide-temperature Anti-aging Design with High Long-term Reliability
Adopting wide-temperature industrial components and shielded PCB layout, the board can run stably for a long time under high-temperature, dusty and vibrating cabinet conditions, featuring long mean time between failures and low routine maintenance frequency.

V. Application Scenarios

Analog signal acquisition and closed-loop regulation hardware deployment for gas/steam turbine units adopting Mark VIe control system in thermal and combined-cycle power plants.
Spare part replacement and system redundancy expansion for process monitoring and analog control loops of gas-driven compressor units in petroleum and chemical industries.
Hardware supporting deployment for safety monitoring and process parameter collection of waste heat power generation and large industrial drag turbines.
Same-model renewal and replacement of aging analog I/O boards with precision drift, channel damage and communication faults during annual overhauls of legacy GE turbine control systems.
Automatic hardware renovation projects for adding process monitoring points and optimizing TMR safety redundant architectures in power plants.
