Description
I. Product Overview

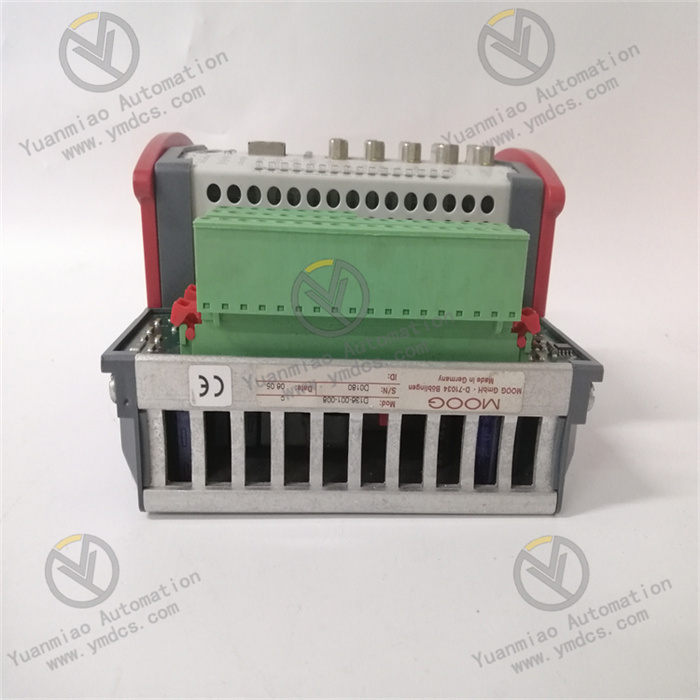

MOOG D136-001-008 is a high-performance dual-axis electro-hydraulic servo motion controller of MOOG MSC I series. Equipped with a 40MHz industrial processor, it supports three closed-loop control modes: position, speed and force, and can drive MOOG full-series servo valves and proportional valves to achieve micron-level precision motion control with high-resolution position sensors.The device integrates large-capacity memory, multi-channel high-precision analog/digital channels and multiple industrial communication interfaces, with a minimum task cycle of 400μs. Built-in full-range hardware self-diagnosis and multi-level electrical protection, it has passed CE, UL508 and RoHS certifications. Adopting standard DIN rail modular design, it is widely used for legacy hydraulic control system replacement and automated upgrading in metallurgy, aerospace testing, precision forming and engineering machinery industries, and supports I/O capacity expansion via E-BUS extension bus.
II. Hardware Structure and Composition
1. High-speed Motion Processing Unit
The 40MHz dedicated motion control CPU with 8MB Flash and 512KB RAM supports motion curve planning, adaptive PID and feedforward compensation algorithms, realizing independent or coupled synchronous control of two hydraulic axes. It allows offline execution of motion programs without continuous upper computer instructions to reduce PLC computing load.
2. High-precision Analog Acquisition & Command Output Unit
8-channel 16-bit analog inputs collect pressure, force and displacement signals, while 2 analog output channels send ±10V control commands to servo amplifiers. Built-in second-order hardware low-pass filters effectively suppress industrial electromagnetic interference to avoid hydraulic actuator jitter and pressure oscillation.
3. Position Feedback & Digital I/O Unit
Dual independent feedback interfaces support SSI, incremental encoder and resolver with up to 1MHz sampling frequency. 16-channel 24VDC bidirectional digital I/O realizes interlock, emergency stop, fault alarm and status feedback functions to meet equipment safety control requirements.
4. Multi-protocol Communication Unit
Equipped with Ethernet, dual CANopen and dual RS232 interfaces, it supports remote programming, multi-axis synchronous networking and connection with DCS/PLC systems, and can expand PROFIBUS-DP slave station function. The E-BUS extension bus enables flexible I/O capacity expansion to adapt to later process upgrading.
5. Isolated Power & DIN Rail Mounting Unit
24VDC wide-range isolated power supply provides multi-level protection against overvoltage, undervoltage and reverse connection. Fanless passive heat dissipation, three-proof coated PCB and IP20 protection ensure stable operation in harsh cabinet environments, with front-panel LED indicators for rapid on-site fault diagnosis.
III. Technical Specifications
(1) Electrical Parameters
- Power Supply: 24VDC ±10% (21.6~26.4VDC), max power consumption 15W
- Main Controller: 40MHz CPU, 8MB Flash, 512KB RAM, minimum task cycle 400μs
- Control Axes: 2 independent closed-loop axes (position/velocity/force mode optional)
- Analog Channels: 8×16-bit analog input, 2×16-bit analog output (±10V configurable)
- Digital I/O: 16-channel 24VDC bidirectional I/O, sink/source configurable
- Feedback Interface: SSI, incremental encoder, resolver, max sampling 1MHz
- Communication: Ethernet, CANopen, RS232, optional PROFIBUS-DP
- Protection: Reverse connection, overcurrent, overvoltage, feedback disconnection, watchdog protection
(2) Environmental Parameters
- Operating Temperature: -25℃～+70℃; Storage Temperature: -40℃～+85℃
- Relative Humidity: 5%～95%RH, non-condensing, no corrosive gas or conductive dust
- Ingress Protection: IP20, indoor ventilated control cabinet installation only
(3) Mechanical Parameters
- Mounting: EN50022 standard DIN rail snap mounting
- Net Weight: Approx. 0.75kg
- Housing: Flame-retardant engineering plastic, three-proof conformal coated PCB
- Expansion Mode: E-BUS bus for external I/O extension modules
- Origin: United States
IV. Product Functions and Features
1. Dual-axis High-precision Closed-loop Control for Complex Process
Independent or master-slave synchronous control with adaptive feedforward PID algorithm eliminates hydraulic nonlinear errors, realizing ultra-precise positioning, constant tension and pressure holding control, which meets strict process requirements of metallurgy and aerospace precision test equipment.
2. Multi-signal Compatibility Reduces Retrofit Cost
Compatible with mainstream displacement, pressure and force sensors without additional signal conversion modules; flexible software channel configuration enables seamless access to legacy field measuring instruments to save hardware renovation investment.
3. Multi-bus Design Balances Local Commissioning and Remote O&M
Multi-type communication interfaces support on-site parameter tuning, factory network remote monitoring and multi-controller synchronous networking, avoiding mechanical collision and process deviation caused by asynchronous multi-equipment operation.
4. Full-range Fault Diagnosis Ensures Equipment Safety
Real-time monitoring of power, communication, feedback and emergency stop signals with timestamp fault log storage, automatically locking motion output and triggering safety interlock shutdown to protect precision hydraulic actuators and prevent safety accidents.
5. Modular Expandable Structure Shortens Maintenance Downtime
Standard DIN rail hot-swappable design supports direct replacement of legacy MSC I series controllers; E-BUS expansion bus realizes incremental I/O upgrading without main controller replacement, greatly reducing equipment shutdown time for renovation.
6. Rugged Industrial Design Reduces Long-term O&M Frequency
Wide-temperature components, three-proof circuit and fanless structure adapt to high-temperature, dusty and strong electromagnetic interference cabinet environments, featuring long MTBF and low routine maintenance workload for 24/7 continuous industrial production.
V. Application Scenarios
- Hydraulic pressing and tension closed-loop synchronous control system for hot & cold rolling mills and coiling equipment in metallurgical industry.
- High-precision position and force closed-loop control for aerospace fatigue test benches and motion simulation platforms.
- Automatic process transformation of multi-axis motion and constant pressure holding for hydraulic forming, die-casting and forging equipment.
- Main control unit deployment for hydraulic propulsion and attitude adjustment systems of shield machines and mining engineering machinery.
- Intelligent upgrading and spare part replacement for legacy MOOG hydraulic control systems with precision drift and no fieldbus function.
- Multi-controller synchronous motion control projects for automated hydraulic production lines and multi-station test equipment.
