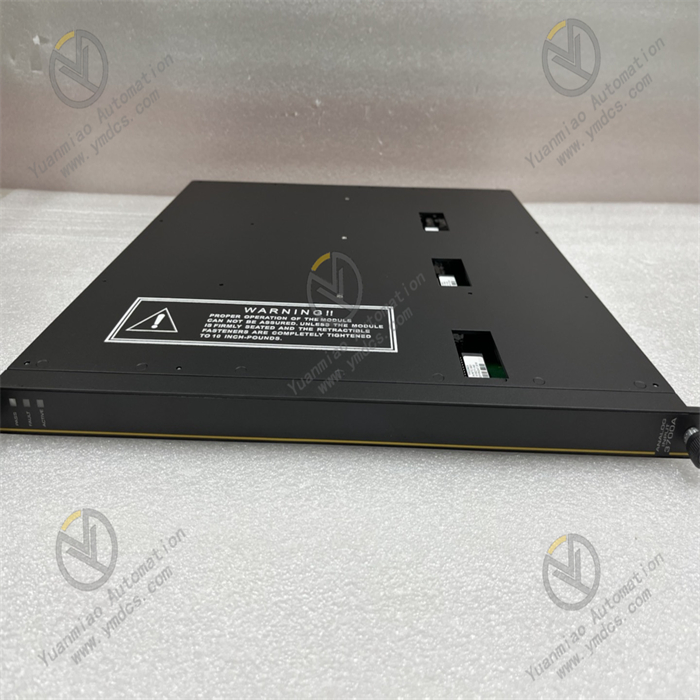

Triconex 3700A

I. Product Positioning and Multi‑Scenario Adaptability

Core Analog Input for Tricon SIS

Designed exclusively for the Tricon safety control system, it is a standard analog acquisition module for SIL 2/3 safety instrumented systems. It adopts a TMR triple redundancy architecture with 32 differential input channels, supporting 0–5 V DC signals and +6% over-range measurement (capable of capturing up to 5.3 V and triggering an alarm). It is mainly used for high-precision acquisition of high-risk process variables, providing a reliable data source for safety logic such as Emergency Shutdown (ESD), Fire & Gas Protection (F&GS) and unit tripping. It integrates directly into the voting and protection loops of the Tricon system, eliminating false or failed operations caused by single-point failures.

Adaptability for Industrial Automation System Integration

Seamlessly compatible with the full range of Tricon controllers, communication modules and power supply modules, enabling high-speed data exchange via the system backplane bus. It supports interconnection with DCS (e.g., ABB 800xA, Honeywell Experion) and SCADA systems through Modbus and EtherNet/IP, realizing isolated sharing of safety data and process data. Suitable for standard Tricon cabinet rack mounting, it can directly replace legacy analog input modules without major modifications to cabinet layout and wiring, reducing system upgrade costs.

Adaptability to Harsh Operating Conditions and Explosion‑Proof Scenarios

II. Functions and Technical Advantages

(I) Core Functions

High‑Precision 32‑Channel Differential Analog Acquisition

32 fully differential input channels supporting standard 0–5 V DC signals with +6% over-range measurement. Built-in high-precision ADC with three-channel parallel sampling and hardware median voting ensures data reliability. The differential input structure suppresses common-mode noise, and the sampling frequency meets the fast response requirements of safety systems, adapting to various process sensor signals including pressure, temperature, flow and level.

Signal Isolation and Hardware Protection

Input channels are electrically isolated from the system side with an isolation voltage of up to 2500 V AC. It provides overvoltage, reverse polarity and surge protection to resist on-site transient voltage fluctuations and wiring errors. Supports hot-swapping (during non-interlocking execution periods, in strict accordance with procedures), allowing module replacement without system shutdown and improving system availability.

Comprehensive Self‑Diagnosis and Fault Reporting

Diagnostic coverage > 99%, with real-time monitoring of the operating status of the three redundant channels, ADC conversion, open/short wiring faults and sensor drift. Onboard status indicators (power, communication, channel faults) are provided, and fault information is synchronously uploaded to the Tricon controller with event timestamps recorded. Combined with TriStation 1131 software, it supports fault location, historical data traceability and alarm threshold configuration.

Redundancy and Expansion Compatibility

Supports TMR triple redundancy system configuration and parallel communication with three sets of controllers. Reserved channel grouping configuration enables management of acquisition points by process zones. Supports online addition/replacement of modules of the same model without modifying system logic; the acquisition range can be expanded simply by completing parameter download and channel verification.

(II) Technical Advantages

High Reliability and Fault Tolerance

The TMR architecture eliminates single-point failures at the hardware level and complies with IEC 61508 SIL 3 certification. Constructed with industrial-grade components and subjected to Environmental Stress Screening (ESS), it achieves industry-leading Mean Time Between Failures (MTBF). With no built-in vulnerable batteries, configuration parameters are stored in non-volatile memory, supporting 24/7 uninterrupted operation and reducing unplanned downtime.

High Precision and Fast Response

Conversion accuracy: ±0.1% of full scale, with 16-bit resolution. The +6% over-range measurement function captures instantaneous over-range signals and triggers alarms, providing a buffer for safety logic. Sampling and voting latency < 1 ms, meeting the fast response requirements of ESD systems. Differential input delivers strong anti-interference performance, maintaining signal stability even in strong electromagnetic environments.

Strong Compatibility and Easy Integration

Exclusively compatible with Tricon safety systems, it integrates directly into the system backplane bus without additional drivers. It supports interconnection with mainstream DCS/SCADA systems with physical isolation between safety and process data. Standard rack mounting with uniform dimensions matching other Tricon I/O modules facilitates cabinet layout and expansion.

Easy Maintenance and Convenient Commissioning

III. Application Scenarios

Petrochemical Industry

Applied in ESD systems of refineries and chemical plants to acquire signals such as reactor temperature/pressure, pipeline pressure and flammable gas concentration, triggering emergency shutdown and isolation valve actions. On offshore oil and gas platforms, it withstands salt-spray, high-humidity and high-vibration conditions, providing stable data support for platform fire and gas systems and shutdown logic to prevent leakage and explosion risks.

Power Industry

Used in steam turbine/boiler protection systems of thermal power plants and gas-fired power plants to acquire parameters such as turbine speed, main steam temperature/pressure and bearing vibration, realizing unit overspeed tripping and over-temperature protection in coordination with the Tricon system. In nuclear power auxiliary systems, it serves as a safety-rated analog acquisition module to monitor cooling system parameters and ensure stable operation of nuclear safety equipment.

Metallurgical and Coal Chemical Industries

Other High‑Risk Scenarios

IV. Technical Parameters
