Description
1. Product Overview

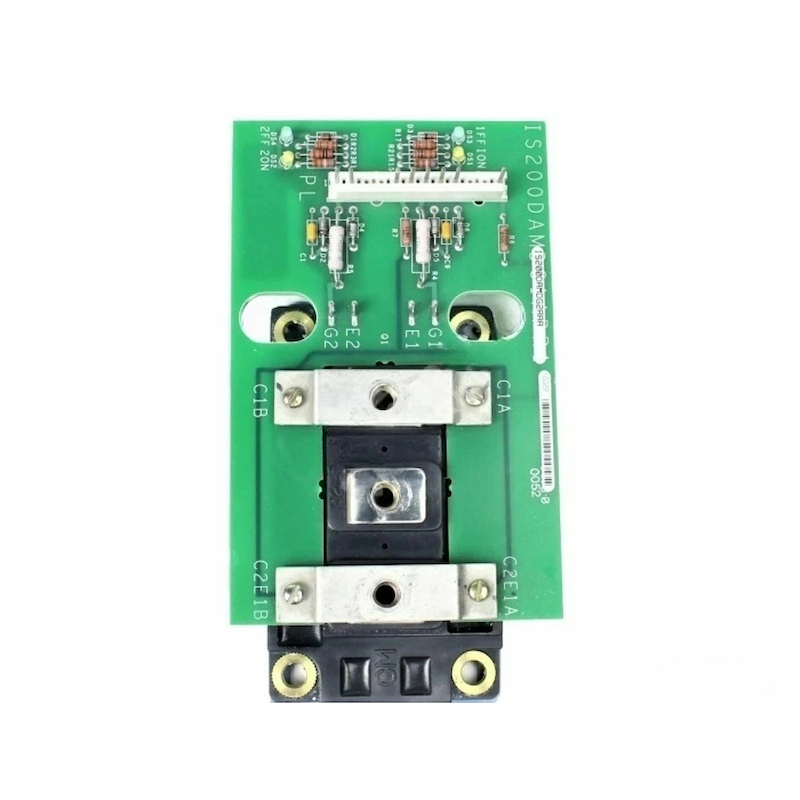

Part Number: IS200DAMDG2AAA
Applicable Platform: GE Speedtronic Mark VI / Mark VIe turbine control system and EX2100 generator excitation & low-voltage drive control system, originally manufactured in the USA. It is a discontinued critical EOL spare part dedicated to IGBT power loop gate drive.Product Definition: DAMDG2 stands for Gate Driver Amplifier & Interface Board. One single board drives a dual-IGBT module for one phase leg, and three identical boards are required to constitute a complete three-phase power bridge. It converts and isolates PWM control signals from the main controller, amplifies gate drive waveforms to trigger IGBT power devices, collects real-time operating status and fault feedback, and executes hardware interlock protection against overcurrent and over-temperature. It is the core interface and safety protection component for 92 Frame and 125 Frame EX2100 excitation drive cabinets, widely applied in maintenance replacement and technical renovation of thermal power, metallurgy and petrochemical industrial equipment.2. Hardware Structure & Six Functional Units
2.1 Signal Level Adaptation & Pulse Shaping Unit
Equipped with 20MHz high-speed signal buffer bus to realize mutual conversion between 5V and 3.3V logic levels. It removes burrs, aligns timing and matches impedance for PWM pulses transmitted from the backplane to eliminate waveform distortion and delay caused by long cables. A 560μF capacitor filter array suppresses power supply noise and provides clean power for on-board chips.
2.2 Multi-Channel Isolated Gate Drive Amplification Unit
Independent optoelectrical isolation channels with 1500VAC dielectric withstand voltage completely separate low-voltage control circuits and high-voltage power circuits. Weak logic signals are amplified into standard gate drive voltage to drive Powerrex CM200DY-28H dual IGBT modules stably, with mutual isolation between each phase channel.
2.3 Power Loop Monitoring & Fault Feedback Unit
Multi-channel sampling circuits continuously detect DC bus voltage, IGBT conduction current, module temperature and drive line breakage. All fault information is uploaded to the DSP main controller via VME backplane bus for fault logging, alarm and closed-loop regulation.
2.4 Hardware Ultra-Fast Fault Interlock Unit
Protection logic is implemented by discrete hardware circuits without CPU program judgment. Gate drive output is blocked and fault status is latched within microseconds once short-circuit, overcurrent or over-temperature is detected. Latched faults can only be cleared by power cycle to avoid accidental reset by transient interference.
2.5 VME Backplane Bus & Diagnostic Indication Unit
A standard 96Pin DIN VME gold-plated rear connector plugs into the Mark VIe rack backplane for power supply and bidirectional communication. Four front-panel LEDs (DS1~DS4) display power readiness, pulse transmission, fault latch and bus communication status for on-site troubleshooting without upper computer software.
2.6 Reinforced PCB & Conformal Coating Protection Unit
Four-layer gold-plated PCB with two continuous ground shielding layers. Full conformal coating is applied for moisture, corrosion and dust resistance. SMT and through-hole components are double-reinforced soldered. Fanless and wear-part-free design enables stable long-term operation under high temperature, vibration and strong EMI interference in control cabinets.
3. Detailed Technical Specifications
(1) Core Functional Parameters
| Item | Specification |
|---|---|
| Part Number | IS200DAMDG2AAA |
| Board Type | Gate Drive Amplifier & Interface Board (DAMDG2) |
| Compatible Cabinet | 92 Frame / 125 Frame EX2100 Excitation & Drive Cabinet |
| Drive Object per Board | One dual-IGBT module for single phase leg |
| Standard Configuration | 3 boards for full three-phase power bridge |
| Max Data Transfer Rate | 20MHz |
| Isolation Withstand Voltage | 1500VAC between control and power circuits |
| Power Input | +15VDC / -7.5VDC dual power supply |
| Fault Reset Method | Power cycle reset to clear hardware latch |
| Indicators | 4 LED status lamps (DS1~DS4) |
| PCB Structure | 4-layer gold-plated board with integrated shielding ground planes |
(2) Electrical & Bus Parameters
- Backplane Bus: Mark VI / Mark VIe dedicated VME parallel backplane bus
- Input Voltage Tolerance: ±10% deviation for ±15V power supply
- Built-in Protection: Reverse polarity, ESD, surge and short-circuit current limiting protection
- Hot Swap: Hot plugging is strictly prohibited
- Typical Power Consumption: ≤11W
(3) Environmental Parameters
- Operating Temperature: -40℃ ~ +85℃
- Storage & Transportation Temperature: -40℃ ~ +85℃
- Humidity: 5%~95%RH non-condensing, no corrosive gas or salt fog
- Ingress Protection: IP20 (for indoor sealed cabinet installation only)
- Maximum Operating Altitude: ≤2500m
(4) Mechanical Parameters
- Mounting: Single-slot tool-free plug-in installation on standard Mark VI VME rack
- Net Weight: ~0.52kg
- Base Material: V0 flame-retardant FR-4 gold-plated PCB with anti-oxidation gold-plated backplane contacts
4. Product Advantages
- Phase-independent drive architecture limits fault impact to single phase only, improving system fault tolerance and reducing unplanned downtime.
- Hardware-based protection achieves microsecond-level response, far faster than software cyclic scanning, minimizing component damage caused by short-circuit faults.
- Standard VME modular design supports direct drop-in replacement without wiring or program modification, shortening maintenance downtime during scheduled outages.
- Dual ground layer shielding effectively suppresses high-frequency harmonic crosstalk from SCR rectifiers and high-power switching, preventing false triggering and sampling drift.
- Multi-dimensional monitoring covers communication, input pulse, gate output, bus voltage and temperature to facilitate fast fault location and root cause analysis.
- Wide-temperature conformal coating design adapts to harsh power plant environments with zero routine maintenance and long service life matching generator overhaul cycles.
5. Application Scenarios
- Thermal Power Industry: Phase-separated IGBT gate drive and hardware protection for EX2100 excitation systems of Mark VIe gas & steam turbine generator units.
- Metallurgy Industry: Main drive cabinet renovation and faulty board replacement for hot rolling & cold rolling production lines and blast furnace hoist systems.
- Petrochemical Industry: Excitation and frequency conversion drive unit control for on-site turbo generator and compression units to guarantee continuous process power supply.
- O&M & Retrofit: Spare part stocking, frequent overcurrent trip troubleshooting and redundant architecture upgrade for legacy Mark VI drive and excitation control systems.
