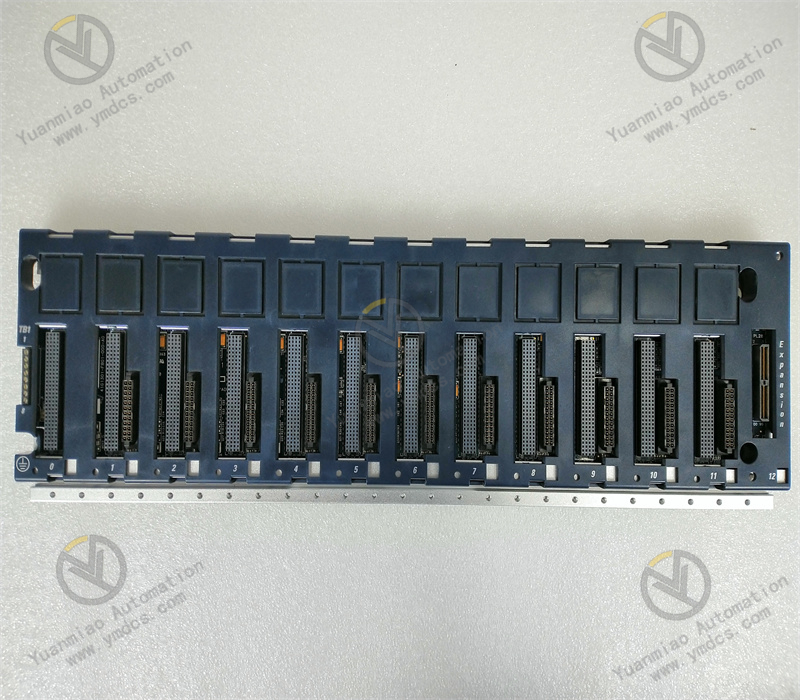

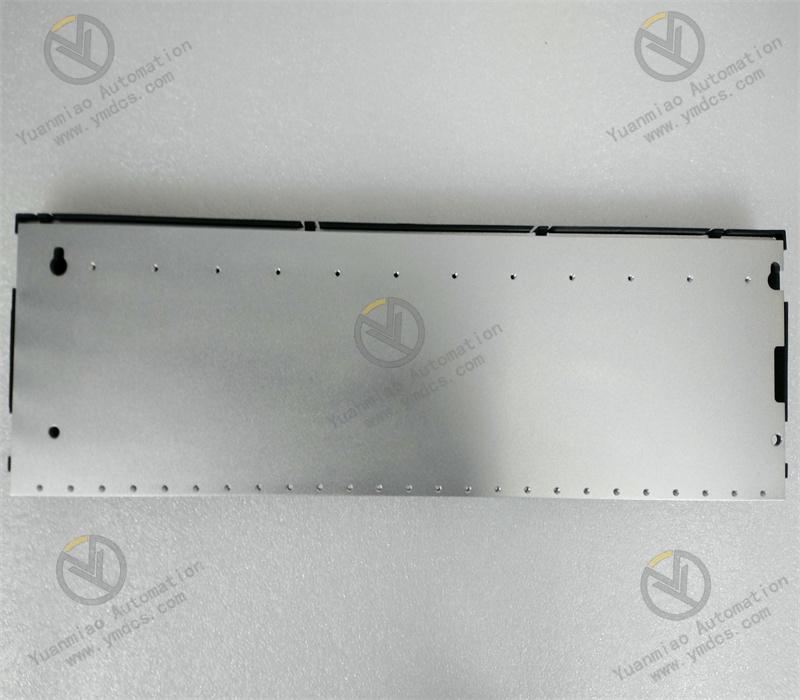

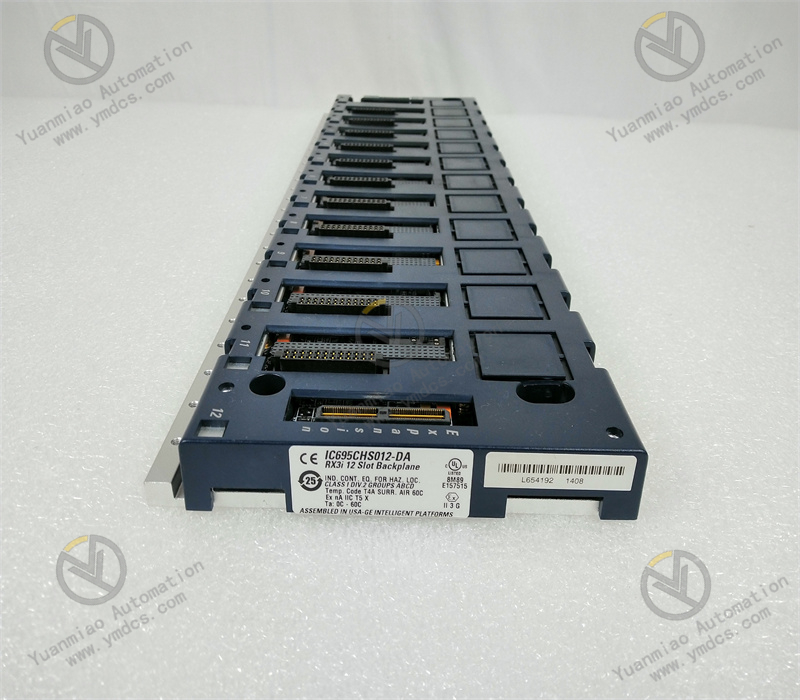

IC695CHS012 12-slot high-speed controller backplane rack

Description

1. Product Overview

IC695CHS012 is a 12‑slot high‑speed controller backplane rack of the PACSystems RX3i series manufactured by General Electric (GE). It acts as the core mounting carrier and bus transmission base for the RX3i PLC control system, providing mechanical support and high‑speed data interaction channels for CPU, I/O, communication and expansion modules within the whole automation‑control system. Designed for medium‑to‑large‑scale industrial‑automation scenarios requiring high precision, stability and non‑stop continuous control, this backplane forms the foundational hardware of the system architecture. It performs key functions including mechanical fixation of all modules, bus‑power distribution, high‑speed data‑bus transmission, signal‑link allocation and hardware topology networking, and serves as the underlying critical hardware that guarantees coordinated module operation, stable data transmission and accurate execution of control logic in the RX3i system.

As an original standardized high‑end backplane rack from GE, the IC695CHS012 features a reinforced frame fabricated from 6063‑T6 heat‑treated aluminum alloy and high‑reliability industrial‑grade backplane connectors, delivering outstanding resistance to deformation, vibration and shock. Natively equipped with a dual‑bus architecture consisting of a PCI high‑speed parallel bus and a high‑speed serial bus, it supports hot‑swap on‑line module maintenance. This eliminates common pain‑points of conventional PLC racks such as insufficient bus bandwidth, limited expandability, loose connections caused by vibration, shutdown‑required maintenance and delayed data transmission. Optimized for EMC electromagnetic compatibility and engineered for wide‑temperature resistance, the unit can operate continuously for 7×24‑hour heavy‑duty cycles under harsh plant‑site conditions including elevated cabinet temperature, dust, high‑frequency vibration and strong electromagnetic interference. It is widely deployed in engineering projects such as complete‑set construction of new RX3i automation systems, legacy‑rack replacement, system I/O‑point expansion, hardware‑architecture upgrades and equipment‑stability optimization across manufacturing, process‑chemical, power‑energy, water‑treatment and metallurgical industries.

2. Core Functions

1. 12‑slot large‑capacity modular expansion support: Equipped with 12 standard universal slots, the rack can simultaneously accommodate RX3i‑series CPU modules, digital‑I/O modules, analog‑I/O modules, high‑speed counter modules, communication expansion modules, power‑supply units and other functional boards. It satisfies demands for complex control‑architecture construction with massive I/O points, multiple control loops and multi‑functional requirements in medium‑to‑large automation projects, and is well suited for large‑scale process control and multi‑equipment linkage scenarios.




2. Dual high‑speed‑bus parallel transmission support: Natively compatible with PCI high‑speed parallel bus and high‑speed serial‑bus dual‑transmission architecture, it provides sufficient bus bandwidth and ultra‑low transmission latency. It supports high‑concurrency data exchange among multiple modules, fast instruction delivery and real‑time parameter acquisition, effectively preventing data congestion, transmission lag and asynchronous commands within multi‑module networks and ensuring high‑speed, precise and synchronous operation of the whole system.




3. Hot‑swap on‑line module maintenance: Featuring industrial‑grade hot‑swap capability, individual modules can be inserted, removed, replaced or serviced while the system remains energized and running. No full‑system power‑off, production shutdown or interruption of control logic is required, which greatly reduces maintenance downtime, improves continuous‑operation efficiency of production lines and is ideal for non‑stop industrial processes.




4. Stable bus‑power supply and loop distribution: Built‑in standardized bus‑supply circuits deliver regulated 3.3 VDC and 5 VDC power to modules installed in the slots, with low‑ripple voltage and well‑balanced load distribution. It effectively avoids malfunctions such as module resets, data loss, communication drop‑outs and control anomalies induced by power‑supply fluctuations, enabling steady‑state operation of each module.




5. High‑strength industrial anti‑interference protection architecture: Constructed from T6 heat‑treated aluminum alloy, the rack exhibits excellent shock‑resistance, deformation‑resistance and vibration‑tolerance for high‑frequency vibration and mechanical impacts on‑site. Backplane connectors feature ultra‑low contact resistance, anti‑oxidation and anti‑loosening performance. Combined with full‑rack EMC electromagnetic‑shielding design, the backplane suppresses on‑site electromagnetic interference and power‑frequency noise, eliminating signal crosstalk and unstable links and enhancing overall system reliability.




6. Standardized loss‑free adaptation and convenient expansion: Fully compliant with original GE PACSystems RX3i hardware specifications, including slot definitions, bus protocols, power‑supply logic and mounting dimensions. Plug‑and‑play loss‑free networking and module expansion are supported with no requirement for program modification, parameter recalibration or field‑wiring reconstruction. It facilitates compatible upgrades of new‑and‑legacy systems, I/O‑point expansion and old‑rack replacement with simple installation and low retrofitting costs.

3. Technical Specifications

4. Working Principle

The IC695CHS012 high‑speed backplane rack operates under a closed‑loop workflow: mechanical mounting & fixation → unified bus‑power distribution → dual‑bus data transmission → coordinated module interaction → on‑line fault‑tolerant maintenance. After DIN‑rail installation, earthing wiring and system power‑up, internal bus circuits automatically complete initialization self‑tests on power‑supply loops, bus channels and slot‑status conditions. Once diagnostics are passed, standardized DC operating power and high‑speed bus channels are supplied to all installed modules.

During normal runtime, CPU, I/O, communication and expansion modules are mechanically secured and electrically interfaced via the 12 standard slots, receiving regulated power from the backplane to ensure stable hardware operation. The PCI high‑speed parallel bus and high‑speed serial‑bus jointly establish a high‑speed system‑wide data‑exchange network. The CPU delivers control commands, synchronizes program logic and schedules functional modules through the backplane bus. Field‑process data and equipment‑status signals collected by I/O modules are uploaded to the CPU via the backplane for computation, enabling real‑time system‑wide data exchange, synchronous‑command execution and coordinated‑logic operation.

Leveraging its native hot‑swap capability, the backplane automatically isolates a faulty slot when one module fails, ages or requires servicing, without disrupting power supply or data communication for remaining slots. Single‑module on‑line removal and replacement can therefore be performed with no system shutdown. Meanwhile, the heavy‑duty frame continuously mitigates on‑site vibration, shock and electromagnetic interference, maintaining stable bus links and electrical contact integrity throughout operation and guaranteeing long‑term stable hardware architecture, accurate data transmission and uninterrupted control logic for the complete RX3i PLC system.

5. System‑Architecture Compatibility

The IC695CHS012 is an original‑equipment dedicated 12‑slot high‑speed backplane rack for the GE PACSystems RX3i control system. Its slot definitions, dual‑bus communication protocols, power‑supply‑loop parameters, mechanical mounting dimensions and electrical‑topology logic are fully matched to the complete RX3i control architecture. Natively compatible with the full portfolio of RX3i CPU, I/O, communication and expansion modules, it also supports selected GE 90‑30‑series modules, enabling seamless interconnection between new‑ and legacy‑hardware platforms and achieving 100 % system compatibility.

The rack is capable of hosting the complete hardware architecture for medium‑to‑large‑scale RX3i control systems and seamlessly interfaces with all original functional modules, delivering precise bus‑transmission timing, well‑balanced power‑supply‑load distribution and drift‑free module‑to‑system adaptation. It fully satisfies high‑concurrency multi‑module coordinated‑control, high‑speed data‑exchange, massive‑point data‑acquisition and multi‑equipment process‑linkage‑control requirements. Its standardized industrial‑mounting layout complies with control‑cabinet specifications, and it can be deployed for new‑project RX3i complete‑system builds, ageing‑rack replacement on legacy RX3i / 90‑30 installations, I/O‑point expansion upgrades, bus‑performance optimization and hardware‑architecture retrofits for high‑risk operating areas. Upgrades can be implemented without modifying existing control programs, process logic or field wiring. On‑line maintenance‑enabled retrofits carry low construction risk and moderate cost, resulting in significant improvements in system expandability, communication speed, maintainability and environmental suitability after commissioning.

6. Application Scenarios

Engineered to resolve well‑known limitations of conventional PLC racks such as insufficient slot quantity, slow‑speed bus performance, absence of on‑line maintenance, poor vibration resistance and limited expandability, the IC695CHS012 is designed for medium‑to‑large industrial‑automation control‑system hardware hosting requiring non‑stop operation, high precision and high reliability, with core strengths of 12‑slot large‑capacity expansion, dual high‑speed‑bus transmission, hot‑swap maintenance, heavy‑duty industrial protection and wide‑temperature suitability.

It is widely deployed in oil‑and‑gas petrochemicals, fine‑chemical processing, thermal‑power generation, water‑treatment facilities, metallurgical manufacturing, smart manufacturing, assembly‑line automation, HVAC automatic control and intelligent‑equipment sectors, fully compatible with GE PACSystems RX3i and 90‑30‑series PLC platforms. It undertakes core infrastructure functions including mechanical support for all system modules, bus‑power distribution, high‑speed data transmission, hardware networking and link‑stability assurance. Suitable projects include new medium‑to‑large automation‑control‑system builds, legacy‑rack fault replacement, I/O‑point expansion upgrades, non‑stop‑production‑line maintenance retrofits, hardware‑architecture optimization for hazardous locations and overall control‑system stability enhancement. The rack effectively mitigates issues such as limited‑module expandability, data‑transmission delays, frequent maintenance‑related shutdowns, vibration‑induced loose connections and unstable module operation. It improves control‑system expandability, operational stability, maintenance efficiency and environmental adaptability, securing long‑term continuous, efficient and steady safe production for industrial‑automation lines.
