Description

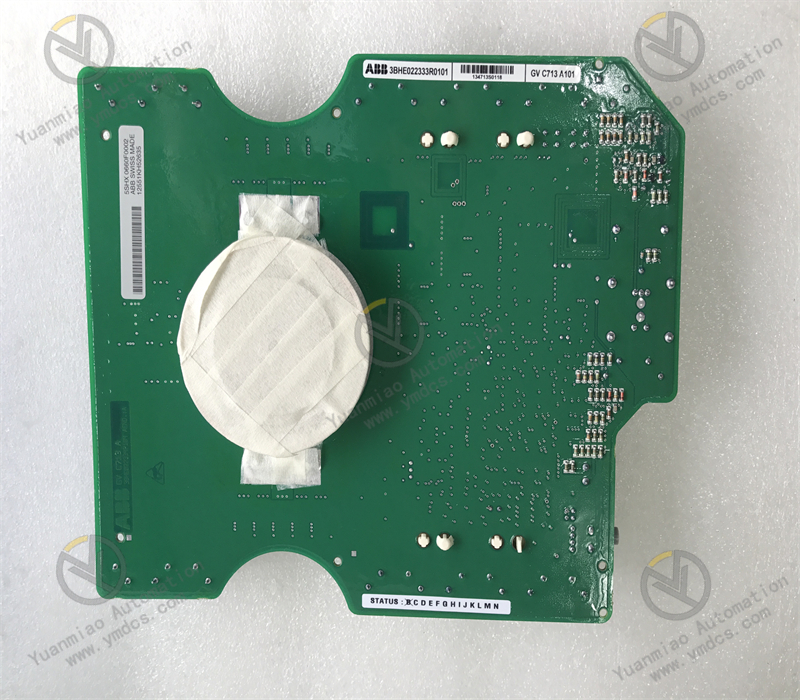

ABB IGCT 5SHX0660F0002

ABB 5SHX0660F0002 is a high-performance Integrated Gate-Commutated Thyristor (IGCT) module. As a core component of industrial power control systems, it is hailed as the "heart" of industrial power control. Tailor-made for medium and high-voltage, high-current scenarios, it is widely used in various heavy-duty industrial fields by virtue of its stable and reliable performance, providing efficient support for power conversion systems.

1. Technical Parameters

Rated Specifications: Rated voltage 1200V, rated current 1500A (RMS). The maximum collector saturation current can exceed 1500A, with a breakdown voltage of 1200V, capable of stably withstanding the load of medium and high-voltage, high-current working conditions.
Operating Environment: The junction temperature operating range is -40℃ to +150℃, featuring a wide temperature adaptability. With an IP20 protection rating, it can operate stably in harsh industrial environments such as high-temperature chemical workshops and high-humidity mines.
Key Performance: On-state voltage drop ＜1.8V, switching frequency up to 25kHz. Adopting gate trigger control mode and advanced reverse conduction technology, it achieves high conversion efficiency and low power consumption, with a 22% efficiency improvement compared with traditional thyristors.
Installation Specifications: Adopting a compact design with dimensions of 76mm×57mm×34mm and a weight of only 0.3kg, it can be directly mounted on a 35mm DIN rail, supporting hot swapping for convenient maintenance and space-saving installation.

2. Features and Advantages

High Energy Efficiency: Equipped with patented free-floating silicon technology and supporting four-quadrant energy feedback function, it can directly convert motor braking energy into grid-available electric energy. In scenarios with frequent start-stop such as cranes and rolling mills, a single device can save more than 150,000 kWh of electricity annually.
Intelligent and Reliable: Built-in intelligent diagnosis function for real-time monitoring of core parameters such as current and temperature, providing early warning of potential faults. Combined with triple protection against overcurrent, overvoltage and overheating, the response time is ＜5ms. It complies with the IEC 61800-5-1 safety standard and can reduce unplanned downtime by 60%.
Strong Anti-interference Capability: Adopting industrial-grade components and double isolation design, its Electromagnetic Compatibility (EMC) complies with the EN 61000-6-2 standard. It can effectively resist Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI) in industrial sites, ensuring stable equipment operation.
Excellent Compatibility: It can be seamlessly matched with ABB ACS880 series frequency converters and supports multiple communication protocols such as PROFINET, Modbus TCP, RS232 and RS485, facilitating integration with industrial control systems to achieve integrated intelligent control.

3. Application Fields

By virtue of its outstanding performance, this module is widely used in various fields such as industrial automation, power systems and rail transit, and is especially suitable for heavy-duty working conditions. The specific application scenarios include:

Rail Transit: Traction converters for metro vehicles. It realizes energy regeneration through four-quadrant operation technology, with a braking energy feedback efficiency of over 90% to the power grid, reducing train energy consumption by 20% while ensuring the rapid response of traction motors.
Metallurgical Industry: Roll motor drives for hot rolling production lines in steel plants. It provides a stable continuous current of 1500A, realizes energy recovery during the rolling process, reduces equipment heating and extends the service life of the heat dissipation system by 30%.
Mining and Energy Industry: Mine hoist drive systems, wind power converters, hydropower station excitation systems, etc. It can adapt to harsh environments such as high altitude and low temperature, reduce energy consumption through the energy feedback function and avoid equipment damage during heavy-duty start-up.
Other Fields: Speed and torque control of industrial motors, precise temperature control of equipment such as resistance heaters, power electronic converters (frequency converters, inverters), HVDC transmission, static var compensators, etc. It is also applicable to automation systems in chemical, water treatment, papermaking and other industries.

4. Installation and Maintenance Notes

To ensure the safe and stable operation of the equipment, the following requirements must be followed for installation and maintenance, which shall be performed by professionally qualified personnel familiar with equipment details:

Pre-installation Inspection: Visually inspect the integrity of the module, the condition of connection parts and the adjustment of protection devices, and confirm no damage before installation.
Safe Operation: Before any installation or maintenance operation, the switch must be set to the off position to cut off the power supply of the module's power circuit and auxiliary circuit. If complete power failure is not possible, appropriate personal protective equipment must be equipped and relevant industry specifications must be followed.
Regular Maintenance: Under normal operating conditions, maintenance shall be conducted once a year; for harsh operating environments or in case of short-circuit faults, maintenance shall be conducted every 6 months. Maintenance items include: removing dust or smoke stains with a dry and clean cloth, inspecting the surface of pluggable contacts and performing cleaning and lubrication, conducting no-load tests on the action of switches, closures and relays, and checking the tightness of connection parts and fixing screws.
