Description

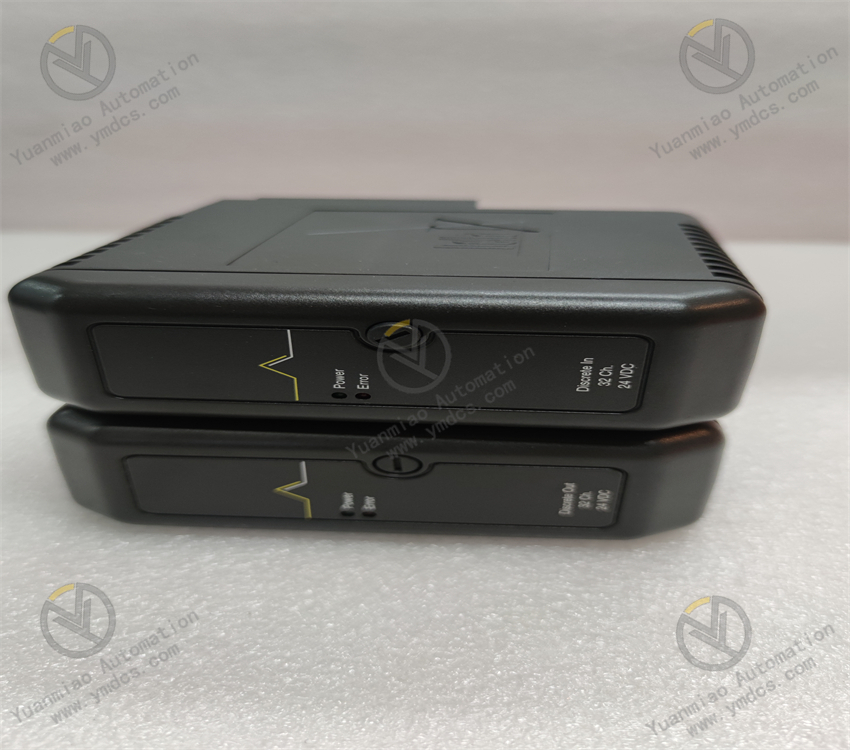

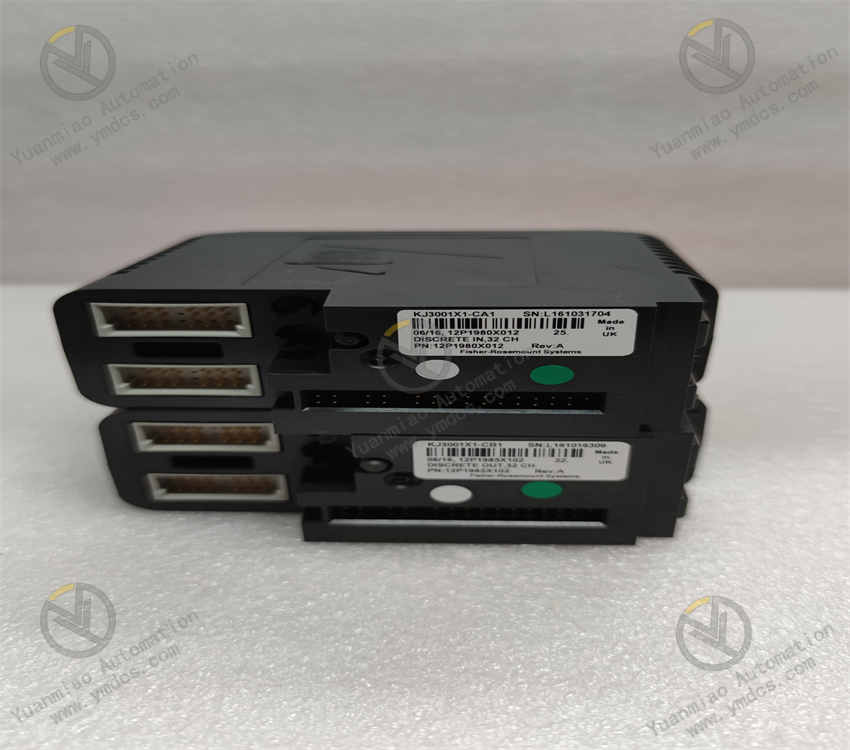

Emerson KJ3001X1 - CA1 is a discrete input (DI) module in the Emerson DeltaV distributed control system (DCS). Technical Parameters Input Channels: 32 dry contact input channels, which can be used to monitor various field devices without power supply. Power Supply: It uses a 24VDC power supply, which is suitable for common power configurations in industrial environments. Input Voltage Range: 0V to 24V. Input Current Range: 0mA to 2mA. Input Impedance: Greater than 1MΩ. Response Time: Less than 2ms, which can quickly and accurately capture changes in input signals. Operating Temperature Range: -40°C to +70°C, which can adapt to a wide range of industrial environment temperatures. Storage Temperature Range: -55°C to +85°C. Humidity Range: 0% to 95% RH (without condensation). Vibration: 0.05g rms, 10Hz to 500Hz. Shock: 15g, 11ms half-sine pulse. Optical Isolation: Optical isolation is provided between the input channels and the system's electronic components to prevent electrical noise and transient interference. Diagnostic LEDs: Each input channel has diagnostic LEDs, which are helpful for troubleshooting and monitoring. Software Configuration: The input channels can be configured through software, including debounce time and filtering, to achieve customized performance adjustment.
Functional Features: Multi-channel Monitoring: It has 32 dry contact input channels, which can simultaneously monitor the status of a large number of non-powered field devices, such as the on-off status of switches and relays. It is suitable for industrial scenarios that require centralized monitoring of multiple discrete signals. Wide Voltage Input: It is powered by a 24VDC power supply, with an input voltage range of 0V to 24V, and can adapt to a certain degree of power voltage fluctuations to ensure stable operation under different power supply conditions. High Precision and Reliability: It has high accuracy and reliability, can accurately capture input signals, and can operate stably in industrial environments, reducing the misjudgment and omission of signals, and providing accurate status information of field devices for the control system. Electrical Isolation Protection: Optical isolation is provided between the input channels and the system's electronic components, effectively preventing the influence of electrical noise, transient interference, etc. on the system, improving the anti-interference ability of the module, and ensuring the stability and safety of the system. Fast Response: The response time is less than 2ms, which can quickly sense changes in the status of field devices and transmit signals to the control system in a timely manner, enabling the control system to make corresponding decisions and actions quickly, meeting the requirements of industrial control applications with high real-time performance. Easy Installation and Maintenance: It has a compact design and a simple installation method, which helps to reduce installation time and costs. At the same time, the diagnostic LEDs on the module can display the status of each input channel, making it convenient for operators to quickly locate and troubleshoot faults, reducing the difficulty and cost of maintenance. Software Configurable: The input channels can be configured through software, including the setting of parameters such as debounce time and filtering, which can be customized according to different field environments and device characteristics to optimize the performance of the module and improve the accuracy of signal processing. Strong Compatibility: It is specially designed for the Emerson DeltaV distributed control system and can be seamlessly integrated with other modules and devices in the DeltaV system to form a complete industrial automation control solution, facilitating the expansion and upgrade of the system.
Common Faults and Solutions 1. No input signal in the channel Check the wiring: Confirm whether the connection wires between the field device and the module are correctly connected, and check for looseness, open circuit or short circuit. If there are wiring problems, reconnect or replace the damaged cables. Check the field device: Check whether the field dry contact device is working properly and whether the contacts can be closed and opened as expected. If the field device fails, repair or replace the device. Check the module configuration: Check the channel configuration parameters of the module through the DeltaV system software to ensure that the input channels are correctly enabled and configured with appropriate filtering, debounce and other parameters. Incorrect configuration may lead to misjudgment or omission of signals, and adjust the configuration parameters according to the actual situation. 2. Signal misjudgment Check for electrical interference: Since the module uses dry contact input, although there is optical isolation, strong electromagnetic interference may still affect the accuracy of the signal. Check whether there are strong interference sources such as large motors and frequency converters around the module. If so, measures such as shielding cables and adding filters can be taken to reduce interference. Adjust the software parameters: If the misjudgment is caused by signal noise, you can try to adjust the filtering parameters and debounce time in the software to increase the ability to suppress noise, but pay attention not to overly affect the normal response speed of the signal when adjusting. 3. The module fault indicator light is on Check the diagnostic information: Obtain specific fault codes or information through the diagnostic tools of the DeltaV system or the diagnostic LEDs on the module to determine the specific cause of the fault, such as power supply fault, internal circuit fault, etc. Check the power supply: Measure the power input voltage of the module to ensure that it is within the normal working range (about 24VDC). If the power supply voltage is abnormal, check the power supply loop, including the power module, fuse, etc., and repair or replace the faulty power components.
