Description
1. Product Overview

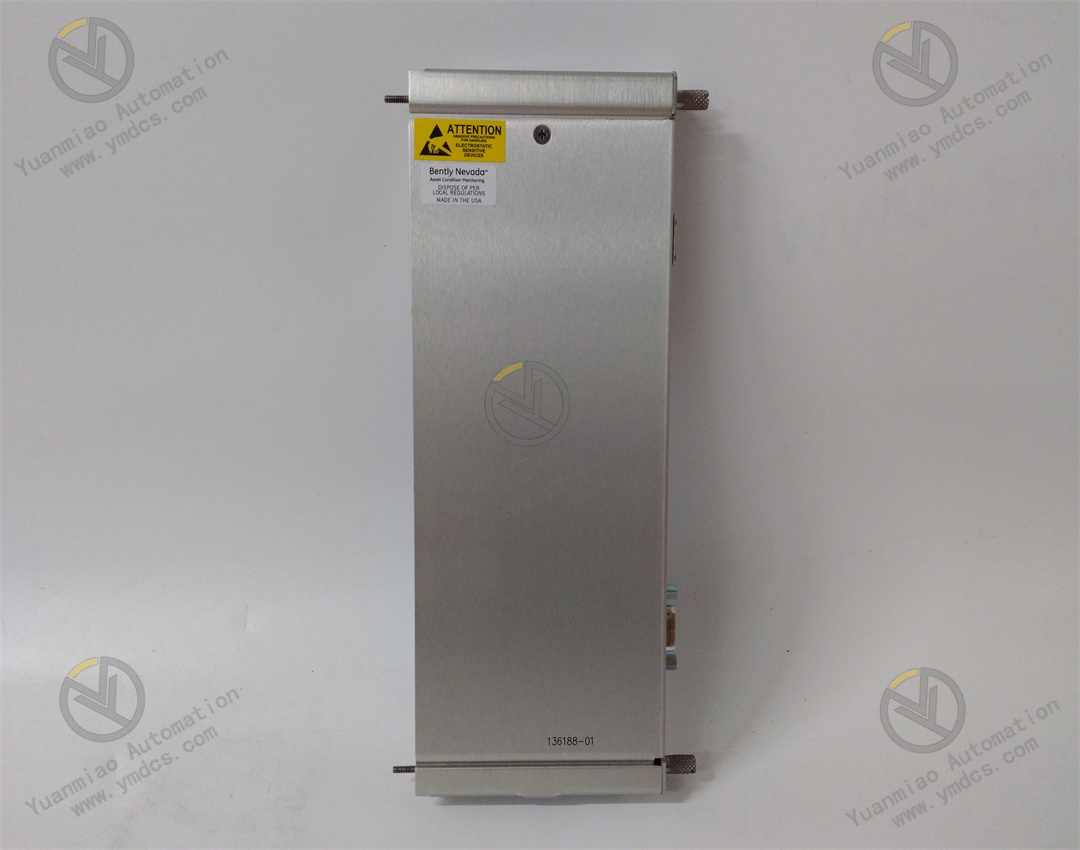

136188-01 is the Bently Nevada 3500/92 System Communication Gateway Module, the core upper-level communication unit of the 3500 Series Machinery Protection and Condition Monitoring System. It is designed for online monitoring of large rotating power equipment and data networking of vibration protection systems. Serving as the exclusive external data interaction hub for the 3500 system, this module is responsible for data aggregation, protocol conversion, real-time uploading, configuration downloading and system linkage of all monitoring modules within the rack. It is an essential core board for condition monitoring systems of critical rotating equipment such as turbine generator sets, gas turbines, fans and compressors to connect with upper-level DCS, PLC, monitoring platforms and SIS systems.
The 3500/92 communication module adopts a high-reliability hardware architecture for power station industrial applications and supports parallel multi-protocol communication. It can uniformly aggregate full operating condition data from modules in the rack, including vibration, displacement, rotational speed, temperature, keyphase, alarms and protection actions, enabling seamless data exchange between the underlying monitoring system and upper-level automation systems. Equipped with an independent processor and data cache unit, the module features stable data forwarding without packet loss or delay and strong anti-interference capability. It supports remote system configuration, parameter modification, status diagnosis and fault tracing. Complying strictly with explosion protection, EMC and long-term operation standards for power, petrochemical and industrial control industries, it has passed high-low temperature aging, vibration shock, electromagnetic interference and continuous power-on tests. Suitable for harsh industrial scenarios such as power stations, chemical plants, oil & gas and metallurgy, it is an original core spare part for maintenance replacement, emergency fault repair, system technical transformation and legacy upgrade of the 3500 monitoring system.
2. Functional Characteristics
2.1 Full Rack Data Aggregation for Unified System Networking
As the core communication master unit of the 3500 rack, it polls and aggregates data from all functional modules in the rack in real time, including full-dimensional operating condition data such as vibration amplitude, shaft displacement, differential expansion, rotational speed, keyphase, temperature parameters, channel status, alarm messages, interlock protection action records and module operating status. It sorts, packages and time-calibrates scattered underlying monitoring data, solving problems of dispersed multi-module data, disordered time sequence and inconsistent uploading, and realizing centralized data management and standardized networking for the complete unit condition monitoring system.
2.2 Multi-protocol Compatible Communication for Connection with Various Upper-level Systems
Integrated with multiple standard industrial communication interfaces, the module natively supports Modbus RTU/TCP and standard TCP/IP Ethernet protocols. It can seamlessly connect with power station DCS control systems, PLC automation systems, upper-level industrial monitoring platforms, plant information systems and SIS safety instrumented systems. Bidirectional data interaction is supported: it uploads equipment monitoring data, alarm status and system fault information in real time, and receives configuration parameters and instruction data issued by upper systems to realize remote equipment management, system configuration and data tracing, adapting to most industrial automation networking schemes.
2.3 Remote Configuration & Intelligent O&M to Simplify System Commissioning
It supports full-parameter remote configuration, online setup, parameter modification, program upgrade and system diagnosis for the 3500 system without local disassembly. Operation and maintenance personnel can read rack configurations, channel parameters, alarm thresholds and protection logic remotely via upper terminals. Meanwhile, module status verification, communication troubleshooting and system parameter correction can be performed online, greatly cutting labor costs and operation difficulty for field commissioning, routine inspection and fault troubleshooting, fitting unattended and intelligent industrial operation & maintenance systems.
2.4 Large-capacity Data Cache & Time-series Storage for Fault Tracing
Built-in high-speed data cache and solid-state storage units can buffer dynamic equipment operating data, transient vibration waveforms, abnormal alarm records, protection action time sequences and module fault logs in real time. Key data will not be lost after power failure. It can completely retain data at the moment of unit abnormal conditions and faults, providing accurate data support for equipment failure analysis, vibration tracing, hidden danger investigation and equipment technical optimization, thoroughly addressing pain points of insufficient data retention and difficult fault location in traditional monitoring systems.
2.5 Intelligent Fault Self-diagnosis to Ensure Stable System Operation
Equipped with full-coverage system self-diagnosis mechanism, it monitors hidden risks such as its own hardware status, communication links, rack backplane bus, module matching status and abnormal data transmission 24/7. It can accurately identify communication interruption, link interference, module mismatch, abnormal data and hardware faults, actively output fault alarms and quickly locate fault points, avoiding monitoring data interruption, system disconnection and monitoring failure caused by communication faults, and fully guarantee continuous and reliable operation of the unit condition monitoring system.
2.6 Industrial High-reliability Design for Long-term Operation under Harsh Conditions
The whole board adopts EMC design dedicated to power industrial control with strong/weak current isolation and layered signal shielding, effectively resisting strong electromagnetic interference, voltage surges, power frequency disturbances and equipment vibration shocks in power stations. The circuit board is coated with military-grade conformal coating, featuring moisture-proof, dust-proof, anti-corrosion, anti-aging and anti-vibration properties. It can run stably for a long time in high-temperature, high-humidity, dusty and strong-electromagnetic industrial field environments. It supports 7×24-hour uninterrupted continuous power operation all year round with stable communication and ultra-low failure rate, fully meeting stringent requirements of long-term online monitoring for critical industrial equipment.
3. Technical Parameters
3.1 Core Adaptation Parameters
Product Model: 136188-01 Brand: Bently Nevada Series: 3500 Machinery Condition Monitoring & Protection System Series Product Type: 3500/92 System Communication Gateway Module Compatible Systems: Full series Bently 3500 rack monitoring systems, unit vibration protection systems, equipment condition monitoring systems Applicable Equipment: Turbine generator sets, gas turbines, centrifugal compressors, axial flow fans, high-speed rotating power equipment Core Functions: Full rack data aggregation, multi-protocol communication forwarding, remote system configuration, time-series data storage, fault self-diagnosis, upper system interfacing Application Scenarios: Power station unit condition monitoring networking, industrial rotating equipment monitoring systems, legacy 3500 system technical transformation and replacement, industrial control system maintenance, emergency fault repair, intelligent monitoring system construction
3.2 Communication & Data Parameters

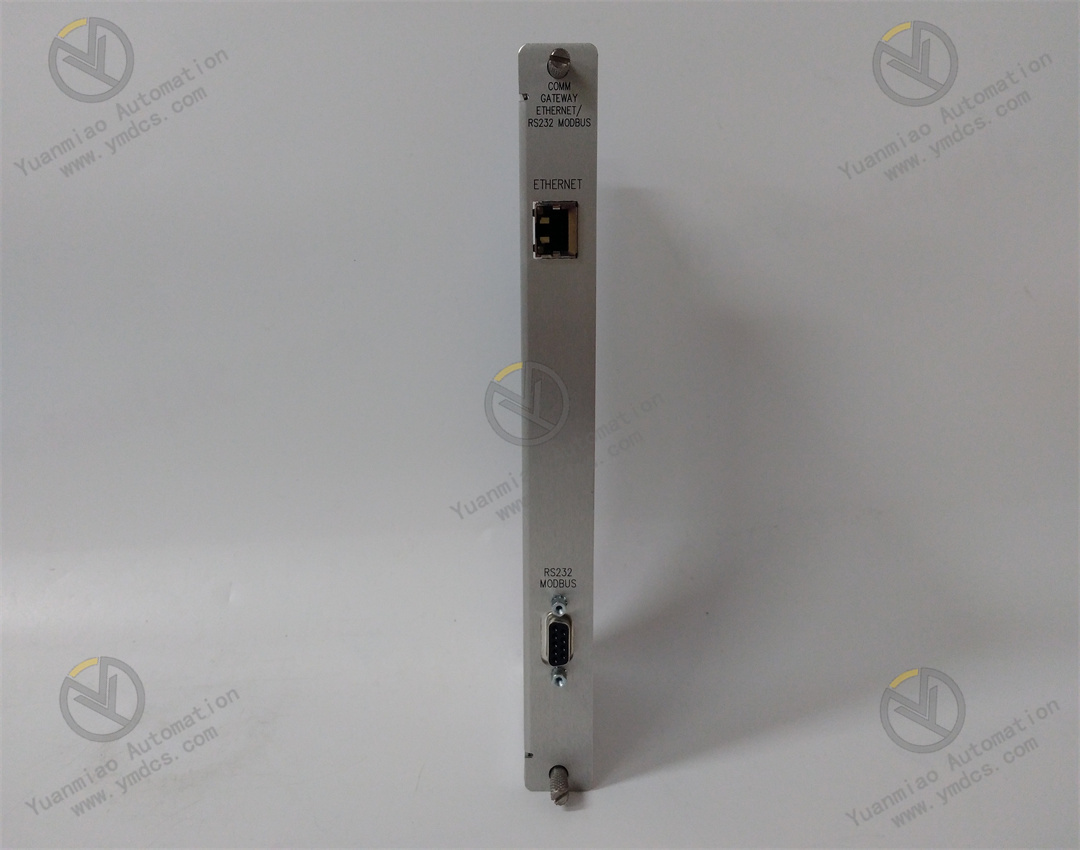

Communication Protocols: Modbus RTU, Modbus TCP, standard TCP/IP Ethernet protocol Communication Interfaces: Industrial Ethernet interface, serial communication interface, dual-link stable transmission Data Acquisition Capacity: Parallel multi-module polling across the whole rack, millisecond-level data refresh Data Transmission Characteristics: Real-time synchronous transmission, no packet loss, no delay, precise time sequence Data Storage Function: Buffer storage of operating condition data, alarm records and fault time-series data Remote Functions: Remote configuration, parameter modification, program upgrade, system diagnosis, status query System Compatibility: Fully compatible with all 3500 series monitoring modules, matching standard rack backplane bus
3.3 Electrical Operating Parameters
Power Supply: Standard rack DC power supply for 3500 system, matching the unified power supply architecture of the system Voltage Withstand: Tolerates slight power fluctuation and transient surge, maintains online operation without disconnection or reboot Electrical Isolation: Complete optoelectronic isolation for communication circuit, power supply circuit and signal circuit Anti-interference Level: Complies with high-grade EMC electromagnetic compatibility standards for power industry Operating Power Consumption: Low-power design, low heat generation, suitable for long-term continuous power operation Transmission Stability: Strong anti-interference performance of bus communication, preventing communication anomalies induced by field clutter noise
3.4 Structure & Installation Parameters
Installation Method: Slot mounting in standard 3500 rack, precise docking with backplane bus, plug-and-play Structure Form: Standardized modular circuit board design, adapting to intensive layout of 3500 system racks Structural Features: Reinforced PCB construction, vibration and shock resistant, suitable for long-term vibration conditions of units O&M Features: Hot-swap in-situ replacement, no complex configuration required, fast commissioning without full unit shutdown Protection Coating: Military-grade full-board conformal coating, moisture-proof, dust-proof, anti-corrosion and aging-resistant
3.5 Environmental Operating Parameters
Operating Temperature: 0℃～+65℃, stable operation under standard industrial control conditions Storage Temperature: -40℃～+85℃ Operating Humidity: 5%～95%RH (non-condensing) Environmental Resistance: Tolerates industrial dust, humidity, mild corrosion, equipment vibration and strong electromagnetic interference Operation Mode: Supports 7×24-hour uninterrupted stable power operation all year round
4. Hardware Configuration & Structural Advantages
4.1 Core Hardware Configuration
The 136188-01 (3500/92) module adopts Bently original industrial dedicated hardware architecture, equipped with independent high-speed communication processing chip, dedicated data operation processor, multi-protocol parsing unit, large-capacity data cache and storage unit, and optoelectronic isolation protection module. The module can independently complete the whole workflow of rack bus data reception, protocol parsing, data packaging and upper-level forwarding without external auxiliary equipment. All communication, data and power supply circuits adopt independent isolation protection design to effectively filter electromagnetic clutter, power fluctuation and signal interference on industrial sites, ensuring accurate data transmission and stable communication links. Core components adopt imported industrial-grade materials and have passed rigorous factory tests including power-on aging, temperature shock, EMC and long-term stability. It features strong hardware fault tolerance and ultra-low failure rate, capable of supporting uninterrupted stable operation of the 3500 monitoring system for a long time.
4.2 Structural Design Advantages
The module adopts standardized board-type modular design for the 3500 series with compact structure and high integration. It perfectly fits slot installation of standard 3500 racks for quick alignment, precise docking and stable conduction, adapting to intensive and standardized layout of industrial control cabinets. The reinforced PCB boasts high structural strength and can withstand vibration during unit startup/shutdown and operating impact for a long time, preventing poor contact, intermittent communication disconnection and data fluctuation. Onboard status LEDs intuitively indicate module power, run, communication, fault and link status, facilitating daily inspection and rapid fault location for maintenance personnel. With standardized interfaces and bus definitions, it features outstanding compatibility and can replace legacy modules of the same model in situ without rack rewiring or system logic reconstruction, greatly lowering construction difficulty and time cost for system transformation, emergency repair and daily maintenance, satisfying refined O&M requirements of industrial equipment.
5. Working Principle
The Bently 136188-01 (3500/92) communication module implements a fully closed-loop data interaction mechanism: rack bus data acquisition → signal isolation and filtering → multi-protocol parsing and calculation → data packaging and caching → bidirectional communication with upper systems → remote configuration management → fault self-diagnosis and storage. It undertakes core tasks of data forwarding, networking and O&M for the complete 3500 monitoring system.
Through the 3500 rack backplane bus, the module polls raw operating data such as vibration, displacement, rotational speed, temperature and alarms from all monitoring modules in the rack in real time. After independent isolation, filtering and signal shaping, data is sent to the core computing unit for data verification, time calibration, protocol parsing and standardized packaging. With built-in multi-protocol communication logic, it converts non-standard underlying system data into standard industrial Modbus and TCP/IP protocol data and uploads to DCS, PLC and upper monitoring platforms in real time to realize visual monitoring of equipment operating conditions. Meanwhile, it receives configuration instructions, parameter settings and commissioning commands issued by upper systems and writes them back to each rack functional module to complete remote system configuration, parameter update and function calibration.
The module continuously self-checks communication links, hardware status and data transmission quality throughout operation. Once link abnormality, packet loss, hardware fault, protocol mismatch and other risks are detected, it immediately triggers fault alarms, locks fault status and saves fault data. It caches unit time-series operating data, alarm records and operation logs all the time to realize operating condition tracing and fault review, comprehensively guaranteeing stable data transmission, reliable networking and intelligent O&M of the Bently 3500 machinery condition monitoring system.
6. Application Scenarios
6.1 Monitoring Networking for Large Power Equipment in Power Stations
Widely applied in vibration condition monitoring systems of steam turbine generator sets and gas turbine units in thermal power and combined-cycle power stations. As the core communication gateway of the 3500 system, it realizes centralized uploading and remote monitoring of key parameters including unit vibration, shaft displacement, rotational speed and temperature. It ensures the operating status of critical rotating equipment in power stations is monitorable, traceable and controllable, complying with equipment safety monitoring specifications and grid-connected operation standards of the power industry.
6.2 Intelligent Monitoring of Rotating Equipment in Petrochemical Industry
Suitable for high-speed compressors, large fans and industrial turbines in petroleum, chemical and metallurgical industries. It provides stable data communication networking services for equipment condition monitoring systems, enabling early warning of equipment faults, vibration anomaly monitoring and real-time operating status control. It mitigates risks of unplanned shutdown, equipment damage and production accidents, ensuring continuous and stable operation of industrial production lines.
6.3 Integrated Matching for Industrial Automation Systems
Suitable for construction of intelligent and automatic plant management systems. It enables data exchange between underlying equipment monitoring systems and upper DCS, PLC and information platforms, breaking data silos. It realizes digital equipment monitoring, refined operation & maintenance and intelligent management, supporting manufacturing upgrade and unattended O&M of industrial enterprises.
6.4 Reserve of Core Industrial Control Spare Parts in the Industry
As an original core communication board of the Bently 3500 system, it is an essential maintenance spare part for power, petrochemical and metallurgical enterprises. It can rapidly handle on-site faults such as communication module failure, link interruption, missing data uploading and failed remote configuration, eliminating major hidden dangers such as monitoring system disconnection and equipment running without monitoring, and guaranteeing year-round uninterrupted safe and stable operation of critical power equipment.
