Description

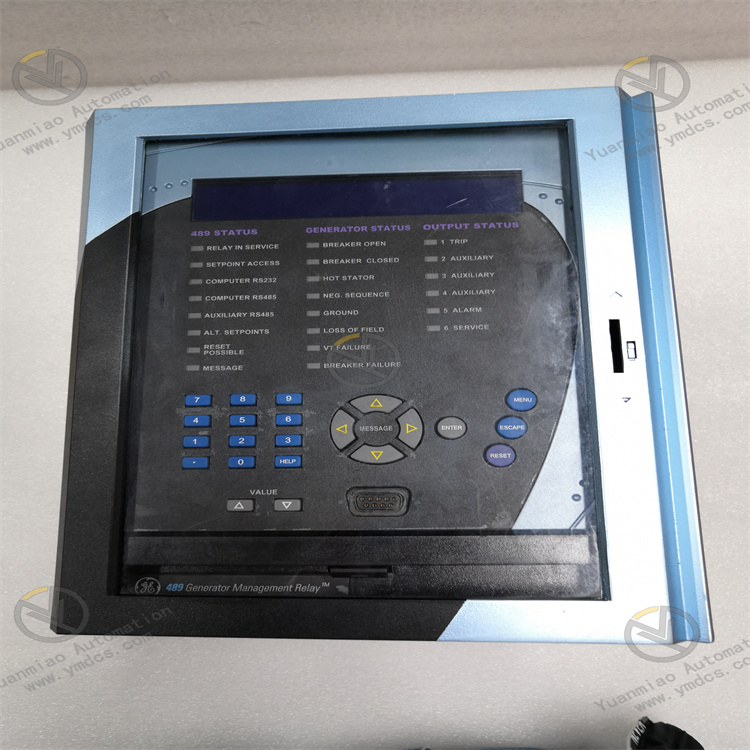

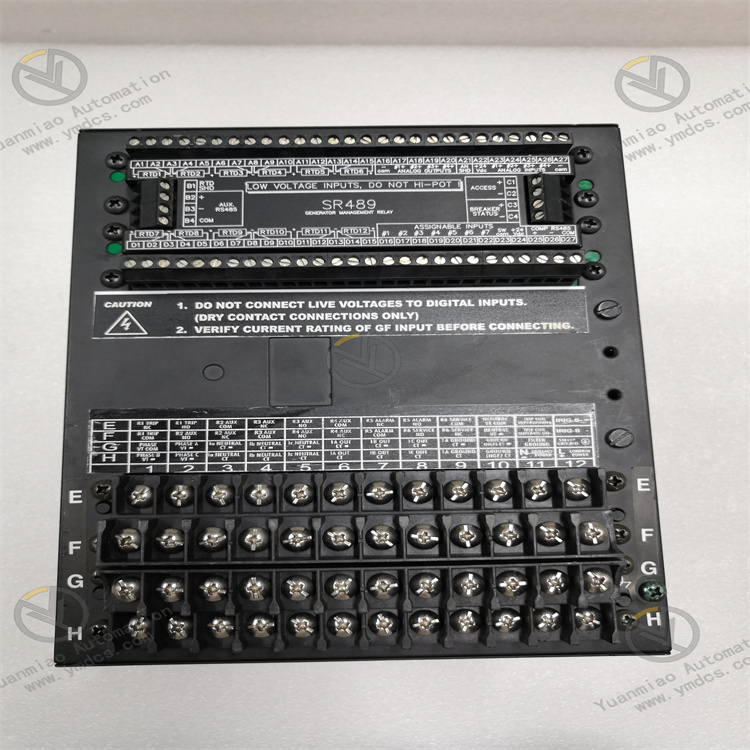

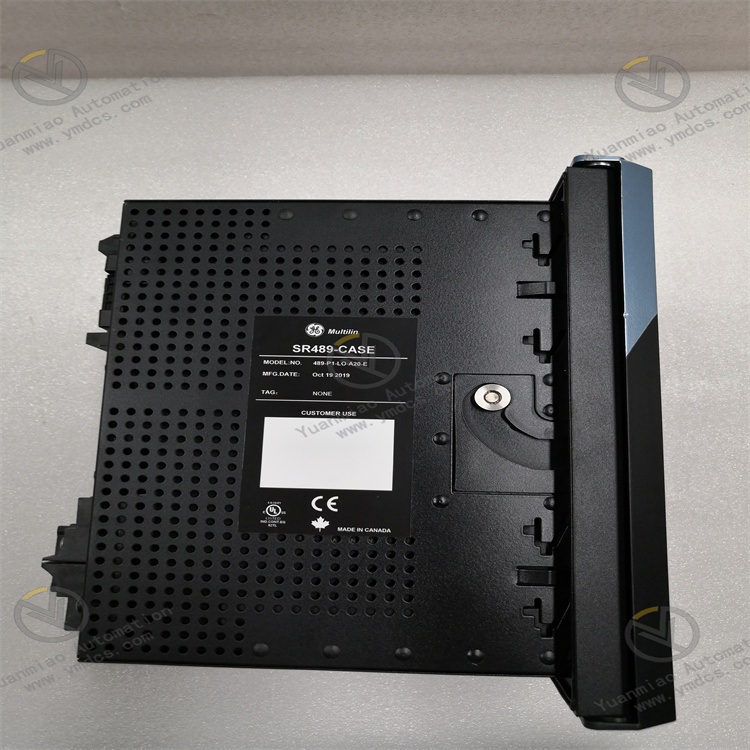

GE SR489-P1-LO-A20-E
The GE SR489-P1-LO-A20-E is a general-purpose relay output module, belonging to the GE 90-30/90-70 PLC control system architecture. As a core execution unit in industrial automation systems, it is widely used in scenarios such as manufacturing production line control, power distribution monitoring, building intelligent control, chemical equipment interlocking, and machine tool automation, relying on its multi-channel design, wide voltage adaptability, and high reliability. It undertakes key tasks including amplification and execution of digital control signals, equipment start-stop control, and fault interlock triggering. Its core advantages lie in the adoption of modular design and enhanced relay contact technology. While achieving 20-channel high-density output, it ensures the independent and reliable operation of each channel. It can seamlessly interface with GE 90-30/90-70 series PLC controllers and third-party compatible controllers, constructing an automated control link of "logical operation - signal output - equipment control". It provides stable and efficient execution-layer support for various industrial control scenarios and is a classic relay output module widely used in the field of industrial automation.
It is equipped with 20 independent relay output channels. Each channel adopts a Single-Pole Double-Throw (SPDT) contact form, with a rated contact capacity of AC 240V/5A and DC 30V/5A, supporting resistive, inductive, and lamp-loaded load types. The electrical life of the contacts is ≥1 million times (under rated load), and the mechanical life is ≥10 million times. The output response time is ≤10ms (from coil energization to contact action), and the release time is ≤5ms, enabling quick response to control commands. Each channel supports independent status indication, and the on-off status of the channel is displayed in real-time through the LED light on the front of the module.
The coil operating voltage is DC 24V (allowing ±10% fluctuation). The rated current of each coil is ≤80mA, and the total full-load current of the module is ≤1.6A. The isolation between channels is ≥1500V AC/1min, and the isolation between the coil and contacts is ≥1500V AC/1min, effectively avoiding interference between channels. It has a surge suppression function, and the surge current suppression capability when the contacts are closed reaches 10 times the rated current (lasting 10ms). The electromagnetic compatibility performance complies with the IEC 61000-4 series standards, with radiated interference resistance ≥80V/m and conducted interference resistance ≥2kV (1.2/50μs).
It adopts a standard PLC modular design, compatible with the standard racks of GE 90-30/90-70 series PLCs. The module dimensions (width × height × depth) are 44.5mm × 127mm × 190.5mm, complying with the IEC 61131-2 standard installation specifications. The shell is made of high-strength flame-retardant ABS engineering plastic, with a flame-retardant grade of UL 94 V-0. The protection level is IP20 (module body) and IP40 (terminal block area). The wiring method uses front-pluggable spring terminals, supporting AWG 22-14 specification wires. Wiring and disassembly can be completed without tools, improving installation and maintenance efficiency.
The operating temperature range is 0℃~60℃, and the storage temperature range is -40℃~85℃. The relative humidity is 5%~95% (no condensation), enabling adaptation to different humidity environments such as high-humidity workshops and power distribution rooms. The vibration resistance performance complies with the IEC 60068-2-6 standard (10~500Hz, acceleration 2g), and the impact resistance performance complies with the IEC 60068-2-27 standard (10g, 11ms half-sine wave), which can withstand regular vibration and instantaneous impact during equipment operation. The heat dissipation method is natural convection heat dissipation, which can meet the full-load operation requirements without additional fans.
It is compatible with GE 90-30 series CPUs (such as IC693CPU313/314) and 90-70 series CPUs (such as IC697CPU771/772). Data communication is realized through the system backplane bus, and the communication rate is synchronized with the CPU bus rate (up to 1Mbps). The Mean Time Between Failures (MTBF) is ≥200,000 hours, and it supports online hot-swapping function (needing to be matched with a GE dedicated rack). The module can be replaced without stopping the PLC, reducing downtime losses.
It adopts a compact circuit layout design, integrating 20 independent relay output channels within the size of a standard PLC module. Compared with the traditional 16-channel output module, it can increase the output point density by 25% in the same rack space, greatly reducing the space occupied by the PLC rack in the control cabinet. It is especially suitable for production line control scenarios with dense points. Each channel has independent wiring and isolation, avoiding signal crosstalk between channels and ensuring stability when multiple devices are controlled simultaneously.
The relay contacts are made of silver alloy material (AgNi alloy), processed through special contact plating and polishing technology. They have excellent conductivity and anti-erosion performance, capable of stably driving a 5A rated load, and at the same time supporting 10 times the surge current impact, adapting to the start-up impact requirements of inductive loads such as motors and solenoid valves. The Single-Pole Double-Throw (SPDT) contact form can be flexibly configured as normally open or normally closed output mode. It can adapt to different control logics (such as using normally open contacts for equipment start-stop control and normally closed contacts for fault alarm) by adjusting the wiring method, without the need to replace the module model.
It is compatible with the two mainstream GE 90-30/90-70 PLC series and can be directly connected to the system without additional adaptation modules. Channel configuration and logic programming can be completed through the GE Proficy Machine Edition software, reducing the difficulty of system integration. The 10ms fast response time can meet the real-time requirements of most industrial control scenarios, such as production line conveyor start-stop and valve switch control, ensuring the timely execution of control commands. It supports collaborative work with GE series input modules (such as SR469) to construct a complete "input - operation - output" control loop.
Each relay coil has a built-in freewheeling diode, which effectively suppresses the reverse electromotive force generated when the inductive load is powered off, protecting the internal circuit of the module and the PLC controller. The enhanced isolation design between channels and the surge suppression function can resist electromagnetic interference and voltage fluctuations in the industrial field, and still operate stably in strong interference environments such as frequency converters and high-power motors. The flame-retardant shell and overload protection design can effectively reduce safety risks caused by faults such as short circuits and overloads, complying with industrial safety standards.
The front-pluggable spring terminals and clear channel number marks make wiring and fault troubleshooting clear at a glance. When a single channel fails, it can be quickly located and handled. Each channel on the front of the module is equipped with an independent LED status light; green indicates that the contact is closed, and off indicates that it is open. The operating status of the channel can be judged intuitively without the need for a multimeter. It supports the online hot-swapping function (needing rack support), and the module can be replaced without stopping the machine, greatly shortening the fault handling time and reducing production line downtime losses.
The module establishes communication with the GE PLC controller through the back bus interface and receives digital control signals (high level/low level) sent by the controller. The bus interface adopts an optoelectronic isolation design, realizing electrical isolation between the control signal of the PLC controller and the internal circuit of the module, and avoiding external interference affecting the operation of the controller through the bus. The module has a built-in signal buffer circuit, which can stably receive the weak current control signal output by the controller, ensuring the reliability of signal transmission.
When the received control signal is an effective level (default DC 24V high level), the drive circuit inside the module supplies power to the relay coil of the corresponding channel. After the coil is energized, it generates electromagnetic attraction, which attracts the armature to drive the contact action, switching the SPDT contact from the normally closed end to the normally open end, and realizing the connection of the load circuit. When the control signal is an invalid level, the coil is de-energized, the electromagnetic attraction disappears, the armature returns to its original position under the action of the reset spring, the contact returns to the normally closed state, and the load circuit is disconnected. The drive circuit of each channel is designed independently, and a single-channel fault does not affect the normal operation of other channels.
While the relay contact acts, the status detection circuit inside the module collects the contact position signal in real-time and feeds it back to the PLC controller through the bus interface, realizing closed-loop monitoring of the output status. The LED indicator on the front of the module is synchronized with the contact status of the corresponding channel; the LED light is on when the contact is closed, and off when the contact is open, providing intuitive status indication for on-site operation and maintenance personnel. Some models support fault diagnosis signal feedback. When faults such as coil short circuit and overload are detected, fault codes can be uploaded to the controller, facilitating remote monitoring and fault troubleshooting.
For inductive loads (such as motors and solenoid valves), each relay coil is connected in parallel with a freewheeling diode. When the load is powered off, the freewheeling diode provides a discharge loop for the reverse electromotive force, preventing the reverse voltage from breaking down the components of the drive circuit. The module has a built-in main power overload protection fuse. When the total current of the module exceeds the rated value (1.6A), the fuse blows, cutting off the power input and protecting the internal circuit of the module from damage. The isolation circuit between channels can effectively prevent the overcurrent generated by the short circuit of one load from affecting other channels, realizing fault isolation.
- The PLC controller does not send an effective control signal.
- Poor contact between the module and the controller bus.
- The relay coil is burned out.
- Failure of the drive circuit.
- Loose wiring or load short circuit leading to contact protection action.
- Monitor the output signal status of the corresponding channel through the PLC programming software to confirm whether the controller normally sends control commands. If not, troubleshoot the control logic.
- Power off, reinsert the module to ensure good contact between the module and the rack bus. If the bus interface is oxidized, wipe it with alcohol.
- Measure the relay coil resistance with a multimeter (normal range: 100~300Ω). If the resistance is infinite, the coil is burned out, and the module or relay needs to be replaced.
- Check the wiring of the load circuit to ensure firm wiring. Measure the load resistance with a multimeter. If there is a short circuit, troubleshoot the load fault and try again.
- If the above measures are ineffective, the drive circuit may be faulty, and the module needs to be returned to the factory for repair or replaced.
- The load current exceeds the rated capacity of the contacts, causing contact ablation and sticking.
- Frequent start-stop leading to mechanical wear of the contacts.
- No surge suppression device added to the inductive load, causing contact arc ablation.
- Check the actual working current of the load to ensure it does not exceed the 5A rated capacity. If overloaded, add an intermediate relay to expand the load capacity.
- Replace the relay corresponding to the stuck channel (needing operation by professionals). If multiple channels of the module stick frequently, evaluate whether the usage frequency exceeds the mechanical life range, and replace the module if necessary.
- For inductive loads such as motors and solenoid valves, connect a surge suppressor (such as a varistor) in parallel at both ends of the load to reduce contact arcs.
- Optimize the control logic, reduce unnecessary frequent start-stop operations, and extend the service life of the contacts.
- The LED indicator is burned out.
- Failure of the status detection circuit.
- Abnormal PLC control signal.
- Insufficient module power supply voltage.
- If the contact acts normally but only the indicator light does not turn on, it can be determined that the LED light is burned out, which does not affect the functional use. If replacement is needed, contact after-sales service.
- If the indicator light remains on but the contact does not act, check whether the PLC control signal is continuously at a high level. If the signal is normal, the status detection circuit is faulty, and the module needs to be returned to the factory for repair.
- Measure the module power supply voltage with a multimeter to ensure it is DC 24V±10%. If the voltage is insufficient, troubleshoot the power supply circuit or replace the power supply.
- Re-download the PLC control program to eliminate signal abnormalities caused by program logic errors.
- The module is not correctly installed on the rack.
- Damage to the bus interface.
- Failure of the PLC controller.
- Incorrect module address setting (for some models).
- Failure of the power supply.
- Power off, reinstall the module on the rack to ensure the module is fully inserted and locked, and check whether the rack bus is damaged.
- Replace the same-type spare module into the same slot. If the spare module works normally, the bus interface of the original module is damaged, and the original module needs to be returned to the factory for repair.
- Check the operation status of the PLC controller, restart the controller and try again. If all modules cannot communicate, the controller is faulty.
- For models requiring address setting, check whether the module address DIP switch is consistent with the system configuration.
- Measure the module power supply voltage and grounding condition to ensure stable power supply and good grounding (grounding resistance ≤4Ω).
![]()
