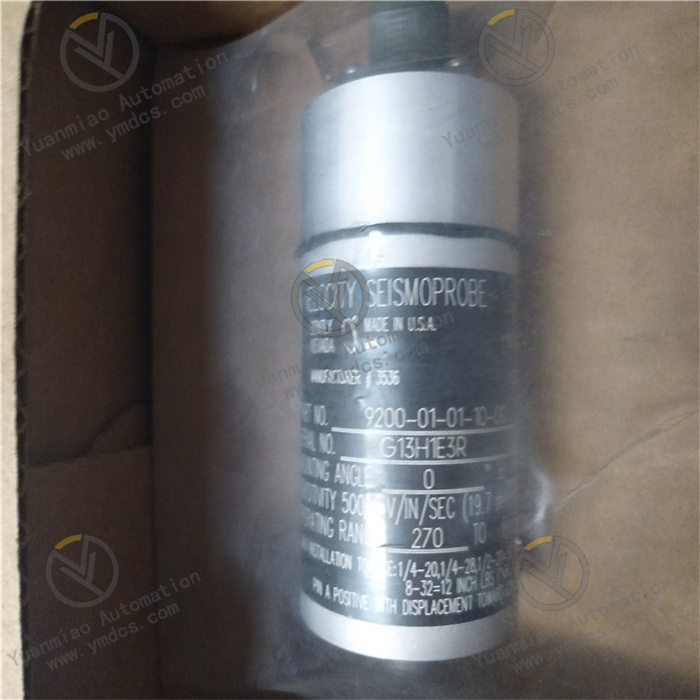

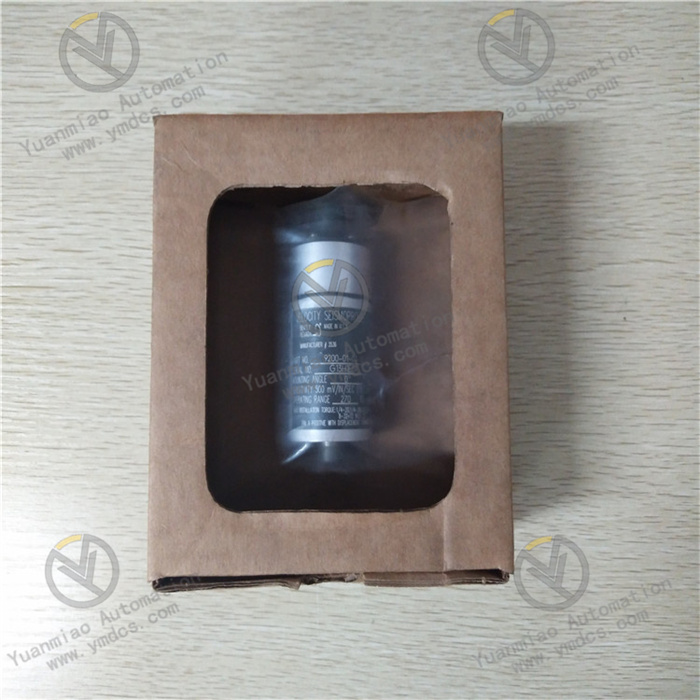

Bently Nevada 9200-01-01-10-00 | Two-Wire Velocity Seismoprobe Transducer

Description

The Bently Nevada 9200 - 01 - 01 - 10 - 00 is a two-wire velocity seismic probe sensor, mainly used to measure the vibration velocity of mechanical components such as bearing housings and machine casings. Functional Features Moving Coil Technology: Adopting an advanced moving coil mechanism, it can reduce the influence of external impacts and pulse excitations, and provide stable and reliable vibration readings even in harsh environments. Two-wire Design without Power Supply: The two-wire system does not require an additional power supply, making the sensor more versatile in various monitoring scenarios, applicable to both permanent installations and portable applications. High-temperature Operation: The operating temperature range can reach from -29°C to +121°C (-20°F to +250°F), suitable for high-temperature application scenarios, and can provide reliable vibration monitoring even under extreme conditions. Electrically Isolated Mounting Base: The circular mounting base is designed with electrical isolation, which can minimize external power interference and improve the accuracy of data collection. Durable Aluminum Structure: The anodized aluminum shell can protect the sensor from harsh environments and ensure long-term stable performance.

Technical Parameters Electrical Specifications: The sensitivity is 20 mV/mm/s (500 mV/in/s) ±5%; the frequency response is from 4.5 to 1000 Hz (270 to 60,000 cpm), with a typical value of + 0, -3 dB; the dynamic working range is 2.54 mm (0.100 in) peak-to-peak maximum displacement; the coil resistance is 1.25 kΩ±5%; the locked coil inductance is 125 mH (typical value); at 100 Hz (6000 cpm), the amplitude linearity within the range of 0.254 to 127 mm/s (0.01 to 5.0 in/s) is ±5%. Environmental Specifications: The operating and storage temperature is from -29°C to +121°C (-20°F to +250°F); it is dustproof and moisture-proof, and is suitable for non-immersion use when equipped with an integral cable; the relative humidity can reach up to 95%, non-condensing. Mechanical Specifications: The shell material is anodized aluminum; the mounting base is an isolated circular mounting base with a 1/4 - 20 UNC stud; the connector material is cadmium-plated aluminum with a neoprene seal and silver-plated copper contacts; the recommended installation torque is 5.6 N·m (50 in·lb); the height is 102 mm (4 in), and the diameter is 41 mm (1.6 in); the weight is approximately 300 grams (10.5 ounces). Certifications: It complies with Part 15 of the FCC Rules, the EMC Directive 2014/30/EU, and the RoHS Directive 2011/65/EU, and has been certified for use in hazardous areas according to the CSA, ATEX, and IECEx standards, including Class I, Division 1 (Groups A, B, C, and D).

Application Scenarios Power Industry: It can be used to monitor the vibration of equipment such as generators and steam turbines. By monitoring the vibration velocity of these key equipment in real time, potential faults of the equipment, such as bearing wear and rotor unbalance, can be detected in a timely manner to ensure the safe and stable operation of power production equipment. Chemical Industry: In chemical production, various rotating equipment such as pumps and compressors are key components. This sensor can be used to monitor the vibration of these equipment, helping operators to grasp the operating status of the equipment in a timely manner, preventing problems such as leakage and shutdown due to abnormal vibration of the equipment, and ensuring the continuity and safety of the chemical production process. Steel Industry: For equipment such as large motors, fans, and rolling mills in steel production, the Bently Nevada 9200 - 01 - 01 - 10 - 00 can monitor their vibration velocity, providing a basis for equipment maintenance and fault diagnosis, helping to improve the service life of the equipment and production efficiency, and reducing production interruptions and losses caused by equipment failures.
