Description

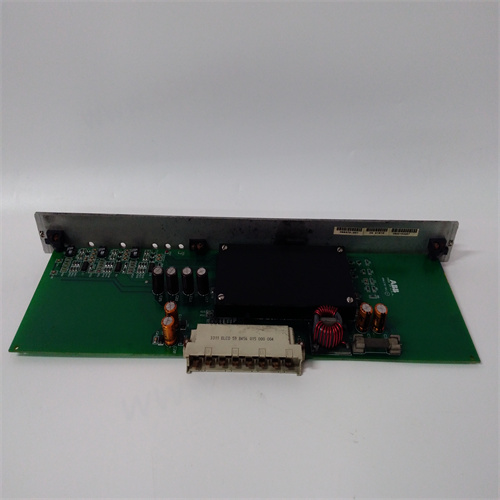

ABB 086370-001
ABB 086370-001 is a high-performance industrial-grade analog expansion module, serving as a core extension component for signal acquisition, conversion and control output in industrial automation control systems. This module integrates high-precision analog signal processing, flexible configuration and multi-system compatibility capabilities, adopts a modular reinforced design, and features excellent shock resistance, vibration resistance and wide environmental adaptability. It can accurately connect with various sensors and actuators to realize real-time monitoring and control of process parameters such as temperature, pressure and flow. Widely used in petrochemicals, electric power metallurgy, intelligent manufacturing and other fields, it provides reliable support for expanding the I/O capacity of control systems and improving monitoring accuracy.
1. Product Attributes
As a multi-functional integrated expansion module, it is differentiated from basic I/O modules, focusing on the requirements of high-precision signal processing and system expansion in industrial scenarios, while balancing reliability and operation & maintenance convenience. The specific basic information is as follows:
- Product Model: 086370-001
- Product Type: Industrial-grade analog expansion module; integrates analog signal acquisition, digital-to-analog conversion, control output and data communication functions; modular design supports flexible system expansion
- Core Purpose: Achieve accurate acquisition and digital conversion of analog signals (temperature, pressure, flow, etc.) in industrial sites; receive instructions from the main control system and output control signals to actuators, valves, relays and other equipment; expand the I/O channel capacity of the main control system, improve the system's ability of synchronous monitoring and control of multiple parameters, and adapt to medium and high-precision control scenarios
2. Technical Specifications
2.1 Electrical and Communication Performance Parameters
The electrical design of the module balances signal processing accuracy and industrial power grid adaptability, with core indicators meeting the requirements of harsh working conditions, as detailed below:
- Power Supply Specifications: Compatible with a wide voltage input range of 110V-380V and AC power supply mode, meeting the power grid standards of different industrial scenarios; it has high power supply stability and can resist the impact of slight power grid fluctuations
- Signal Processing Capability: Equipped with high-precision signal acquisition and conversion functions, with a resolution of 12-16 bits (adjustable according to configuration); it can adapt to various analog signal types, supports single-ended/differential input modes, has high acquisition accuracy and strong anti-interference ability, and can accurately capture weak signal fluctuations on site
- Channel Configuration: Provides multi-channel parallel processing capability, can expand analog input/output channels (the specific number depends on system configuration); supports custom channel parameters, and can flexibly set input range, sampling rate and other indicators according to sensor types to meet the needs of diverse scenarios
- Communication Interfaces: Supports mainstream industrial communication protocols including Modbus and Ethernet/IP; it can seamlessly connect with main control systems and third-party intelligent devices to realize real-time data interaction and remote parameter configuration without additional protocol conversion modules
2.2 Physical and Protection Specifications
Adopting an industrial-grade reinforced package design, it balances compact structure and durability, and is suitable for standard installation layouts in control cabinets. The specific parameters are as follows:
- Material and Structure: The shell is made of high-quality industrial-grade materials, with good shock resistance and vibration resistance, corrosion resistance and wear resistance; it can resist dust and slight corrosive gas erosion in industrial sites and extend service life
- Protection Rating: IP20 or higher protection rating, suitable for installation inside control cabinets, with basic dustproof capability, which can effectively avoid circuit failures caused by dust accumulation in control cabinets
- Installation Method: Supports standard rack mounting and modular plug-in design, with convenient installation and disassembly; no complex wiring is required, and it can be quickly connected to the main control system, greatly shortening the installation, commissioning and maintenance time
2.3 Environmental Adaptability
Compliant with the stringent environmental adaptation standards for industrial-grade expansion modules, it can cope with temperature and humidity fluctuations, vibration and electromagnetic interference. The core indicators are as follows:
- Temperature Range: Operating temperature ranges from -25℃ to +70℃, suitable for high and low temperature industrial sites and control room environments; storage temperature ranges from -40℃ to +70℃, facilitating long-term spare parts storage without performance degradation
- Humidity and Anti-interference: Relative humidity 5%–95% (non-condensing), avoiding circuit short circuits caused by humid environments; it has excellent Electromagnetic Interference (EMI) suppression capability, passed relevant EMC certifications, can resist strong electromagnetic radiation in industrial sites and ensure the stability of signal acquisition and transmission
- Other Features: Excellent shock resistance and vibration resistance, can adapt to the vibration impact generated by the operation of on-site equipment in industrial environments and ensure long-term stable operation
3. Compatible Systems and Hardware Combinations
The module has strong compatibility, can be seamlessly integrated into mainstream ABB control systems, and supports connection with third-party equipment to flexibly expand system functions. The specific compatible combinations are as follows:
- Compatible Control Systems: Core compatibility with ABB Control System Products series control systems, can be seamlessly connected with ABB AC800M and other series PLCs, and is also compatible with third-party industrial automation control systems, featuring strong adaptability
- Supporting Equipment and Components: Can connect with various industrial sensors (temperature, pressure, flow sensors, etc.), actuators, valves, relays and other equipment; supports linkage with industrial Ethernet switches and HMI human-machine interfaces to realize data visualization and on-site operation control
- Expansion Components: Can be matched with analog/digital expansion modules, safety protection modules and redundant power modules to further expand I/O capacity and functional boundaries, adapting to more complex industrial control scenarios
4. Product Features
4.1 High-precision Integration for Medium and High-end Control Requirements
Integrating high-precision signal acquisition, conversion and output in one, the 12-16 bit high-resolution design can meet the precise monitoring requirements of key parameters such as temperature and pressure, avoiding control deviations caused by signal distortion. It supports custom configuration of channel parameters, can flexibly adapt to different types of sensors, and can cope with diverse scenarios without replacing modules, featuring strong versatility.
4.2 Robust and Durable for Complex Industrial Working Conditions
Adopting an industrial-grade reinforced material and a structure design with shock resistance and vibration resistance, combined with wide temperature range and high anti-interference ability, it can operate stably in harsh industrial environments with dust and large temperature differences. The modular package design not only improves equipment durability, but also reduces the impact of on-site environment on equipment performance and lowers the failure rate.
4.3 Flexible Compatibility for Efficient Operation and Maintenance
Supporting multi-protocol communication and multi-system compatibility, it can be quickly integrated into existing automation architectures without large-scale modification of the original system, reducing integration costs. The modular plug-in design and remote parameter configuration function facilitate on-site maintenance and fault troubleshooting, greatly shortening downtime; clear status indicator lights can quickly locate faults and improve operation and maintenance efficiency.
5. Application Scenarios and Safe Operation Precautions
5.1 Application Scenarios
With its high precision and high reliability, it is widely used in various industrial fields: In the petroleum, natural gas and chemical industries, it is used for monitoring and controlling temperature, pressure, flow and other parameters of equipment such as reactors and distillation towers to ensure stable process flow; In the electric power and metallurgy industries, it is adapted to parameter regulation in power production, transmission and metallurgical processes to improve production efficiency; In intelligent manufacturing and automated production lines, it is used for synchronous monitoring of multi-station parameters to realize precise control of the production process; it is also suitable for parameter monitoring needs in scenarios such as building automation and energy management.
5.2 Safe Operation and Maintenance Specifications
- Installation, wiring and maintenance work must be performed by professionally trained qualified personnel. Before operation, completely disconnect all power supplies, implement the Lockout-Tagout (LOTO) procedure, and confirm no voltage before operation to avoid electric shock hazards; check terminal definitions during wiring to ensure correct connection between signal circuits and power supply circuits and prevent module burnout due to short circuits.
- Strictly comply with product technical specifications and typical application requirements. The installation environment must meet the requirements of temperature, humidity, dustproof and vibration resistance; avoid exposure to strong corrosive gas, severe vibration and high-temperature heat source environments to extend equipment service life.
- Unauthorized modification or structural changes to the module are strictly prohibited, otherwise it may lead to performance degradation, equipment failure and even safety accidents; parameter configuration must be operated through officially certified software, and settings must be made in strict accordance with control requirements to avoid system misoperation caused by configuration errors.
- Regularly check the connection status of module interfaces, cable integrity and equipment operation status, and promptly handle any looseness, damage or abnormality; if the module is put into use after long-term idle, first test the power supply and communication functions, and put it into official operation only after confirming that there are no faults.
