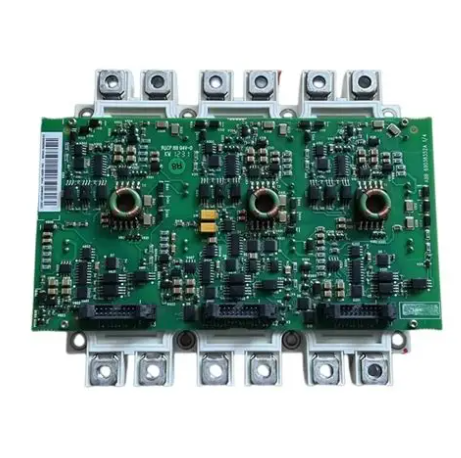

ABB 6MBI225U-120/AGDR-71C

I. Basic Information

Product Type: Integrated kit consisting of an IGBT power module and a dedicated gate drive board (not a single device). The 6MBI225U‑120 is a 6‑unit IGBT power module, and the AGDR‑71C is its dedicated gate drive board (AGDR is the ABB gate drive board series code, 71C is the version/config code, corresponding to the unique complete material number 68561906). Together they form the power drive core of medium‑ and low‑power drive systems, suitable for low‑voltage industrial applications.
Core Functions: The complete assembly performs three core functions: high‑voltage high‑current switching and power conversion, precision drive control, and fault protection. The 6MBI225U‑120 performs power conversion, realizing bidirectional AC‑DC conversion, variable frequency speed regulation, etc., suitable for medium‑ and low‑power equipment. The AGDR‑71C converts optical/electrical control signals from the controller into precise gate drive pulses, providing the gate voltage and current required to turn the 6MBI225U‑120 on and off. It also features built‑in multi‑level protection, microsecond‑level drive blocking and alarm feedback upon faults, and supports status monitoring data upload to ensure stable operation of the entire assembly.
Application Positioning: Suitable for low‑voltage high‑power drive systems (low‑voltage supply). Mainly used in industrial inverters (especially ABB ACS800 series), small‑ and medium‑sized wind power converters, photovoltaic inverters, UPS, SVG/STATCOM power quality equipment, induction heating power supplies, etc. Typical industries include metallurgy, electric power, rail transit, papermaking, cement, and petrochemical. Suitable for variable frequency speed regulation and power conversion in small‑ and medium‑sized fans, pumps, compressors, rolling mills, and other equipment, especially for continuous operation in the 15kW~30kW power range with high requirements for reliability and efficiency. It is a cost‑effective solution for medium‑ and low‑power applications.
Product Features: Original factory matching with precisely calibrated parameters, plug‑and‑play without manual drive parameter tuning; modular design with standardized dimensions for easy installation, replacement and system integration, compatible with standard mounting positions of ABB ACS800 inverters; dual anti‑interference design (optical isolation + electrical isolation) with excellent EMC performance for harsh industrial electromagnetic environments; industrial‑grade wide‑temperature operation with good protection; comprehensive fault protection and condition monitoring for convenient maintenance; reliable imported quality with one‑year warranty and stable supply chain, usable as a dedicated spare part for ABB ACS800 inverters.

II. Component Parameters (6MBI225U‑120 + AGDR‑71C)

(1) 6MBI225U‑120 IGBT Power Module Parameters

Rated Voltage: 1200 V DC (or AC peak voltage), with stable high‑voltage blocking capability, suitable for low‑voltage power conversion. It can be directly connected to the corresponding voltage‑level grid without additional step‑down devices, simplifying system design and meeting the requirements of low‑voltage industrial drives.
Rated On‑state Current (I_TAVM): 225 A (continuous on‑current), surge current up to 1040 A. Stably supports the current demand of medium‑ and low‑power equipment, adapts to 3‑phase 50/60 Hz mains, enables long‑term continuous operation, and satisfies equipment in the 15kW~30kW power range. It is a cost‑effective choice for medium‑ and low‑power applications.
Switching Frequency: Rated for PWM switching frequency 0–10 kHz, typical operating range 2–6 kHz. Moderate switching speed and low switching loss; optimized chip design effectively reduces operating energy consumption, suitable for variable‑load and continuous operation of medium‑ and low‑power systems.
On‑state Characteristics: Low on‑state voltage drop (typical ≤2.05 V), high current conduction efficiency, further reducing operating losses. When paired with the AGDR‑71C drive board, the system conversion efficiency exceeds 97%, optimizing energy performance and meeting the energy‑saving needs of medium‑ and low‑power equipment.
Package: U4 standard industrial module package (6‑unit structure), high integration, compact size, with built‑in IGBT chip and freewheeling diode. Excellent insulation allows direct and precise connection to the AGDR‑71C drive board, simplifying layout and providing excellent heat dissipation, ideal for space‑limited installations.
Protection Features: Basic built‑in overcurrent and overtemperature protection, which cooperates with the multi‑level protection of the AGDR‑71C drive board to achieve comprehensive fault protection, preventing module damage under abnormal conditions and ensuring stable operation of medium‑ and low‑power systems.

(2) AGDR‑71C Gate Drive Board Parameters

Drive Voltage: Standard dual power supply: +15 V / ‑10 V. Peak gate drive current is precisely matched to the 6MBI225U‑120 (1200 V / 225 A). Low power consumption for long‑term continuous operation, with undervoltage / overvoltage detection and protection, suitable for medium‑ and low‑power drive requirements.
Matching Characteristics: Factory‑preconfigured parameters, specifically designed for 1200 V / 225 A class IGBT modules such as the 6MBI225U‑120 (also compatible with models such as 6MBI450U‑120 in the same series). Gate resistance is factory‑fixed to avoid IGBT damage from over‑drive or insufficient turn‑off, enabling cooperation without additional commissioning and meeting the standard configuration requirements of ABB ACS800 inverters.
Switching Frequency Compatibility: Fully matched with the 6MBI225U‑120, rated for PWM 0–10 kHz, supporting high‑frequency short pulses and heavy‑load low‑frequency operation with optimized switching loss to meet the medium‑ and low‑power, variable‑load operation requirements of the assembly.
Protection Response: Built‑in overcurrent, short‑circuit, overtemperature, undervoltage, and desaturation protection. Short‑circuit response time < 2 μs, desaturation protection < 3 μs. Rapid drive blocking and fault alarm upon abnormality, providing dual protection with the 6MBI225U‑120 to prevent burnout and ensure safe operation of medium‑ and low‑power systems.
Isolation Performance: Electrical isolation voltage between control and power sides ≥ 2500 V AC. Control signals transmitted via fiber‑optic isolation for extremely high EMI immunity; fiber transmission distance up to 10 m, suitable for noisy industrial sites. Insulation resistance > 100 MΩ for safe operation, meeting the safety requirements of low‑voltage industrial drives.
Operating Power Supply: Auxiliary supply typically 24 V DC (some versions support 12 V DC), power consumption approx. 8–18 W (load‑dependent). Stable power supply avoids drive abnormalities caused by voltage fluctuations, adapting to the power supply requirements of medium‑ and low‑power systems.

III. Structure & Mechanical Characteristics

Package & Dimensions:

6MBI225U‑120: U4 standard IGBT module package, typical dimensions approx. 160 mm × 130 mm × 15 mm, net weight approx. 0.7 kg, suitable for standard heatsink mounting. Compact structure ideal for space‑limited installations; some specifications refer to 80 mm × 168 mm × 23 mm for different mounting needs.
AGDR‑71C: Standard PCB drive board kit, package dimensions approx. 23 mm × 100 mm × 120 mm. Actual board size matches the 6MBI225U‑120 module and ABB ACS800 inverter cabinet, net weight approx. 0.18 kg. Board‑mount design, directly connects to gate/emitter interfaces of the 6MBI225U‑120 module, compatible with standard inverter cabinet mounting holes.

Housing & Material:

6MBI225U‑120: High‑strength, high‑temperature resistant, corrosion‑resistant industrial‑grade metal housing with good insulation and thermal performance, protecting against dust and moisture in industrial environments and extending service life, adapting to the heat dissipation requirements of the U4 package.
AGDR‑71C: PCB made of high‑strength FR‑4 material with anti‑corrosion surface coating. Key components (driver ICs, optocouplers/digital isolators, transformers) use industrial‑grade packaging with high temperature and humidity resistance. Metal mounting bracket with reliable grounding ensures stable operation, adapting to low‑voltage industrial site environments.

Installation Method: Both support standard industrial installation. The 6MBI225U‑120 is screw‑mounted onto a heatsink; the AGDR‑71C is PCB‑mounted or installed in an integrated position with the 6MBI225U‑120, with optional 35 mm DIN rail mounting. Wiring uses dedicated connectors to prevent miswiring. AGDR‑71C fiber interfaces are standard ST/SC type for easy plugging and rapid assembly, complying with the installation specifications of ABB ACS800 inverters.
Environmental Adaptability:

Operating temperature: -40°C ～ +85°C (recommended long‑term range +5°C ～ +70°C). Industrial wide‑temperature design for stable performance in extreme environments.
Storage temperature: -40°C ～ +85°C, humidity 5%–95% RH (non‑condensing).
Protection degree: 6MBI225U‑120 IP20 or higher; AGDR‑71C IP20 (board level). Both must be installed in enclosed cabinets with dustproof, moisture‑proof, and ventilated conditions to meet low‑voltage industrial environment requirements.
Vibration / shock resistance: Complies with IEC 60068 industrial standards, suitable for mild industrial vibration and ensuring long‑term stable operation of medium‑ and low‑power equipment.

IV. Functions & Advantages

1. Factory‑Matched, Highly Cooperative, Low Loss

The 6MBI225U‑120 and AGDR‑71C are an original ABB matched design with precisely optimized gate voltage and current waveforms, significantly reducing IGBT switching losses. Combined with the low on‑state voltage drop of the 6MBI225U‑120, overall system conversion efficiency exceeds 97%, greatly reducing cooling and energy costs for long‑term continuous operation of medium‑ and low‑power loads. Supports soft‑switching strategies to reduce EMI and meet industrial EMC requirements, especially suitable for energy‑saving applications in the 15kW~30kW power range.

2. Multi‑Level Protection, Fast Response, High Reliability

The AGDR‑71C provides overcurrent, short‑circuit, overtemperature, undervoltage, and desaturation protection with microsecond‑level response and turn‑off. Combined with the built‑in protection of the 6MBI225U‑120, it forms a full‑coverage safety system that effectively prevents IGBT module damage from abnormal conditions such as voltage fluctuations, overcurrent, and overheating. Dual isolation (optical + electrical) blocks high‑voltage spikes and electromagnetic interference. Industrial‑grade components deliver high MTBF (Mean Time Between Failures) and reduce downtime, meeting the high‑reliability, low‑maintenance needs of medium‑ and low‑power industrial systems.

3. Plug‑and‑Play, Easy Integration, Strong Compatibility

Modular, standardized construction allows direct connection between the 6MBI225U‑120 and AGDR‑71C without program changes or manual parameter tuning, enabling true plug‑and‑play and drastically reducing installation and commissioning time. The assembly is specially compatible with ABB ACS800 series industrial inverters, supports communication with ABB DCS and third‑party PLC/DCS systems, and integrates seamlessly into existing automation infrastructure for various low‑voltage medium‑ and low‑power conversion scenarios. It is highly compatible and can be directly used as a dedicated spare part for ABB ACS800 inverters.

4. Easy Maintenance, Controllable Cost, Stable Supply

Modular structure allows individual removal and replacement of the 6MBI225U‑120 and AGDR‑71C with short replacement time. The AGDR‑71C is equipped with diagnostic LEDs for fast fault localization. Combined with condition monitoring, it facilitates predictive maintenance. The assembly is a fully imported original product with guaranteed quality, one‑year warranty, in‑stock availability in selected channels, easy spare parts procurement, and a stable supply chain. As a dedicated spare part for ABB ACS800 inverters, it effectively reduces long‑term maintenance costs and downtime losses, while offering high cost‑performance suitable for mass deployment in medium‑ and low‑power scenarios.

V. Application Scenarios

Industrial Drives: As the core power drive component and dedicated spare part for ABB ACS800 series inverters, used for variable frequency speed regulation of small‑ and medium‑sized rolling mills, fans, pumps, compressors, and other equipment, achieving smooth start and precise speed control in the 15kW~30kW power range, improving productivity and equipment stability. A cost‑effective choice for medium‑ and low‑power industrial drives.
Renewable Energy Generation: Used in grid‑side and machine‑side power drives of small‑ and medium‑sized wind converters and inverter bridge drives of distributed photovoltaic inverters. Achieves efficient conversion and grid‑connection control of renewable energy, increasing utilization rate and grid stability, suitable for medium‑ and low‑power renewable energy generation.
Power Quality Management: Drives power modules in small‑ and medium‑sized SVG (Static Var Generator), STATCOM, and APF (Active Power Filter) systems, dynamically compensating grid reactive power and harmonics, stabilizing grid voltage and ensuring power quality, suitable for medium‑ and low‑power applications in metallurgy, chemical, and other industries.
