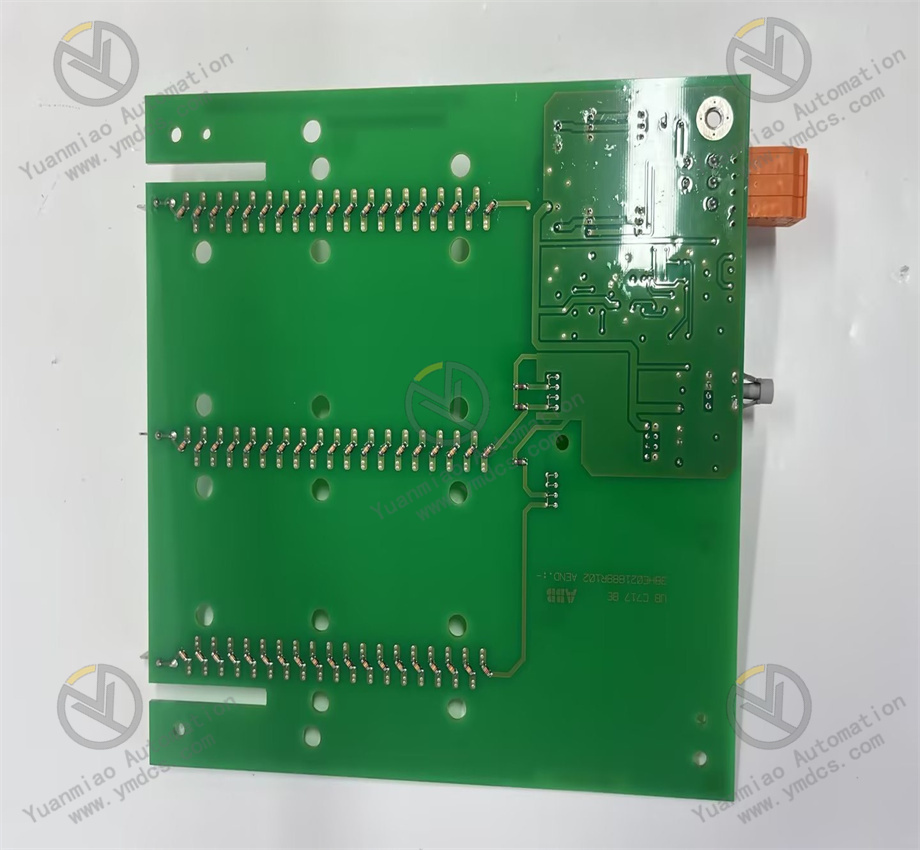

ABB UBC717BE101 3BHE021887R0101

1. Product Description

Model: UBC717BE101
Version: Standard Edition
Global Part Number: 3BHE021887R0101
Product Series: ABB AC 800M Industrial Control Module Series (core module for System 800xA DCS)
Product Category: Industrial high-performance control module (intelligent core node with logic operation and communication co-processing functions)
Country of Origin: Sweden

Core Functions

The UBC717BE101 (global part number 3BHE021887R0101) is a core control module designed by ABB specifically for the System 800xA DCS and AC 800M distributed control systems. As the system’s “intelligent core node”, it integrates three key capabilities: high-speed logic operation, PID loop control, and communication protocol processing. Unlike standard I/O modules, it provides powerful local computing capacity to execute complex control strategies while offloading communication tasks from the main CPU, ensuring real-time and deterministic performance of control loops.

It uses an industrial high-performance processor with reinforced 2500V AC galvanic isolation, supports expansion of various digital and analog I/O interfaces, and features configurable filtering (0.1–20ms). With fast operation response, it accurately executes complex control algorithms and sequential control logic. It integrates multiple communication interfaces supporting Modbus RTU, BACnet MS/TP, LonWorks, KNX, M-Bus and other protocols, enabling close cooperation with I/O and communication modules via the AC 800M high-speed backplane, and seamless connection with 800xA servers and operator stations for rapid deployment without additional drivers.

It is equipped with a front-mounted LED diagnostic array and self-diagnostic system for real-time monitoring of module status, communication links, power supply health and operation anomalies. It supports three-level user rights management (Administrator / Operator / Read-only) and complete operation, fault and operation logs for traceability and troubleshooting. Dual redundant 24VDC power input (±10%), enhanced EMI filtering and grounding design enable resistance to strong on-site electromagnetic interference and adaptation to harsh industrial environments, ensuring continuous and stable execution of complex control tasks as a core component of the “centralized management, decentralized control” concept.

Application Scenarios

It is widely used in process industries with extremely high requirements for control accuracy and system reliability, including power generation (power plants, substations, transmission and distribution systems), oil and gas (pipeline transportation, oil refining, natural gas processing), petrochemicals, metallurgy, papermaking, pharmaceuticals and food processing, especially for large and complex industrial scenarios equipped with ABB System 800xA DCS and AC 800M control systems.

Typical applications include logic control of auxiliary systems in power plants, PID regulation of process loops in refineries, chemical reaction process control, sequential control of metallurgical production lines, full-process regulation of papermaking, and centralized control of substation auxiliary equipment. It can be seamlessly integrated with ABB SCADA/HMI, DCS systems, historians, and HART/FF fieldbus smart instruments. Installed in local control station racks, it cooperates with other modules via the high-speed backplane to achieve integrated field signal acquisition, complex logic operation, control command output, process parameter monitoring and rapid fault alarm.

It meets high-reliability requirements for 24/7 continuous operation with excellent MTBF performance and availability above 99.99%. It is especially suitable for centralized control and unattended operation of critical process sections, serving as a core component for building efficient and stable automation systems.

2. Specifications

Parameter Category	Details
Software Specifications	Supported protocols: Modbus RTU, BACnet MS/TP, LonWorks, KNX, M-Bus, ABB AC 800M proprietary protocol; Communication functions: supports expansion of various digital/analog I/O interfaces, communicates with I/O modules via high-speed backplane, fast operation response, supports PID loop regulation, complex logic operation, sequential control, configurable filtering 0.1–20ms, communication protocol co-processing; Access control: three-level permissions (Administrator / Operator / Read-only); Logging: supports export of communication, fault, operation and operation anomaly records; Compatibility: seamless adaptation to AC 800M controllers and System 800xA DCS, compatible with Windows Server 2012 R2 or later, supports ABB Control Builder M programming tools; Diagnostics: alarms for module operation anomalies, power faults, communication interruptions and operation errors, fault location via LED indicators with clear error codes.
Hardware Requirements	Compatible control station: CPU ≥ Intel Core i3, RAM ≥ 4GB (8GB recommended), storage ≥ 80GB SSD; Interfaces: 1 Gigabit Ethernet port, RS485 (Modbus RTU), high-speed backplane communication interface, digital/analog I/O expansion support, 2500V AC galvanic isolation, USB local configuration port; Installation: DIN rail or rack mounting, compatible with AC 800M controller racks, fits standard industrial control cabinets, weight approx. 0.35kg, compatible with standard 19-inch cabinets.
Environmental Adaptability	Operating temperature: -25℃ ～ +60℃ (wide-temperature design for harsh industrial environments); Storage temperature: -40℃ ～ +85℃; Relative humidity: 5% ～ 95% (non-condensing); EMC performance: complies with IEC 61000-6-2 industrial EMC standards, built-in EMI filter, resistant to strong interference from inverters and high-voltage cables; MTBF ≥ 10,000 hours, dual redundant power supply, CE and UL certified, industrial-grade construction, mechanical shock resistance, suitable for harsh industrial environments.

3. Installation and Maintenance Guide

Pre-installation Requirements

Environment: Install in a dust-free, non-condensing, well-ventilated industrial control cabinet or AC 800M controller rack, away from strong interference sources such as inverters and high-voltage busbars. Temperature range: -25℃ ～ +60℃, humidity: 5%–95% non-condensing. Equip a UPS to ensure uninterrupted 24VDC power supply. Do not deploy on the same PC as programming equipment to reduce misoperation risks and avoid mechanical shock or overload to the module.
System Preparation: Pre-install Windows Server 2012 R2 or later on the control station, along with Microsoft Visual C++ 2010 or later Redistributable and .NET Framework 4.0 or later. Open RPC port 135 and dynamic port range 49152–65535. Configure communication parameters, operation logic and I/O expansion parameters in advance using Control Builder M, and verify network connectivity and backplane communication stability with the AC 800M controller and 800xA server.
Installation Procedure: Mount on DIN rail or rack, ensure firm connection to the AC 800M high-speed backplane, connect dual redundant 24VDC power (reverse polarity strictly prohibited) and Ethernet cable. Run ABB Control Builder M, complete firmware identification, parameter configuration and control program download via the wizard, using paths without spaces or Chinese characters. Select “Keep existing configuration” during upgrades. Restart the system after installation and confirm normal LED indication, stable backplane communication and proper operation functions.
Parameter Configuration: Set IP address, communication protocol, Modbus address and backplane communication parameters. Configure filtering (0.1–20ms) and I/O expansion mapping. Set PID loop parameters, logic operation rules and sequential control processes. Configure three-level user permissions. Test operation functions, communication links, I/O expansion interfaces and control command execution. Specify log storage path and enable diagnostic logging.

Routine Inspection

Operating Status: Check LED indicators (green for normal power/communication/operation, red for alarms), no abnormal overheating or mechanical looseness. Verify uninterrupted communication with AC 800M controller and 800xA server via Control Builder M, stable backplane cooperation, accurate execution of logic and timely output of control commands.
Log Inspection: Regularly export logs, filter and handle records of module anomalies, communication errors, operation faults and permission irregularities. Delete expired logs to prevent storage overflow and ensure complete and traceable records.
Network and Environment: Check Ethernet cables, backplane connections and terminal blocks for secure connections with stable transmission rate ≥ 100Mbit/s. Confirm cabinet temperature and humidity meet requirements. Verify normal operation of UPS and dual redundant power supplies. Recheck grounding resistance to ensure < 4Ω for reliable grounding and enhanced anti-interference performance.
Parameter Verification: Confirm model and part number (UBC717BE101 / 3BHE021887R0101). Check communication, operation, PID and I/O mapping parameters for unauthorized changes. Test operation response speed, communication stability and control logic execution to verify compliance with functional requirements.

Periodic Maintenance

Monthly: Remove dust from the module and cabinet, especially backplane interfaces; back up configuration files and control programs; check power, communication interfaces and backplane connections for looseness; test LED diagnostics and fault alarm functions; confirm stability of logic and control loops.
Quarterly: Monitor control station CPU/RAM/disk usage; install system and driver updates, focusing on communication and operation-related patches; recheck access control; fine-tune PID parameters and operation scan cycles according to production load; inspect potential hardware risks and implement ABB official security recommendations.
Semi-annually: Perform full backup of configurations, control programs and logs; verify module firmware integrity; validate and install ABB official patches in a test environment; restart the system and module to release resources; inspect electrical isolation, redundant power switching and backplane communication stability; evaluate module health and carry out preventive replacement if necessary.

4. Common Faults and Troubleshooting

Fault Symptom	Possible Causes	Troubleshooting & Solutions
Module fails to start, initialization error	Missing dependent components; incompatible with AC 800M / System 800xA version; corrupted configuration or control program; insufficient privileges; unregistered communication components; abnormal backplane connection	Install VC++ 2010+ and .NET 4.0+; confirm version compatibility; restore backup configuration and program; run as administrator; re-register communication components and restart; check backplane connection, reinsert module to ensure good contact.
Unable to connect to AC 800M / 800xA server, communication lost	Incorrect IP/port/protocol settings; loose cable / switch fault; firewall port blocking; abnormal backplane communication; faulty communication module (CI854/CI871)	Verify parameters and perform ping test; replace cable / restart switch; open RPC 135 and dynamic ports 49152–65535; check backplane connection and communication settings; inspect status of CI854/CI871 modules.
Operation anomaly / control command failure / I/O expansion unresponsive	Error in control program; improper filtering parameters; abnormal PID settings; loose I/O expansion interface; backplane communication fault; incorrect permission configuration	Check and correct control program; adjust filtering to 1–5ms; re-tune PID parameters; inspect and tighten I/O expansion connections; troubleshoot backplane communication; verify permissions to ensure operator access.
Communication lag / operation delay / data loss	Insufficient network bandwidth; high control station load; log overflow; inadequate anti-interference; backplane congestion; unreasonable operation scan cycle	Optimize network to ≥100Mbit/s; close background programs to reduce load; clear expired logs; improve grounding and install EMI filter; check backplane status and optimize communication settings; adjust scan cycle to balance efficiency and real-time performance.
Frequent module restart / operation fault alarms	Power voltage fluctuation beyond 24VDC±10%; poor grounding; control program error; hardware damage; loose backplane connection; excessive EMI interference	Check UPS and redundant power supply for stable voltage; improve grounding to < 4Ω; troubleshoot and correct program errors; inspect and tighten backplane connection; enhance anti-interference measures; replace with the same model (UBC717BE101) if hardware is defective.
