Description

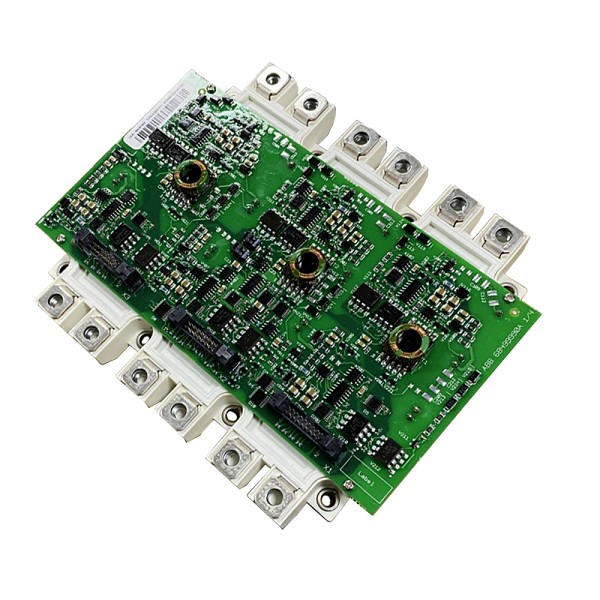

ABB FS450R12KE3/AGDR-71C/61C

ABB FS450R12KE3/AGDR-71C/61C is an assembly kit consisting of a high‑voltage IGBT module and two dedicated driver modules. It comprises the FS450R12KE3 IGBT power module, the AGDR‑71C driver module, and the AGDR‑61C driver module, belonging to ABB’s high‑voltage power semiconductor and driver product family.

Its core positioning is to provide an integrated solution for high‑efficiency energy conversion and precise drive control in medium‑ and high‑voltage industrial applications, balancing high‑power output and comprehensive drive protection. It is suitable for high‑voltage converters, inverters, medium‑frequency power supplies, and other equipment.

It is a key component for achieving energy conversion + precise drive + safety protection in medium‑ and high‑voltage industrial automation systems such as wind power, metallurgy, mining, and high‑voltage drives.

With its high voltage withstand capability, high power density, low losses, and strong compatibility, it is widely used in various harsh medium‑ and high‑voltage industrial environments. It serves as one of the upgraded alternatives to the FS300R17KE3‑related assemblies and can be used as a spare part for ABB ACS800 and other series inverters.

1. Basic Parameters

(1) FS450R12KE3 IGBT Module Parameters

Type: High‑voltage IGBT power module using Trench/Fieldstop IGBT3 technology, integrated with EmCon high‑efficiency freewheeling diodes. It is dedicated to high‑power energy conversion and stable power output in medium‑ and high‑voltage applications, acting as the core power unit for medium‑ and high‑voltage converters and inverters.
Compared with the FS300R17KE3, it has a higher power rating and wider application scope. Built‑in anti‑parallel diodes deliver excellent stability in motor control, low saturation voltage, and outstanding energy conversion efficiency.
Voltage & Current Ratings: Voltage class 1200 V, rated current 450 A (at 25°C), saturation voltage VCE(sat) as low as 1.6 V (at 25°C). Switching losses are reduced by more than 30% compared to previous‑generation modules of the same type. Power dissipation up to 2200 W, meeting the energy conversion requirements of high‑power medium‑ and high‑voltage equipment and supporting higher load conditions. It is the core unit for DC‑AC conversion.
Package & EMC: Soldered pin package (EconoPACK™ + B), optimized parasitic inductance design that effectively suppresses high‑frequency interference and improves electromagnetic compatibility (EMC). It operates stably in strong electromagnetic interference environments on medium‑ and high‑voltage industrial sites, reducing abnormal operation caused by signal crosstalk.
Environmental & Temperature Adaptability: Operating temperature range ‑40°C to +125°C, supports extended operation from ‑40°C to +150°C. Junction temperature cycling life reaches 10,000 cycles (ΔT = 100 K), with excellent resistance to junction temperature fluctuations.
It can adapt to harsh industrial environments such as extreme high/low temperatures and rapid temperature changes, and operate stably without additional temperature control devices.
Electrical Parameters: Gate threshold voltage 5.0–5.8 V. Excellent dynamic loss optimization and fast switching response enable high‑efficiency energy conversion, reducing operating power consumption of medium‑ and high‑voltage equipment and improving economic efficiency.

(2) AGDR‑71C/61C Driver Module Parameters

Type: Both are dedicated IGBT driver modules, not independent control units. Their core function is to provide accurate gate drive signals to the FS450R12KE3 IGBT module to control IGBT turn‑on and turn‑off, while integrating multiple fault protection mechanisms to ensure safe and stable operation under high‑power, medium‑ and high‑voltage conditions.
The AGDR‑61C driver board integrates MCU digital interface, data latch, LED high‑current drive, and other circuits, with functional design tailored to industrial application requirements.
Compatibility: Both drivers are fully compatible with the FS450R12KE3 IGBT module and support 1200 V high‑voltage applications. They also fit ABB ACS800, ACS600, and other series inverters.
Main control board firmware version ≥ V5.01 and fiber interface type (multi‑mode SC) must be confirmed. They can directly replace compatible drivers in the same series without major modifications to the existing system.
Suitable for single drives of specific models such as ACS800‑02 and ACS800‑04, and can be used as spare parts for related equipment.
Power & Temperature: AGDR‑71C operating temperature range ‑40°C to +85°C; AGDR‑61C operating temperature range ‑40°C to +70°C.
Both use standard industrial 24 VDC power supply (AGDR‑71C static drive voltage is ‑7.7 V, ensuring the IGBT remains off when not in operation).
High power supply stability resists voltage fluctuations affecting drive signals and ensures accurate transmission of drive commands.
AGDR‑71C has passed high‑temperature aging and voltage surge testing in accordance with IEC 61800‑5‑1, with small parameter dispersion between batches and switching characteristic variation less than 8%, better than the industry average.
Heat Dissipation & Rated Current: Both drivers adopt LinPak packaging, with thermal efficiency improved by more than 25% compared with conventional drivers.
Rated current up to 450 A, perfectly matching the high‑power output of the FS450R12KE3 IGBT module, supporting long‑term continuous operation under high loads and avoiding drive failures caused by insufficient heat dissipation.
AGDR‑71C input current 250 mA, output current ≤ 1 A, with excellent protection characteristics, high short‑circuit withstand capability, and over‑temperature protection.
Special Features:
AGDR‑71C features adjustable drive parameters, allowing flexible optimization of IGBT switching performance according to on‑site working conditions to adapt to different load requirements.
It integrates a fiber‑optic communication interface for stronger anti‑interference performance, suitable for long‑distance signal transmission in medium‑ and high‑voltage environments, ensuring stable and undistorted drive signals.

AGDR‑61C uses power CMOS technology, includes a brightness adjustment circuit (8‑level adjustable duty cycle), supports serial interfaces (SCLK, STB, DIN), and integrates RC oscillator and power‑on reset circuit.

It is suitable for applications with specific interface and control accuracy requirements. The main difference from AGDR‑62C lies in packaging and interface design, making it more suitable for standard installation scenarios.

2. Structural and Functional Features

(1) Mechanical Design

The complete assembly adopts a modular industrial package design, balancing structural stability, installation convenience, and high‑voltage adaptability.

The FS450R12KE3 IGBT module uses EconoPACK™ + B soldered pin packaging, with compact size and high mechanical strength. The housing is made of high‑temperature‑resistant, corrosion‑resistant, and arc‑proof industrial‑grade material, effectively resisting electromagnetic radiation, high‑temperature losses, and arc interference in medium‑ and high‑voltage environments.

AGDR‑71C/61C drivers feature a compact package and support standard DIN‑rail or rack mounting; AGDR‑61C is particularly suitable for standard module installation.

Both drivers can be highly integrated with the IGBT module in medium‑ and high‑voltage cabinets, saving space and facilitating system layout and expansion.

Terminal blocks use an anti‑loosening clip design to ensure secure and reliable wiring in medium‑ and high‑voltage environments, avoiding hidden dangers such as short circuits and equipment failures caused by loose wiring due to on‑site vibration.

Clear status LEDs visually indicate the operating status (normal, fault, overload, over‑temperature) of both the IGBT and driver modules, enabling field engineers to quickly troubleshoot and locate problems.

The assembly has excellent overall protection, adapting to complex environments such as dust, vibration, extreme temperatures, and electromagnetic interference in medium‑ and high‑voltage industrial sites, extending the service life of the entire assembly. It can be used as standardized spare parts for industrial equipment maintenance in bulk.

(2) Core Functions

High‑Power High‑Efficiency Energy Conversion: The FS450R12KE3 IGBT module uses IGBT3 core technology with integrated high‑efficiency freewheeling diodes, delivering significantly optimized dynamic losses, low switching losses, and low saturation voltage.
It achieves high energy conversion efficiency, effectively reducing power consumption of medium‑ and high‑voltage equipment.
Suitable for wind converters, high‑voltage inverters, and other applications with strict power and efficiency requirements, with energy conversion efficiency exceeding 98.8% in wind power applications.
The built‑in anti‑parallel diodes further improve stability in motor control applications.
Precise Gate Drive Control: Both AGDR‑71C and AGDR‑61C provide accurate gate drive signals to the FS450R12KE3.
AGDR‑71C supports flexible parameter adjustment to optimize IGBT switching performance and integrates a fiber‑optic interface for strong anti‑interference performance, preventing electromagnetic interference from corrupting drive signals in medium‑ and high‑voltage environments.
AGDR‑71C has small parameter dispersion between batches, meeting consistency requirements for mass production and system integration.
AGDR‑61C achieves more precise signal transmission and control via its built‑in MCU digital interface and serial communication functions.
Both drivers ensure stable and precise high‑power output and accurate control of IGBT turn‑on and turn‑off.
Comprehensive Fault Protection: Both drivers integrate overcurrent protection, short‑circuit protection, over‑temperature protection, gate abnormality protection, undervoltage protection, and other multi‑level protection mechanisms.
They continuously monitor IGBT operating status (current, temperature, gate signals).
In the event of overload, short circuit, overheating, gate abnormality, power undervoltage, etc., the drive signal is quickly cut off to protect the IGBT and downstream medium‑ and high‑voltage equipment, preventing fault escalation and reducing equipment damage and maintenance costs.
AGDR‑71C’s high short‑circuit withstand capability and over‑temperature protection further enhance operational safety.
Strong Compatibility and Flexible Adaptation: The assembly integrates seamlessly with ABB ACS800 series inverters and various medium‑ and high‑voltage converters, inverters, medium‑frequency power supplies, etc.
It can be directly used for system upgrade and expansion without major modifications, reducing upgrade and retrofit costs.
AGDR‑71C and AGDR‑61C can be flexibly selected based on on‑site working conditions and control accuracy requirements.
In addition, the FS450R12KE3 IGBT module supports 1.2× overload current and S1 (continuous) duty, suitable for long‑term high‑power, high‑load operation.
As standardized spare parts, it enables quick replacement and maintenance.
Intelligent Fault Diagnostics and Maintenance: Both drivers feature complete self‑diagnostic functions, continuously monitoring their own status and IGBT operating parameters (current, temperature).
Fault information is rapidly reported to the control system.
Combined with status LEDs, engineers can quickly locate faults (e.g., IGBT overheating, drive signal abnormality, power undervoltage) without complex procedures, greatly improving O&M efficiency and reducing downtime losses.
The modular design allows fast replacement of faulty units, further reducing maintenance difficulty and time, meeting the requirements of industrial equipment batch operation and maintenance.
High Anti‑Interference and Environmental Robustness: The optimized parasitic inductance design of the FS450R12KE3 and EMC improvements of the AGDR‑71C/61C drivers effectively resist strong electromagnetic interference from motors, inverters, and other field equipment in medium‑ and high‑voltage industrial environments, ensuring stable operation of the entire assembly.
The wide‑temperature design supports operation from ‑40°C to +125°C without additional protection devices, making it suitable for harsh environments such as wind power and mining.
AGDR‑71C offers stronger adaptability due to its wider operating temperature range, while AGDR‑61C satisfies temperature requirements for conventional medium‑ and high‑voltage applications.

3. Application Areas

With high voltage withstand capability, high power, low losses, strong compatibility, and comprehensive protection, the assembly kit is widely used in harsh medium‑ and high‑voltage industrial fields including wind power, metallurgy, mining, high‑voltage drives, and new energy.

It mainly provides high‑power energy conversion and precise drive control for medium‑ and high‑voltage equipment, ensuring efficient, safe, and stable operation. It can be used as a spare part for ABB ACS800 and other series inverters. Typical applications include:

Wind Power: Used in large wind turbine converters (rated power up to 3 MW and above), with energy conversion efficiency > 98.8%.
It converts wind energy into stable electrical power while resisting harsh conditions such as extreme temperatures, strong vibration, and high altitude in wind farms, ensuring long‑term continuous operation and improving wind energy utilization.
It is a core power component for high‑power converters in the wind power industry.
Metallurgy: Applied in high‑voltage inverters, rolling mill high‑voltage drive systems, medium‑frequency induction heating equipment, etc. in the metallurgical industry.
It provides high‑power energy conversion and precise drive control while resisting strong electromagnetic interference, high temperatures, and dust in workshops, ensuring continuous production processes such as rolling, smelting, and heating, and improving production efficiency and product quality.
Mining: Suitable for high‑voltage high‑power equipment such as mine hoists and crushers.
It can withstand 1.2× overload current, supports S1 continuous duty, and has strong resistance to junction temperature fluctuations.
It operates reliably in complex mining environments including dust, vibration, and extreme temperatures, providing stable power output and drive control for starting and running mining equipment to ensure mine safety.
High‑Voltage Drives and Conversion: Used in various medium‑ and high‑voltage converters, inverters, medium‑frequency power supplies, etc., to realize medium‑ and high‑voltage power conversion and control for industrial power supply scenarios.
It is widely used in high‑voltage drive systems in chemical, building materials, and other industries, providing stable high‑power drive for equipment and reducing operating energy consumption.
It can also be used in cranes, elevator control, large servo systems, UPS power supplies, and other scenarios, adapting to various types of industrial automation equipment.
