Description
I. Product Overview
Bently Nevada 3500/15 is a dedicated rack power supply module for the Baker Hughes Bently Nevada 3500 series machinery protection system. As the power supply core of the whole condition monitoring system, it converts various industrial AC and DC input voltages into stable standard backplane operating voltage, continuously supplies power to all functional cards such as vibration monitoring, keyphasor, communication and relay in the rack, and ensures stable operation of real-time parameter collection and safety interlock protection for key rotating equipment such as steam turbines, compressors and fans in terms of vibration, axial displacement and rotating speed.
As a half-height rack-specific hardware, it can only be installed in the exclusive dual half-height slots on the left side of the 3500 rack, supporting single power supply and dual redundant power supply deployment. Under redundant configuration, it supports module hot swapping, and the primary and backup power supplies can seamlessly switch within milliseconds. Equipped with comprehensive hardware protection including overvoltage, overcurrent, short circuit and overheat protection, it has passed CE, UL, Class I Div2 and ATEX explosion-proof certifications. Its wide-temperature and wide-voltage design enables 24/7 stable operation in closed control cabinets with high temperature, dust and strong electromagnetic interference in power, chemical, metallurgical and other industries, serving as a key spare part for unit overhaul, redundant system renovation and faulty spare part replacement.
II. Hardware Structure and Composition
1. Voltage-stabilized Power Conversion Unit
It adopts industrial isolated switching power supply topology, built-in high-frequency filtering and surge suppression circuits to rectify, stabilize and isolate wide-range input voltage, and outputs stable DC voltage to supply power for all rack backplane modules. The full-load power conversion efficiency is higher than 85%. It features adaptive capability for input voltage fluctuation, which can resist instantaneous grid voltage drop and spike impact, avoiding system crash and module offline faults caused by voltage disturbance.
2. Multi-specification Input Wiring Supporting Components
It must be matched with the corresponding PIM power input terminal modules, divided into four input types: universal AC, high-voltage AC, high-voltage DC and low-voltage DC. The wiring terminal is equipped with anti-loose fastening structure and grounding protection terminal, and the input loop has built-in fuse protection to prevent burnout of the main power supply circuit caused by field wiring short circuit and reverse polarity. Different types of main power modules must be matched with PIM terminal assemblies of the same generation, and old and new versions cannot be mixed.
3. Panel Status Diagnosis Indicator Unit
A green Supply OK status indicator is mounted on the front panel. The indicator lights up steadily when the power input is normal and the output voltage is stable; if the indicator goes out, it indicates faults such as power loss, overload, overheat and short circuit. Maintenance personnel can quickly locate abnormal power supply points through the indicator without upper configuration software, shortening system downtime and troubleshooting time.
4. Backplane Bus Power Supply Output Loop
It is reliably connected with the system backplane through the gold fingers of the left rack slot. Multiple isolated and stabilized outputs independently supply power to the backplane communication bus, module control loop and signal acquisition loop. Short circuit of a single rear load will only trigger power supply current limiting protection without interrupting the overall power supply of the whole machine. Under redundant architecture, it can automatically switch to the backup power supply for continuous load operation.
5. Industrial Protective Housing Installation Structure

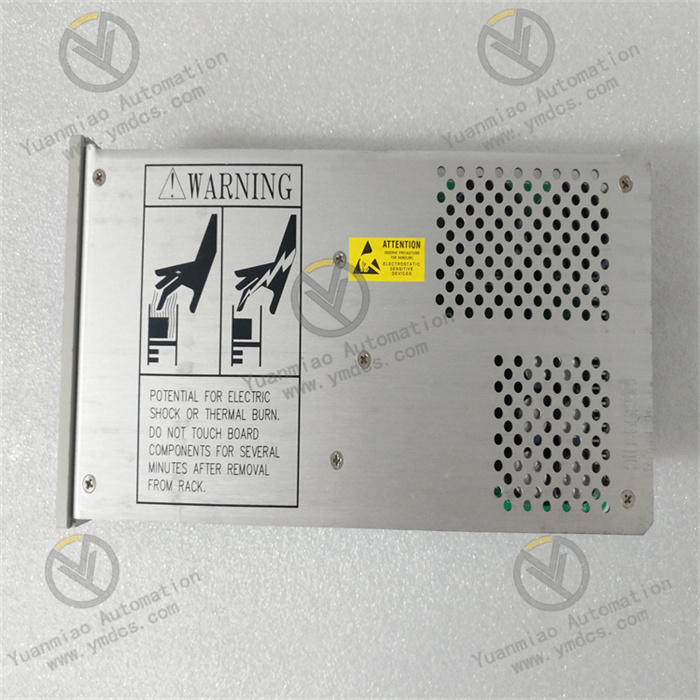

The metal flame-retardant shielded housing features anti-vibration and anti-electromagnetic radiation performance. It adopts standard half-height rack buckle locking installation mode, equipped with panel fixing screws for anti-loosening and anti-falling. A special grounding terminal is reserved on the housing to suppress electromagnetic interference from space into the power supply loop, avoiding sampling distortion and communication intermittent faults.
III. Technical Specifications
(1) Electrical Parameters
- Input Specifications (4 Options)
- Universal AC: 85～264Vac, 47～63Hz, Max Input Current 2.8A
- High-voltage AC: 175～264Vac, 47～63Hz
- High-voltage DC: 88～140Vdc, Max Input Current 2.5A
- Low-voltage DC: 20～30Vdc, Max Input Current 11A
- Rated Output: Stabilized DC24V, Rated Power 150～250W
- Conversion Efficiency: Typical full-load efficiency ≥85%, Input-output isolation voltage 2200Vdc
- Protection Functions: Multi-level protection including overvoltage, undervoltage, overcurrent, short circuit, overheat and input surge
- Redundancy Features: Dual-module primary-backup redundancy, switching time ＜10ms, hot swapping supported in redundant mode
(2) Environmental Parameters
- Operating Temperature: -30℃～+65℃; Storage & Transportation Temperature: -40℃～+85℃
- Relative Humidity: 5%～95%RH, non-condensing, no corrosive gas and conductive dust
- Vibration Resistance Standard: Comply with IEC 60068 industrial vibration and shock specifications
(3) Mechanical Parameters
- Mounting Mode: Installed in exclusive dual half-height slots on the left of 3500 rack, the lower slot is for primary power supply and the upper for backup power supply
- Overall Dimensions: 120.7mm×50.8mm×251.5mm
- Net Weight: Approx. 1.39kg
- Fixing Method: Rack slot buckle + panel locking screw, with independent shielded grounding terminal
IV. Product Functions and Features
Wide-voltage Multi-type Input, Universal Adaptation for Global Industrial ScenariosIt covers all mainstream industrial power supply systems of AC and DC, and can adapt to various power supply loops such as factory commercial power, DC operating power supply and UPS uninterruptible power supply. A single module can carry all monitoring cards of the whole rack with no minimum load limit, flexibly adapting to 8-slot and 14-slot 3500 rack configurations.
Dual Redundant Hot-swappable Architecture, Zero-downtime Maintenance for Key Units
The rack supports dual-module redundant deployment. The module in the lower slot is defaulted as the primary power supply, and the upper one as the backup power supply. When the primary power supply trips due to overload or fault, the backup power supply takes over the load seamlessly. Under redundant live state, any power supply can be plugged and replaced separately without system shutdown, minimizing the risk of unplanned shutdown of key rotating equipment and complying with API 670 unit safety design specifications.Full-loop Hardware Protection, Stable and Reliable Operation Under Harsh Power Grid Conditions
A full-link protection mechanism is integrated from input incoming line, power conversion to backplane output. In case of grid surge, short circuit of rear module, reverse wiring polarity and over-temperature due to poor heat dissipation, the output will be immediately current-limited and locked, which can not only protect the power supply module from burnout, but also avoid fault spreading along the backplane to damage all monitoring cards of the whole rack, greatly improving the fault tolerance of the condition protection system.Standardized Rack Adaptation, Strong Compatibility for Spare Part Replacement
It is a native supporting power supply for the full series of Bently Nevada 3500 racks with fully standardized hardware installation dimensions and backplane power supply protocols. Modules of the same voltage specification can directly replace faulty old power supplies. After replacement, it will automatically recognize the load after power-on without reconfiguration and program downloading, which is perfectly applicable to spare part replacement during annual overhaul of power stations and chemical plants.Industrial Shielded Wide-temperature Design, Long-term Stable Operation in Strong Interference Working Conditions
The metal shielded housing is equipped with internal EMC filter circuits to resist electromagnetic interference generated by frequent start and stop of frequency converters and high-voltage motors, avoiding vibration data jump and protection misoperation caused by power disturbance. Wide-temperature component selection enables long-term stable operation in high-temperature closed cabinets and low-temperature outdoor control cabinets, with MTBF exceeding 200,000 hours and low routine maintenance frequency.V. Application Scenarios
- Primary power supply and redundant power supply hardware deployment for 3500 vibration protection systems of steam turbines, generators, boiler induced draft fans and forced draft fans in thermal and gas power plants.
- Power supply supporting and faulty module replacement for mechanical condition monitoring systems of large centrifugal compressors, reciprocating compressors and pump units in petrochemical and refinery plants.
- Hardware upgrading and renovation for power supply redundancy of axial displacement and vibration safety monitoring systems of large blowers and steam turbine-driven units in metallurgy, papermaking and cement industries.
- Hardware supporting of power supplies complying with Class I Div2 explosion-proof specifications for mechanical protection systems of booster units on offshore platforms and long-distance oil and gas pipelines.
- Hardware upgrading and replacement scenarios for aging power supplies, frequent overload tripping and single non-redundant power supplies during annual overhaul of legacy Bently Nevada 3500 monitoring systems.
