Description
1. Overview

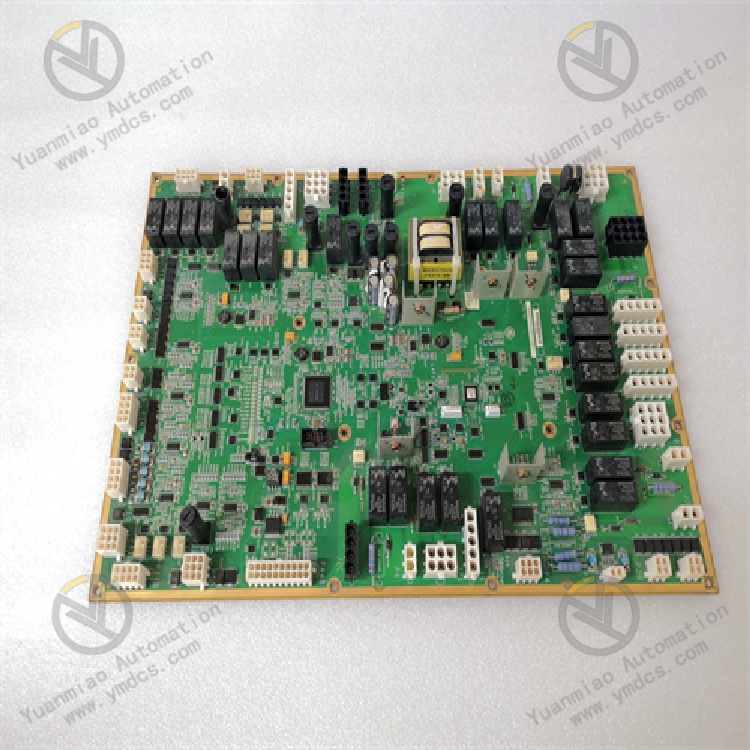

GE IS200WETAH1AEC is a multi-type high-precision analog input module matched with the Mark VI turbine control system, serving as the core acquisition board for process parameter monitoring of gas turbines, steam turbines and combined-cycle units.
Integrated with multiple universal analog acquisition channels, it is compatible with various process signals including voltage, current, resistance temperature detector (RTD) and thermocouple (TC). It is specially used to collect key analog process parameters such as unit temperature, pressure, vibration, flow rate and rotating speed, providing accurate raw data support for turbine closed-loop regulation, condition monitoring, over-limit protection and interlock logic.
2. Technical Features
2.1 Multi-Signal Compatible Acquisition with Strong Versatility
The module supports access to all types of industrial analog signals, covering four mainstream process signals: ±10 VDC voltage signal, 0–20 mA current signal, RTD and TC. It can match various field sensors for temperature, pressure, differential pressure, flow rate and vibration without board replacement.A single module integrates multiple independent acquisition channels without mutual interference and with separate sampling, meeting the demand for centralized collection of full process parameters of turbines. It greatly reduces the quantity of cabinet boards and wiring costs, and fits large-scale point monitoring scenarios for large units.
2.2 High-Precision Sampling & Conversion for Accurate and Stable Data
Built with a 12-bit high-precision analog-to-digital conversion unit and exclusive signal calibration algorithm, it delivers high sampling resolution and excellent linearity to capture tiny fluctuations of unit process parameters precisely.A 100 Hz high-frequency synchronous sampling mechanism enables real-time tracking of dynamic working condition changes of units and eliminates signal lag and data distortion.For transient parameter changes during unit load variation and startup/shutdown transition, it can fully restore dynamic process data, ensure closed-loop accuracy of unit temperature control, pressure control and load regulation, and effectively avoid unstable regulation and false protection trips caused by acquisition deviation.
2.3 Full-Channel Isolation Protection with Outstanding Anti-Interference Performance
Each channel adopts independent galvanic isolation design together with multi-stage filtering, surge suppression and noise reduction circuits to effectively isolate field ground potential difference, line clutter and electromagnetic radiation interference.It resists electromagnetic noise and voltage surges generated by startup/shutdown of high-power equipment, inverters and high-voltage cabinets in power stations, thoroughly solving problems of analog signal drift, jitter and noise interference under complex conditions.Meanwhile, built-in overvoltage, overcurrent and short-circuit protection protects the module and back-end main control equipment, improving the overall stability and service life of signal acquisition loops.
2.4 Comprehensive Self-Diagnosis for Traceable and Predictable Fault Handling
Complete board-level and channel-level online self-diagnosis functions are embedded to monitor hidden troubles such as channel open circuit, short circuit, out-of-range signal, sensor fault, loop leakage and hardware circuit abnormality in real time, covering all fault modes of analog acquisition loops.The module uploads fault codes, abnormal channel numbers and fault timestamp logs in real time. Combined with system Sequence of Events (SOE) recording, root causes and abnormal logic can be quickly located, greatly simplifying field loop commissioning, inspection and troubleshooting, supporting predictive maintenance and lowering the risk of unplanned shutdowns.
2.5 Industrial Rugged Design for Unattended Continuous Operation
Adopting military-grade PCB substrates and industrial triple-proof ruggedization technology (dustproof, moisture-proof, anti-corrosion), it has properties of vibration resistance, wide temperature adaptability and anti-aging, adapting to harsh cabinet environments with fluctuating temperature & humidity, dust accumulation and heavy EMI.The hardware has a fixed structure without vulnerable adjustable components and an extremely low failure rate, supporting 24-hour non-stop steady operation and perfectly fitting long-term unattended operation mode of power plants.The standard rack mounting structure is compatible with Mark VI system cabinets, and supports renovation of legacy units and online replacement maintenance.
3. Specification Parameters
3.1 Basic Model Parameters
- Model No.: IS200WETAH1AEC
- Brand & Series: GE Vernova Speedtronic Mark VI Turbine Control System
- Module Type: Multi-Type High-Precision Analog Input Module
- Core Functions: Multi-standard analog signal acquisition, high-precision AD conversion, process parameter monitoring, loop fault diagnosis, data upload and closed-loop data support
- Compatible Systems: Mark VI control systems for gas turbines, steam turbines and combined-cycle units
- Applicable Scenarios: Full-time monitoring and regulation of unit process parameters including temperature, pressure, flow rate, vibration and load
3.2 Electrical & Acquisition Parameters
- Input Signal Types: ±10 VDC voltage, 0–20 mA current, RTD, TC
- Sampling Precision: 12-bit high-precision AD conversion with excellent linearity
- Sampling Frequency: 100 Hz high-frequency synchronous sampling with fast dynamic response
- Power Supply: Standard 24 VDC industrial logic power supply
- Isolation Feature: Independent galvanic isolation per channel to prevent crosstalk and ground interference
- Built-in Protection: Multi-layer protection against overvoltage, overcurrent, short circuit, surge and out-of-range signals
3.3 Communication & System Parameters
- System Bus: Natively compatible with exclusive high-speed control bus of Mark VI system
- Data Functions: Real-time process parameter upload, fault log storage, timestamped event recording and abnormal data tracing
- Configuration Method: Customizable signal type matching, range calibration and alarm threshold setting via official GE control system configuration software
- Operation Architecture: Multi-channel synchronous sampling, independent data verification and bumpless data upload
3.4 Environmental Parameters
- Operating Temperature: -40 ℃ ~ +70 ℃
- Storage Temperature: -55 ℃ ~ +125 ℃
- Operating Humidity: 5% ~ 95% RH (non-condensing)
- EMC Compliance: Meets industrial EMC standards to withstand intensive electromagnetic interference in power plants
- Hazardous Area Adaptation: Complies with requirements for Zone 2 hazardous area application
- Operation Mode: 24-hour non-stop continuous safe operation
3.5 Mechanical & Maintenance Parameters
- Mounting Method: Embedded installation in standard VME racks of Mark VI systems
- Structural Features: Highly integrated monolithic PCB with reinforced vibration resistance and anti-aging property and low failure rate
- Status Indication: Onboard LEDs for run status, communication, faults and channel abnormalities
- Diagnostic Functions: Full-channel open/short circuit detection, out-of-range diagnosis, hardware self-test and fault tracing
- Maintenance Compatibility: Online troubleshooting, parameter calibration and retrofit replacement for legacy units
4. Working Principle
Based on the Mark VI turbine control architecture, the IS200WETAH1AEC implements a closed-loop data acquisition workflow: field multi-type analog signal access → galvanic isolation & filtering → high-precision AD conversion → data verification & calibration → bus upload → fault diagnosis & protection.
After power-on initialization, the module automatically completes full hardware self-test, channel loop verification, signal range matching and bus handshaking. It enters normal high-precision analog signal acquisition mode only after confirming healthy hardware circuits, acquisition channels and communication links.
During unit operation, each independent channel synchronously collects analog signals (voltage, current, temperature, etc.) output by field thermocouples, RTDs, pressure/flow transmitters and vibration transmitters. Signals go through galvanic isolation, multi-stage noise reduction filtering and signal shaping to eliminate false data caused by electromagnetic interference and line jitter on site.
Valid data is logically verified and uploaded to the Mark VI main control system at high frequency via the system high-speed bus, providing accurate data basis for unit closed-loop temperature regulation, pressure control, load adaptation, vibration monitoring and over-limit interlock protection.
The module continuously monitors loop conditions, signal quality and hardware operation of each channel. Once sensor failure, line open/short circuit, out-of-range signal or hardware circuit abnormality is detected, local LED alarms and background system event records are triggered immediately, and the abnormal channel is marked and isolated to avoid interference of incorrect data with unit control logic.
5. Application Scenarios
5.1 Mark VI Main Control & Monitoring Systems for Gas & Steam Turbines
Widely deployed in Mark VI control systems of medium and large gas turbine and steam turbine generator sets, it centrally collects core process parameters including exhaust temperature, bearing temperature, steam pressure, intake flow, unit vibration and lube oil temperature. It supports precise monitoring throughout unit startup, steady-state operation and peak shaving load variation, ensuring controllable parameters and stable working conditions of turbine main equipment.
5.2 Control Systems for Gas-Steam Combined-Cycle Power Plants
Adapted to multi-device linkage control scenarios of combined-cycle power plants, it synchronously collects full analog process signals of gas turbines, steam turbines and heat recovery steam generators. Fitting frequent load variation and dynamic condition switching characteristics of such units, high-precision data acquisition improves coordinated regulation accuracy of combined-cycle systems and boosts power generation efficiency and operational stability of the whole power station.
5.3 Unit Over-Limit Process Protection & Fault Early Warning Systems
As the core data acquisition unit for unit safety protection, it monitors over-limit status of various process parameters in real time and accurately identifies abnormal conditions such as overtemperature, overpressure and excessive vibration. It supplies reliable data support for main unit overtemperature protection, overpressure protection, vibration protection and auxiliary equipment interlock shutdown, effectively preventing equipment damage and unit trip accidents caused by process abnormalities.
5.4 Condition Monitoring of Auxiliary Systems in Power Plants
Applied to working condition monitoring of auxiliary equipment such as fans, water pumps, compressors and lube oil systems in power plants, it collects analog signals of auxiliary equipment temperature, pressure and operating load to realize real-time condition supervision and abnormality early warning, ensuring stable operation of auxiliary systems and avoiding impact on main unit conditions induced by auxiliary equipment faults.
5.5 Retrofit & Spare Part Replacement for Legacy Mark VI Systems in Power Plants
As an original factory-standard analog acquisition board for GE Mark VI systems, it is perfectly compatible with control system upgrade, faulty board replacement and hardware iteration of turbine control systems in aging power plants. It fully matches the original rack, wiring method and control configuration logic without large-scale modification of system programs and field wiring. Rapid equipment renewal restores parameter acquisition accuracy and system performance of units, cutting maintenance and renovation costs for power stations.
