Description
1. Overview

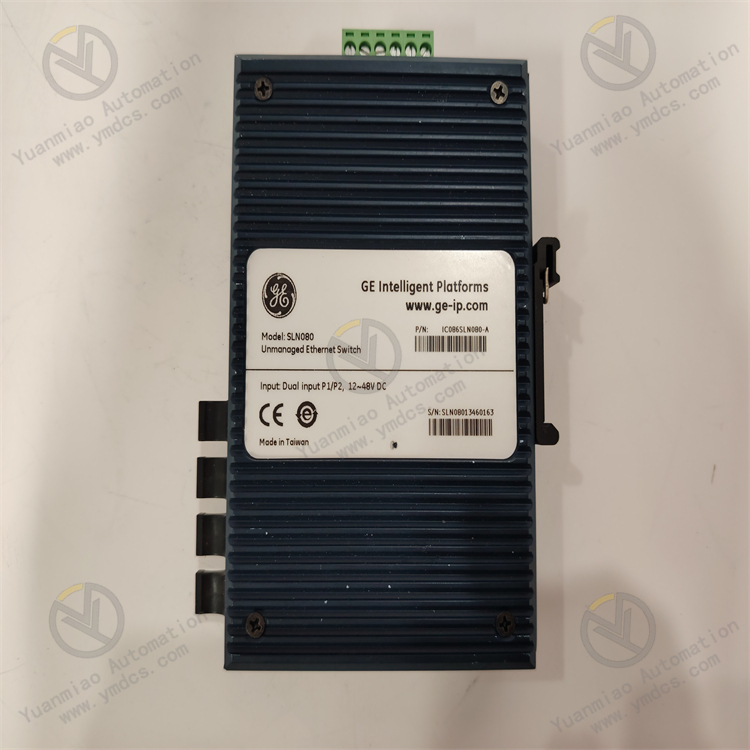

The GE SLN080 (IC086SLN080-A) is an industrial 8-port 10/100Mbps unmanaged Ethernet switch developed by GE / Emerson. Adopting fanless passive heat dissipation and industrial rugged design, it features plug-and-play operation without complex configuration, providing stable and reliable data exchange for industrial PLC, HMI, remote IO and automation equipment.
Complying with IEEE 802.3, IEEE 802.3u and IEEE 802.3x international Ethernet standards, the switch supports auto speed negotiation, auto MDI/MDIX and full/half duplex adaptation. With excellent EMC anti-interference performance and wide-temperature tolerance, it realizes long-term 24/7 unattended operation, widely used in power plant control, factory automation, complete equipment networking and legacy system maintenance scenarios.
2. Technical Features
2.1 Plug-and-Play Unmanaged Design
No IP configuration, no software debugging and no network planning required. The switch automatically identifies link status, negotiates speed and duplex mode after power-on, realizing rapid industrial network deployment and equipment replacement, greatly reducing on-site maintenance workload.
2.2 8-Port 10/100Mbps Adaptive Ports
Equipped with 8-channel 10/100BaseT(X) RJ45 ports, supporting auto MDI/MDIX, compatible with straight and crossover network cables. It adapts to all mainstream industrial Ethernet terminals, meeting the networking requirements of small and medium-sized industrial control systems.
2.3 Full Industrial Ethernet Standard Compatibility
Strictly compliant with international Ethernet standards, perfectly matching mainstream industrial communication protocols and brand devices such as GE, Siemens, Rockwell and Mitsubishi, realizing seamless integration of new and legacy industrial networks.
2.4 Industrial-Grade EMC Protection & Stability
Built-in surge protection, over-current protection and short-circuit isolation circuit. Single-port faults will not affect the whole device operation. Excellent electromagnetic interference resistance ensures stable communication in harsh industrial environments with frequency converters and high-power equipment.
2.5 Fanless Passive Heat Dissipation
Full-enclosed fanless design eliminates fan aging, blockage and failure risks. Low power consumption and low heat generation support long-term uninterrupted operation, realizing zero-maintenance operation for industrial cabinet equipment.
2.6 Wide-Temperature Rugged Structure
Reinforced metal shell with vibration and impact resistance, adapting to temperature and humidity alternating industrial conditions. Standard DIN rail and wall-mounted installation improve on-site adaptability and installation flexibility.
3. Detailed Specifications
3.1 Basic Hardware Parameters
- Model: SLN080
- Part No.: IC086SLN080-A
- Manufacturer: GE / Emerson
- Type: Industrial 8-Port 10/100Mbps Unmanaged Ethernet Switch
- Port Configuration: 8×10/100BaseT(X) RJ45 Adaptive Ports
- Management Mode: Unmanaged, Plug-and-Play, Zero Configuration
- Core Features: Auto Speed Negotiation, Auto MDI/MDIX, Flow Control, Port Fault Isolation
- Heat Dissipation: Fanless Full-Enclosed Passive Cooling
- Installation: Standard DIN Rail / Wall Mount
- Functions: Industrial Ethernet Networking, Data Transmission, Communication Expansion, Equipment Replacement
- Applications: Power Plant Control, Factory Automation, Complete Equipment Cabinet, Industrial Field Networking
3.2 Port & Communication Parameters
- Port Type: Industrial Shielded RJ45 Ethernet Interface
- Transmission Rate: 10/100Mbps Auto Negotiation
- Duplex Mode: Full/Half Duplex Auto Adaptation
- Cable Adaptation: Auto MDI/MDIX, Straight/Crossover Cable Universal
- Flow Control: IEEE802.3x Full-Duplex & Backpressure Half-Duplex
- Forwarding Mode: Store-and-Forward, Error Frame Filtering
- Fault Isolation: Independent Single-Port Fault Protection
- Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
3.3 Electrical Parameters
- Power Supply: Standard Industrial DC24V
- Protection: Over-Current, Over-Voltage, Short-Circuit, Surge Protection
- Electrical Performance: Low Power Consumption, Wide Voltage Tolerance
- EMC Performance: Industrial Anti-Interference, Anti-Static, Anti-Pulse Interference
3.4 Mechanical & Installation Parameters
- Shell Material: Industrial Reinforced Metal, Dust & Corrosion Resistant
- Installation Method: DIN Rail Buckle / Wall Mount Fixed
- Structural Feature: Full Enclosed Dustproof, No Vulnerable Moving Parts
- Indicator Light: Power Running Indicator, Port Link/Status Indicator
3.5 Environmental Parameters
- Operating Temperature: 0℃ ～ +60℃
- Storage Temperature: -20℃ ～ +70℃
- Operating Humidity: 5%～95%RH (Non-Condensing, Non-Corrosive)
- Environmental Resistance: Dustproof, Vibration-Proof, EMC Resistant, Aging Resistant
- Working Condition: Industrial Closed Cabinet, Production Workshop, Power Plant On-Site
- Execution Standard: Industrial Ethernet Specification, EMC Industrial Standard, GE Industrial Certification
4. Operating Principle
The GE SLN080 IC086SLN080-A industrial switch operates based on Layer2 store-and-forward data transmission, adaptive link matching and port fault isolation. After DC24V power-on, it completes initialization automatically, including port detection, rate negotiation and link activation without manual configuration.
During operation, the switch adopts store-and-forward mechanism to verify, filter and forward Ethernet data frames, realizing real-time data interaction and instruction transmission between PLC, HMI, IO modules and host computers. The auto MDI/MDIX function adapts to various network cable wiring modes to avoid communication failure caused by non-standard wiring.
The independent port isolation mechanism prevents single-point faults from spreading to the whole network. The fanless heat dissipation and industrial EMC design ensure stable long-term network operation under complex industrial electromagnetic and temperature-changing conditions.
5. Application Scenarios
1. Ethernet networking for intelligent industrial automated production lines.
2. Communication expansion and network construction for power plant industrial control systems.
3. Built-in communication switching for complete mechanical and electrical equipment control cabinets.
4. Fault replacement and maintenance upgrading of legacy industrial Ethernet switches.
