Description
Product Overview

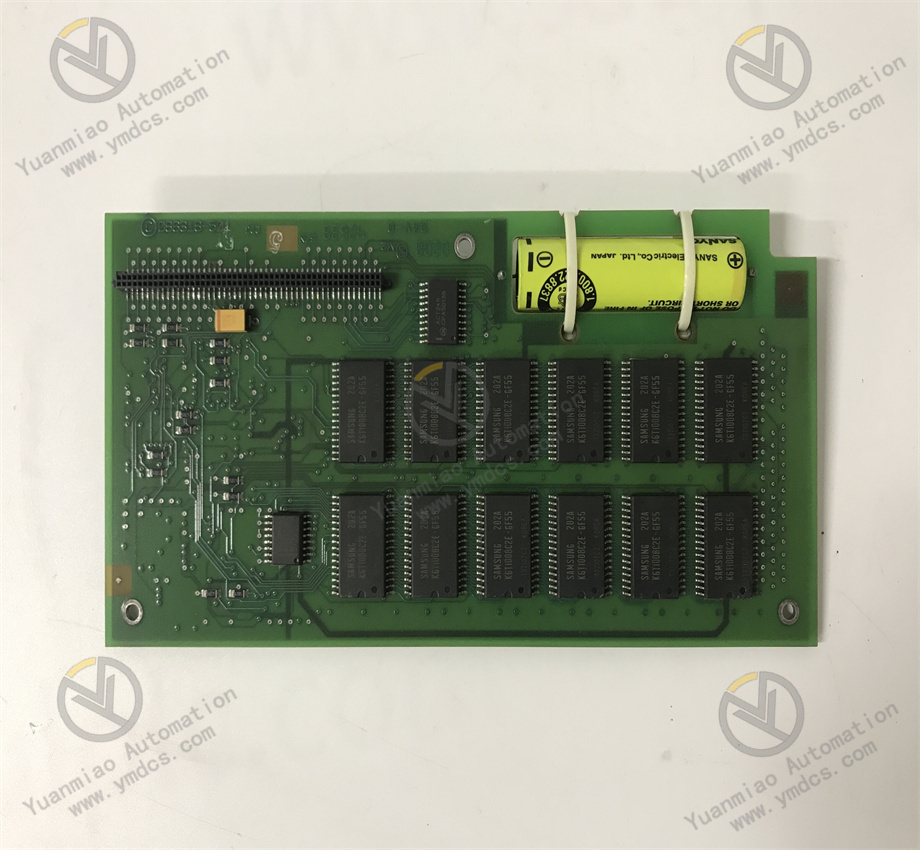

ABB 086318-002 and 086318-501 are static random-access memory expansion boards for ABB legacy industrial controllers. In addition, the 086318-501 serves as the upgraded variant of 086318-002. This board carries an on-board backup battery, so it can preserve stored configuration and process data when the main power supply cuts off. It connects to the main CPU backplane directly, and it expands the system memory capacity for complex control logic and recipe storage.
Core Features
- Model: 086318-002, 086318-501, ABB SRAM memory sub-board
- Built-in backup battery to maintain data retention during power outage
- Direct backplane installation, simple integration with matched ABB controller racks
- Compact PCB layout, stable read and write performance for industrial control data
- Wide operating temperature range, suitable for harsh factory control cabinet environments
- 086318-501 is the revised version based on 086318-002
Application Fields
These memory boards apply to ABB old-generation DCS and PLC control systems. They mainly expand memory for process control logic, production recipes and runtime parameter storage, and they are widely used in power, pulp & paper, metallurgy and chemical industrial sites.
