Bently Nevada 3500/05-02-04-00-00-00

I. Basic Information

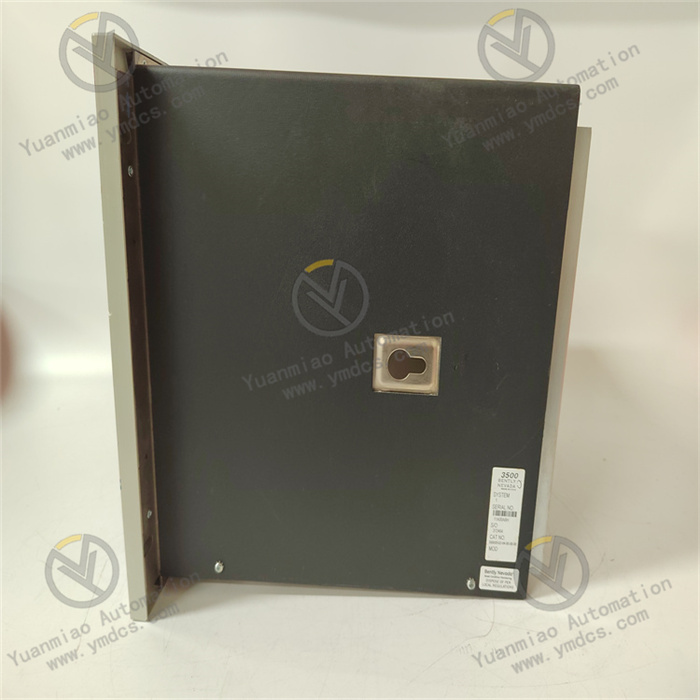

Bently Nevada 3500/05-02-04-00-00-00 is a 12‑inch mini system chassis, a core supporting component of the 3500 Series machinery vibration monitoring and protection system. It is mainly used to install 3500 Series monitor modules and chassis power supplies, providing a stable mounting carrier, backplane communication link and unified power supply for compact, space‑constrained industrial monitoring scenarios. It serves as the fundamental core component for constructing space‑saving vibration monitoring and protection systems for industrial equipment.

Developed based on Bently Nevada’s mature industrial monitoring technology, this mini chassis enables rapid module installation, flexible expansion and stable communication through a compact structural design and standardized interfaces. It undertakes the key tasks of power distribution and data exchange for modules within the chassis, ensuring efficient and reliable operation of the 3500 Series monitoring system and providing solid hardware support for vibration monitoring and fault diagnosis of industrial equipment, especially suitable for applications with limited cabinet space.

Bently Nevada 3500/05-02-04-00-00-00 specifically corresponds to a 12‑inch mini chassis (with 7 available module slots) and panel mounting. It holds hazardous area certifications including CSA/NRTL/C Class I Division 2 and ATEX/IECEx Zone 2, with no special reserved options, making it a widely used compact chassis configuration for space‑limited industrial field applications. As a core model of the 3500 Series mini chassis, it features excellent structural stability, compatibility and environmental adaptability, suitable for compact monitoring scenarios across multiple industries. It is highly compatible with various monitoring modules, power modules and system display units of the 3500 Series, facilitating the construction, upgrade and maintenance of small monitoring systems.

II. Technical Specifications

• Chassis Specification: 12‑inch mini chassis equipped with 7 available module slots, capable of installing all monitor modules, power modules and related auxiliary modules of the 3500 Series. The power supply and chassis interface module must be installed in the leftmost slot; the remaining 6 slots can be flexibly configured with various modules according to monitoring needs. It is compatible with internal safety barriers and display modules (with certain limitations), enabling basic monitoring functions without excessive additional space.
•

• Mounting Parameters: Panel mounting type (partition mounting is not supported for mini chassis), adaptable to various layouts such as panels and racks, with convenient installation and secure fixation. Wiring and I/O module access are performed from the rear of the chassis, conforming to conventional industrial field installation layouts, simplifying installation procedures and improving integration efficiency. The chassis mounting dimensions comply with standard industrial specifications, and the overall compact size suits space‑limited installation scenarios.
•

• Communication Characteristics: Built‑in backplane communication bus provides a stable link for mutual communication between modules within the chassis, ensuring smooth and accurate data transmission and supporting coordinated operation of the entire compact monitoring system. Signal exchange within the chassis is realized without additional communication modules. It can also connect to external system communication interfaces (such as Modbus and Ethernet) for data interaction with external control systems.
•

• Power Supply: Provides unified and stable power distribution for all installed modules in the chassis. The power input is compatible with standard power modules of the 3500 Series (e.g., 3500/15 power module), supporting configuration of primary and backup power supplies with redundant power options. It features excellent voltage stability, tolerating common voltage fluctuations in industrial sites, and ensures continuous and stable operation of all monitoring modules. The power module comes standard with a line noise filter to further enhance power supply stability.
•

• Environmental Parameters: Operating temperature range: -40℃ to +85℃, suitable for extreme high and low temperature industrial environments. It features excellent anti‑electromagnetic interference and anti‑vibration performance, complying with EMC standards such as EN 61000‑6‑2 / EN 61000‑6‑4, effectively resisting interference factors such as electromagnetic radiation and mechanical vibration on site to ensure stable operation of the chassis and installed modules. It offers environmental robustness with certifications applicable to marine, offshore and hazardous areas, and adapts to conventional industrial humidity conditions (5% to 95%, non‑condensing).
•

• Compatibility: Highly compatible with all monitor modules, power modules, internal safety barriers and system display units of the 3500 Series. Compatible with 3500/01 software version 2.70 and above, supporting software‑configurable operation to improve system flexibility. It is compatible with both half‑height and full‑height modules and can be installed without additional adapters. It also supports seamless connection with external control systems, reducing system integration difficulty.
•

• Physical Specification: The chassis body is made of aluminum alloy or steel with a sturdy structure, measuring approximately 304.8 mm × 24.4 mm × 163.1 mm and weighing about 2.2 kg. It is compact in size and light in weight, requires no extra maintenance under normal operating conditions, and has a long service life. It supports on‑site rapid maintenance and module replacement, and is easy to transport and install.

III. Functional Features

1. Compact Modular Installation and Flexible Expansion: Equipped with 7 standard module slots, supporting flexible installation of all monitor modules and power modules of the 3500 Series. The power supply and chassis interface module are fixed in the left slot, while other slots can be freely configured based on monitoring needs. It also supports installation of internal safety barriers and display modules (with certain limitations), flexibly adapting to compact industrial equipment monitoring requirements of different scales without occupying excessive cabinet space.


2. Stable Backplane Communication: Built‑in dedicated backplane communication bus enables seamless data exchange between modules within the chassis, ensuring fast, delay‑free, lossless transmission of monitoring data and control signals. It provides reliable support for coordinated operation of the entire compact monitoring system and ensures accuracy in equipment vibration monitoring and fault diagnosis. It can also connect to external communication interfaces for data interoperability with external control systems.


3. Standardized Multi‑Installation Adaptability: Features a standardized panel mounting design, adaptable to various layouts such as panels and racks (partition mounting not supported). Installation is convenient and secure, with wiring and I/O access from the rear to avoid front‑side interference with modules. It conforms to conventional industrial installation layouts, improves system integration efficiency and later maintenance convenience, and suits space‑limited installation scenarios.


4. Reliable Redundant Power Distribution: Delivers unified power to all modules in the chassis, supporting configuration of primary and backup power supplies with redundancy. Power transmission is stable and effectively resists voltage fluctuations in industrial environments. The standard line noise filter in the power module further enhances power stability, ensuring continuous and reliable operation of monitoring modules and preventing system interruptions or data distortion caused by abnormal power supply.


5. Industrial‑Grade High Reliability and Environmental Robustness: Constructed from industrial‑grade aluminum alloy or steel with a rugged design, providing exceptional anti‑EMI and anti‑vibration performance in compliance with international industrial EMC and safety standards. It enables long‑term stable operation within a wide temperature range of -40℃ to +85℃ and under complex working conditions such as marine, offshore and hazardous areas, with a long mean time between failures, meeting the 24/7 continuous monitoring demands of industrial equipment.


6. Excellent Compatibility and Adaptability: Fully compatible with all related components of the 3500 Series, allowing direct integration of monitoring modules, power modules and auxiliary components to build a complete compact monitoring system without additional modifications. It supports mixed installation of half‑height and full‑height modules to accommodate different module specifications, and enables seamless docking with external control systems, improving chassis versatility and integration flexibility


7. Convenient Maintenance and Overhaul: The chassis features a rational design, compact size and light weight, allowing easy module installation and removal. Rear‑side wiring layout simplifies circuit inspection and maintenance. It supports module hot‑swapping (in accordance with operating specifications), enabling module replacement and maintenance without shutting down the entire monitoring system, reducing operation and maintenance costs and downtime losses. The modular layout also streamlines system upgrades and spare part replacement.

IV. Application Areas

• Oil and Gas Industry: Used to build vibration monitoring systems for key equipment such as offshore drilling platforms, small compressors and pumps. The compact chassis structure suits space‑limited offshore platform scenarios, and it holds hazardous area certifications for stable operation in offshore environments. It supports real‑time monitoring of equipment vibration parameters and fault early warning, ensuring safe and stable operation of oil and gas extraction and transmission equipment.
•

• Energy Industry: Adapts to monitoring requirements for small wind turbines, small steam turbines and other energy equipment. Paired with 3500 Series monitoring modules, it realizes real‑time acquisition and analysis of key parameters such as equipment vibration and speed. Its compact size allows flexible integration into small equipment control cabinets, supporting fault diagnosis and maintenance of energy equipment and improving energy production efficiency and equipment reliability.
•

• Manufacturing Industry: Applied in constructing monitoring systems for small key mechanical equipment in production lines, such as small machine tools, miniature motors and small reducers. The small chassis can be integrated into space‑limited production equipment control cabinets. By integrating monitoring modules, it enables real‑time monitoring of equipment vibration status, timely detection of potential faults, reduction of downtime and improvement of production efficiency and product quality.
•

• Heavy Industry: Deployed in heavy industrial scenarios such as metallurgy, chemical engineering and mining for monitoring small centrifugal equipment, reciprocating machinery and other devices. The chassis offers excellent anti‑interference and anti‑vibration performance to resist complex on‑site interference environments. Its compact structure fits the installation space of small equipment, providing stable hardware support for equipment vibration monitoring and ensuring safe and continuous operation of heavy industrial equipment.
