Description
1. Product Overview

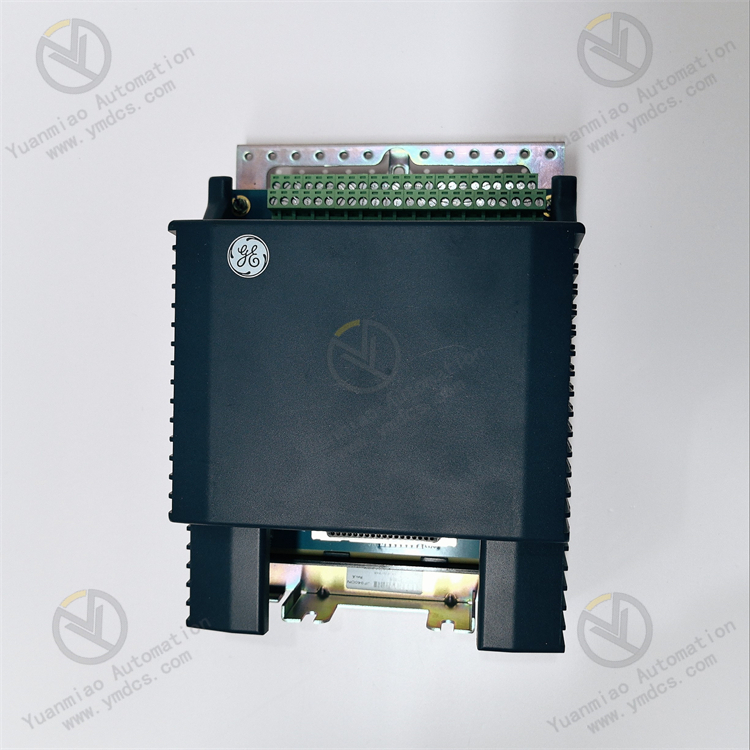

GE IS400SRLYS2ABB is an industrial multi-channel relay output module belonging to the standard hardware platform of GE IS400 series distributed control system, widely compatible with DCS automatic control systems for process industries including power, chemical, oil & gas and metallurgy. As a terminal execution unit for system logic signals, the module converts digital control commands issued by the DCS main control system into passive relay contact switching signals. It can directly drive field actuators such as solenoid valves, contactors, fans, pumps and alarm devices to realize automatic control functions including process interlock, equipment start/stop, fault alarming and safety tripping.
Adopting industrial ruggedized modular design, it integrates independent galvanic isolation loops, surge suppression protection and contact anti-breakdown circuits. It features stable output, excellent anti-interference performance, reliable load capacity and wide adaptability to various operating conditions. Compared with conventional modules of the same series, IS400SRLYS2ABB features optimized contact capacity and loop redundancy design. Its contacts deliver superior arc resistance and anti-aging performance, suitable for long-term high-frequency non-stop industrial control scenarios. It serves as core supporting hardware for spare part replacement of legacy DCS systems, automatic control loop expansion and upgrading of field interlock loops.
2. Technical Features
2.1 Upgraded High-Reliability Relay Contact Output with Excellent Load Capacity
Equipped with industrially customized reinforced alloy contacts, the module achieves greatly improved anti-oxidation, arc resistance and anti-adhesion performance compared with standard versions. Sufficient contact capacity enables direct driving of medium and small on-site power loads without additional intermediate relays. It provides fast switching response and consistent on-off performance with no delay or false triggering. It can withstand long-term industrial high-frequency start-stop cycles and eliminate control failures caused by contact ablation and poor contact.
2.2 Full-Loop Galvanic Isolation for Higher System Safety
Each output channel is equipped with an independent galvanic isolation circuit, which thoroughly separates the DCS main control logic loop from the field power execution loop. It effectively blocks reverse intrusion of on-site voltage surges, high-frequency clutter and electromagnetic interference into the control system, protecting main control cards, system buses and back-end equipment from impact, and comprehensively improving the operational stability and safety level of the whole automation control system.
2.3 Standard Modular Design with Superior Compatibility and Adaptability
Fully compliant with GE IS400 series hardware specifications, the standard board-style structure is seamlessly compatible with all supporting DCS racks and backplane buses of the IS400 series. It supports convenient assembly, precise alignment and hot-swap maintenance replacement without system shutdown. Featuring compact layout and high integration, it adapts to industrial control cabinets with dense wiring and limited installation space. No modification to the original system architecture is required for on-site renovation and capacity expansion.
2.4 Multiple Hardware Protection for Harsh Industrial Operating Conditions
The printed circuit board integrates multi-protection mechanisms including surge suppression, overcurrent limiting, short-circuit protection and contact anti-breakdown circuits, which can effectively resist instantaneous on-site voltage surges, load short circuits, abnormal loop fluctuations and other fault conditions. The whole module has passed industrial-grade tests including high-low temperature aging, temperature-humidity cycling, vibration shock and EMC tests. With dust resistance, moisture resistance, vibration resistance and strong anti-interference capability, it supports continuous stable 24/7 long-term operation.
2.5 Precise Signal Conversion and Stable & Reliable Control Logic
It accurately matches standard digital logic level signals of DCS systems, and can quickly and stably identify system control commands such as start-stop, interlock and reset. It delivers precise on-off output without signal delay or abnormal misoperation. It is perfectly applicable to various discrete control scenarios including industrial process start-stop, equipment linkage, fault alarm and safety interlock tripping, ensuring continuous, stable and controllable production processes.
2.6 Convenient Operation & Maintenance and Support for Full-Process System Commissioning & Diagnosis
It supports online DCS system self-test and real-time loop status monitoring, and can accurately feed back information such as relay output status, loop anomalies and contact faults to facilitate rapid on-site troubleshooting and loop verification. Fully compatible with official GE configuration and commissioning software, it supports parameter monitoring, status diagnosis and online debugging, greatly reducing the workload of equipment maintenance, system joint commissioning and fault troubleshooting.
3. Hardware Technical Specifications
3.1 Basic Hardware Information
- Complete Model: IS400SRLYS2ABB
- Manufacturer: GE Fanuc / GE Vernova
- Product Series: GE IS400 Series DCS System Modules
- Product Type: Industrial Ruggedized Relay Output Module
- Core Functions: DCS digital logic signal conversion, relay switching output, field equipment driving, process interlock control, fault alarm output
- Compatible System: GE IS400 Series Distributed Control System
- Typical Applications: Discrete control and interlock protection loops of DCS systems in power stations, chemical industry, oil & gas, metallurgy and intelligent manufacturing industries
3.2 Electrical Performance Parameters
- Output Type: Multi-channel passive dry contact relay output
- Input Signal: Standard DCS digital logic control signal
- Contact Characteristics: Reinforced alloy contacts with high temperature resistance, arc resistance, anti-oxidation and anti-adhesion performance
- Protection Configuration: Independent galvanic isolation, surge suppression, overcurrent protection and short-circuit protection circuits
- Operating Characteristics: Fast response speed, precise on-off logic, no delay, no misoperation and no static loss
3.3 Structural & Installation Parameters
- Structure Form: Standard industrial modular board structure with reinforced PCB technology
- Installation Mode: Embedded rail mounting inside DCS racks with precise docking of standard backplane bus
- Overall Dimensions: 200mm × 130mm × 75mm (L × W × H)
- Recommended Mounting Spacing: ≥25 mm between modules to meet heat dissipation and ventilation requirements
- Wiring Mode: Standard on-board terminal blocks for neat wiring, reliable contact and convenient maintenance
- Hardware Process: Industrial conformal coated PCB, screened reinforced components, moisture-proof, anti-corrosion and enhanced insulation technology
3.4 Environmental Operating Parameters
- Operating Temperature: -30℃ ~ +70℃ wide industrial temperature range
- Storage & Transportation Temperature: -40℃ ~ +85℃
- Operating Humidity: 5%～95%RH (non-condensing, non-corrosive gas environment)
- Environmental Resistance: Vibration resistance, shock resistance, electromagnetic interference resistance, humidity-heat aging resistance, dust-proof and moisture-proof
- Applicable Scenarios: Harsh industrial environments including industrial automatic control cabinets, power station equipment rooms, chemical central control rooms and oil & gas automatic control rooms
4. Operating Principle
The GE IS400SRLYS2ABB relay output module follows the core workflow: system signal acquisition → galvanic isolation conversion → precise relay driving → multi-protection output. After the DCS main control system issues logic commands including digital switching, interlock and alarm signals, the module independently receives and analyzes signals via isolation circuits, completely blocking reverse backflow of on-site interference signals to avoid risks of system signal disorder and hardware damage.
The decoded valid signals drive the on-board industrial relays to complete accurate pull-in and break actions, realizing on-off switching of output loops, so as to drive terminal equipment such as on-site solenoid valves, contactors, alarms and actuators to perform start-stop, interlock and alarm actions. The module monitors the operating status of each output loop in real time. Relying on built-in overcurrent, surge and short-circuit protection mechanisms, it automatically activates protection and locks the output state in case of abnormal field loads, voltage fluctuations and loop faults to protect contacts and circuit boards. Through stable signal conversion and closed-loop protection, reliable linkage between the DCS control system and industrial field equipment is realized, ensuring stable operation of process automatic control and safety interlock systems.
5. Application Scenarios
5.1 Discrete Execution Loop Control of DCS Systems
As a dedicated terminal output module for GE IS400 systems, it receives various switching control commands from the system and drives on-site equipment such as pumps, valves, fans and contactors. It adapts to core automatic control scenarios such as process start-stop, valve regulation and flow switching in chemical, power and oil & gas industries.
5.2 Process Interlock and Safety Protection Loops
It is used to build production process interlock, equipment safety protection and fault tripping loops. When the system detects process parameter over-limit, equipment faults and abnormal operating conditions, relay output from the module quickly triggers interlock actions and alarm signals to avoid process accidents and equipment damage and guarantee safe and stable production.
5.3 Signal Point Expansion and Technical Renovation of Automation Systems
It applies to technical renovation scenarios such as discrete output point expansion of DCS systems and addition of new interlock loops and alarm loops. The modular plug-and-play design quickly improves automatic control functions and meets the demands of factory capacity upgrading and process optimization transformation.
