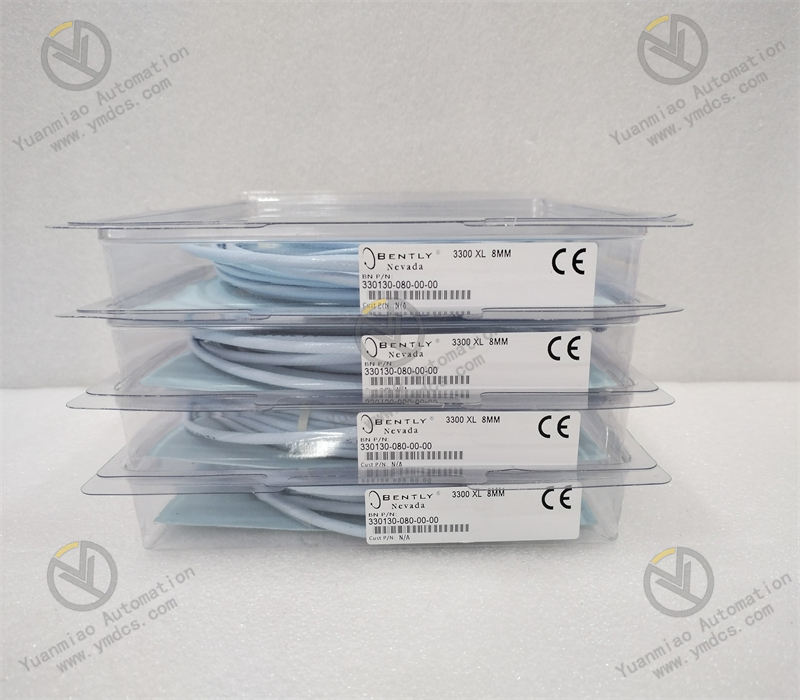

Bently Nevada 330130-080-00-00 Eddy-current extension cable

Description

1. Overview

Bently Nevada 330130‑080‑00‑00 is a standard eddy‑current extension cable of Baker Hughes Bently Nevada 3300 XL 8 mm series. As a dedicated accessory for unit condition‑monitoring systems, it is designed for signal transmission between 3300 XL 8 mm eddy‑current probes and 330180‑series proximitors. This model is a base version without armour or special protection. Different from high‑protection customized models, it features genuine standard impedance and stable distortion‑free signal transmission, and is suitable for online‑monitoring wiring of rotating machinery under general‑purpose industrial environments.

Adopting industrial‑grade standard 50 Ω coaxial‑shielded structure, this extension cable fully matches the full‑set impedance parameters of 3300 XL 8 mm eddy‑current monitoring system, and realizes distortion‑free transmission of weak dynamic signals such as shaft vibration, shaft displacement, differential expansion and key‑phase signals. Manufactured with genuine temperature‑resistant jacketing material, it delivers low transmission loss, low temperature drift, resistance to general electromagnetic interference and high long‑term operational stability. It is widely applied in condition‑monitoring systems for critical rotating equipment including steam turbines, compressors, fans and pumps in thermal‑power, chemical, oil‑gas and metallurgical industries. It serves as a standard genuine spare part for aged‑cable replacement, system maintenance and monitoring‑point retrofitting under normal operating conditions.

2. Functions and Features

2.1 Core Functions

Lossless Extended Transmission of Dynamic Sensor Signals: Exclusively compatible with the full range of 3300 XL 8 mm eddy‑current probes to extend sensor signal transmission distance. Dynamic analogue signals such as unit shaft vibration, shaft displacement, rotor differential expansion and key‑phase rotating speed are completely transmitted without attenuation, waveform distortion or phase shift to guarantee integrity and validity of raw monitoring data.

Precise System Impedance Matching: Designed in strict accordance with genuine 50 Ω coaxial‑impedance specification for perfect compatibility with original Bently Nevada probes and proximitors. It steadily maintains calibrated sensitivity, linearity and measurement coefficients of the monitoring system. No system recalibration is required after cable replacement for direct commissioning.

Electromagnetic‑interference Isolation for General‑purpose Conditions: Multi‑layer shielding effectively filters conventional on‑site high‑frequency harmonics, electrostatic interference, power‑cable crosstalk and mild electromagnetic radiation. It prevents jitter, shaking and false fluctuation of monitoring data and ensures stable steady‑state monitoring data of units.

Flexible Compatibility with On‑site Wiring: Solves difficulties caused by scattered probe mounting points, centralized cabinet layout and insufficient wiring length. It meets standardized‑wiring requirements of medium‑and‑small‑sized units, indoor cabinets and equipment under normal‑purpose conditions with neat routing and strong adaptability.

Stable Long‑term Monitoring‑accuracy Assurance: Ultra‑low temperature‑drift coefficient and transmission loss guarantee stable performance under alternating conventional temperature‑humidity conditions. No data drift occurs due to minor ambient‑temperature variation, and consistent long‑term online‑monitoring accuracy of units is maintained.

Standardized Quick Assembly‑disassembly Compatibility: Equipped with genuine precision mating connectors for smooth plug‑in, tight connection and favourable sealing performance. It is compatible with the full‑series 3300 XL 8 mm monitoring systems and supports fast on‑site maintenance‑replacement to shorten overhaul man‑hours and reduce operation‑and‑maintenance difficulties.

2.2 Product Characteristics

Ultra‑low Signal‑transmission Loss: Precision coaxial‑cable technology achieves minimal transmission loss. Fine‑detail dynamic signals of minor unit vibration and displacement are fully retained to satisfy data‑accuracy requirements for high‑precision condition‑monitoring and fault prediction of rotating machinery.

Stable Operation over General‑purpose Wide‑temperature Range: Adapts to conventional industrial high‑and‑low‑temperature conditions. The cable jacket is ageing‑resistant and temperature‑change‑tolerant; it will not harden, crack or degrade performance during long‑term continuous operation, meeting the 7×24‑hour non‑stop monitoring demand of units.

High Durability with Standard‑grade Protection: The original outer‑jacket material provides good dust‑resistance, general‑oil‑resistance, flex‑resistance and mechanical‑pull‑resistance. It is applicable to indoor and ordinary‑workshop industrial sites without extreme corrosion or heavy impact for long service life.

Full‑range Genuine‑system Compatibility: Impedance parameters, transmission characteristics, connector specifications and electrical logic are fully matched with Bently Nevada 3300 XL 8 mm monitoring system. It is compatible with full‑range probes and 330180‑series proximitors for plug‑and‑play operation without additional commissioning.

Stable Anti‑interference Performance to Prevent False Alarms: Multi‑layer shielding effectively resists conventional on‑site electromagnetic interference, avoids signal distortion, data fluctuation, system false alarms and spurious alerts, and secures stable operation of monitoring systems.

Convenient Maintenance and High Fault Tolerance: Standardized‑structure design enables flexible routing and easy assembly‑disassembly, supporting quick‑swap maintenance during unit shutdown. High batch‑to‑batch consistency without parameter deviation makes it suitable for bulk‑replacement and standardized‑system‑retrofitting scenarios.

3. Specifications

4. Operating Principle

Bently Nevada 330130‑080‑00‑00 extension cable operates on the principle of lossless transmission via 50 Ω standard coaxial impedance. As the standard signal‑extension medium of 3300 XL 8 mm eddy‑current monitoring system, it establishes a complete signal‑transmission link between eddy‑current probes and 330180 proximitors.

During normal unit operation, the eddy‑current probe senses real‑time changes in rotor‑shaft radial vibration, axial displacement, end‑face clearance and key‑phase rotating‑speed, and converts mechanical physical quantities into high‑frequency weak analogue electrical signals. These signals are transmitted losslessly through this standard extension cable to the proximitor. Benefiting from accurate 50 Ω impedance matching, the originally‑calibrated sensitivity and linearity of the system are maintained throughout; signal attenuation, phase shift and parameter drift will not be induced by the 8‑meter cable length. Multi‑layer cable shielding filters ordinary on‑site noise and electromagnetic interference, ensuring pure and authentic raw‑equipment‑operation monitoring signals delivered to the proximitor.

After receiving weak high‑frequency signals, the proximitor converts them into standard‑voltage signals and uploads them to 3500‑series monitoring hosts or industrial‑control systems for data interpretation, real‑time display, trend recording and over‑limit alarm‑protection. This extension cable guarantees integrity, real‑time performance and accuracy of dynamic monitoring signals, furnishing reliable data support for unit condition analysis, fault early‑warning, interlock protection and equipment maintenance, and ensuring long‑term safe and stable operation of rotating machinery.

5. Application Scenarios

Standard Monitoring of Conventional Rotating Machinery: Applied to conventionally‑indoor‑arranged rotating equipment such as steam turbines, compressors, centrifugal fans and process pumps in thermal‑power, gas‑power, chemical and oil‑gas industries for extended‑signal transmission of online‑monitoring for shaft vibration, shaft displacement, differential expansion and key‑phase rotating‑speed.

Standardized Long‑distance‑wiring Scenarios: For working conditions where probe mounting points are far from monitoring cabinets and short‑standard cables cannot meet wiring‑length requirements, the 8‑meter standard length fits most conventional unit‑wiring distances with neat routing and strong adaptability.

Standard‑maintenance Replacement for Legacy Systems: Used for replacing aged and damaged identical standard extension cables of legacy Bently Nevada 3300 XL monitoring systems. It resolves problems including jacket cracking, shielding failure, signal drift, data fluctuation and false alarms. System wiring and parameters remain unchanged for fast restoration of system accuracy.

Adaptation to Mild Conventional‑industrial Conditions: Suitable for indoor‑cabinet‑based ordinary‑industrial sites without heavy corrosion, extreme high temperature or severe mechanical impact. Its stable transmission performance and standard‑grade protection satisfy long‑term continuous‑monitoring requirements of units.

Retrofitting and Expansion of Monitoring Systems: Serves as a matching extension cable for signal‑wiring extension during regular‑unit‑technical‑revamp, new‑monitoring‑point addition and minor‑equipment‑layout adjustment. It adapts to standardized‑system construction and retrofitting and guarantees stable commissioning of monitoring systems.

6. Common Faults and Troubleshooting

6.1 Fluctuating, drifting or slightly‑jittering monitoring readings

Root Causes: Minor interference induced by cables routed close to power cables; dust‑oil accumulation and contact oxidation on connectors; increased transmission loss caused by mild cable bending or squeezing; slight cable ageing after long‑time operation.

Solutions: Fully inspect cable routing; keep cables away from variable‑frequency and high‑voltage power equipment and electromagnetic‑interference zones. Clean dust, grease and oxidation layers on both‑end connector faces and re‑seat firmly after drying. Rearrange cable routing to eliminate hard bending and squeezing stress. If faults persist after rectification, cable‑performance degradation is confirmed and replace with genuine 330130‑080‑00‑00 extension cable.

6.2 Loss of monitoring signals, no data display

Root Causes: Loose mating and poor‑contact connectors; broken internal cable conductors; oxidized, deformed or damaged connector pins; open‑circuit cable failure.

Solutions: Power off equipment, re‑plug and fasten both‑end connectors to ensure full engagement. Test cable continuity with multimeter to identify open‑circuit faults. Inspect integrity of connector pins. Replace with brand‑new extension cable after confirming normal operation of probes and proximitors.

6.3 Frequent system alerts for channel abnormality and signal instability

Root Causes: Slight cable‑impedance shift leading to degraded system matching; continuous ingress of conventional interference; ageing cable shielding‑layer with weakened shielding performance.

Solutions: Measure cable impedance and verify compliance with 50 Ω specification. Optimize wiring and grounding practice; implement single‑point grounding and prohibit multi‑point‑grounding interference. Clean dust and grease on cable surfaces. Replace genuine standard extension cable if shielding‑performance cannot be restored and alarms occur frequently.

6.4 Increased measurement deviation under temperature‑humidity variation

Root Causes: Elevated temperature‑drift coefficient due to cable ageing; slight connector moisture induced by excessive ambient humidity; unstable transmission performance caused by residual wiring stress.

Solutions: Optimize cable‑installation method; avoid pulling and sharp bends which leave residual stress. Improve on‑site environment to prevent condensation and over‑heat exposure. Replace with brand‑new 330130‑080‑00‑00 cable when temperature drift of aged cables exceeds allowable limits and accuracy fails to meet monitoring requirements.

6.5 Intermittent connector poor‑contact and signal dropout

Root Causes: Vibration‑induced long‑term connector loosening; degraded connector sealing admitting dust and moisture; minor pin wear and oxidation.

Solutions: Clean and dry connector mating faces, then re‑mate and fasten tightly. Inspect status of connector sealing gaskets and replace aged seals in a timely manner. Secure cable routing to reduce vibration‑induced stress on connectors. Replace cable if faults recur repeatedly.
