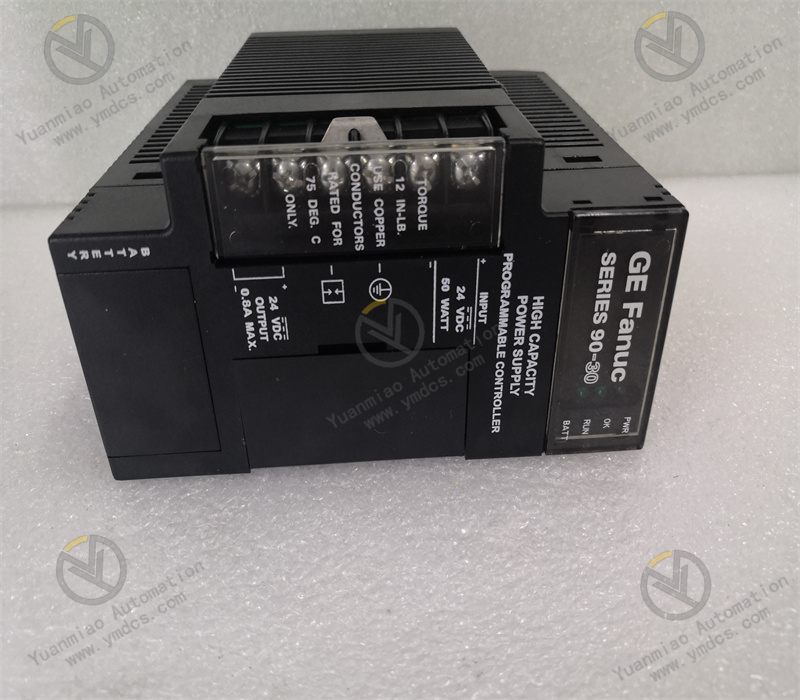

IC693PWR331C DC power supply module

Description

1. Product Overview

IC693PWR331C is a high‑performance DC power‑supply module belonging to the Series 90‑30 product family developed by General Electric (GE Fanuc). It serves as the core power‑supply unit for the 90‑30 PLC control system and is engineered to provide regulated power for complete medium‑and‑small‑size industrial PLC racks. The module supplies multiple clean and stable bus operating power to 90‑30‑series CPUs, communication modules, digital/analog I/O expansion modules and relay output loops. As the critical power hardware ensuring continuous, safe and steady operation of the whole PLC control system, it is widely deployed in industrial automatic production lines, water‑treatment plants, HVAC systems, light‑industry equipment, power auxiliary control stations, metallurgical and chemical‑process facilities and other industrial‑control applications.

As an original industrial‑grade switching‑power‑supply module from GE, the IC693PWR331C adopts a wide‑voltage DC‑input and high‑efficiency isolated voltage‑regulation architecture with three independent power‑supply outputs to satisfy differentiated power demands of the system backplane bus, relay loops and isolated input loops. It delivers outstanding advantages including high conversion efficiency, low output ripple, high‑precision voltage regulation, strong load‑carrying capacity and low temperature‑drift coefficient. Built‑in comprehensive self‑recovering electrical‑protection mechanisms enable it to adapt to complex field‑operating conditions such as mains‑voltage fluctuation, transient surge and sudden‑load variation. Featuring an industrial‑reinforced modular structure for embedded installation inside standard 90‑30 racks, the module supports 7×24‑hour non‑stop heavy‑duty operation. It can be implemented in various automation‑engineering projects, including power‑supply configuration for new 90‑30 systems, replacement of ageing legacy power modules, expansion of system power capacity and upgrading for sites suffering from grid‑voltage fluctuations.

2. Core Functions

1. Three‑channel independent isolated regulated outputs: The module provides three isolated power rails: +5 VDC for the system bus, +24 VDC dedicated to relay circuits and +24 VDC for isolated‑signal‑input loops. Each output works independently without mutual interference. It can power the PLC backplane bus, relay‑output modules and field‑signal‑input loops simultaneously, perfectly matching the native power architecture of the Series 90‑30 platform. No external auxiliary power supplies are required, which simplifies cabinet wiring and the overall power‑distribution layout.




2. Wide‑voltage input and high‑load capability: It accepts an industrial wide‑DC‑input range of 18‑30 VDC, compatible with standard 24 VDC field‑power systems and tolerant of minor grid‑voltage deviations. The total full‑load power reaches 30 W, while the maximum output current of the 5 VDC bus is 3.3 A. Its powerful load‑driving capacity supports fully populated 90‑30 racks without power derating or thermal overload under medium‑and‑small‑size PLC full‑load operating conditions.




3. High‑efficiency, low‑ripple precision voltage regulation: High‑frequency switching regulation technology yields a typical conversion efficiency ≥85 % and a full‑load efficiency ≥82 %, resulting in low energy consumption, limited heat generation and well‑controlled temperature rise. Output‑voltage accuracy is maintained within ±3 % at steady‑state full load, and total output ripple‑and‑noise is restricted to ≤150 mV peak‑to‑peak. Clean, stable output power effectively prevents common faults such as unexpected CPU resets, intermittent communication drop‑outs, false alarms from I/O modules and signal jumps caused by voltage drift or ripple interference.




4. Comprehensive self‑recovering electrical protection: Native multi‑layer protection covers over‑voltage, over‑load and short‑circuit conditions, all with automatic recovery capability. Upon detecting loop short‑circuiting, overload, abnormal voltage or transient‑surge impact, the module automatically cuts off and latches its output to stop fault propagation and protect downstream CPU and I/O hardware from damage. Power supply resumes automatically after the root fault is removed, eliminating the requirement for manual reset and greatly reducing equipment downtime and maintenance expenses.




5. Strong adaptability to wide‑temperature industrial environments: Industrial wide‑range components and reinforced‑circuit design enable reliable operation across ‑25 ℃ ~ +70 ℃. The module copes with cold‑weather startup, high‑temperature operation inside sealed cabinets and large on‑site temperature swings, while maintaining stable voltage‑regulation accuracy, conversion efficiency and load‑capacity performance without low‑temperature failure or high‑temperature power derating.




6. Standardized non‑disruptive compatibility and convenient maintenance: Fully compliant with GE Series 90‑30 hardware specifications for rack‑slot definitions, backplane power‑up timing, electrical protocols and mechanical mounting dimensions, it supports plug‑and‑play replacement with backward compatibility for both old and new systems. Swapping legacy power modules requires no modification of control logic, no alteration to on‑site wiring and no re‑commissioning, delivering simple installation, zero adaptation risk and fast system maintenance or power‑capacity upgrade.

3. Technical Specifications

4. Working Principle

The IC693PWR331C power‑supply module implements a closed‑loop power‑delivery workflow: wide‑voltage‑input filtering → surge suppression → high‑frequency voltage‑regulation conversion → multi‑channel isolated output → real‑time fault monitoring and self‑recovery. After being inserted into a standard 90‑30 rack and mated with the backplane connector, the module is energised from an external 24 VDC industrial supply. Incoming DC voltage first passes through front‑end EMI filtering and surge‑suppression circuits, which filter mains noise, voltage spikes and transient inrush current to clean the input power and prevent transient high‑voltage damage to downstream control hardware.

The conditioned, stable DC voltage is fed to the high‑frequency switching regulator. Precision transformer conversion, voltage regulation, rectification and galvanic isolation generate three mutually‑isolated standard power rails: 5 VDC for the system backplane bus, 24 VDC dedicated to relay circuits and 24 VDC for isolated‑signal loops. Each rail is regulated independently with no electrical coupling between them. Targeted power delivery to the PLC main backplane, relay‑output loads and field‑signal‑input loops achieves hierarchical isolation between the system bus, load circuits and signal circuits, eliminating cross‑loop power interference, ground‑loop noise and adverse load‑to‑load interactions.

During operation the module continuously monitors input voltage, output current, load power and loop conditions via embedded intelligent fault‑diagnostic logic. Upon detecting output short‑circuit, overload or over‑voltage anomalies, it immediately triggers latching protection and cuts the faulty output to safeguard the module and downstream equipment. Power delivery is automatically restored once the fault condition is removed, requiring no manual intervention. The regulator dynamically adapts to grid‑voltage and load changes by fine‑tuning regulation parameters in real‑time, maintaining consistent output‑voltage accuracy and power cleanliness for all three channels and ensuring long‑term safe and continuous operation of the complete 90‑30 PLC system.

5. System‑Architecture Compatibility

The IC693PWR331C is an original‑equipment factory‑specified multi‑output power‑supply module for the GE Series 90‑30 PLC platform. Its electrical specifications, voltage‑regulation logic, backplane power‑up timing, bus protocols, mechanical dimensions and rack‑connector pin‑out are fully aligned with the complete 90‑30 hardware ecosystem. It provides native compatibility with all 90‑30‑series CPUs, communication modules, digital‑/analog‑I/O modules and relay‑output modules, delivering 100 % seamless interoperability as the core standard power unit for 90‑30 racks.

Purpose‑built for medium‑and‑small‑size 90‑30 PLC architectures, its 30‑W high‑load rating, three‑channel isolated power layout and voltage partitioning match the native system‑power requirements perfectly. It reliably supports fully‑populated racks running at full load with accurate power‑on sequencing, balanced power distribution and thorough loop isolation, fundamentally mitigating power interference, insufficient supply capacity and voltage drift when multiple modules operate concurrently. Its standard embedded rack‑mount form‑factor fits conventional industrial‑cabinet layouts. The module is suitable for power‑supply deployment on new‑build 90‑30 equipment, fault‑replacement of legacy power modules, system load‑capacity expansion, site‑retrofit upgrades for grid‑voltage‑fluctuation conditions and power‑supply noise‑immunity enhancement projects. Retrofit‑upgrade work requires no changes to existing control programs, process logic or field wiring. Plug‑and‑play commissioning eliminates setup overhead and adaptation risks, resulting in measurable improvements to system load‑handling capability, power‑supply stability, fault tolerance and electromagnetic‑interference resistance.

6. Application Scenarios

Designed to overcome common limitations of traditional PLC power supplies such as weak load‑capacity, poor single‑rail versatility, high ripple, lack of galvanic isolation, incomplete protection, severe temperature drift and high sensitivity to mains‑voltage disturbances, the IC693PWR331C delivers stable power for the full operating envelope of Series 90‑30 PLC systems, leveraging its core strengths: three‑channel isolated outputs, high‑power load capability, wide‑voltage tolerance, low‑ripple precision regulation, self‑recovering protection and ultra‑wide‑temperature performance.

The module is widely deployed across intelligent‑manufacturing production lines, textile machinery, HVAC automation, water‑treatment environmental equipment, thermal‑power‑plant auxiliary control systems, chemical‑process automation, metallurgical equipment, automated warehousing and custom‑built non‑standard automation machinery, and is fully compatible with the complete GE Series 90‑30 PLC portfolio. It provides full‑rack regulated power delivery, power‑signal conditioning and electrical‑fault protection for CPUs, communication hardware, I/O modules and relay circuits. Typical engineering‑use‑cases include power‑supply packages for new automation installations, replacement of ageing failed power modules, system load‑capacity expansion, site modifications for unstable grid‑voltage environments and power‑supply‑stability optimisation for control systems. It effectively mitigates common operational faults such as unexplained PLC resets, intermittent communication loss, I/O error reporting, signal fluctuation, unintended relay actuation and power‑related shutdowns. Overall automation‑system performance is enhanced in terms of monitoring precision, process stability, fault‑response speed and continuous‑run reliability, supporting long‑term safe, steady, efficient and non‑stop industrial‑plant production.
