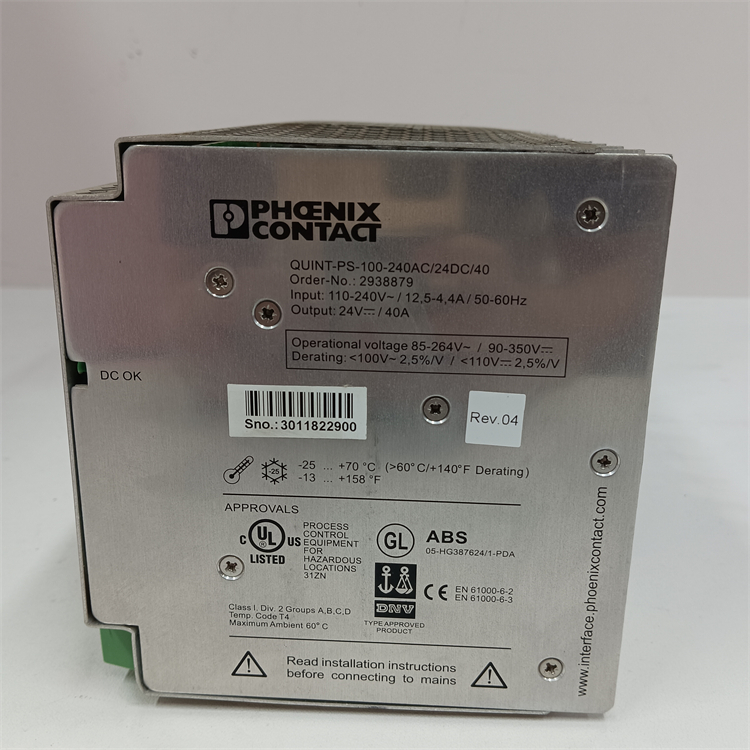

PHOENIX CONTACT QUINT-PS-100-240AC/24DC140
Technical Parameters
Input Characteristics
- Rated input voltage range: 110V AC - 240V AC.
- Input voltage range: 85V AC - 264V AC (derating < 100V DC: 2.5%/V); 90V DC - 350V DC (derating < 110V DC: 2.5%/V).
- AC frequency range: 45Hz - 65Hz.
- DC frequency range: 0Hz.
- Inrush current: <15A (typical).
- Input fuse: 20A (fast-blow, built-in).
Output Characteristics
- Rated output voltage: 24V DC ±1%.
- Output voltage (Uset) adjustment range: 22.5V DC - 28.5V DC (with stable capacity limitation when >24V DC).
- Rated output current (IN): 40A (-25°C - 60°C).
- POWER BOOST (IBoost): 45A (constant at -25°C - 40°C).
- Output power: 960W.
- Control deviation: <1% (static load change 10%-90%); <2% (dynamic load change 10%-90%); <0.1% (input voltage fluctuation ±10%).
- Ripple: <30mVss (rated value).
Other Characteristics
- Dimensions: Width 240mm, Height 130mm, Depth 125mm.
- Protection class: IP20.
- Ambient temperature (operation): -25°C - 70°C (derating 2.5%/K when >60°C).
- Ambient temperature (storage/transport): -40°C - 85°C.
- Maximum allowable relative humidity (operation): 95% (at 25°C, non-condensing).
- Parallel connection: Yes, for redundancy and capacity expansion.
- Series connection: Yes.
- Maximum capacitive load: Unlimited.
Features
- Wide-range Input Adaptability
- Strong voltage compatibility: Supports wide-range 110-240V AC input (actual range 85-264V AC), and is compatible with 90-350V DC input, adapting to power grid environments in different regions worldwide and reducing power supply selection limitations.
- Anti-interference design: Built-in 20A fast-blow fuse suppresses inrush current (<15A typical), enhancing stability during grid fluctuations.
- High-power Output and Flexible Adjustment
- Strong rated power: 40A rated current at 24V DC output, with 960W power. The "POWER BOOST" function supports temporary 45A output at -25°C - 40°C, meeting peak power demands during equipment startup.
- Wide voltage adjustment range: Output voltage can be flexibly set between 22.5-28.5V DC (capacity-limited when exceeding 24V), adapting to voltage requirements of different loads.
- High-precision Voltage Regulation and Low Ripple
- Excellent voltage regulation: Control deviation <1% (static) / <2% (dynamic) during load changes (10%-90%), and <0.1% during input voltage fluctuations of ±10%. Ripple noise <30mVss ensures stable operation of precision equipment.
- High Reliability and Environmental Adaptability
- Wide-temperature operation: Working temperature range -25°C - 70°C (derating 2.5%/K above 60°C), storage temperature -40°C - 85°C, adapting to high and low temperatures in industrial environments.
- Protection and certification: IP20 protection class supports use in dusty, humid environments (humidity ≤95% non-condensing), complying with industrial reliability standards.
- Flexible System Integration
- Parallel and series expansion: Supports parallel connection for redundancy or capacity expansion, and series connection for higher voltage needs, enhancing system design flexibility.
- No capacitive load limitation: Drives unlimited capacitive loads, avoiding power failures caused by excessive capacitive loads during startup.
- Compact Design and Convenient Installation
- DIN rail mounting: Dimensions 240×130×125mm, quickly installed via DIN rail to save control cabinet space and facilitate maintenance and expansion.
- Extended Application Scenarios
Suitable for industrial automation, PLC control systems, robotic equipment, sensor networks, etc., especially for heavy loads or complex industrial environments requiring high-power and high-stability power supplies.
