Description

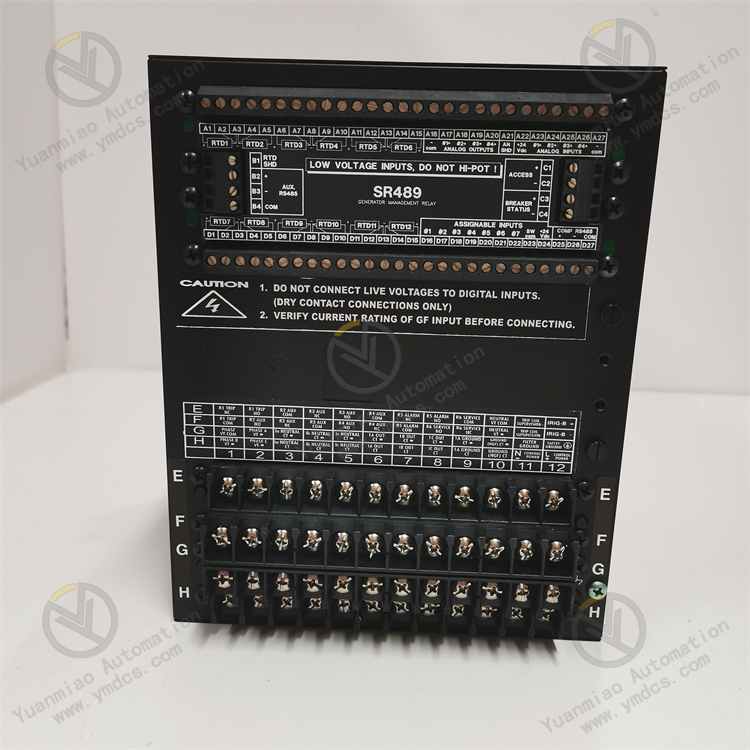

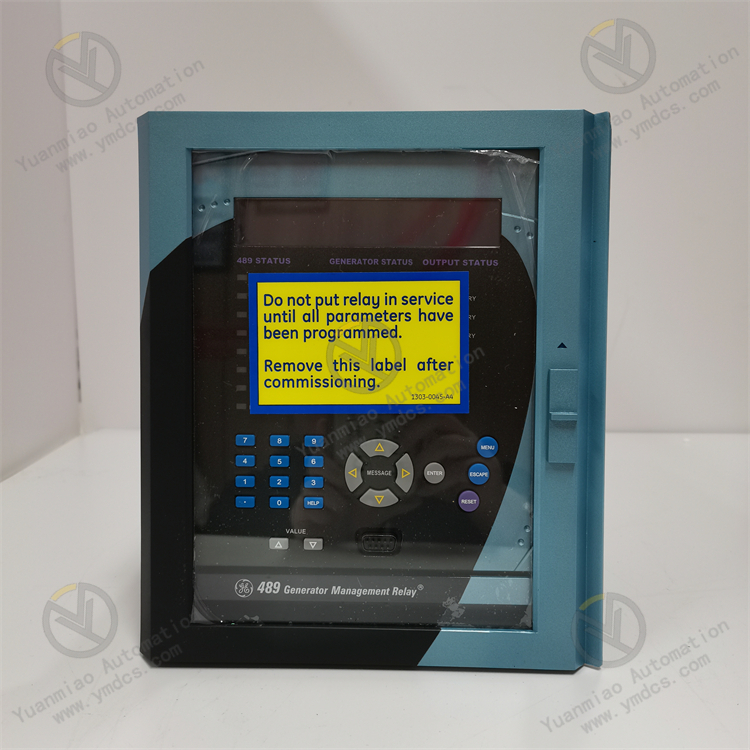

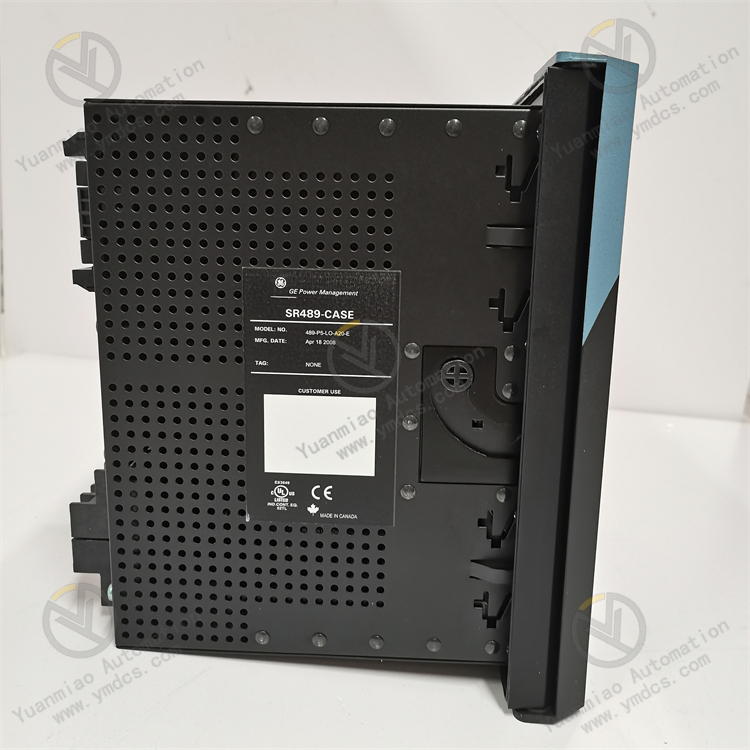

GE SR489-P5-LO-A20-E

The GE SR489-P5-LO-A20-E is a general-purpose relay output module, belonging to the classic control system architecture of GE 90-30/90-70 PLC. As a core execution component in industrial automation scenarios, it is widely used in manufacturing production line equipment control, warehouse logistics automation, building electrical control, food processing equipment drive, and small-to-medium mechanical automation scenarios. This is due to its 20-channel standard output, stable load driving, and high compatibility design. It undertakes basic execution tasks such as conveyor start-stop, valve switching, indicator light control, and small motor driving.

Its core advantages lie in the adoption of standardized modular design and enhanced relay contact technology. While achieving 20-channel independent and reliable output, it can seamlessly adapt to GE's mainstream PLC controllers, constructing a complete control link of "logical operation - signal output - equipment execution". It provides a cost-effective execution-layer solution for mid-to-low-end industrial control scenarios and is a mature general-purpose relay output module in the industrial automation field.

1. Technical Parameters

1.1 Core Output Parameters

• Equipped with 20 independent relay output channels, each adopting a Single-Pole Double-Throw (SPDT) contact form. The rated contact capacity is AC 240V/5A and DC 30V/5A, fully supporting resistive, inductive, capacitive, and lamp-loaded load types.
• The electrical life of contacts is ≥1 million times (under rated load conditions), and the mechanical life is ≥10 million times.
• The output response time is ≤12ms (from coil energization to contact action), and the release time is ≤6ms, which can meet the real-time control needs of most general industrial scenarios.
• Each channel is equipped with an independent LED status indicator. A green light on the front of the module indicates closed contacts, and an off light indicates open contacts, providing intuitive and clear status feedback.

1.2 Electrical Performance Parameters

• The rated operating voltage of the coil is DC 24V, with an allowable voltage fluctuation range of ±10% (i.e., 21.6V-26.4V).
• The rated current of each coil is ≤80mA, and the total current of the module during full-load operation is ≤1.6A.
• The electrical isolation between channels is ≥1500V AC/1min, and the isolation between coils and contacts is ≥1500V AC/1min, effectively blocking signal crosstalk between channels and external interference intrusion.
• It has basic surge suppression capability. When contacts are closed, it can withstand 8 times the rated surge current (lasting 10ms).
• The electromagnetic compatibility performance complies with the basic standards of the IEC 61000-4 series, with radiated interference resistance ≥80V/m and conducted interference resistance ≥1kV (1.2/50μs).

1.3 Structural and Installation Parameters

• Adopts a standard PLC modular design, accurately adapting to the standard racks of GE 90-30/90-70 series PLCs (such as IC693CHS391, IC697CHS750). The module dimensions (width × height × depth) are 44.5mm × 127mm × 190.5mm, strictly following the IEC 61131-2 installation specifications.
• The shell is made of high-strength flame-retardant ABS engineering plastic, with a flame-retardant grade of UL 94 V-0, effectively improving the safety of equipment operation.
• The protection level is IP20 (module body) and IP40 (terminal block area).
• The wiring method uses front-pluggable spring terminals, supporting AWG 22-14 wires. Wiring and disassembly can be completed without tools, greatly improving installation and maintenance efficiency.

1.4 Environmental Adaptability Parameters

• The operating temperature range is 0℃~60℃, and the storage temperature range is -40℃~85℃, adapting to environments such as conventional industrial workshops and control rooms.
• The relative humidity is 5%~95% (no condensation), which can cope with high-humidity scenarios such as high-humidity warehouses and food processing workshops.
• The vibration resistance performance complies with the IEC 60068-2-6 standard (10~500Hz, acceleration 2g), and the impact resistance performance complies with the IEC 60068-2-27 standard (10g, 11ms half-sine wave), which can withstand conventional vibration and instantaneous impact during equipment operation.
• The heat dissipation method is natural convection heat dissipation, which can meet the full-load operation requirements without additional heat dissipation fans.

1.5 Compatibility and Reliability Parameters

• Compatible with GE 90-30 series CPUs (such as IC693CPU313/314/315) and 90-70 series CPUs (such as IC697CPU771/772). Data communication is realized through the system backplane bus, and the communication rate is synchronized with the CPU bus rate (up to 1Mbps).
• The Mean Time Between Failures (MTBF) is ≥200,000 hours, supporting the online hot-swapping function (needing to be matched with a GE dedicated rack). Module replacement can be completed without stopping the PLC, effectively reducing production downtime losses.

2. Functional Features

2.1 20-Channel High-Density Output for Optimized Space Utilization

• Adopts a compact circuit layout design, integrating 20 independent relay output channels within the standard PLC module width (44.5mm).
• Compared with traditional 16-channel output modules, it can increase the output point density by 25% in the same rack space, significantly reducing the space occupied by the PLC rack in the control cabinet. It is especially suitable for control scenarios with dense points such as production lines and assembly lines.
• Each channel has an independent wiring interface and clear number marking, facilitating on-site wiring construction and later fault troubleshooting. A single-channel fault will not affect the normal operation of other channels, ensuring the overall reliability of the system.

2.2 Enhanced Contact Design for Adapting to Diverse Loads

• The relay contacts are made of silver-nickel alloy (AgNi), treated with special electroplating and polishing processes, featuring excellent electrical conductivity and anti-erosion performance. The 5A rated capacity can directly drive common industrial loads such as small motors, solenoid valves, and indicator lights, without the need for additional intermediate relays for load expansion.
• The SPDT contact form supports flexible configuration. Normally open or normally closed output can be realized by adjusting the wiring method, adapting to different control logic requirements without replacing the module model, improving the versatility of the module.

2.3 Wide Compatibility Design for Reducing Integration Costs

• It perfectly adapts to the two mainstream PLC series of GE 90-30/90-70 and can be directly connected to the system without adding additional adapter modules, simplifying the integration process of the control system.
• It supports channel configuration and logic programming through mainstream PLC programming software such as GE Proficy Machine Edition. The parameter setting is intuitive and convenient, reducing the debugging difficulty for engineers.
• It can work in collaboration with GE series digital input modules (such as SR469-P5-HI-A20-E) to build a complete "input - operation - output" control closed loop, improving system integration efficiency.

2.4 Basic Protection Design for Ensuring Stable Operation

• Each relay coil has a built-in freewheeling diode, which can effectively suppress the reverse electromotive force generated when the inductive load is powered off, avoiding the reverse voltage breaking down the internal drive circuit of the module and protecting the safety of the module and the PLC controller.
• The enhanced isolation design between channels and the basic surge suppression function can resist common electromagnetic interference and voltage fluctuations in industrial sites, ensuring stable operation near interference sources such as frequency converters and high-power motors.
• The flame-retardant shell design can effectively reduce safety risks caused by faults such as short circuits and overloads, complying with industrial safe operation standards.

2.5 Convenient Maintenance Design for Reducing Maintenance Costs

• Each channel on the front of the module is equipped with an independent LED status indicator. Maintenance personnel can intuitively judge the working status of the channel through the indicator light, and quickly locate the fault channel without using testing tools such as multimeters, greatly improving fault troubleshooting efficiency.
• The front-pluggable spring terminal design allows wiring disassembly and module replacement without tools. Combined with the online hot-swapping function (needing rack support), maintenance operations can be completed without stopping the system, reducing production downtime losses.
• The modular structure design makes module maintenance more convenient, reducing later maintenance costs.

3. Working Principle

3.1 Control Signal Receiving Link

• The module establishes a communication connection with the GE PLC controller through the back bus interface, receiving digital control signals (high level/low level) sent by the controller.
• The bus interface adopts a photoelectric isolation design to realize electrical isolation between the PLC controller's control signals and the module's internal circuit, preventing external interference from invading the controller through the bus and ensuring the reliability of control signal transmission.
• The module has a built-in signal buffer circuit, which can stably receive the weak current control signals output by the controller, preventing drive abnormalities caused by signal attenuation.

3.2 Relay Driving Link

• When the module receives a valid control signal (default DC 24V high level) sent by the controller, the internal drive circuit supplies power to the relay coil of the corresponding channel.
• After the coil is energized, it generates electromagnetic attraction to attract the armature and drive the contacts to move, switching the SPDT contacts from the normally closed end to the normally open end, realizing the connection of the load circuit.
• When the control signal becomes an invalid level, the coil is de-energized, the electromagnetic attraction disappears, the armature resets under the action of the return spring, the contacts return to the normally closed state, and the load circuit is disconnected.
• The drive circuit of each channel is designed independently, and a single-channel drive fault will not affect the normal operation of other channels.

3.3 Status Feedback and Indication Link

• While the relay contacts are moving, the internal status detection circuit of the module collects the contact position signal in real time and feeds it back to the PLC controller through the bus interface, realizing closed-loop monitoring of the output status and facilitating the controller to grasp the load operation status in a timely manner.
• The LED indicator on the front of the module is synchronized with the contact status of the corresponding channel. The indicator light is on when the contacts are closed, and off when the contacts are open, providing intuitive status indication for on-site maintenance personnel and facilitating on-site inspection and fault troubleshooting.

3.4 Protection Circuit Working Link

• For inductive loads such as solenoid valves and small motors, each relay coil is connected in parallel with a freewheeling diode. When the load is powered off, the freewheeling diode provides a discharge loop for the reverse electromotive force, preventing the reverse voltage from breaking down the drive circuit components.
• The module has a built-in main power overload protection fuse. When the total current of the module exceeds the rated value (1.6A), the fuse blows to cut off the power input and protect the internal circuit of the module from damage.
• The isolation circuit between channels can effectively prevent the overcurrent generated by the short circuit of one load from affecting other channels, realizing fault isolation.

4. Common Faults and Solutions

4.1 Fault 1: No Output from a Certain Channel, Load Does Not Operate

Possible Causes

• The PLC controller does not send a valid control signal.
• Poor contact between the module and the rack bus.
• The relay coil is burned out.
• Drive circuit fault.
• Loose or short-circuited load wiring.

Solutions

1. Monitor the output signal status of the corresponding channel through PLC programming software to confirm whether the controller sends control commands normally. If not, troubleshoot the control logic or controller fault.
2. Power off and re-plug the module to ensure good contact between the module and the rack bus. If the bus interface is oxidized, clean it with alcohol cotton.
3. Measure the relay coil resistance with a multimeter (normal range 100-300Ω). If the resistance is infinite, the coil is burned out, and the relay or module needs to be replaced.
4. Check the load terminal blocks, re-tighten the wires, and measure the load resistance with a multimeter. If there is a short circuit, troubleshoot the load fault first.
5. If the above measures are ineffective, the drive circuit may be faulty, and the module needs to be returned to the factory for repair or replacement.

4.2 Fault 2: Relay Contact Adhesion, Load Runs Continuously and Cannot Be Disconnected

Possible Causes

• The load current exceeds the rated capacity of the contacts, causing contact ablation and adhesion.
• Frequent start-stop causes mechanical wear of the contacts.
• Inductive loads are not equipped with surge suppression devices, causing arc ablation.

Solutions

1. Measure the actual working current of the load with a clamp ammeter to ensure it does not exceed the 5A rated capacity. If overloaded, add an intermediate relay to expand the load capacity.
2. Replace the relay corresponding to the 粘连 channel (needing professional operation). If multiple channels are frequently 粘连，evaluate whether the service frequency exceeds the mechanical life, and replace the module if necessary.
3. For inductive loads such as motors and solenoid valves, connect a surge suppressor (such as a varistor) in parallel at both ends of the load to reduce contact arc ablation.
4. Optimize the control logic to reduce unnecessary frequent start-stop operations and extend the service life of the contacts.

4.3 Fault 3: Abnormal LED Indicator Status (Not On or Always On)

Possible Causes

• The LED indicator is burned out.
• Status detection circuit fault.
• Abnormal PLC control signal.
• Insufficient module power supply voltage.

Solutions

1. If the contacts operate normally but the indicator light is not on, it can be determined that the LED light is burned out, which does not affect the module's function. Contact after-sales service if replacement is needed.
2. If the indicator light is always on but the contacts do not operate, check whether the PLC control signal is continuously at a high level. If the signal is normal, the status detection circuit is faulty, and the module needs to be returned to the factory for repair.
3. Measure the module power supply voltage with a multimeter to ensure it is DC 24V±10%. If the voltage is insufficient, troubleshoot the power supply circuit or replace the power supply.
4. Re-download the PLC control program to eliminate signal abnormal problems caused by program logic errors.

4.4 Fault 4: Module Cannot Communicate with PLC, No Response from All Channels

Possible Causes

• The module is not properly installed on the rack.
• Damaged bus interface.
• PLC controller fault.
• Incorrect module address setting (for some models).
• Power supply fault.

Solutions

1. Power off and re-install the module on the rack, ensuring it is fully inserted and locked. Check that the rack bus pins are not bent or damaged.
2. Replace the same-type spare module into the same slot. If the spare module works normally, the original module's bus interface is damaged, and the original module needs to be returned to the factory for repair.
3. Check the operation status of the PLC controller, restart the controller and try again. If all modules cannot communicate, the controller is faulty.
4. For models requiring address setting, verify that the module address DIP switch is consistent with the system configuration.
5. Measure the module power supply voltage and grounding condition to ensure stable power supply and good grounding (grounding resistance ≤4Ω).
