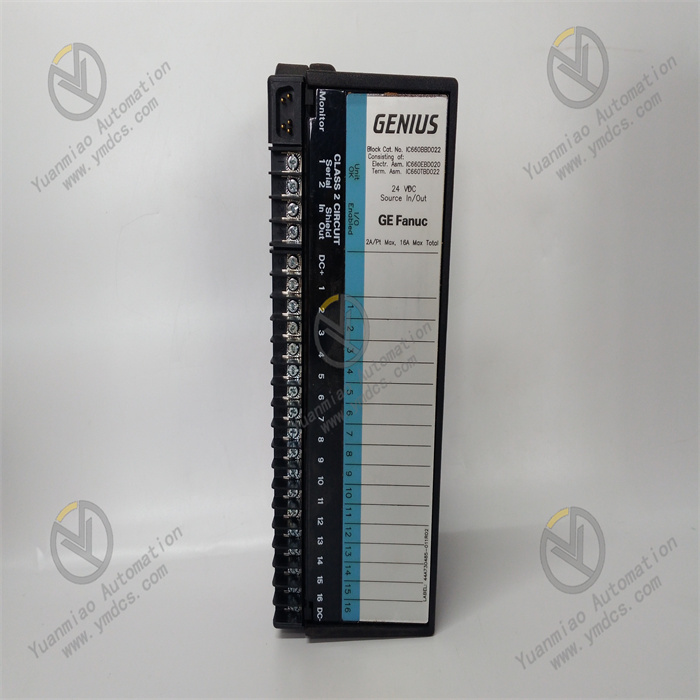

GE Fanuc IC660BBD022

1. Flexible Circuit Configuration: Its 16 discrete circuits are highly flexible, and each circuit can be conveniently configured as input, tri-state input, or output mode according to actual needs. This enables it to easily connect various discrete DC sensors and actuators, such as 2-wire and 3-wire solid-state sensors, electromechanical sensors, etc., greatly expanding its applicability in different industrial scenarios.
2. Rich Configurable Functions: It has a series of practical configurable functions. The output pulse test function facilitates engineers to detect and debug output signals; the optional input filtering time (ranging from 10ms to 100ms) can effectively filter out noise interference in input signals to ensure the accuracy of collected data; the output power-on default value and the function of output maintaining the last state or default state provide stable and presettable output states for the system in different operation stages, enhancing the stability and controllability of system operation.
3. Powerful Diagnostic and Protection Functions: It has built-in perfect diagnostic mechanisms and safety protection measures. It is equipped with electronic short-circuit protection and over-temperature protection functions, which can timely respond to abnormal situations and avoid damage to the module and related equipment. At the same time, it can accurately detect problems such as switch failures, tri-state input open circuits, overloads, and no-loads, and clearly indicate the current state through the unit OK, I/O enable LED (located on the I/O block), and individual load-side indicator LEDs (equipped for each circuit), facilitating operators to discover and solve problems in a timely manner and ensuring the continuous and stable operation of the system.
4. Efficient Communication Capability: It supports the Genius protocol and can realize efficient data exchange through the provided Genius I/O bus terminals. This enables it to smoothly transmit data between GE programmable logic and automation controllers (PLC/PAC), bus controllers, PC interface modules, human-machine interfaces (HMI) and other modules, as well as third-party equipment. The module also supports remote installation, with a maximum distance of 7500 feet from partner devices, and allows other I/O modules to be connected through a daisy chain, thus building a large and flexible Genius I/O network to meet the communication needs of large-scale industrial automation systems.

1. Electrical Parameters
• Operating Voltage: 18-30VDC (single source), which can adapt to a certain range of voltage fluctuations to ensure stable operation under different power supply conditions. At the same time, the ripple requirement is preferably 10%, the typical DC power demand is 150mA, preferably 300mA, and the power supply voltage drop time is 10ms, ensuring the stability and reliability of the power input.
• Input Signal: The input signal voltage is 24/48VDC, and the input processing time is 1.7ms (plus configurable filtering time), which can quickly and accurately collect external signals, and further optimize the signal quality through configurable filtering.
• Output Signal: The output current is 2 amperes per circuit, which can meet the driving needs of most actuators. The maximum inrush current is 10 amperes, the duration can reach 10ms, the maximum output turn-on delay is 1ms, and the output response time is 1.0ms, ensuring that the output signal can quickly and stably control external equipment.
2. Physical Parameters
• Dimensions: The module dimensions are 8.83 inches in height, 4.42 inches in depth, and 3.56 inches in width. It has a small volume, can effectively save panel space in installation environments with limited space such as control cabinets, and is convenient for installation and layout.
• Weight: Approximately 1.75 lbs, which is light in weight, facilitating transportation and installation operations.
3. Environmental Parameters
• Operating Temperature: 0 to 60°C, which can adapt to a relatively wide range of operating temperatures. It can operate stably in both high-temperature industrial production workshops and industrial facilities in cold environments.
• Storage Temperature: -40°C to 100°C, which can be safely stored in a large temperature range in non-working conditions, ensuring that the equipment performance is not affected.
• Humidity: 5-95% non-condensing, which can work normally in environments with large humidity changes, avoiding circuit failures caused by humid environments and improving the environmental adaptability of the equipment.
• Protection Level: Although some data do not clearly mention the specific protection level, it can be seen from the fact that it needs to be installed in a protective enclosure to protect against industrial pollutants that it has a certain protective capability, which can effectively prevent dust, water vapor, etc. from eroding the internal circuits of the module.
• Isolation Characteristics: It has 1500V block-to-block isolation, which can effectively prevent electrical interference between different circuit modules and ensure the accuracy and stability of signal transmission.

1. Industrial Automation Production Lines: In industrial automation production lines, IC660BBD022 can be connected to various sensors, such as limit switches and photoelectric sensors, to monitor information such as the position of materials on the production line and the operating status of equipment in real-time; at the same time, it can be connected to actuators, such as solenoid valves and relays, to control key links such as material conveying, equipment start-stop, and product quality inspection. Through accurate signal collection and control command output, the automatic operation of the production line is realized, which greatly improves production efficiency, reduces labor costs, and ensures the stability of product quality.
2. Chemical Production Processes: In chemical production scenarios, this module can collect analog signals such as temperature, pressure, and liquid level of reaction kettles, as well as digital signals such as the switch status of various valves and pumps. Based on these real-time data, according to the preset control logic, it can accurately control equipment such as heating devices, stirrers, and valves to ensure that chemical reactions are carried out under safe, stable, and efficient conditions, improve the qualification rate of chemical products, and avoid safety accidents and production losses caused by parameter out of control.
3. Power System Monitoring: In power systems, it can be used to monitor the operating parameters of equipment such as generators, transformers, and distribution cabinets, such as voltage, current, frequency, etc., as well as the opening and closing status of switchgear. Once abnormal data or changes in equipment status are detected, the signal is transmitted to the control system in a timely manner so that corresponding measures can be taken to ensure the stable operation of the power system, improve power supply reliability, and reduce the probability of power outages.
