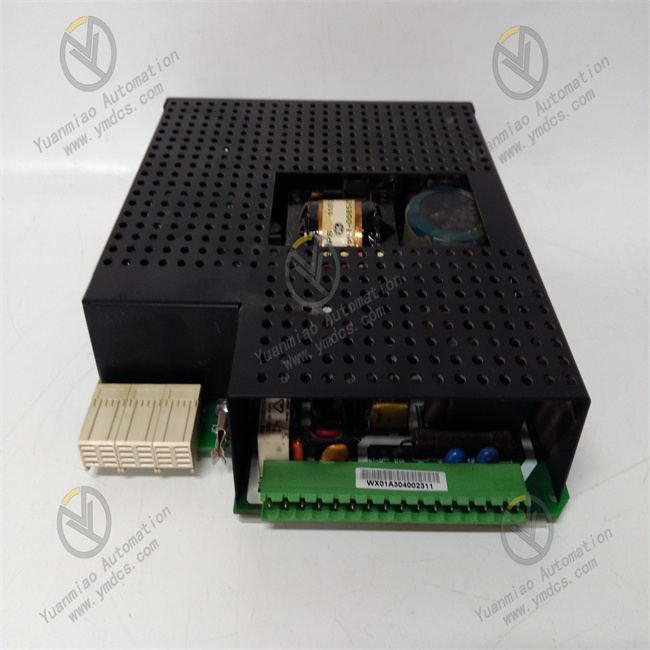

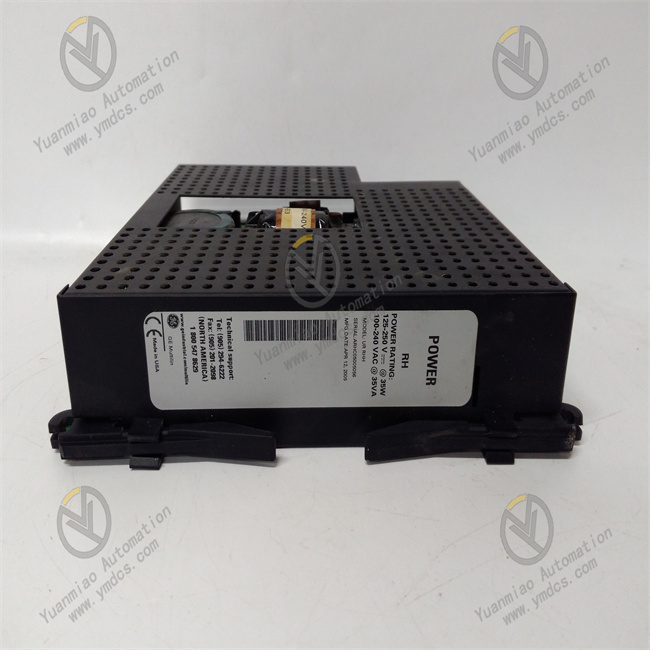

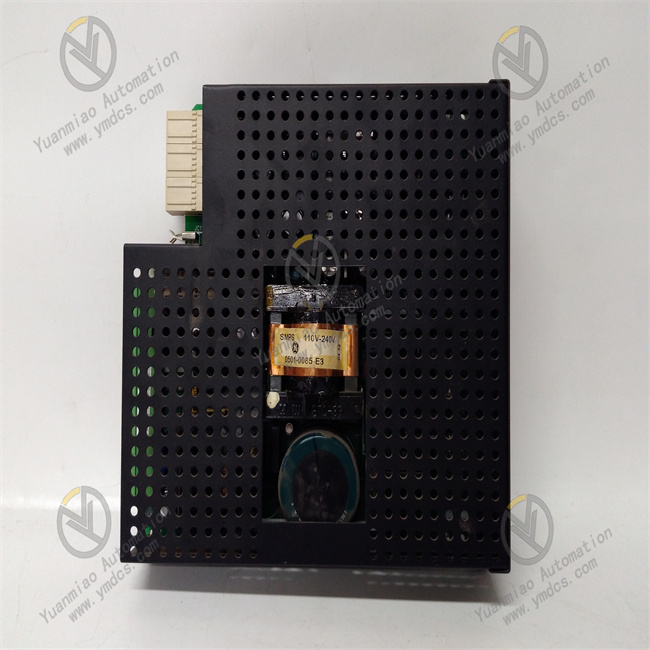

GE Multilin URRHH

1. Flexible Voltage Range Selection: URRHH offers two different voltage ranges for users to choose flexibly. The low range (LO) is 24 to 48V nominal (DC only), suitable for equipment or scenarios with strict requirements for DC power supply and relatively low voltage levels; the high range (HI) is 125 to 250V nominal (both DC and AC). This range is compatible with both AC and DC power sources, greatly expanding its application possibilities under different power supply conditions. It can be applied in both conventional industrial facilities mainly powered by AC and special equipment systems partially relying on DC power.
2. Redundant Power Supply Configuration Option: The module provides a redundant power supply option, allowing users to configure flexibly according to the system's different reliability requirements. The redundant power supply design is particularly critical in industrial production processes with extremely high requirements for power supply continuity, such as chemical production and power generation where operation cannot be easily interrupted. When the main power supply fails, the redundant power supply can switch seamlessly and continue to supply power to the relay and related equipment, ensuring uninterrupted system operation, avoiding production downtime, equipment damage, or even safety accidents caused by power supply failures, and effectively improving the stability and reliability of the entire system.
3. Comprehensive Health Monitoring and Protection: The URRHH power module has a built-in perfect health monitoring mechanism, which can automatically evaluate its own operating status with the help of the relay's self-test components. Through comprehensive primary and secondary tests, it can not only accurately determine whether the hardware functions are normal but also quickly take measures to disable the power module in case of critical failures, preventing the failure from expanding and protecting the connected relay and other equipment. Once the test detects a hardware problem or critical failure, the system will immediately send a clear indication to the operator through the LED indicators located on the panel of all UR units. The panel LEDs directly related to the power supply display the current working status of the power module in different states such as continuous lighting, flashing (on/off cycle), and extinguishing, facilitating operators to detect problems in a timely manner, conduct troubleshooting and handling, and ensure the continuous and stable operation of the system.
4. Efficient and Stable Power Supply: As a power module, its core function is to provide stable power to the equipment. URRHH can stably supply the required power to relays and dry contact input connections, ensuring that the equipment will not have malfunctions, performance degradation, or other issues due to power fluctuations or instability during normal operation. Meanwhile, the internal 4A/250V fuse rating design can quickly cut off the circuit in case of abnormal situations such as excessive current, playing an effective overcurrent protection role, preventing damage to the module itself and connected equipment due to current overload, and further enhancing the safety and reliability of power supply.

1. Electrical Parameters
• Input Voltage Range: Covering 24 - 48V DC (low range) and 125 - 250V (DC and AC, high range), it can adapt to various types of power sources, meeting the power access needs of different industrial scenarios.
• Power Output: It can provide a power output of 35W, which can supply sufficient power support to connected relays and related equipment, ensuring the normal operation of the equipment. In some special markings, there is also a power description of 35VA (corresponding to the 100 - 240V AC range), further reflecting its power adaptation capability under different voltage input conditions.
• Internal Fuse: Built-in 4A/250V fuse. When abnormal situations such as overcurrent occur in the circuit, the fuse can quickly blow to cut off the circuit, protecting the module and other equipment.
2. Physical Parameters
• Dimensions: The module is approximately 6.5 inches in length, 6.5 inches in width, and 1.75 inches in height. The relatively compact size design enables it to be installed and arranged conveniently in installation environments with limited space such as control cabinets, without occupying excessive space resources.
• Weight: Approximately 2 pounds 2 ounces (about 0.97 kilograms). Its light weight facilitates handling and operation during equipment installation and maintenance, reducing the difficulty and labor intensity of manual operations.
3. Environmental Parameters
• Operating Temperature Range: It can usually work normally within the temperature range of -20°C to +70°C, adapting to temperature changes in most industrial environments. It can operate stably in industrial facilities in cold regions and high-temperature workshops, ensuring the continuity of power supply.
• Storage Temperature Range: The storage temperature range is -40°C to +85°C. During the storage phase when the equipment is not in use, it can be stored safely within a large temperature range without damaging the equipment performance due to temperature issues, ensuring that the equipment can be put into normal operation when needed.
• Humidity Range: Generally, it can work normally in an environment with a relative humidity of 5% - 95% (non-condensing), with certain moisture-proof capabilities. It can adapt to industrial environments with large humidity changes, such as food processing workshops, paper mills, and other places with high humidity, avoiding circuit short circuits, corrosion, and other problems caused by moisture, and extending the service life of the equipment.

1. Industrial Automation Control Systems: In various industrial automation production lines, URRHH can serve as a key power module to provide stable power for relays. Relays in automated production lines are responsible for controlling the start-stop and operation state switching of various equipment such as motors, valves, and sensors. With the stable power supply of URRHH, relays can accurately and quickly respond to control signals, thereby ensuring the efficient and stable operation of the entire automated production line. For example, in automobile manufacturing production lines, the relays used to control the movement of robotic arms and the operation of component conveying equipment, supported by the URRHH power module, can accurately execute various operation instructions, ensuring the precise assembly of automobile components and the smooth operation of the production line, improving production efficiency and product quality.
2. Power System Protection and Control: In power generation, transmission, and distribution links, URRHH can be used to provide power for power protection relays. These relays in the power system are responsible for monitoring parameters such as current, voltage, and frequency, and acting quickly to cut off the faulty circuit when abnormal situations (such as overload, short circuit, undervoltage, etc.) occur, protecting power equipment and the entire power grid. The stable and reliable power supply of URRHH can ensure that protection relays work accurately under various complex power operation conditions, respond to power system faults in a timely manner, ensure the safe and stable operation of the power system, reduce the probability of power outages, and improve power supply reliability.
3. Chemical Production Process Control: Chemical production processes usually involve complex and dangerous working conditions such as high temperature, high pressure, flammability, and explosiveness, requiring extremely high stability and reliability of equipment operation. The URRHH power module can supply power to various control relays in the chemical production process. These relays are used to control key links such as the stirring speed of reaction kettles, the opening and closing of valves, and the conveying of materials. By providing stable power for relays, it ensures that various control instructions can be accurately transmitted and executed during chemical production, maintaining chemical reactions under safe and stable conditions, avoiding control errors caused by power problems, preventing production accidents, and ensuring the smooth progress of chemical production and the safety of personnel and equipment.
4. Intelligent Buildings and Building Automation: In intelligent buildings and building automation systems, it is necessary to centrally control and manage many equipment such as air conditioning systems, lighting systems, elevator systems, and security systems. URRHH can serve as a power module to supply power to the relays controlling these equipment, ensuring that the relays can accurately control the operation state of the equipment according to preset control logic, such as time control, temperature control, and human body induction control. For example, controlling the switching of the lighting system through relays to automatically adjust the lighting brightness according to ambient light intensity and personnel activity, achieving the purpose of energy saving and comfort. The stable power output of URRHH provides a solid guarantee for the stable operation of intelligent building systems, improving the intelligent management level of buildings and user experience.
