Description

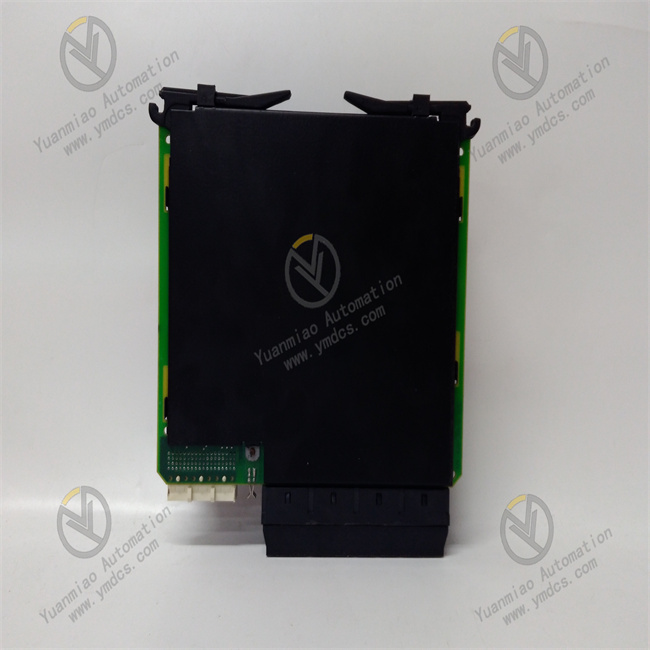

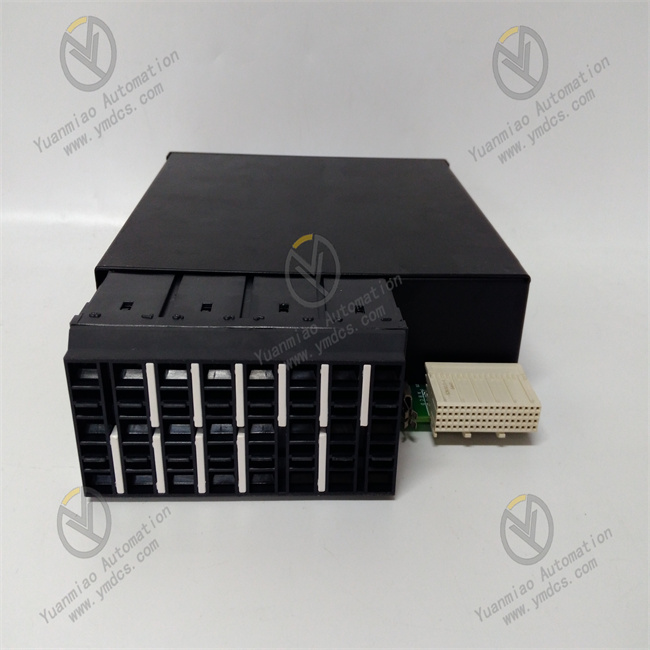

GE Multilin UR6PH
GE Multilin UR6PH is a digital I/O module in the GE Multilin UR series of universal relays. It is mainly used for monitoring and controlling equipment in industrial automation systems, and can provide advanced protection, control, monitoring, and metering solutions for critical applications such as power systems.
Functional Features:
- Integrated Monitoring and Metering: It can observe system performance in real-time and has optional voltage and current metering functions, which helps in precise monitoring and analysis of the system's operating status.
- High-performance Protection: It can provide reliable protection for critical assets, ensuring the safe operation of equipment such as power systems.
- Intuitive Display: Equipped with a large full-color display, which enhances visibility and usability, making it convenient for operators to view relevant information and perform operations.
- Convenient Communication: It has three Ethernet ports, facilitating communication and connection with other devices, enabling high-speed data transmission.
- Flexible Configuration: Supports extensive programming and configuration, allowing flexible settings according to different application scenarios to meet diverse needs.
- Event Recording Function: Has digital sequence of events and fault recording functions, which can capture key system data, facilitating fault troubleshooting and system operation analysis.
- R-GOOSE Support: Supports routable GOOSE (R-GOOSE), suitable for wide-area protection and control applications, enabling fast and reliable message transmission.
Technical Parameters:
- Input/Output Channels: 6 Form-A outputs and 4 digital inputs.
- Input Voltage: Usually 24VDC, with models available for 100-240V AC as well.
- Output Voltage: Commonly 0-10V DC.
- Isolation Capability: 2000Vrms.
- Response Time: Input response time of 0.25ms, output response time of 0.3ms.
- Communication Interfaces: Supports multiple communication protocols such as RS-485, Modbus RTU, and DNP3.
- Operating Temperature: -30℃ to +65℃.
- Storage Temperature: -40℃ to +85℃.
- Humidity: 95% without condensation.
- Installation Method: DIN rail mounting.
- Dimensions: Approximately 263mm (length) × 58mm (width) × 28mm (height).
- Weight: Approximately 1.5kg.
Working Principle: UR6PH receives digital signals from external devices such as sensors and switches through 4 digital input channels. These signals are processed through internal circuit isolation and other treatments, then converted into logic levels recognizable by the module. The module processes the signals according to preset programming and configurations. The processed signals can be output through 6 Form-A output channels to control external devices such as alarms, indicator lights, or actuators. Meanwhile, the module can communicate with upper computers, other relay modules, etc., via three Ethernet ports or other communication interfaces to upload equipment status information or receive control commands. It can also use its metering function to measure relevant electrical parameters and display or record related data in real-time through the display.
Application Fields: It is mainly applied in power systems and can be used for the control and monitoring of substation equipment, such as the status monitoring and control of circuit breakers and disconnectors. It is also suitable for the field of industrial automation, capable of signal interaction and control of production line equipment and robot workstations. In addition, in energy management systems, it can be used for monitoring various energy equipment to achieve efficient management and distribution of energy.
